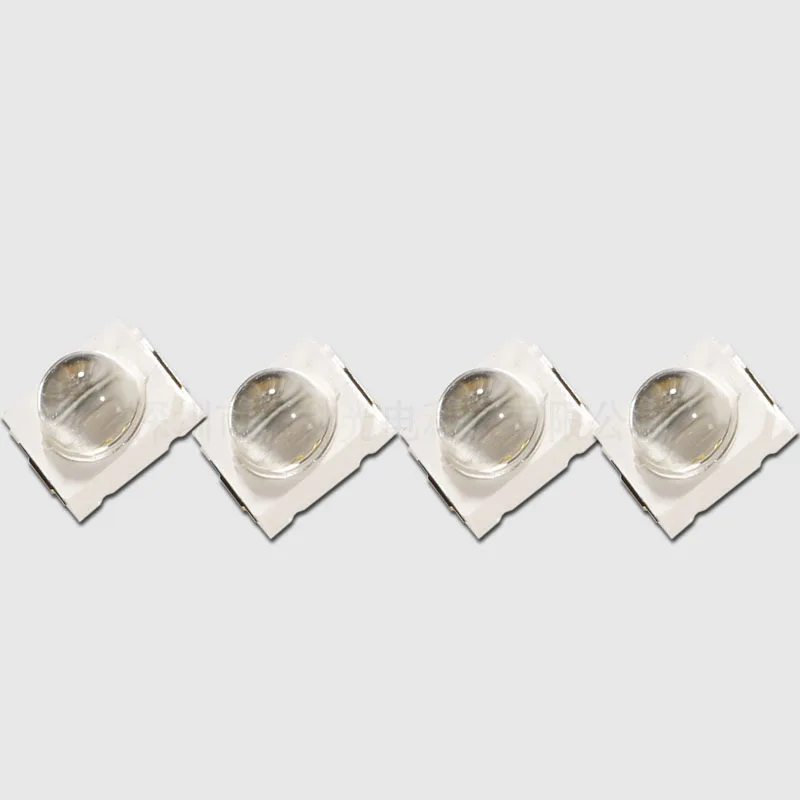

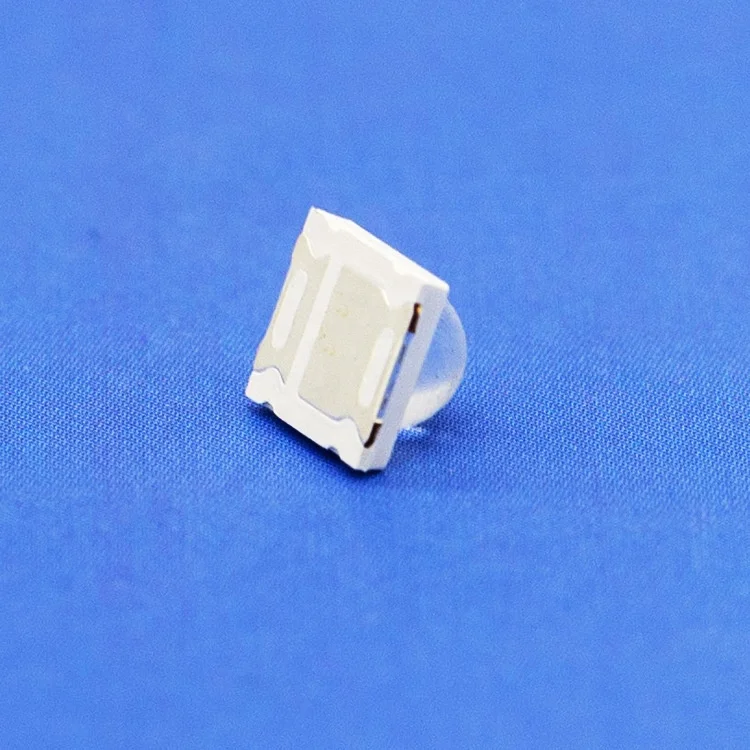

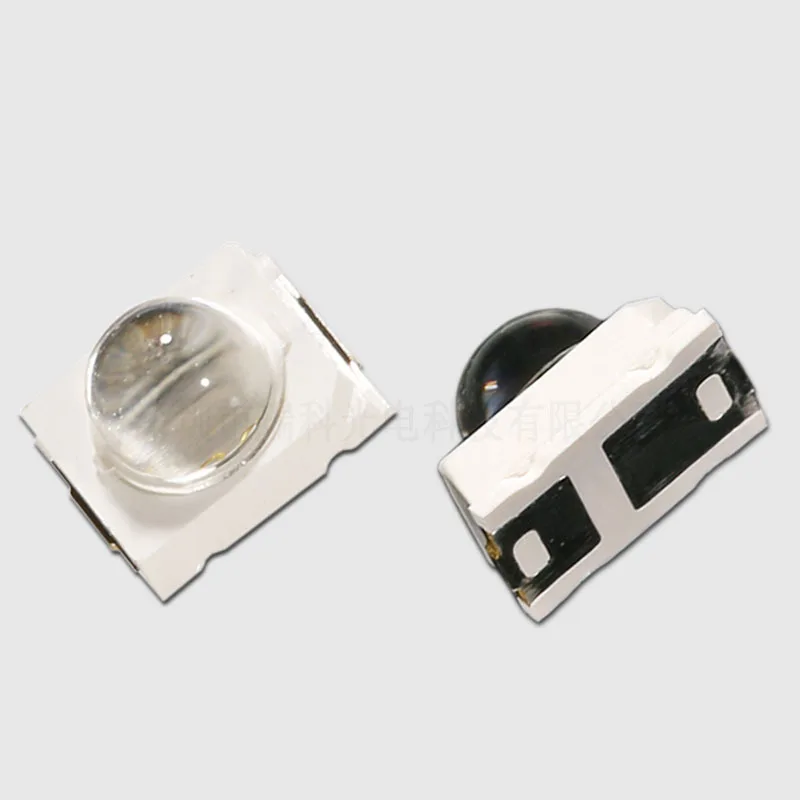

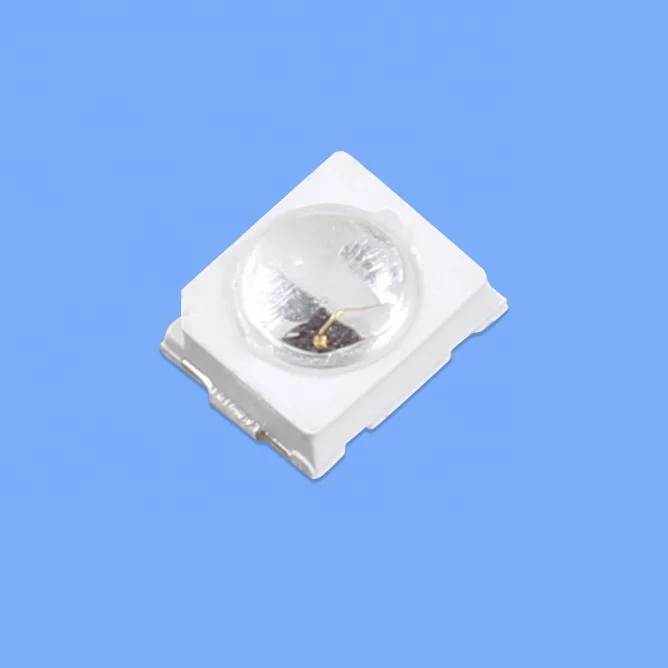

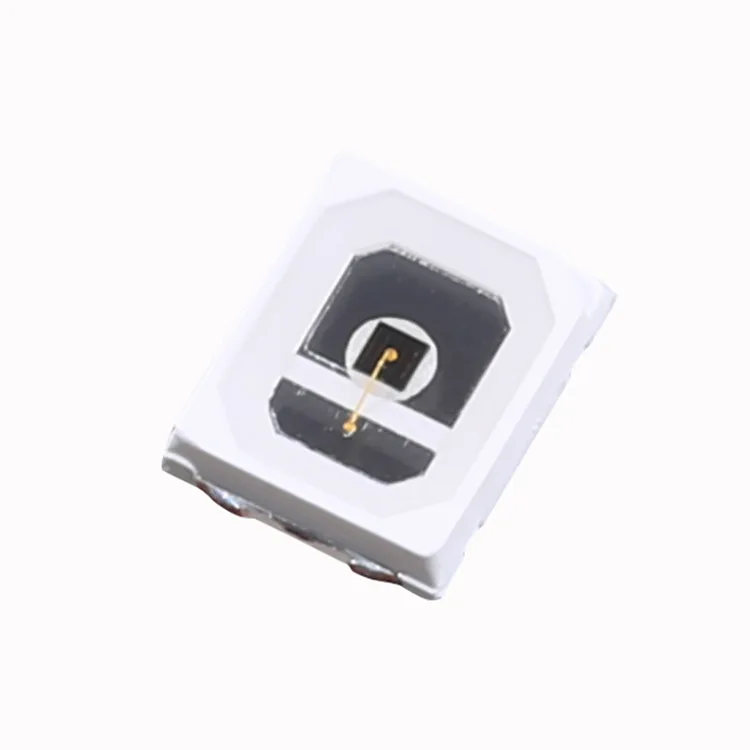

IR led chip 100 150mA 660nm 730nm 850nm 940nm 2835 smd 0.2w 0.5w 1W power smd led ir infrared led diode

Product Overview

Description

Order Code	Voltage (V)	Peak     Wavelength (nm)	Radiant   Power (mW)	Radiant Intensity (mw/sr)	Current (mA)	Half Width (nm)	Angle (0)	Power (W)
HYQ28E14N940RP-S1	1.4-1.6	940-960	70-80	152	100	45	15	0.2
HYQ28E14N940RP-S1	1.4-1.6	940-960	60-70	58	100	45	30	0.2
HYQ28E14N850RP-S1	1.4-1.6	840-860	70-80	152	100	45	15	0.2
HYQ28E14N850RP-S1	1.4-1.6	840-860	60-70	58	100	45	30	0.2
HYQ28E14N940RP-X1	1.4-1.6	940-960	60-70	48	100	45	60	0.2
HYQ28E14N850RP-X1	1.4-1.6	840-860	60-70	48	100	45	60	0.2
HYS28L20N700RP-D1	2.0-2.4	690-710	80-100	/	100	22	120	0.2
HYS28L14N730RP-D1	1.8-2.2	730-750	60-70	6	100	22	120	1
HYS28E14N850RP-D1	1.4-1.6	840-860	70-80	17	100	45	120	0.2
HYS28E14N940RP-D1	1.4-1.6	940-960	60-70	14	100	45	120	0.2



Warmth Hint: The company is willing to personalize your customized products.

 Applications

Our products are widely used in various applications such as medical, life science, industrial equipment, non-destructive testing, and analytical equipment.
