nano grade precision disc grinding principle sand mill thoroughly practical for agrochemical and multi functional applications
- Category: >>>
- Supplier: Shanghai Root Mechanical And Electrical Equipment Co. Ltd.
Share on (11000007530176):
Product Overview
Description
Product Description

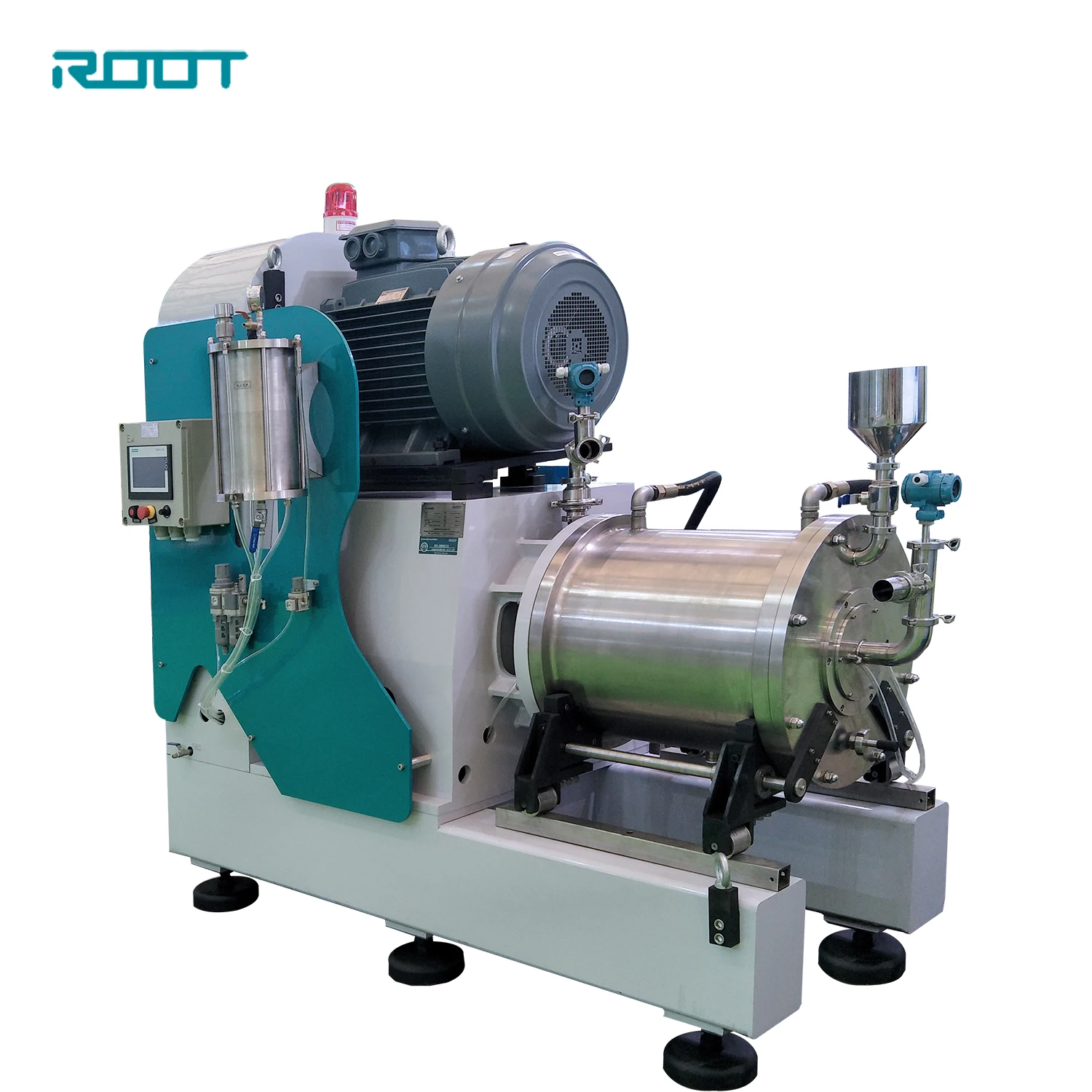

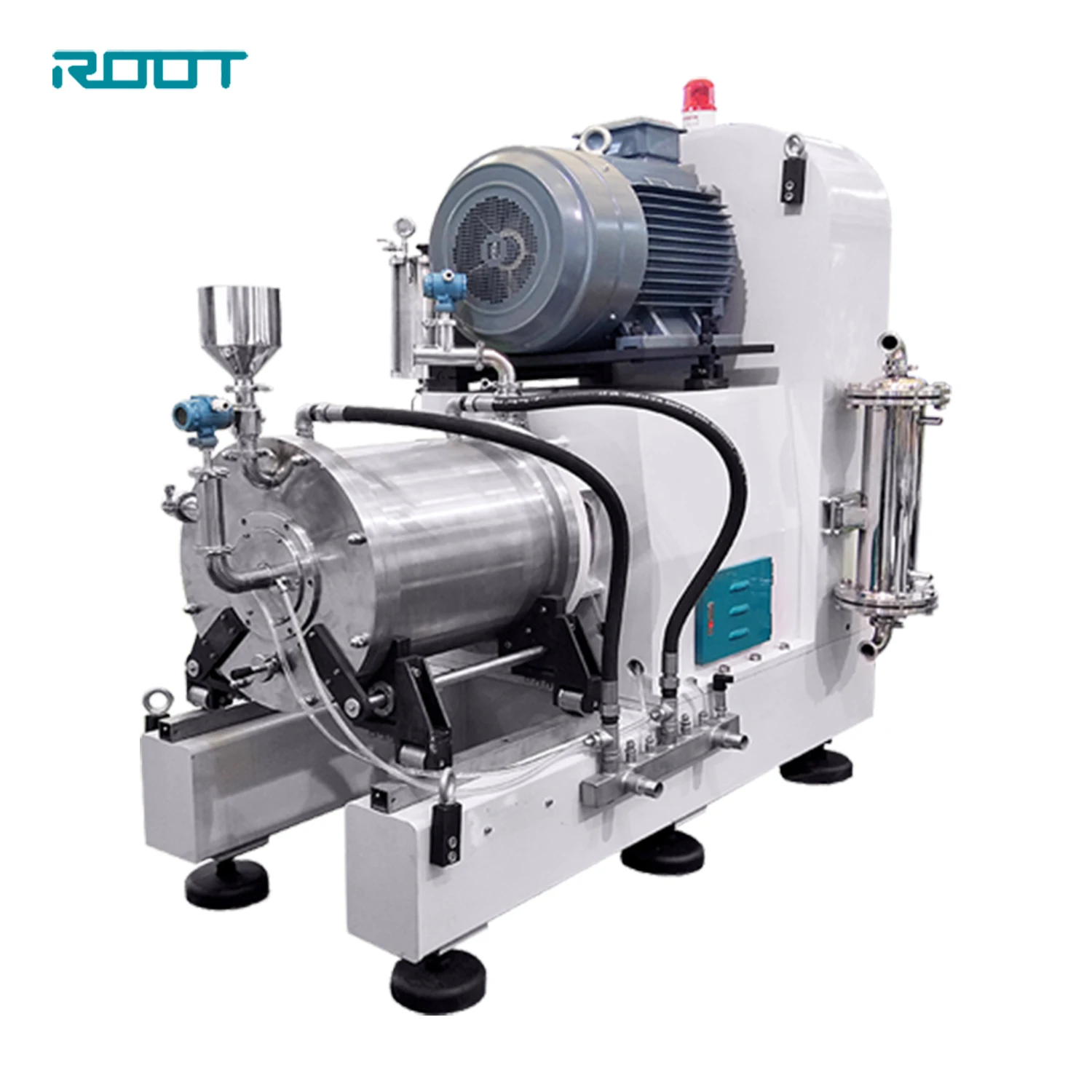

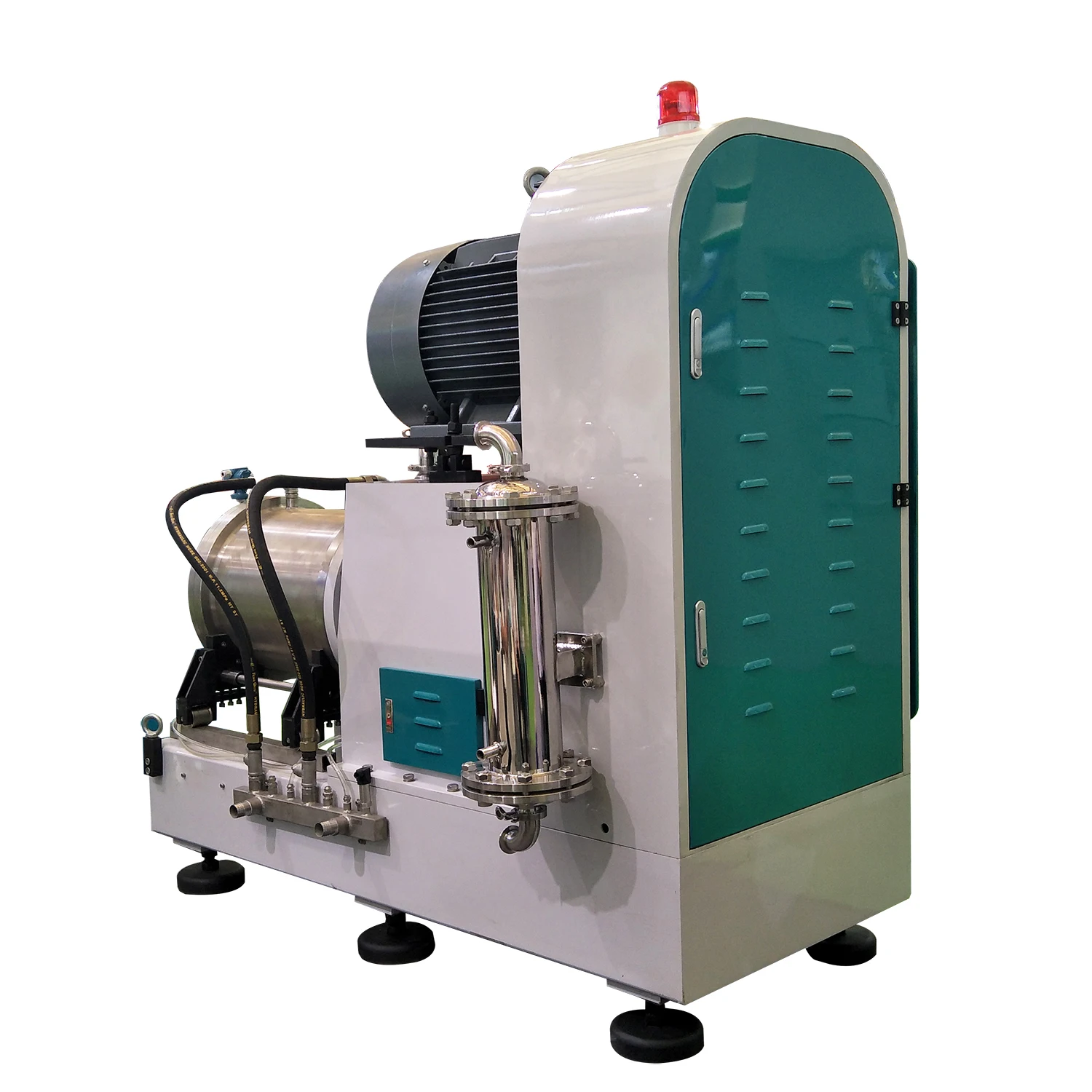

ROOT Group RTSM-6BJP series sand mill uses ceramic material for rotor and grinding chamber. This series of products include both laboratory and industrial equipment. High working efficiency, zero metal pollution, nano grade ultra-fine grinding.
Product Applications:
RTSM-6BJP series are suitable for nano grade ultra-fine grinding of material which is sensitve to temperature and metal pollution. They can be applied in industrials such as inkjet ink, digital ink, ceramic ink, lithium battery, pharmaceutical material, fluorescent brightenerm nano coating, electric slurry, heat-sensitive paper coating etc.
Featuress & Advantages:
1. Patent grinding disc structure has a bigger action area for the grinding media. Bigger shearing force and higher efficiency.
2. Double cooling systems for the chamber and end cap. The dissolvent which is compatible with grinding material can be added as cooling agency to reduce the production loss because of the leakage.
3. Feeding device: USA imported pneumatic diaphragm pump or frequency control gear pump is optional as clients' requirements. Feeding and discharging tubes are imported USA with good solvent resistant property.
4. High security property. The bead mill will automatically stop working when there is water shortage, air pressure shortage or over-high material temperature.
5. Grinding chamber and rotor is made of high wear resistant alloy steel which has no metallic pollution and discoloring. PU and ceramic material are optional according to actual condition.
6. Reasonable design for inner and outer structure allows stable performance with no vibration and noise.
7. Ceramic and PU material are optional.
8. Frequency control and PLC are optional
9. With CE&ISO9001:2008 qualification.
10. Dynamic or static separating system for different material to ensure smooth discharging.
Model No. | Volume (L) | Power (KW) | Media Size (mm) | Net Weight (KG) | Machine Dimension (mm) |
RTSM-6BJD | 6 | 18.5 | 0.2-2.0 | 600 | 1200x875x1150 |
RTSM-10BJD | 10 | 22 | 0.2-2.0 | 750 | 1200x875x1150 |
RTSM-30BJD | 30 | 45 | 0.3-3.0 | 1500 | 1700x1200x1750 |
RTSM-60BJD | 60 | 75 | 0.3-3.0 | 3000 | 1800x1000x2000 |
RTSM-150BJD | 150 | 160 | 0.3-3.0 | 6000 | 2000x1100x2200 |
Product Show
Detailed Images
Assembly type double end mechanical seal
Sand mill cooling coil
Ceramic pin block rotor

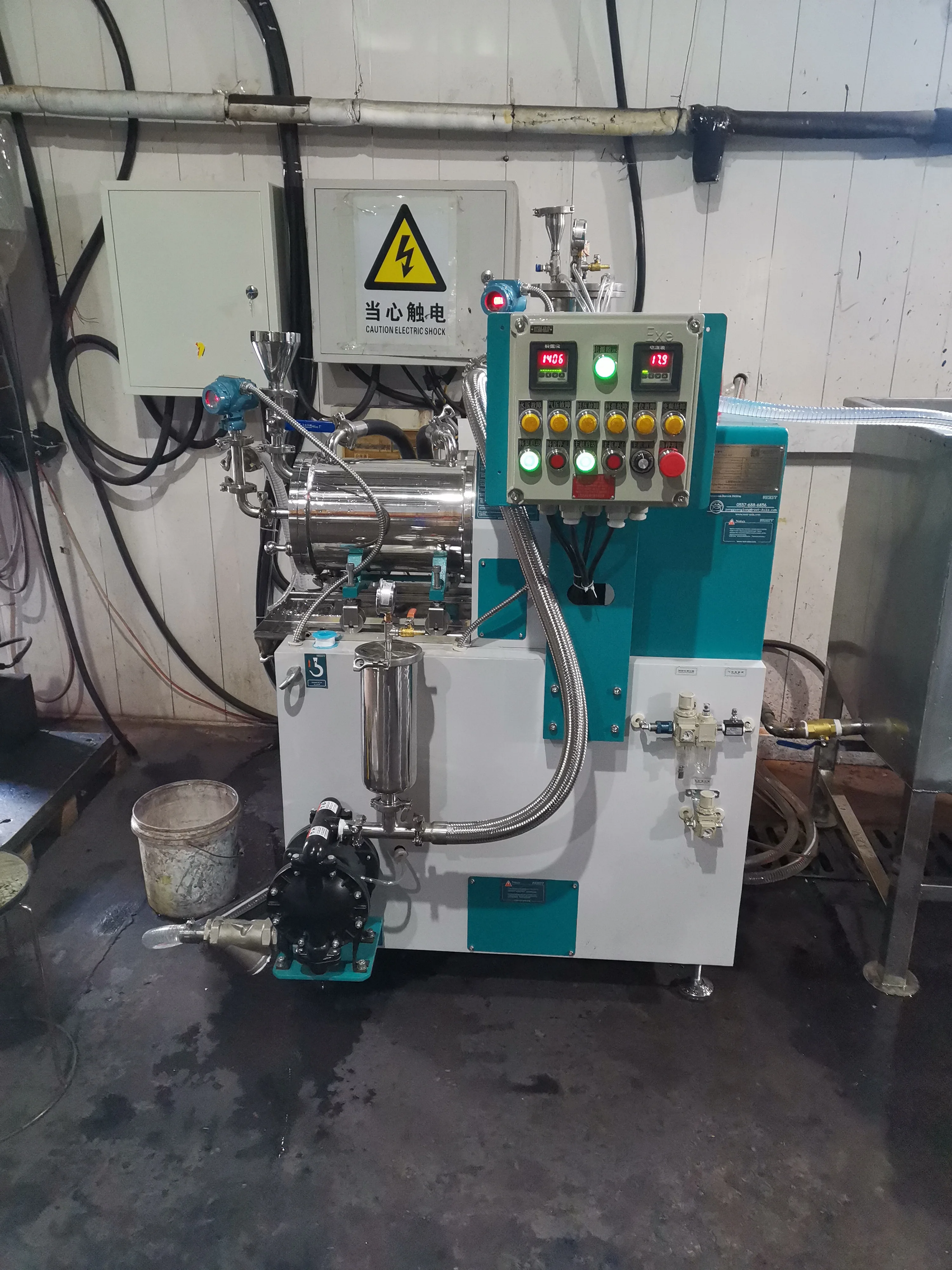

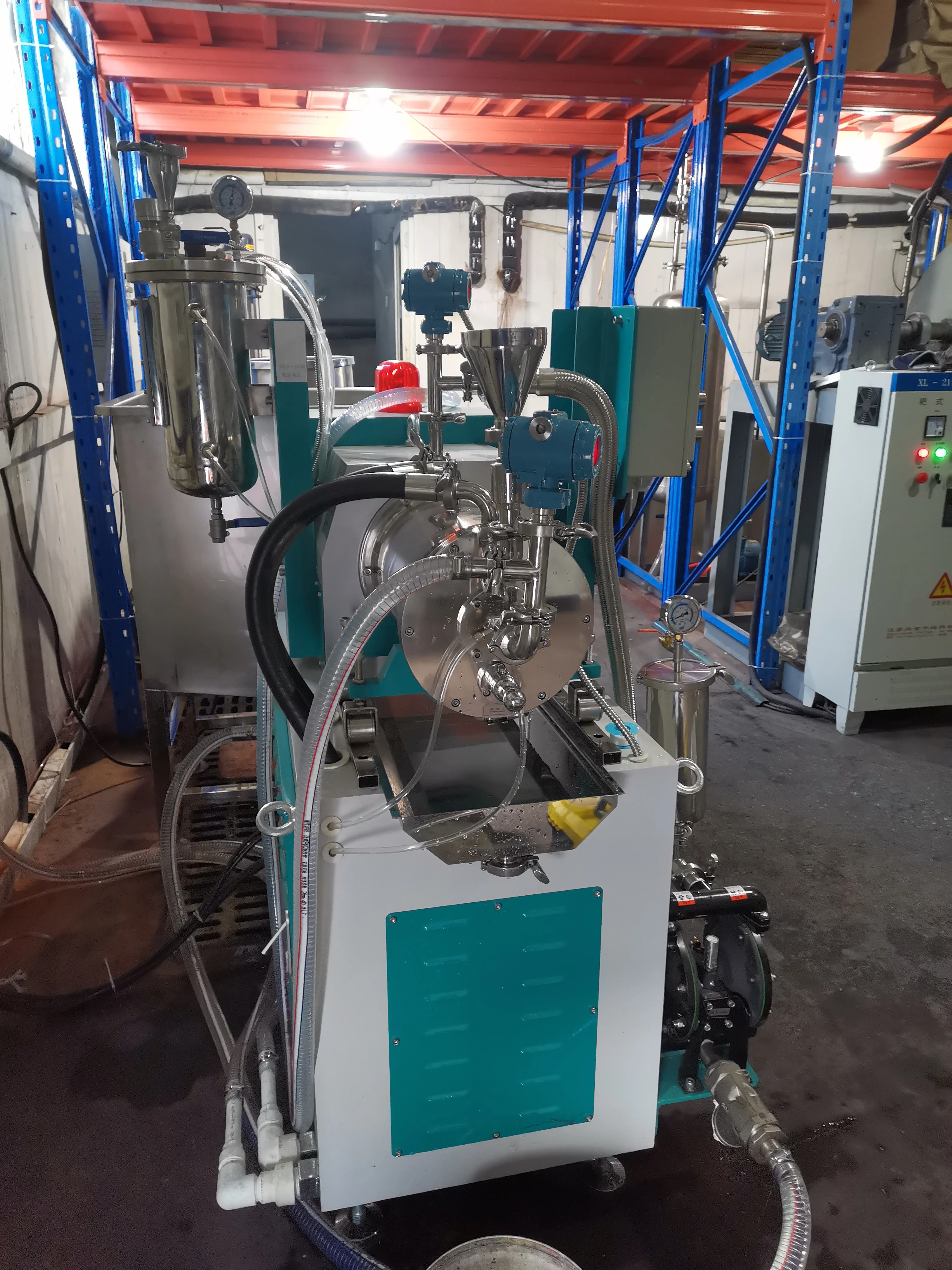

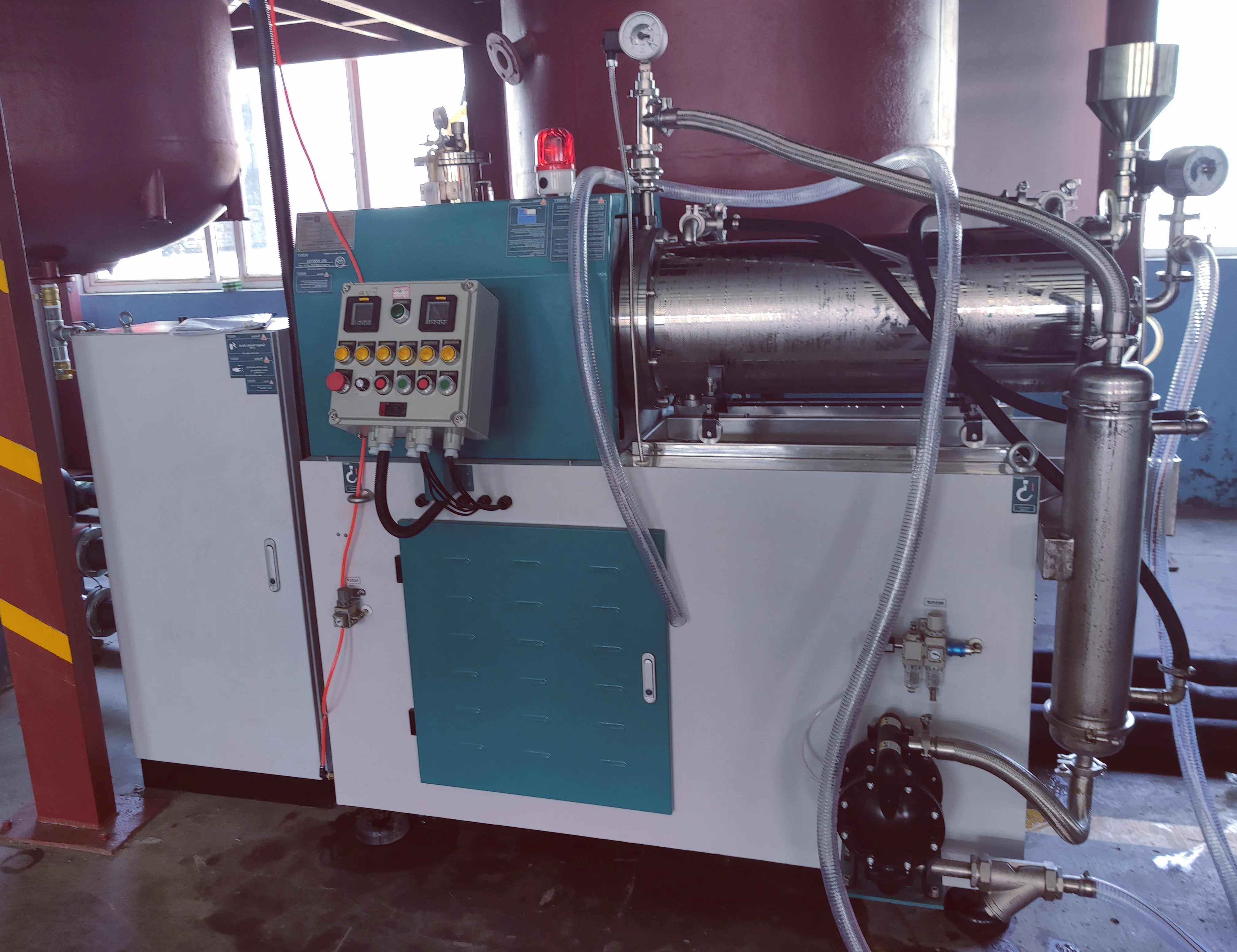

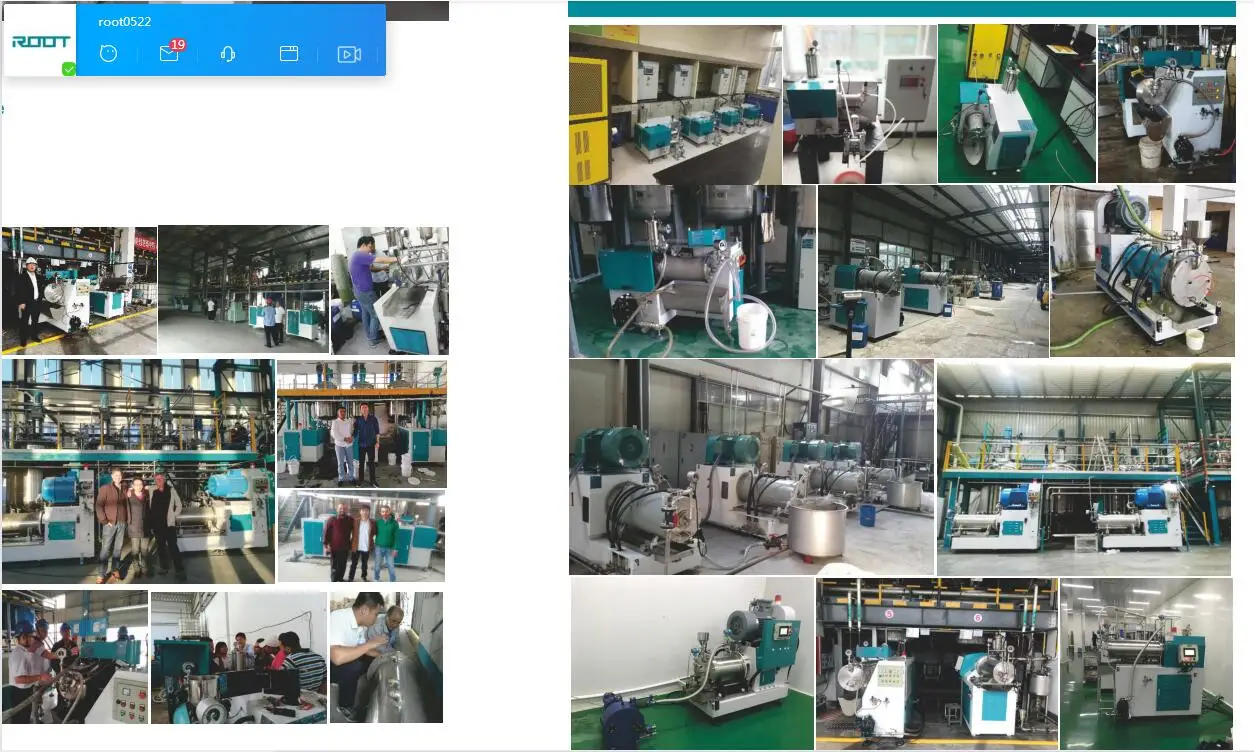

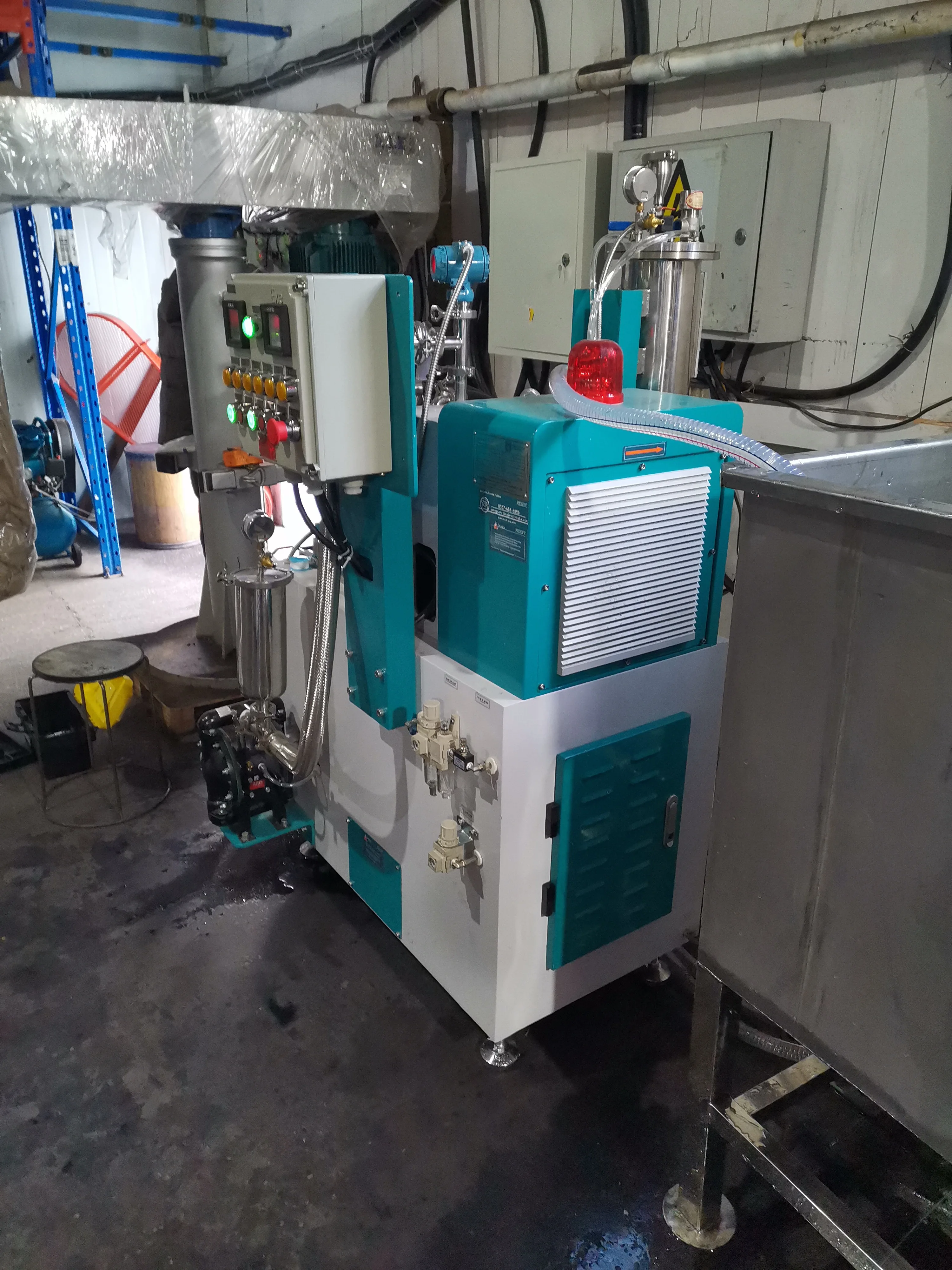

Customer Site
Customer Site - Flourescent Brightener
Fluorescent brightener is also called white dye, which is a kind of complicated organic compounds fluorescent dye. It can enhance the brightness, whiteness and glossiness of the object. Fluorescent brightener can be widely applied in industries of paper-making, textile and detergent etc. In order to get good quality flourescent brightener products, the paste must be ground to nanosize, usually D90<120nm,and at the same time, the temperature of products must be well controlled.
Customer Site - Graphene Electric Conductive Paste
Graphene is a very new material which can be used in many industries. And the application in the battery paste now is a very good trend. Root's first EPC graphene electric conductive paste is successfully launched and helped customer to get ideal products. The production line is full-automatic operation to save the human resource cost.
ROOT Group Enterprise Basic Info.
Complete Fine Chemical Grinding & Production Solution
ROOT Group Company Philosophy & Enterprise Outlook, "To Be Outstanding, To Make Ethereal Made-in-China Products & Services Stand On Top Of The World".

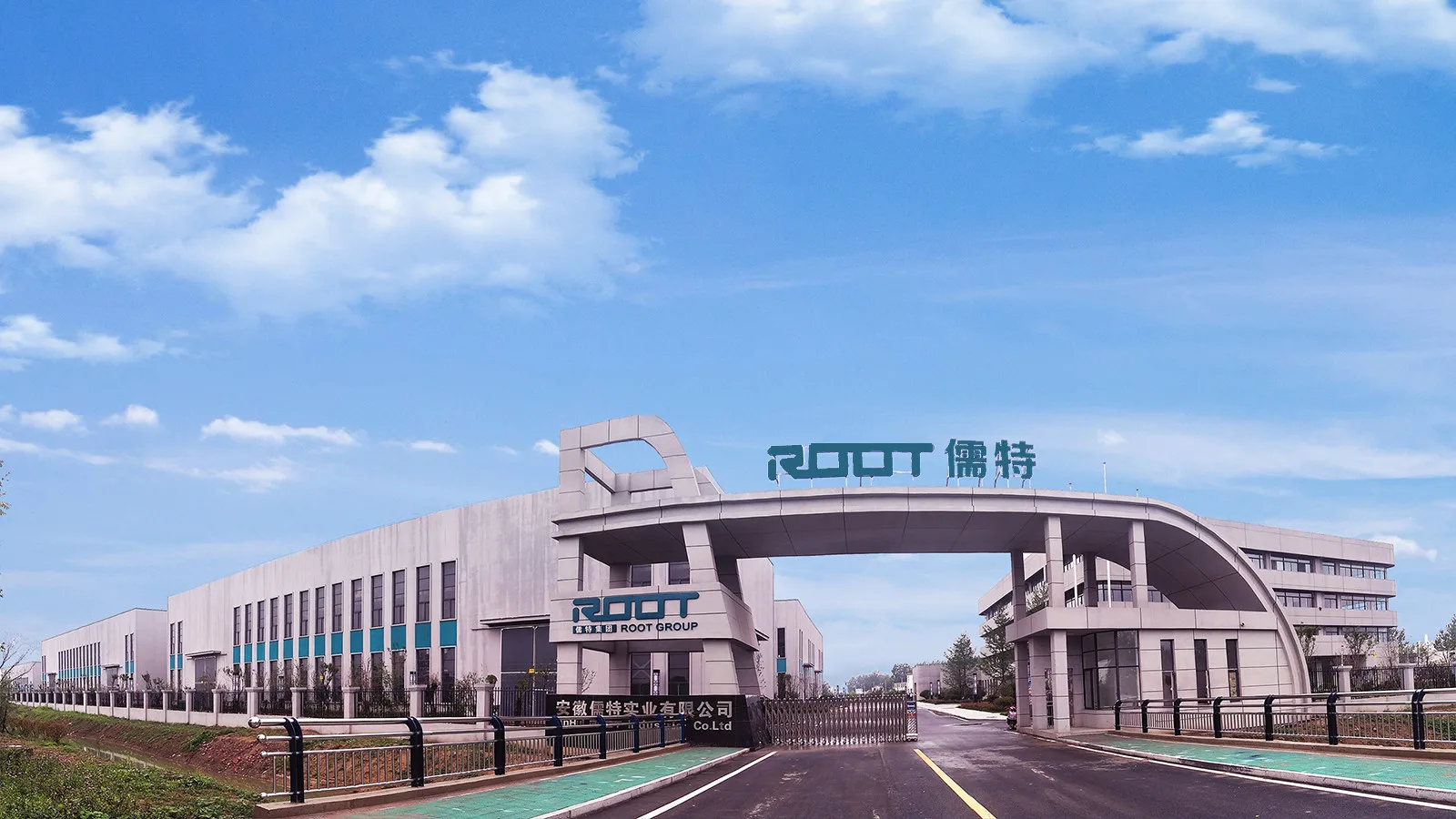

For this reason, we always adhere to the corporate culture of professionalism, value-added, greenness, smart factory and full and considerate customer service. Our production base is located in Suzhou, Anhui Province east China with an area of 100,000 square meter, we have advanced modernized smart workshops, inspection instruments and logistics centers/supporting facilities. Thus, our production & logistic bases can fully meet the various needs of our customers worldwide and ensure the complete and fast delivery of all of our products and services. With 10 years+ continuous innovational and R&D breakthrough, we've gradually transformed ourselves from a mere grinding equipment manufacturer to a complete fine chemical grinding & production solution provider now. Furthermore, based on our smart factory and quality/service-oriented guideline, we insist on people-oriented, emphasizing the culture of “Home”, with an effort to become a first-class Chinese enterprise in the field of fine chemicals and new nano grade materials industry with core intelligent equipment manufacturing and turnkey EPC (engineering procurement construction) services. Our marketing strategy aims for the global market. Last year, our total sales (domestic plus international) revenue is nearly RMB300000000, equivalent USD42000000.
