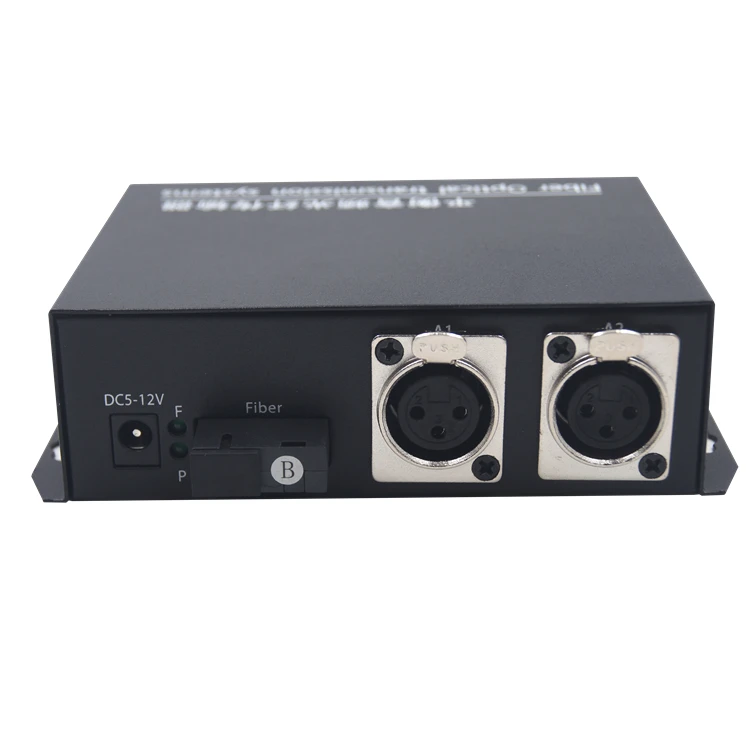

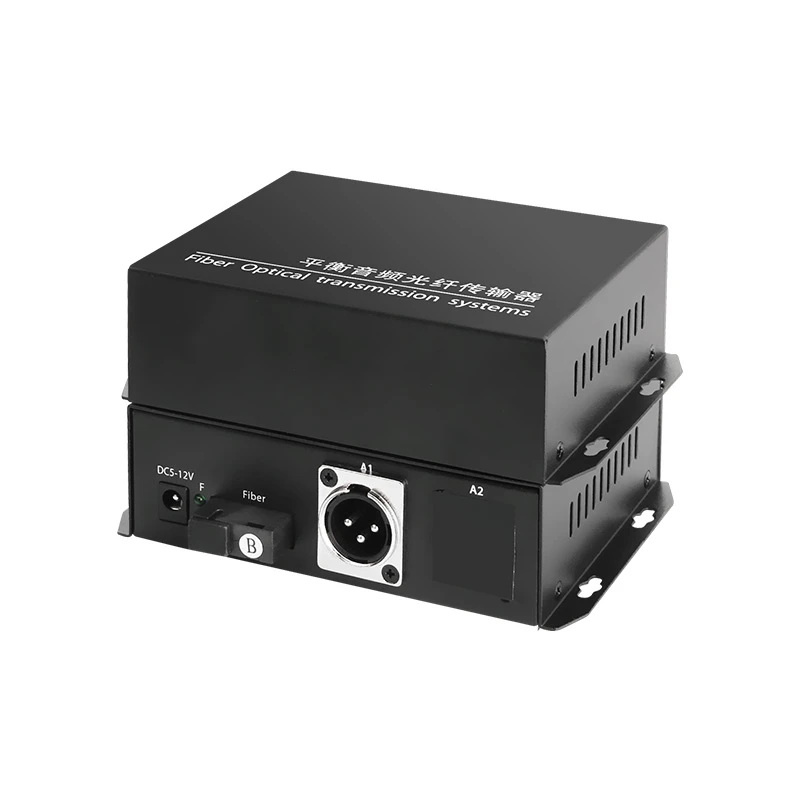

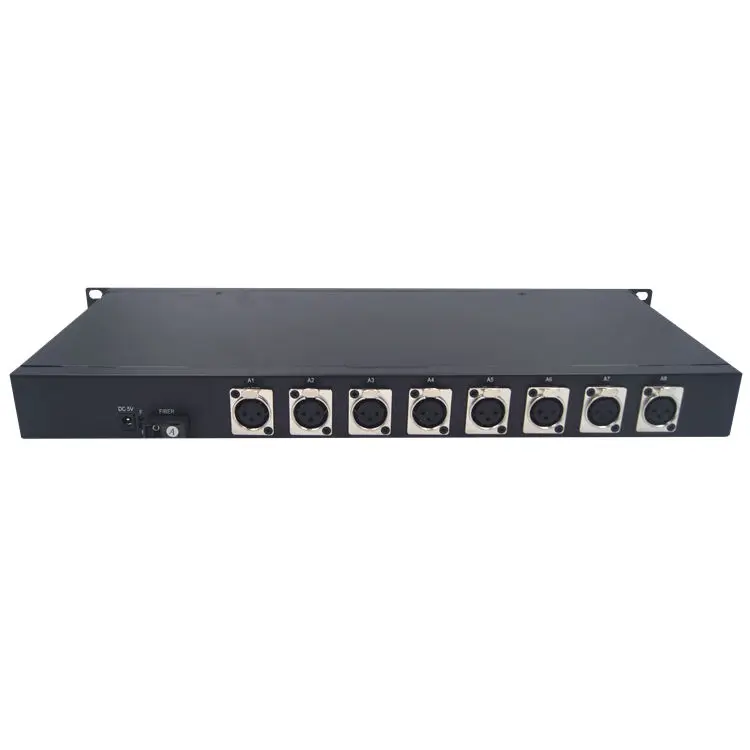

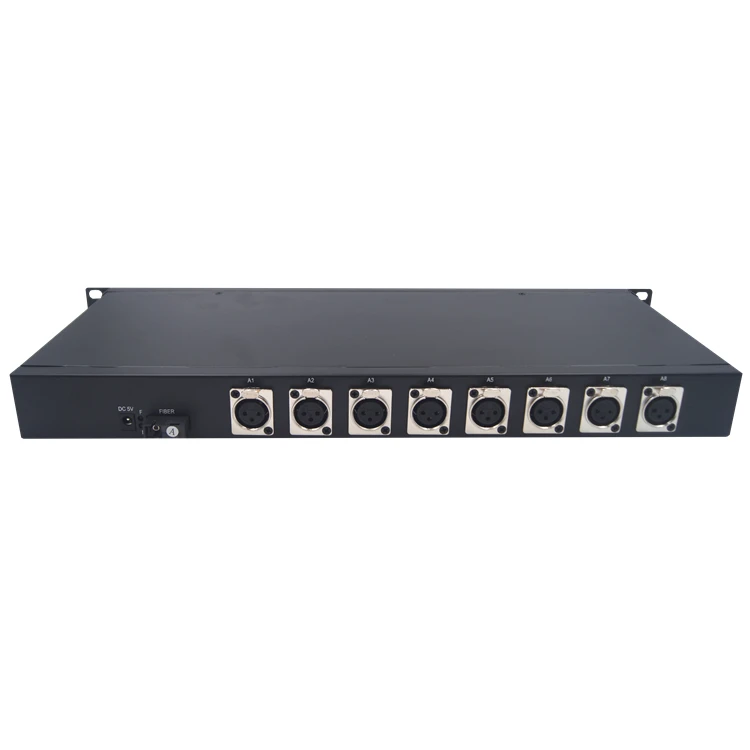

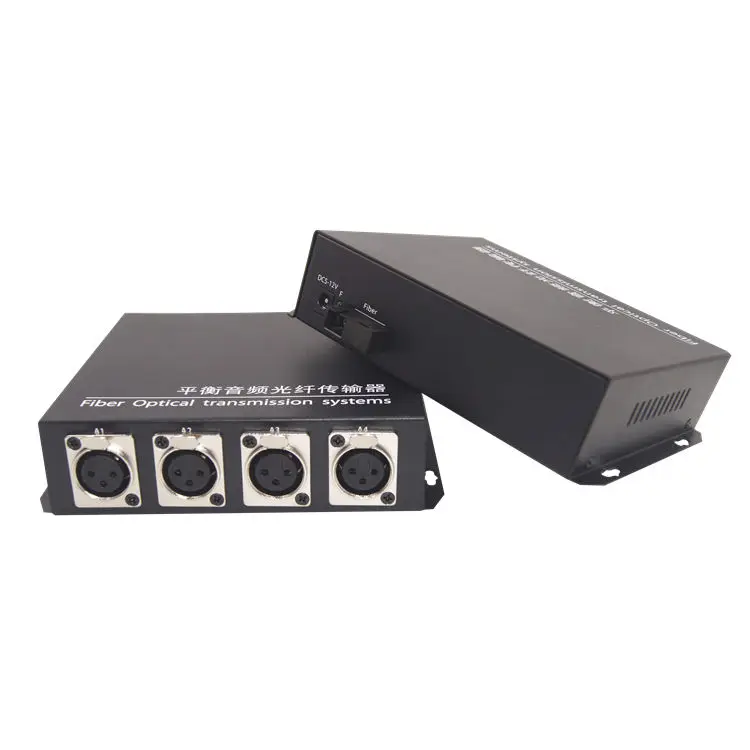

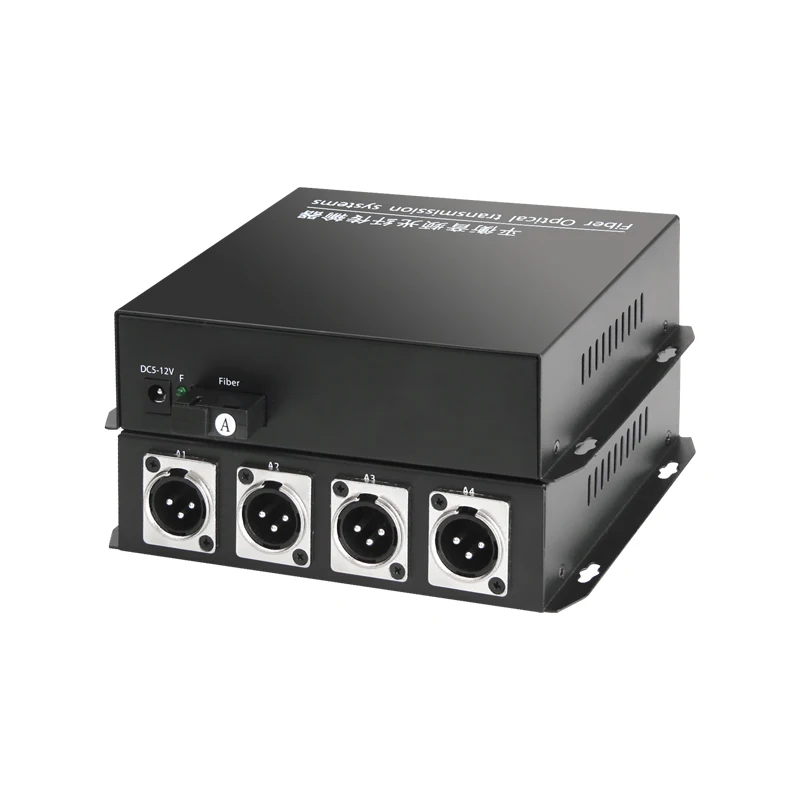

Audio Multiplex Balanced Audio Fiber Converter 8 Channel XLR Balanced Interface Audio Over Optic Fiber Converter
- Category: >>>
- Supplier: Shenzhen Atongda Technology Co. Ltd.
Share on (11000007544506):
Product Overview
Description
Product Description
Product Name | 1-8 Channel XLR Balanced Interface Audio Fiber Converter |
Product features | Divided into models such as 1/2/4/8/16/32 channels, single/two-way transmission (optional), and supports user customization of unbalanced audio, high-definition video, control data, Ethernet, I0, IR, |
Function | Synchronous transmission of multiple services such as USB; 1.The XLR connector is welded to the main board (not the lead of the board) to reduce noise and prevent electromagnetic interference to ensure sound quality; |
Package | A sound quality optical transmission equipment that complies with broadcast-level standards, using advanced 24bit digital audio coding technology, can achieve 64-channel balanced audio single-fiber or dual-fiber long-distance transmission; |
Supports real-time synchronization and distortion-free transmission of single/two-way balanced audio signals. Due to the adoption of digital optical fiber transmission technology, | |
the transmission distance of audio signals is longer (up to 100KM), with strong anti-interference ability and larger transmission scale; |
Product description
♦ Synchronous transmission of multiple services such as USB;
1.The XLR connector is welded to the main board (not the lead of the board) to reduce noise and prevent electromagnetic interference to ensure sound quality;
2. The real balanced audio is not replaced by an unbalanced audio board, so it can be sold at a low price;
3. The XLR head cancels the metal shell to avoid interference caused by grounding caused by direct connection with the chassis;
Application
Balance audio parameters | ||
Audio channel | 1,2 ,4,8channel | |
Audio input interface | XLR female | |
Audio output | XLR male | |
Input and output impedance | 10k ohm | |
Input capacitance | 10PF | |
Maximum input / output voltage | 3.0VP-P | |
Frequency response | 10 Hz ~ 24kHz @ ± 3dB | |
Sampling Rate | 48KHZ | |
Signal to noise ratioAudio output | > 80XLR femaledB | |
Optical interface 10 Hz ~ 24kHz @ ± 3dBparameters | ||
Optical power | -14 ~ -8dBm / -5 ~ 0dBm | |
interface | SC FC interface | |
wavelength | 1310nm & 1550nm | |
Receiver sensitivity | -14 ~ -8dBm / -5 ~ 0dBm | |
Transmission distance | 0 ~ 500M (multimode) / 20/40/60 / 80KM (single mode) | |

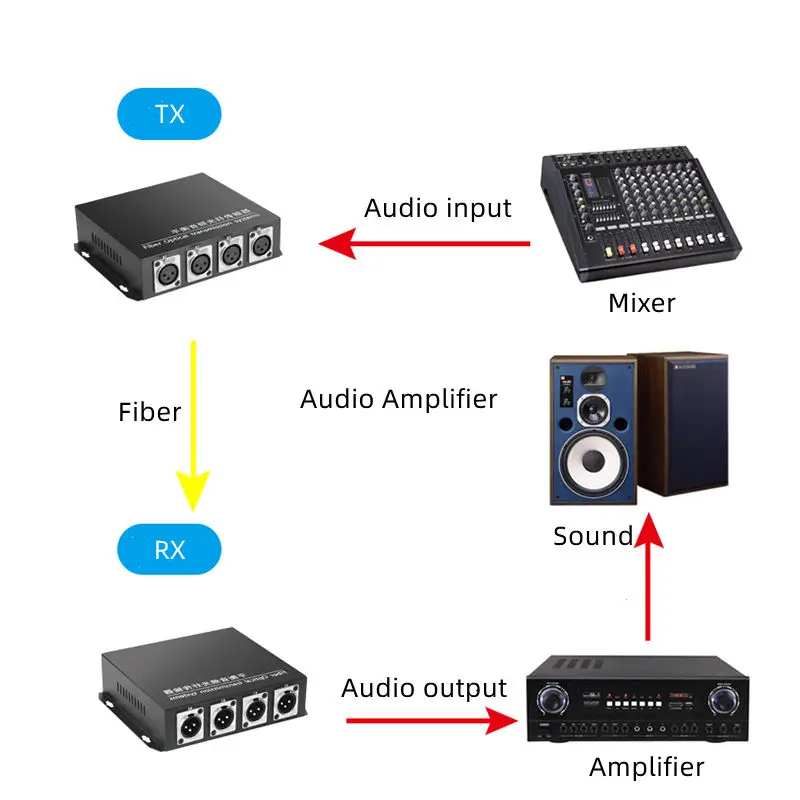

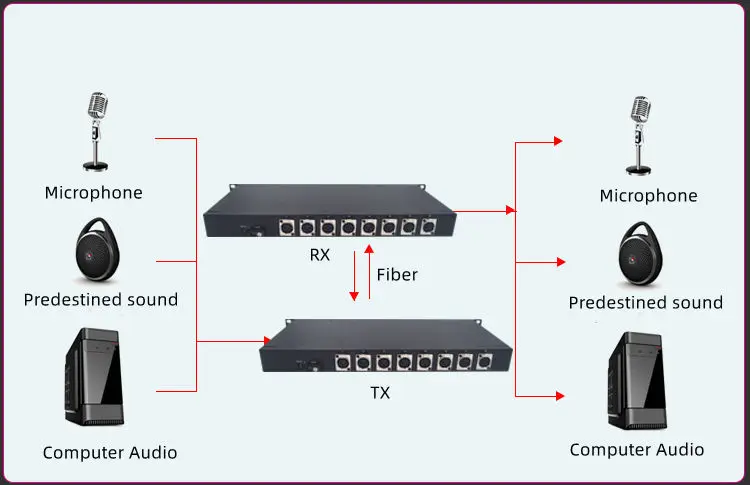

Product Usage
Related Products

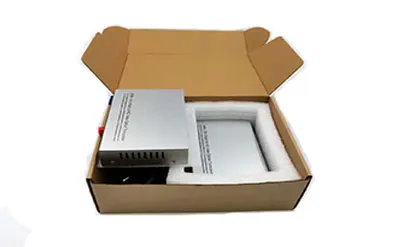

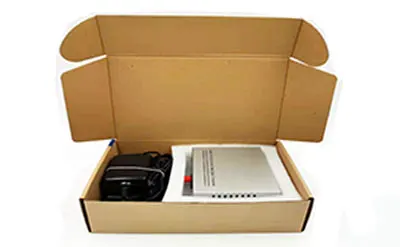

Packing&Shipping
1 Pair per Box, Then put Box into Outer Carton
Packing list: 1. One pair HD MI converter
2. Power Supply
3. Use's Manual
Company Introduction
Shenzhen Atongda Technology Co., Ltd. is a high-tech privately owned enterprise specialized in the research, development and manufacture of fiber optical products. We mainly manufacture Optical Fiber Transmission, and Network Access Equipment, including Fiber POE Switch, Fiber media converters, Video converters, HD MI converters, SFP Transceiver, Ethernet switches, fiber optic adapters, fiber optic cables, patch cords, PLC Splitter ODF, etc, which have been are widely applied in many industries, like telecom, broadcast & television, finance, traffic safety protection, computer, campus network, intelligent districts, electronic government affair system engineering, etc.
Our Services & Strength
Support OEM&ODM, For Small Quantity Also can support just need accept reasonable cost.
Support 3 Years Warranty
Delivery time will be in 7 days for normal model
FAQ
1. What's products your company manufacture
We Focus on Developing and producing HD MI Converter, Media Converter,Video Converter,POE Switch,Industrial POE Switch and Patch Cord, ODF , PLC Splitter etc.
2. Can I get sample for free?
Yes, of course, we can free for under 30 USD. but need you pay shipping fee, or you provide your company DHL Fedex Account.
3. Can print Logo for me?
Yes, sure, we can support print LOGO for you, if quantity more, can print logo on the Box and carton
4.what delivery time?
Usually in 7 days, if you accept no Logo, can ship in one day.
