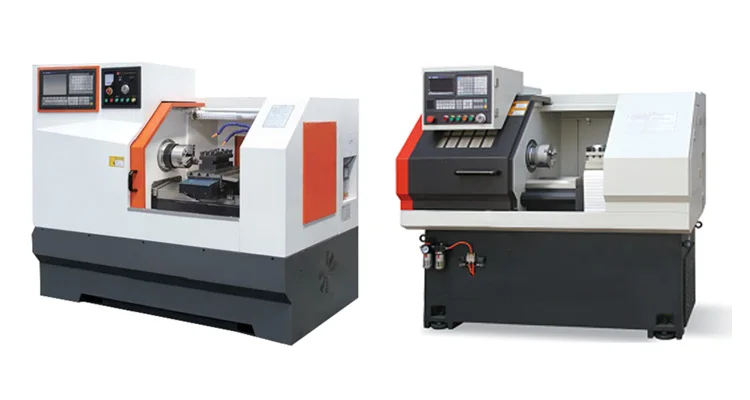

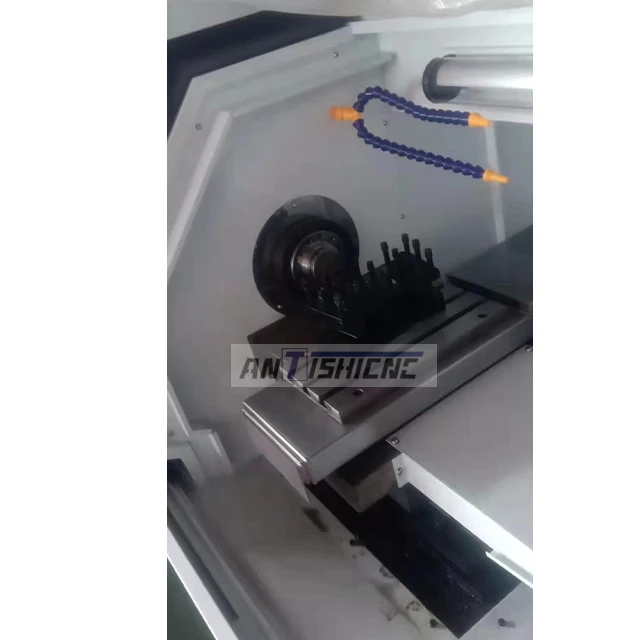

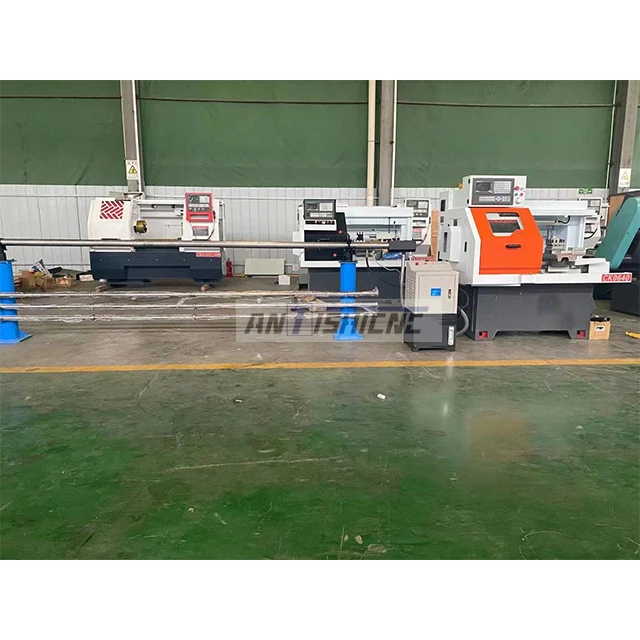

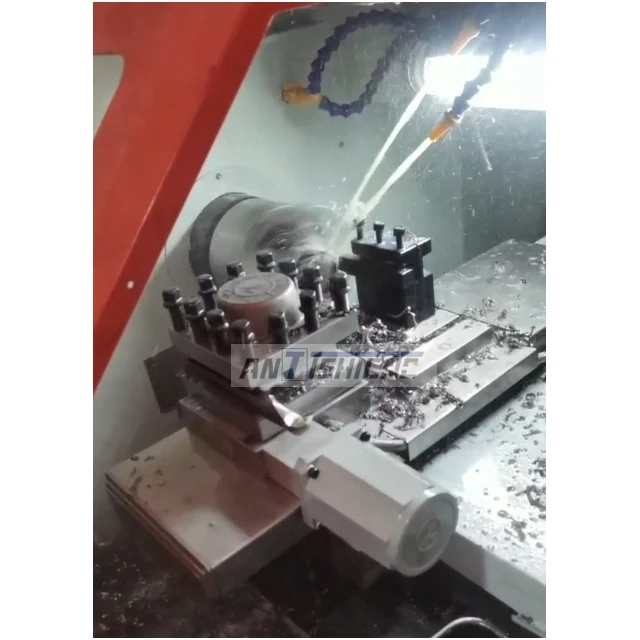

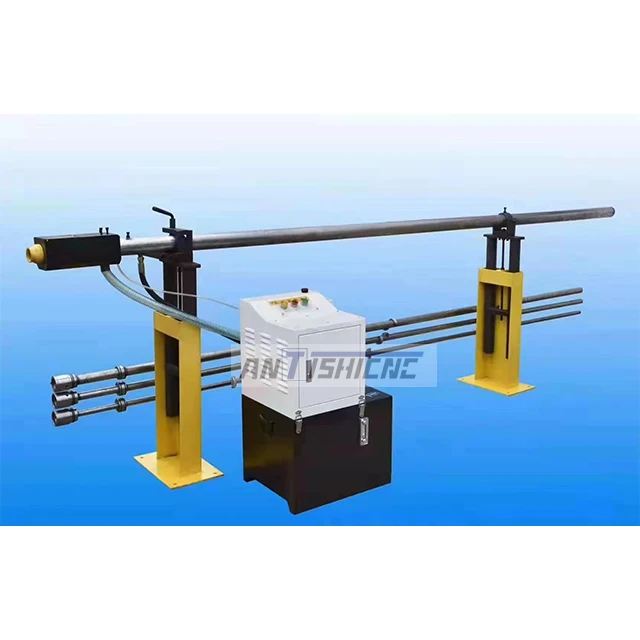

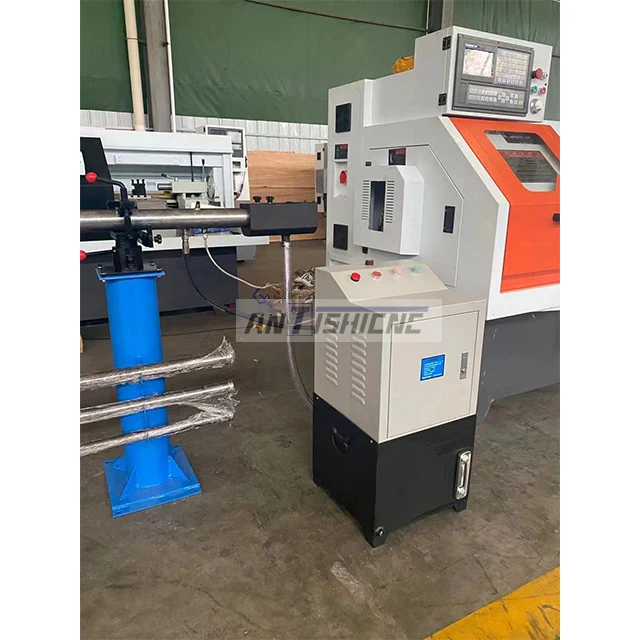

New CK0640 300mm Bar Feeder Lathe Small Cnc Lathe high precision taiwan cnc lathe
- Category: >>>
- Supplier: Shanghai Ants Machine Equipment Co. Ltd.
Share on (11000007551270):
Product Overview
Description
ANTISHI CNC Lathe Factory Direct Sales
Item | Unit | CK0640-300 | ||
Max swing over bed | Φ/mm | 300 | ||
Max swing over slide | Φ/mm | 120 | ||
Spindle End Form | mm | A2-5 paired spindle | ||
Spindle through hole diameter | Φmm | 48 | ||
Spindle speed | r/mm | 2500 | ||
Spindle motor power | KW | 4 | ||
X-axis feed | m/min | 8 | ||
Z-axis feed | m/min | 8 | ||
Turning tool specification | mm | 20 | ||
X/Z axis repeat positioning accuracy | mm | 0.005 | ||
Precision | mm | ±0.01 | ||
Max X- axis travel | mm | 290 | ||
Max Z-axis travel | mm | 90 | ||
Rail form | Hard rail | |||
X direction screw | mm | 2505*600 | ||
Z direction screw | mm | 3206*520 | ||
X-axis motor torque | Nm | 4 | ||
Z-axis motor torque | Nm | 4 | ||
Machine weight | KG | 750 | ||
Machine size | L*W*H(mm) | 1600*1380*1580 | ||
Standard Parts | ||||
Hy d r a u l i c sy st e m | GS K s e r v o | |||
Cy l i n d e r | Ro w k n i f e | |||
Hy d r a u l i c sy st e m | Co o l i n g s y st e m | |||
Aut o m at i c l u b r i c at i o n s y st e m | Wa r n i n g li g h t | |||
R a nd o m t o o l s | Op e r at i n g I n st r u ct i o n s | |||
screw
High efficiency, small temperature rise, high precision, high speed, high rigidity, reversibility, long life, low energy consumption, high synchronization, simple maintenance, strong operability for users
Tail stock
The hydraulic tail stock is processed by manual (or hydraulic) adjustment, manual locking, and manual (or hydraulic) jacking of the work piece.
Machine tool lubrication
Each lubrication point adopts a forced automatic lubrication device for fixed-point quantitative lubrication of the screw and guide rail. When there is an abnormal state or insufficient oil volume, a warning signal is automatically generated.Working Stable and reliable.
