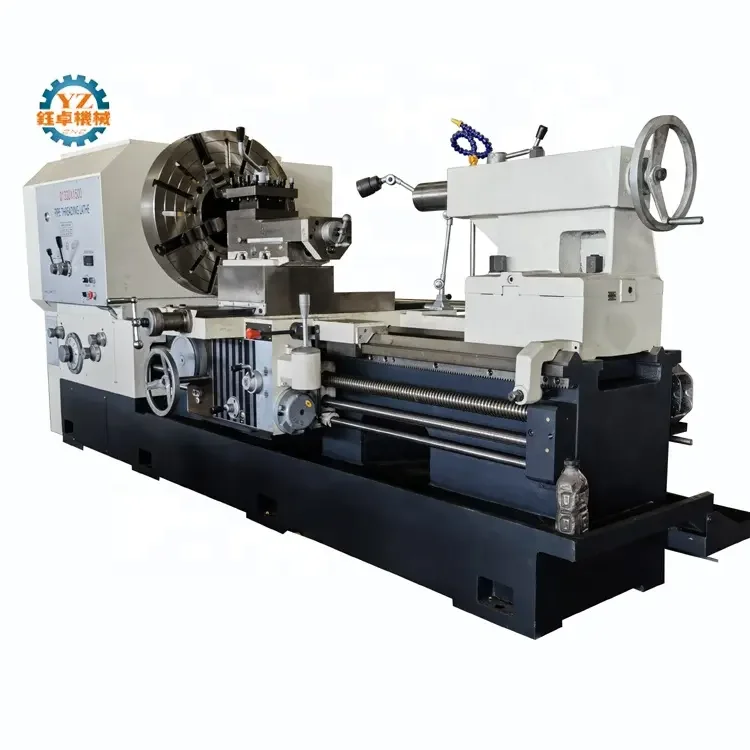

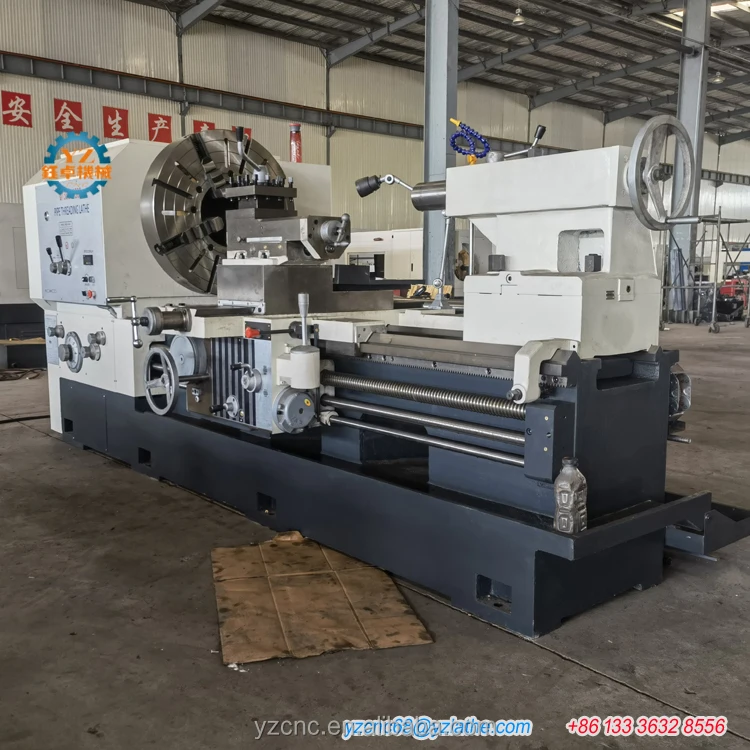

Q1330 Manual Heavy duty Oil Pipe line Threading Lathe Machine Thread Cutting Tools
- Category: >>>
- Supplier: Taian Yuzhuo Machinery Co. Ltd.
Share on (11000007554704):
Product Overview
Description
Details Display
Specifications
Item | Unit | Q1330 |
Max dia.swing over bed | mm | 800 |
Max dia.swing over cross slide | mm | 480 |
Max.length of work-piece | mm | 1500/2000/3000 |
Width of bed | mm | 600/755(All day floor type) |
Spindle bore | mm | 305 |
Power of spindle motor | Kw | 15 |

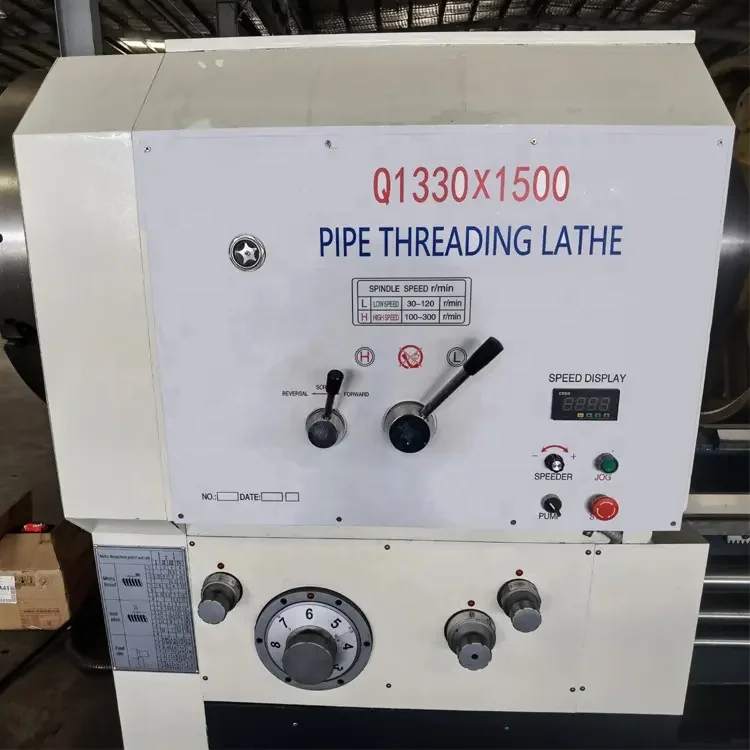

Spindle speed | r/min | 20-300 VF2 steps |
Z axis feed grade/range | mm/r | 32/0.095-1.4 |
X axis feed grade/range | mm/r | 32/0.095-1.4 |
Carriage rapid traverse speed | mm/min | 3740 |
Cross slide rapid traverse speed | mm/min | 1870 |
Metric thread grade/range | mm | 22/1-15 |
Inch thread grade/range | T.P.I | 26/14-1 |
Traverse of cross slide | mm | 320 |

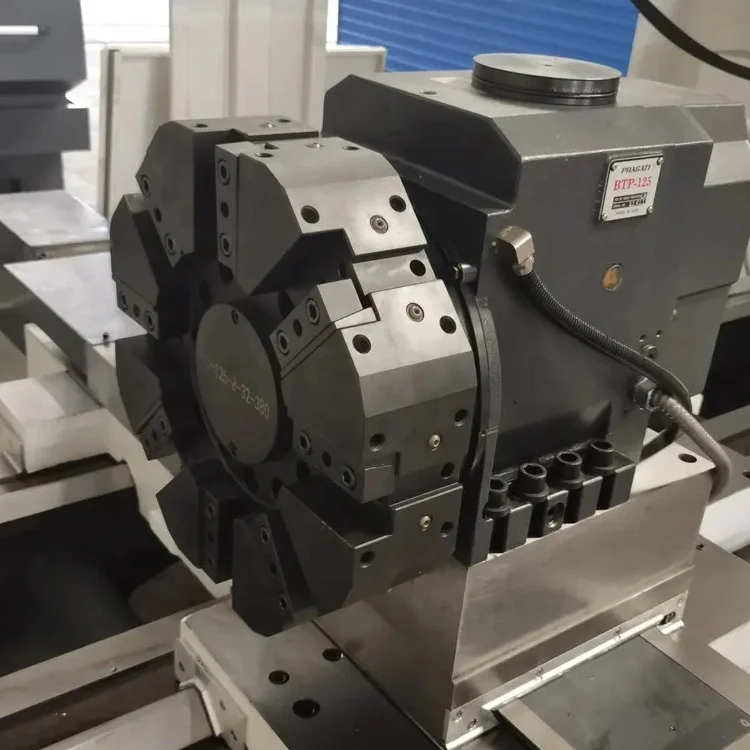

Max. Traverse of turret | mm | 200 |

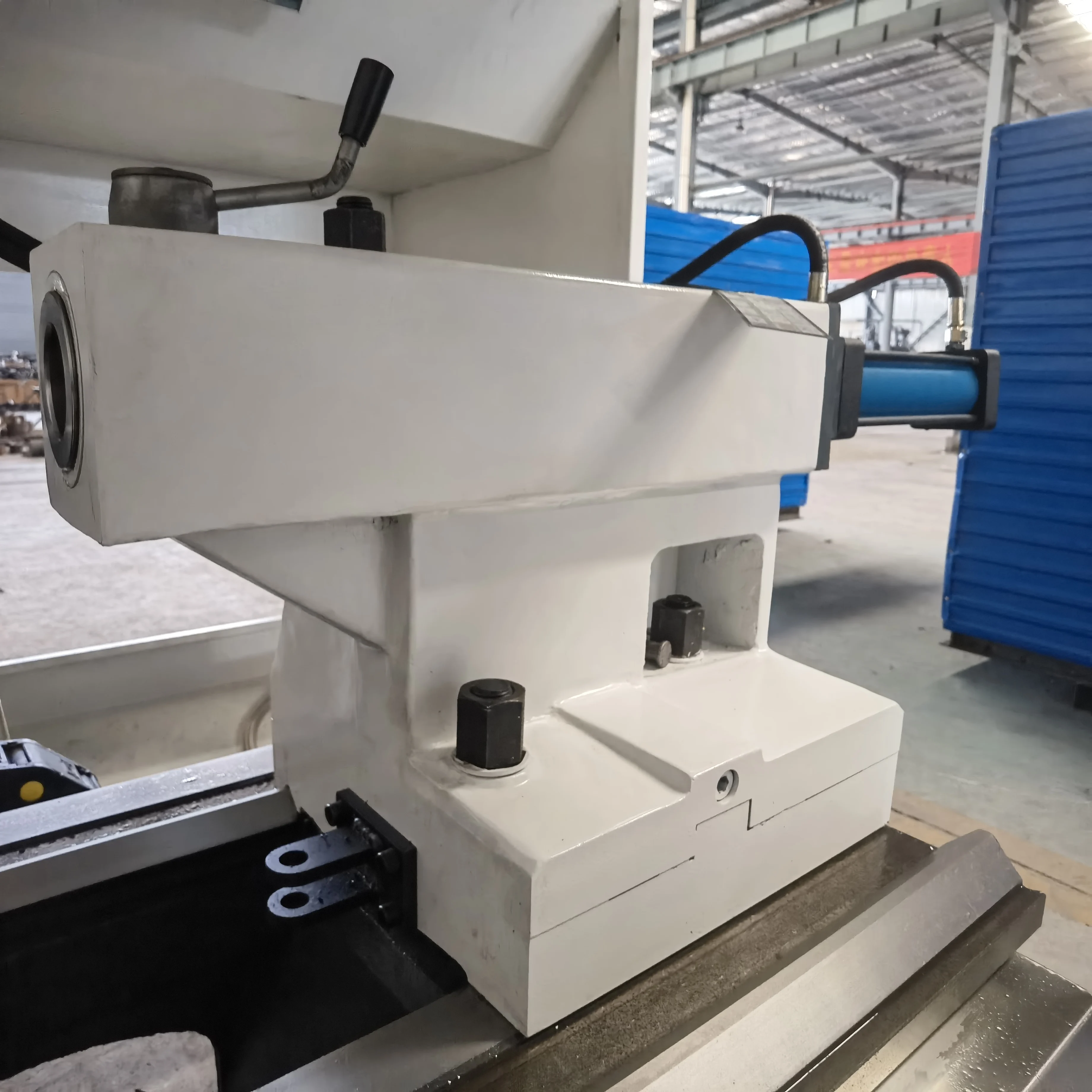

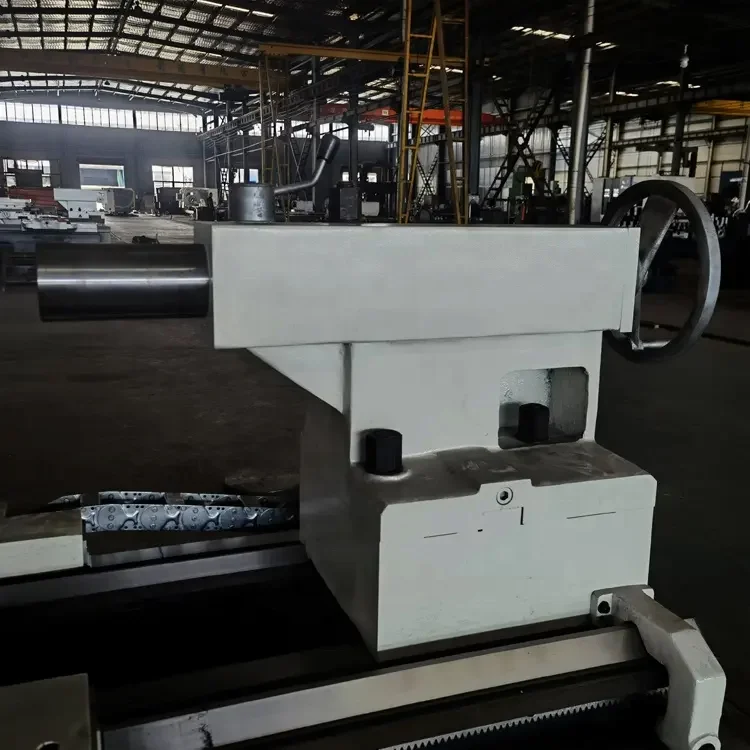

Tailstock quill travel | mm | 250 |
Tailstock quill Dia./taper | mm | Φ100/（MT6#） |

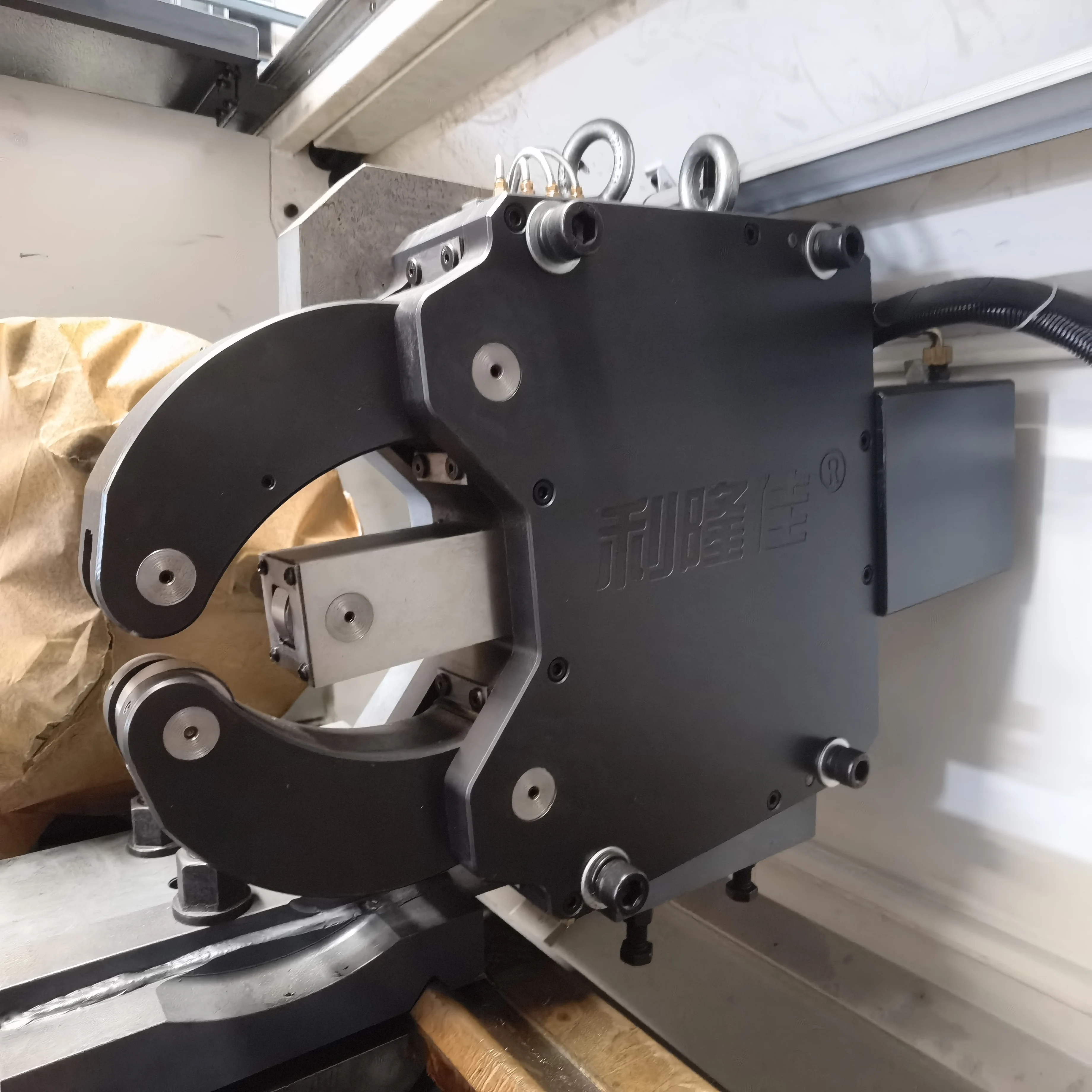

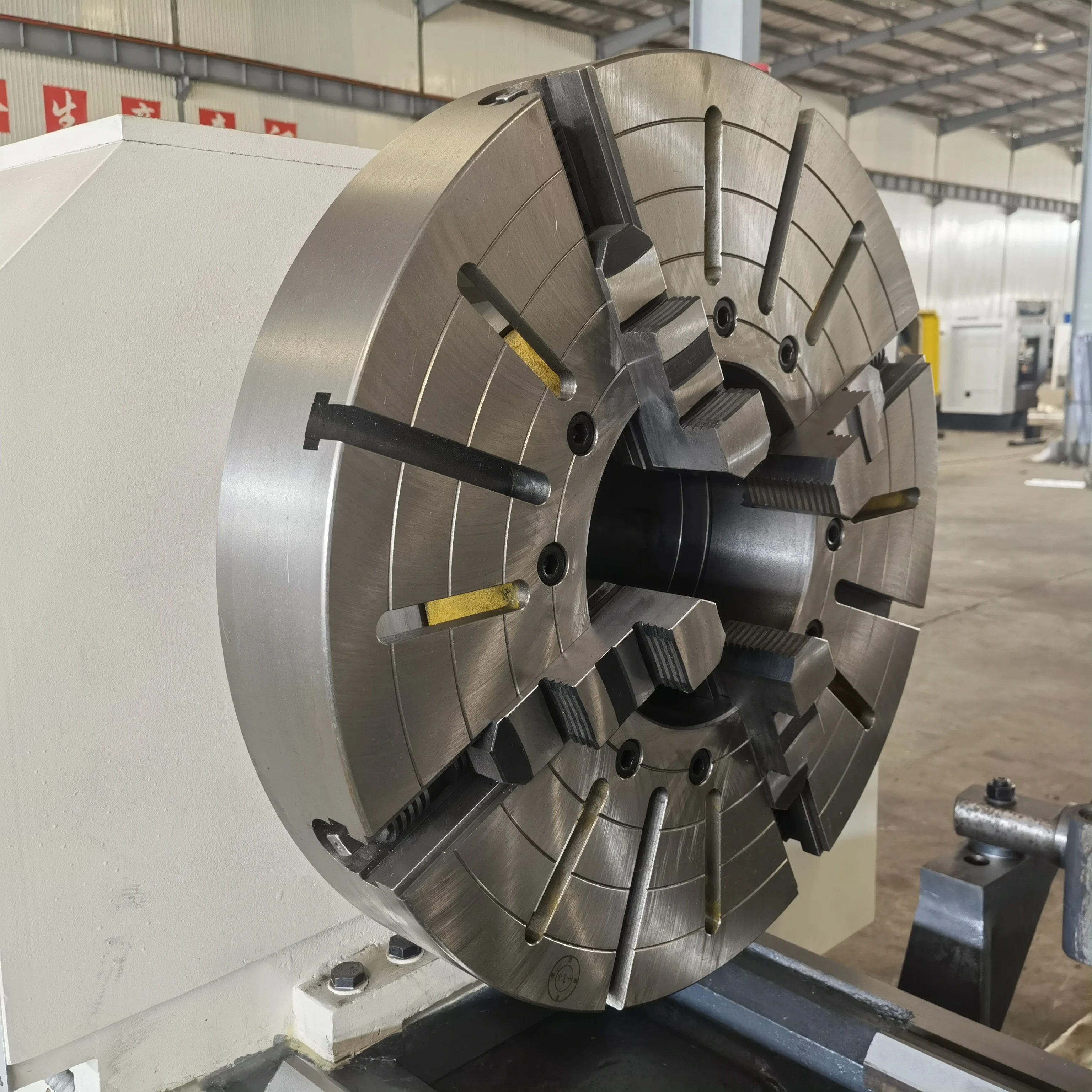

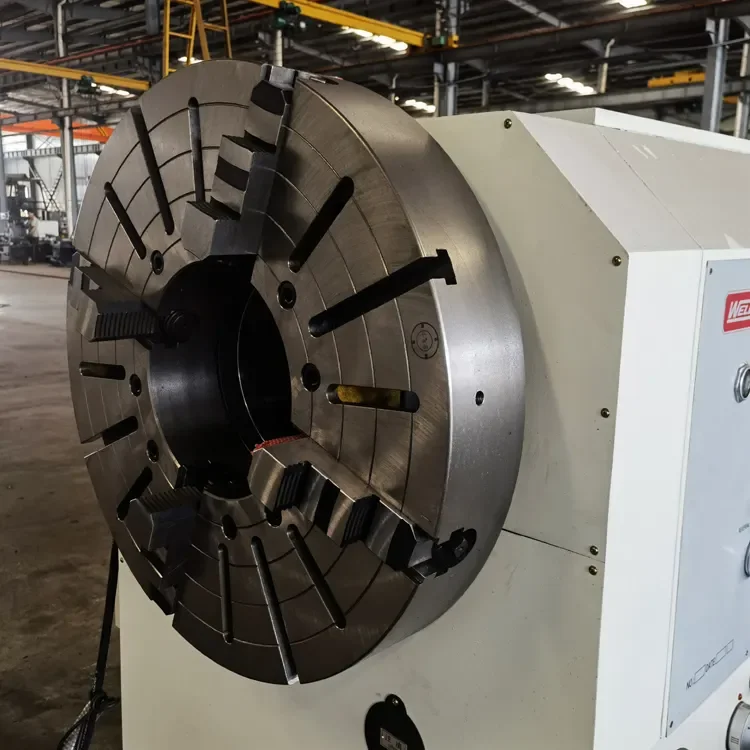

Chuck | Φ780-four-jaw eletric | |
Overall dimensions(L*W*H) | mm | 3750/4250/5250×1800×1700 |
Net weight | T | 6.5/7.5/8.8 |
Product Characteristics
The main performance characteristics：
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to
undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.

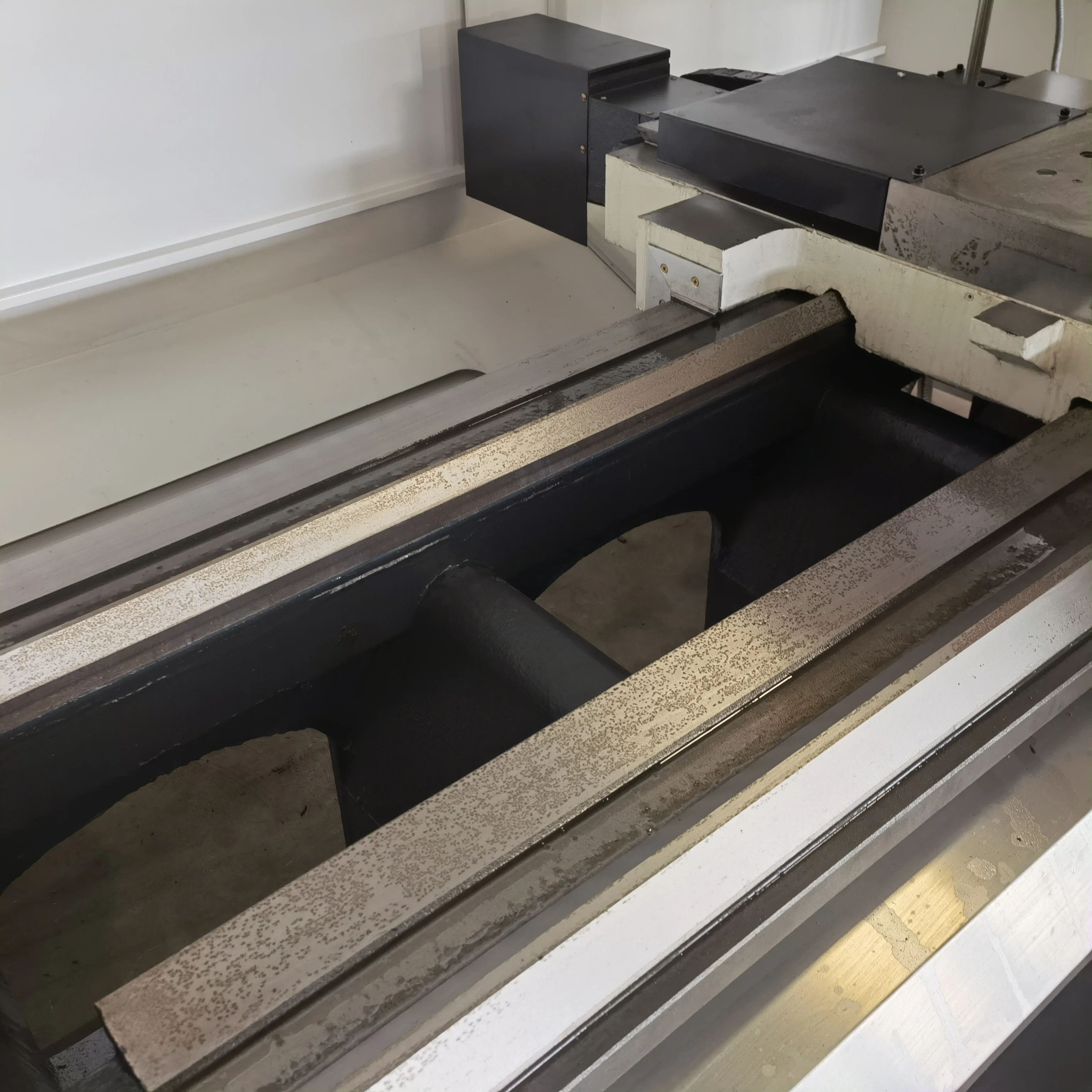

2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching
depth up to 4mm, effectively improves the abradability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot
weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing
and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision
grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the
wear-resisting property and the precision maintenance.

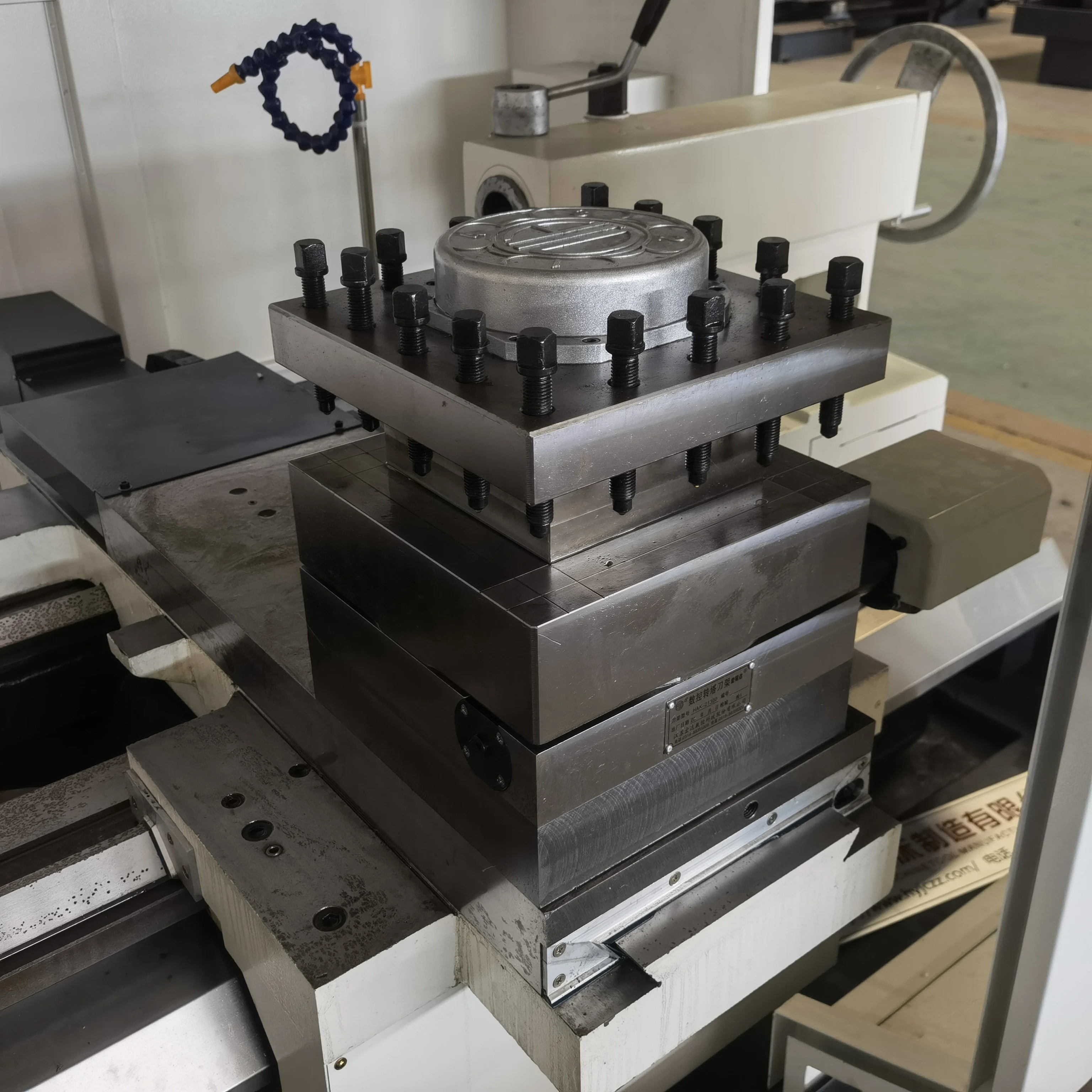

6 The machine adopts high strength four station turret shank size: 25x25mm.
undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching
depth up to 4mm, effectively improves the abradability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot
weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing
and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision
grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the
wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm.
Application：
1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other
rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the
drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc
parts.
2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency
quenching, wear-resistant durable.
3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation,
humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power
utilization rate is high, which is suitable for the strong cutting.
5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the
machine tool is tested to ensure that the machine tool has good stability and reliability.
rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the
drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc
parts.
2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency
quenching, wear-resistant durable.
3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation,
humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power
utilization rate is high, which is suitable for the strong cutting.
5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the
machine tool is tested to ensure that the machine tool has good stability and reliability.
