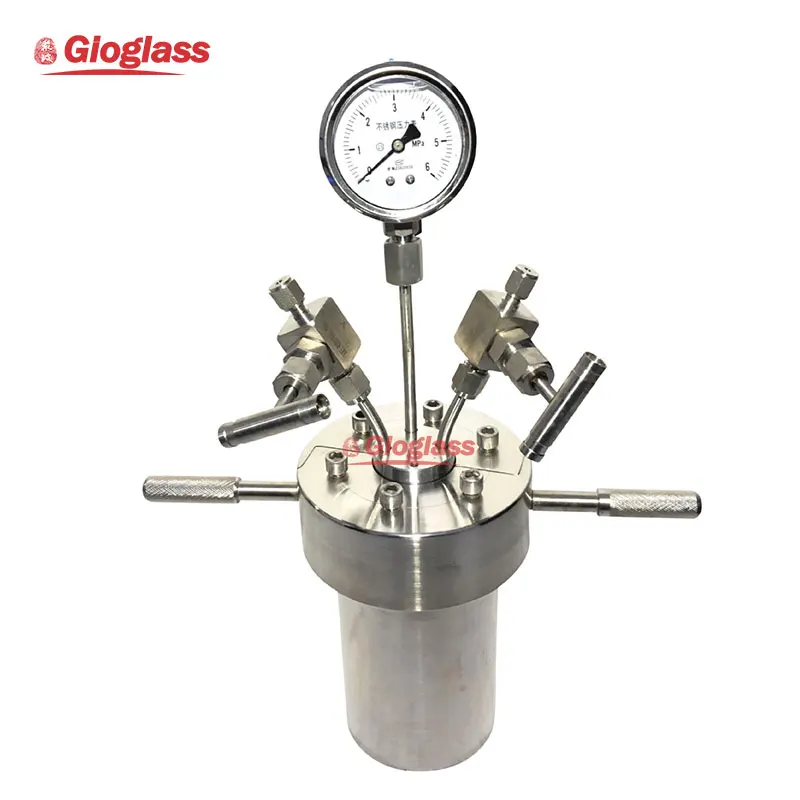

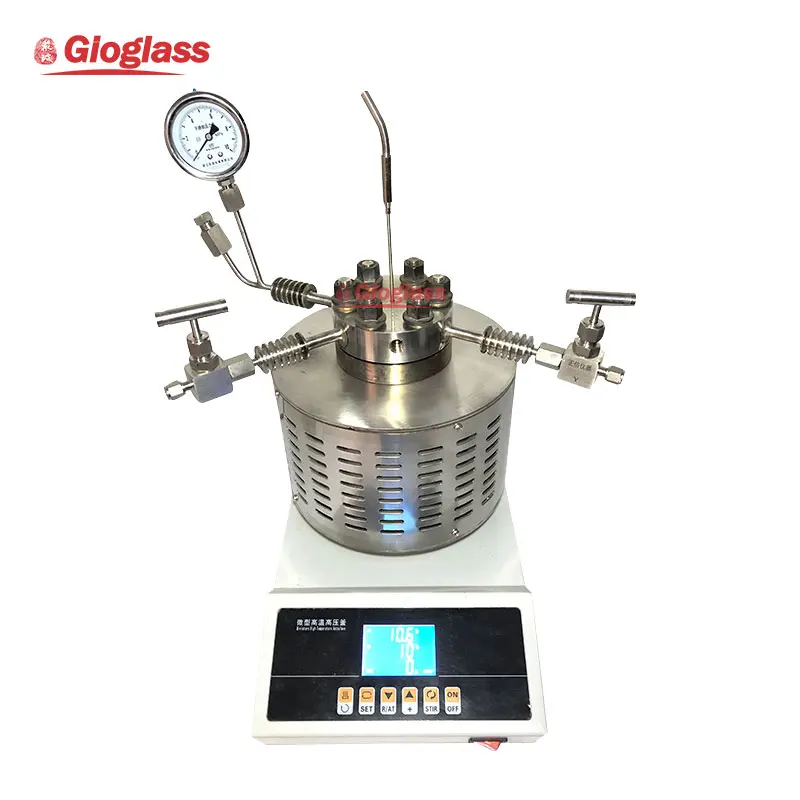

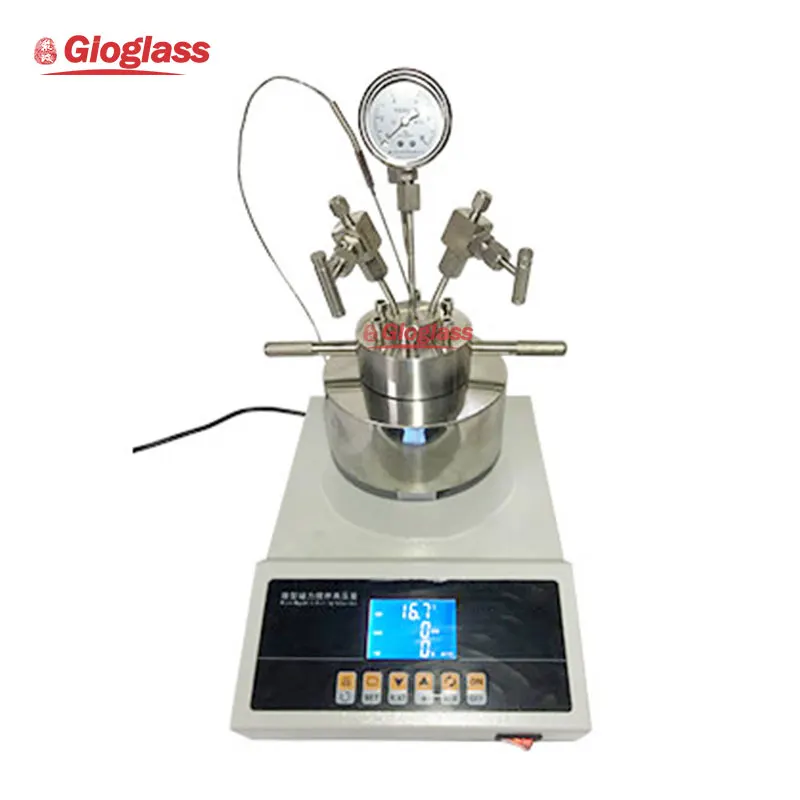

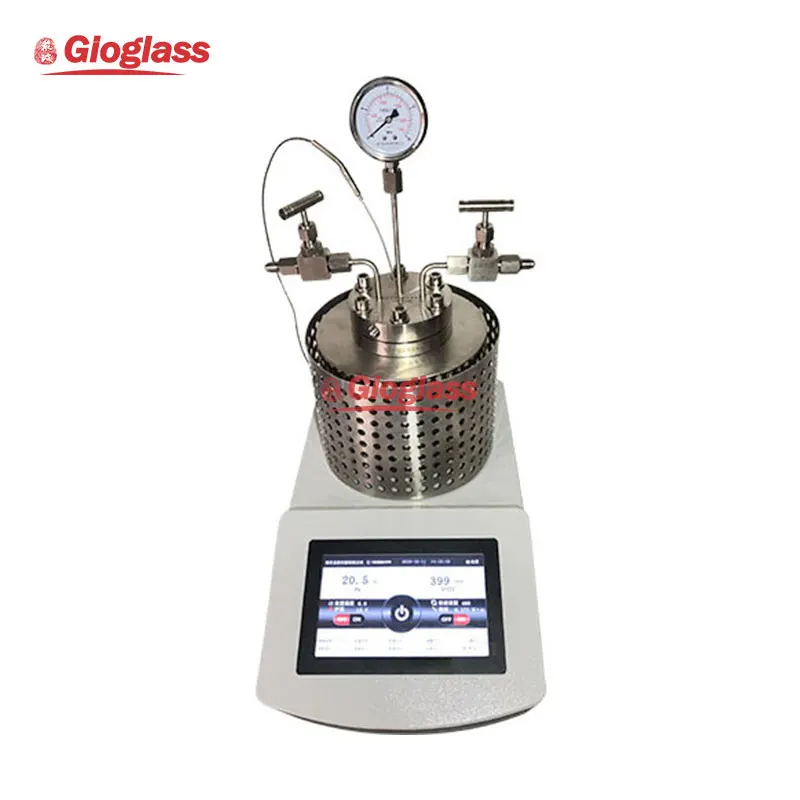

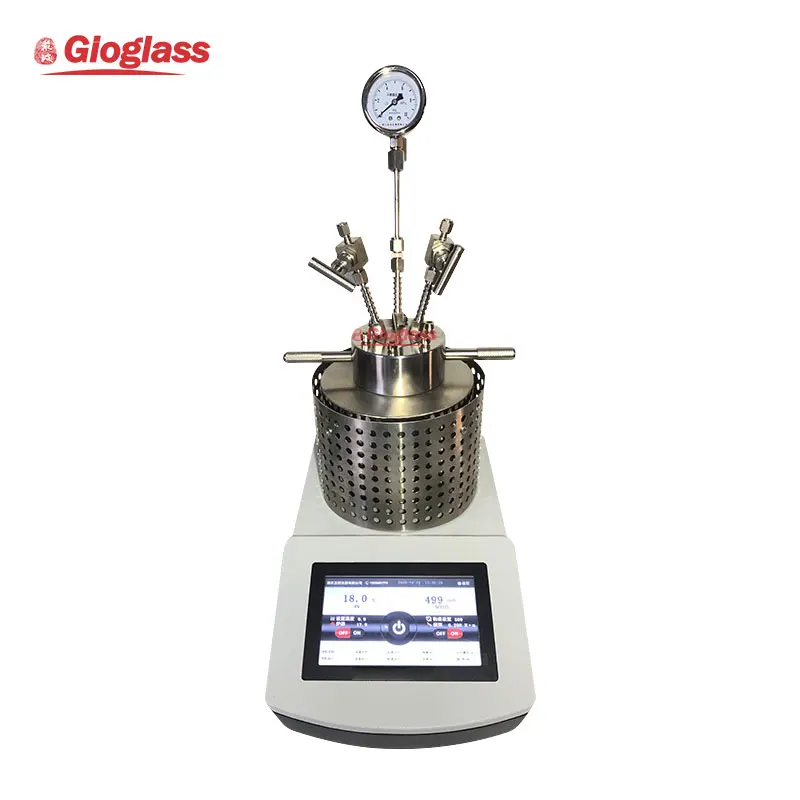

Laboratory Small High Temperature And High Pressure Magnetic Mechanical Stirring Autoclave Reactor
Laboratory Small High Temperature And High Pressure Magnetic Mechanical Stirring Autoclave Reactor
Laboratory Small High Temperature And High Pressure Magnetic Mechanical Stirring Autoclave Reactor
Laboratory Small High Temperature And High Pressure Magnetic Mechanical Stirring Autoclave Reactor
Laboratory Small High Temperature And High Pressure Magnetic Mechanical Stirring Autoclave Reactor
Laboratory Small High Temperature And High Pressure Magnetic Mechanical Stirring Autoclave Reactor
Laboratory Small High Temperature And High Pressure Magnetic Mechanical Stirring Autoclave Reactor

Laboratory Small High Temperature And High Pressure Magnetic Mechanical Stirring Autoclave Reactor

Share on (11000007564442):


Price:

Quantity:


Product Overview

Description





Product Description


Model
Z-FC
H-KJ
Volume
25-1000ML
50-1000ML
Kettle Body Material
304, 316L, 310S, 904L, Hastelloy alloy, titanium, etc
304, 316L, 310S, 904L, Hastelloy alloy, titanium, etc
Sealing Style
Hard/soft sealing
/
Kettle Body Structure
Quick-open type
/
Liner
Ptfe/quartz /316L/ Hastelloy/titanium/Monel etc
PTFE/quartz /PPL
Temperature
0-350℃
0-600℃
Thermocouple
K type
K type/316L/φ2.0
Pressure
0-25MPA
-0.1-25MPA
Explosion-proof Pressure
7-26MPA
Explosion-proof Device
Hastelloy alloy material
Hastelloy explosion-proof film
Stirring
Internal Magneton Stirring
Shaft-driven blade stirring (torque up to 40KG)
Stirring Speed
0-1500RPM
0-1000RPM
Control Cabinet, Heating Furnace
One-piece construction
/
Heating Power
500-5500W
500-2500W
Heating Equipment
Fully enclosed stainless steel heater
Heating Method
Electrical Heating
Module Heating
Operation Interface
7 Inch true color touch screen display
LCD display, key operation

Control System
USA Imported PID intelligent dual temperature control system, temperature control program, main control kettle temperature,
auxiliary control furnace temperature
PID intelligent double temperature control, effectively prevent impact temperature, temperature control program (optional)
Zones of Temperature Control
Intelligent selection of temperature control for four groups of temperature zones (temperature range can be set independently)
/
Power Adjustable
Four groups of zone temperature and power adjustable
/
Temperature Display
0.1℃
/
Temperature Control Accuracy
±1℃ (no strong exothermic/endothermic/temperature measuring tube without tetrafluoride Coating)
±1℃
Temperature Setting
Double self-setting function,
kettle temperature and furnace temperature PID self-setting temperature function
/
Safety Interlocking
Overtemperature/overpressure/timeout alarm, stop working, cut off heating
/
Timing Function
Insulation timing and start-up timing
/
Torque Display
Magnetically coupled torque display
/


Data Copy
Furnace temperature, temperature in the kettle, pressure, speed, torque and time can be exported through USB interface data or cut
graph
/


Remote Control
Through network cable interconnection,
it can be operated on a computer, or connected to a LAN mobile phone for remote control
(remote monitoring needs to open a cloud server by itself, and the seller provides technical support)
/
Inlet Valve
316L stainless steel needle valve, interface size φ3/φ6
/
Gas Outlet Valve (Sampling Valve)
316L stainless steel needle valve, interface size φ3/φ6
/
Spanner
Special dismantling tool
/
Power Supply
220V/110V
Option
PTFE Cover Reactor Lid , temperature tube, stirring rod and stirring blade,
PTFE liquid sample tube, support, screen, etc.;
External condensation reflux, etc
