300 2000L Factory price vanilla lemongrass citronella Essential oil extraction machine melissa Essential Oil Distiller

Product Overview

Description

300-2000L  Factory price vanilla lemongrass  citronella Essential oil extraction machine melissa Essential Oil Distiller





Model: JYT-300

Equipment Introduction

This equipment is suitable for the extraction of essential oils (volatile oils) of herbaceous woody plants. The equipment adopts a steam distillation device for water distillation to effectively extract plant essential oils and plant volatile oil components. The collection of various volatile aromas of plants is relatively significant.

The equipment adopts steam extraction method, put the raw materials in the distillation extraction tank, and then pass the saturated steam into it. At this time, the essential oil containing aromatic components in the plant body will diffuse into the steam, forming an azeotrope of oil and water Afterwards, the azeotrope is cooled. Since the essential oil is insoluble in water, the essential oil is separated through a special oil-water separator, thereby obtaining a high concentration of plant essential oil. The equipment can be water-distilled or co-distilled.









Extracting System Composition

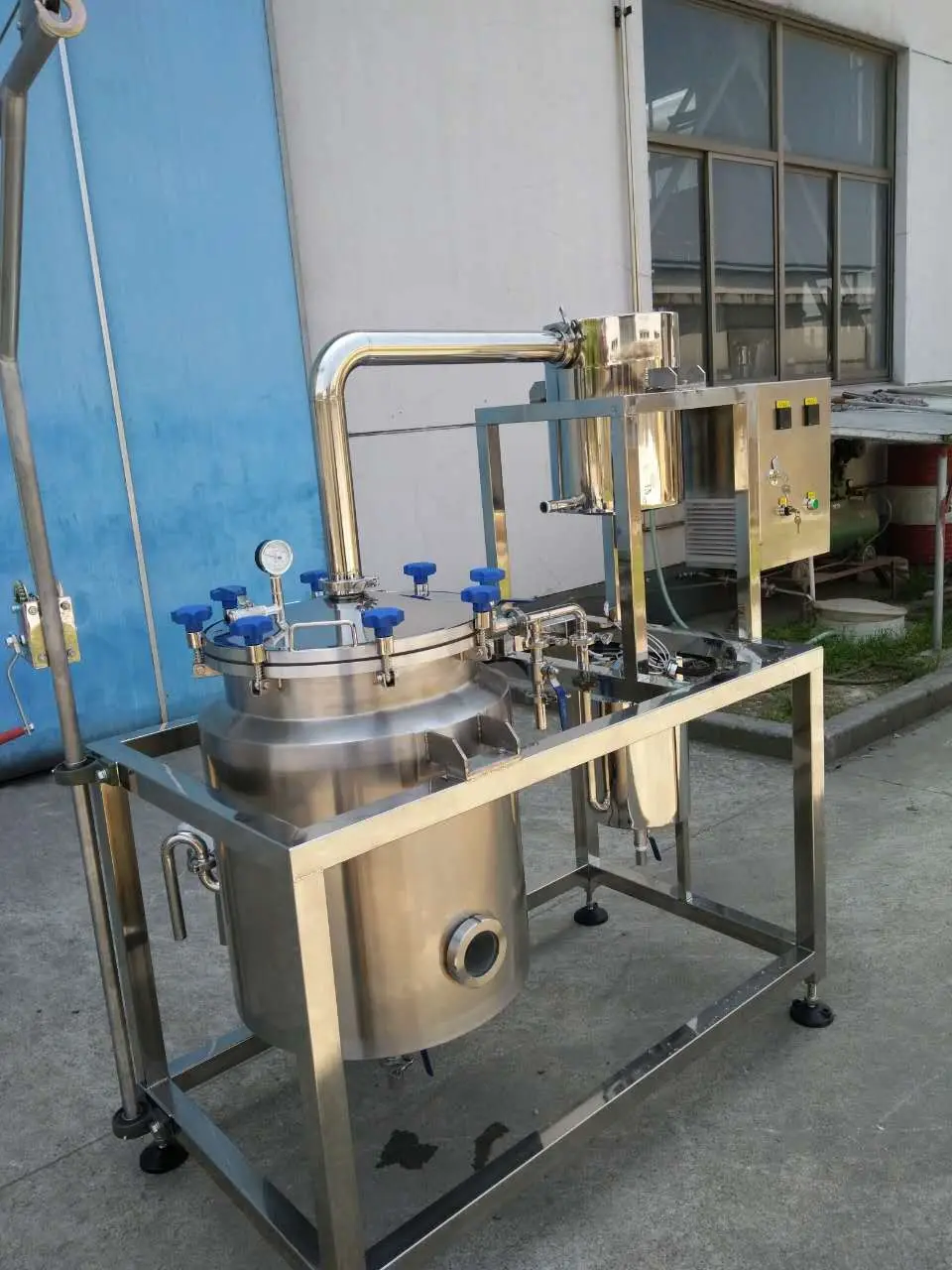

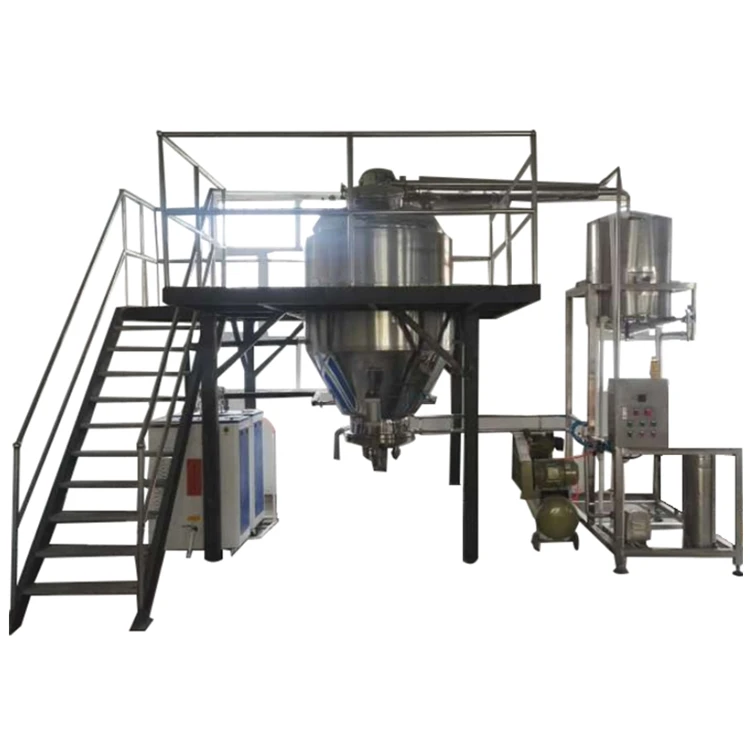

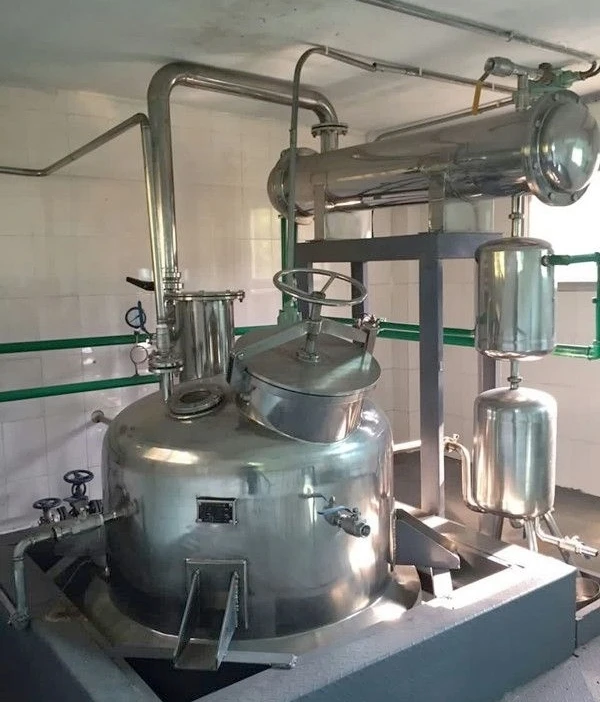

It is composed of the extracting tank(distillation tank), condenser, water and oil separator, and pipes, good quality SUS304 or SUS316L material.

Equipment application

This equipment is a new-type, multi-functional and multi-purpose plant essential oil extraction unit, which can efficiently collect herbal or woody plant essential oils, plant aromatic dew, plant extracts and other effective ingredients. This equipment is suitable for enterprises to set up factories near the plant's origin.

Widely used in different industries, such as: Chinese medicine, health products, biopharmaceuticals, cosmetics, food and other industries for the extraction and collection of plant volatile oil.

This equipment efficiently extracts plant essential oil types:

1. Conventional plant flowers and leaves: bitter rose, jasmine, wormwood, damascene rose, lavender, rosemary, basil, thyme, osmanthus, wild mountain chrysanthemum, wax plum, locust flower, evening primrose, mint, sage, mint , Oregano, dill, lemon balm, verbena, magic herb, parsley, perilla, chamomile;

2. Plant roots: odoriferous, dragon camphor, vetiver, cinnamomum camphora, rose, lavender, artemisia annua, aloe, rose, lavender, atractylodes;

3. Plant fruits: Ligusticum chuanxiong, passion fruit, pepper (only pepper aroma, no hemp and no bitterness), castor, star anise, grape seed, lemon, limonberry, pine nuts, ginger.

4. Plant/tree/peel (shell): pine cone, orange peel, bergamot, pomelo peel, green peel.



Model List

Model	Volume (L/3h)	Extracting Temperature(℃)	Power supply	Heating Power (KW/H)	Oversize(M)
JYT-500	500	40-100	460V/380V/220V	36	3.65×2.65×3.7
JYT-1000	1000		460V/380V/220V	72	4.05×2.75×4
JYT-2000	2000		460V/380V/220V	Steam Heating	4.35×3.05×4.06
JYT-3000	3000		460V/380V/220V	Steam Heating	4.46×3.25×4.35
JYT-5000	5000		460V/380V/220V	Steam Heating	4.46×3.35×4.7
JYT-6000	6000		460V/380V/220V	Steam Heating	4.66×3.75×5

Technical parameters

This equipment is suitable for various processes such as normal pressure and normal temperature ultrasonic extraction, ultrasonic extraction, dynamic heat reflux extraction and organic solvent recovery for extraction in food, traditional Chinese medicine, health care products, biological pharmacy, cosmetics and other industries. This equipment can dynamically and continuously ultrasonic extraction. This equipment is very suitable for multi-variety, small batch production and use in universities, research institutes, laboratories of enterprises and institutions, and pharmaceutical factories.

 Technical parameters:(Model JYT-1000L)

1.     Vacuum pump power:4.5KW

2.     Blending type:paddle type agitator

3.     Agitator motor:2.75kw(speed adjustable motor)

4.     Sanitary liquid pump:1.37kw(also be used for CIP cleaning)

5.     Heating area of extraction tank:2.0M²

6.     Condensing area of condenser:1.55M²

7.     Cooler area:1.05 M²

8.     Working pressure of jacket layer: 0.3MPa

9.     Water extracting temperature:room temperature~100degree(±1℃adjustable)

10. Solvent temperature:room temperature~85degree

11. Vacuum degree:-0.05~-0.08MPa

12. Concentrating distillation temperature:45~80degree;

13. Heating system for extracting tank: external steam resource heating;

14. Extracting tank temperature system:temperature control proportional valves;

      15.structure:3layers insulated steam heating system, bottom open structure;

16  Material:Good quality SUS304 2B for whole machine,inner tank thickness 4mm, jacket layer thickness 3mm, outer cladding layer 3mm.

17. Surface treatment: inner mirror polish, outer side brush matt surface;

18. Equipment size:2100x1800x3160mm(L*W*H or can be customized)

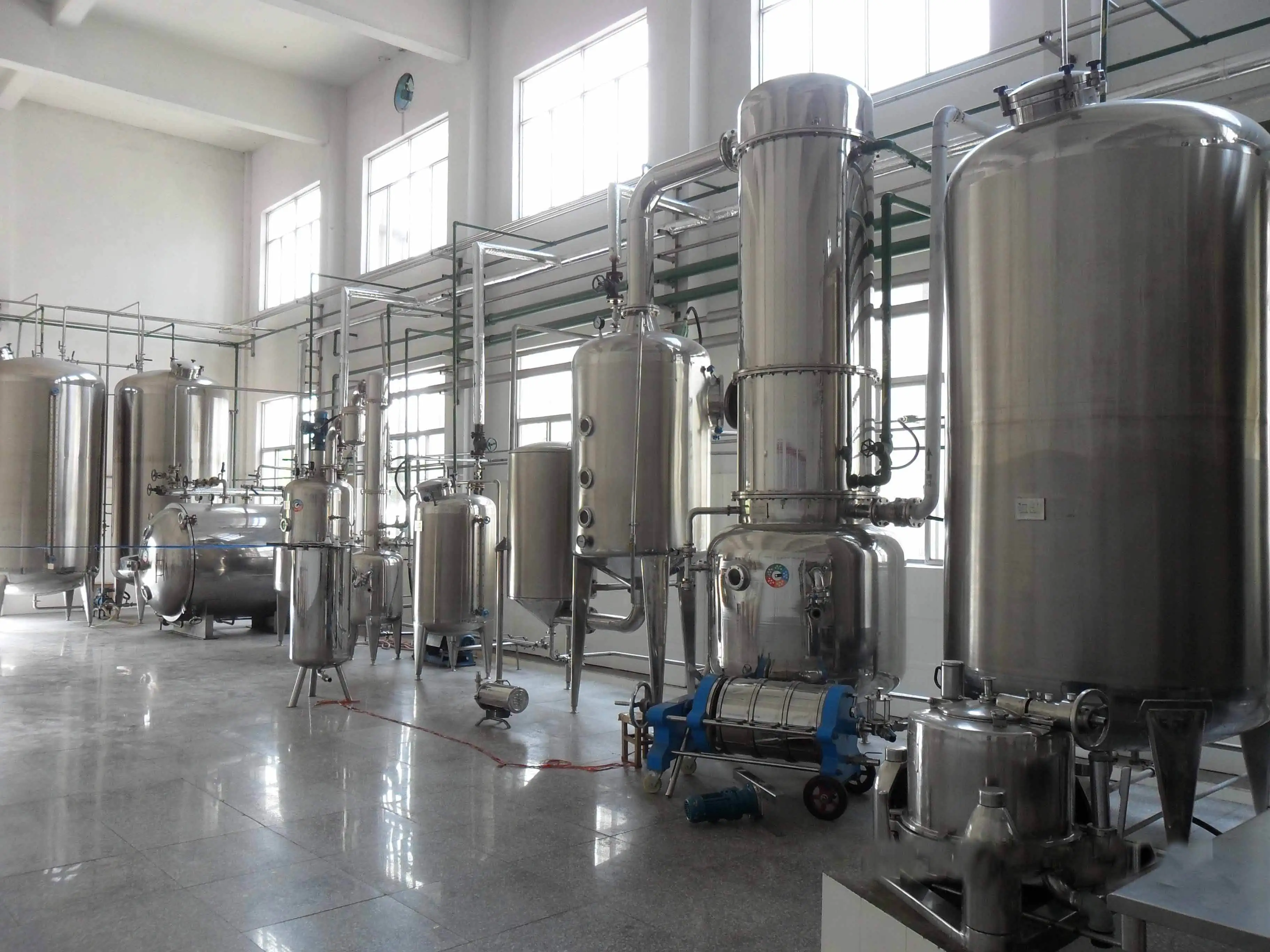

Project Samples:

Our company has summarized its unique experience in the industrialization of extraction of various natural spices, and can design different extraction schemes according to different extraction resources, such as flowers, branches and leaves, precious woods, herbs, spices, oily seeds, etc. In order to achieve low energy consumption, high extraction rate, reasonable structure design, durability, convenient and safe operation, and no pollution to the environment. The equipment can realizeonline detection and automatic control of extraction conditions.



 The following is a successful case of using our steam distillation method to extract volatile oil from natural substances such as common spices and Chinese herbal medicines:

Rose essential oil / pure dew Ageratum oil /Sandalwood essential oil / pure dew Agarwood essential oil / pure dew

Lavender essential oil / pure dew grass fruit oil /Lemongrass oil Litsea cubeba oil

Tea Tree Oil /Star Anise Oil /Brazilian Sweet Orange Peel Essential Oil /Clove Oil /HEMP  Essential Oil
