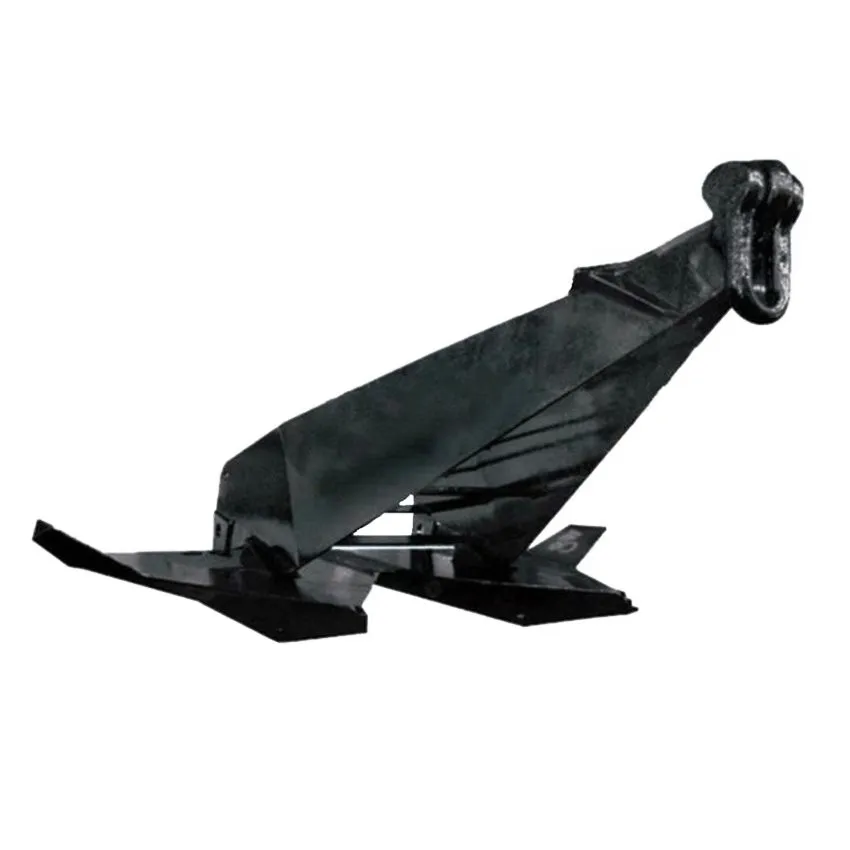

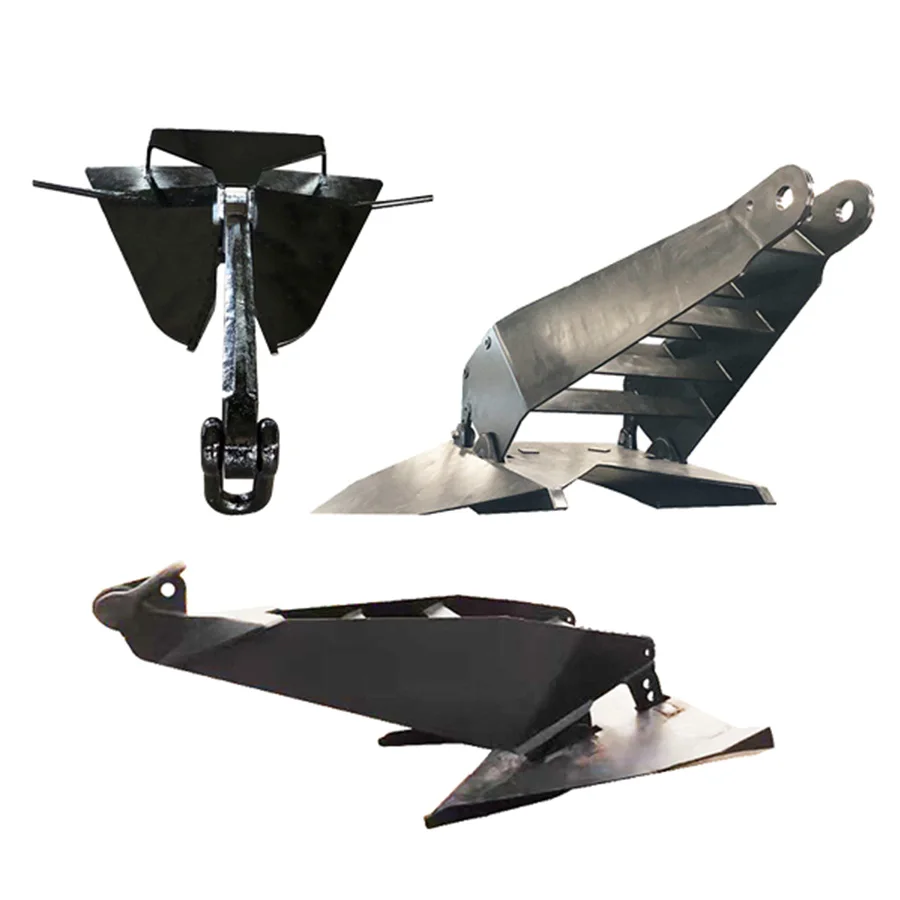

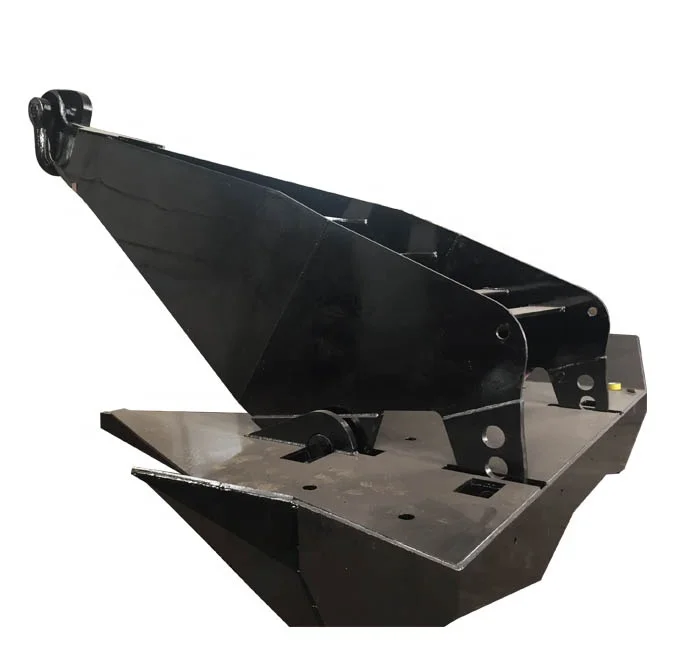

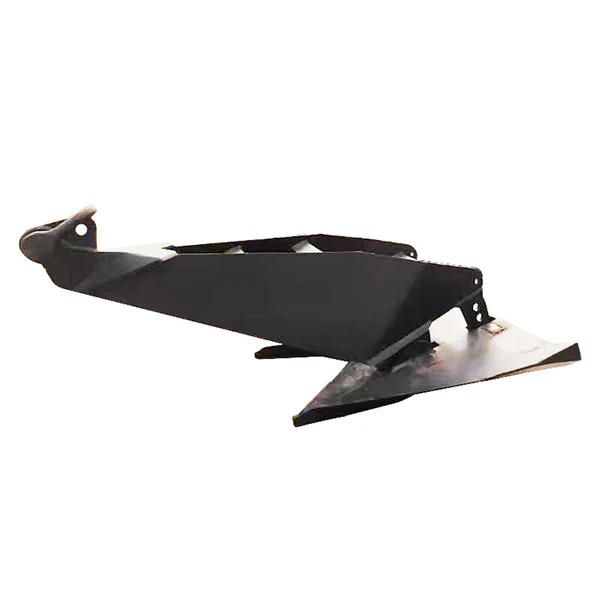

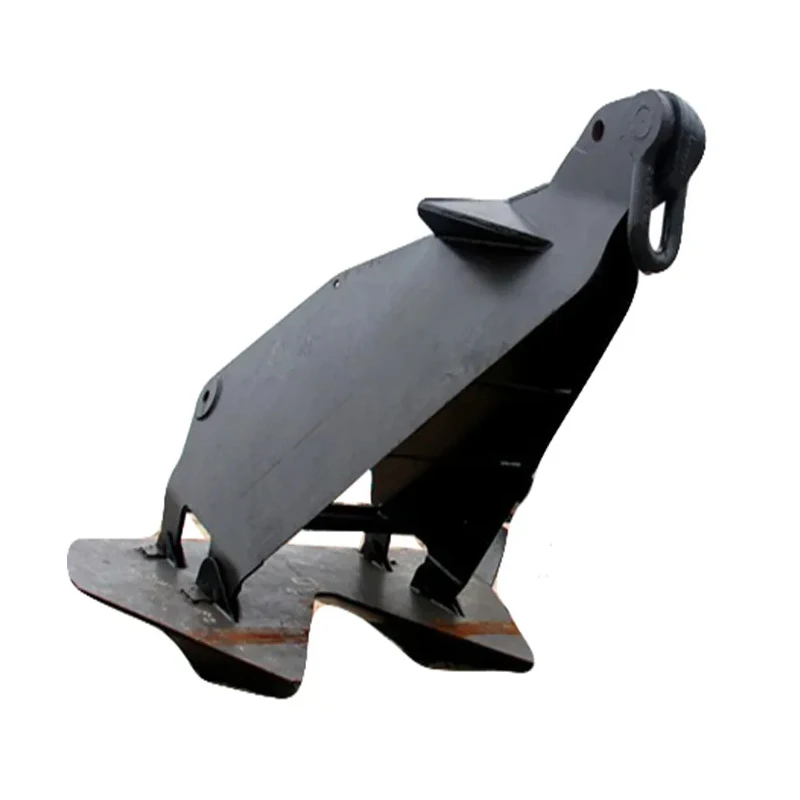

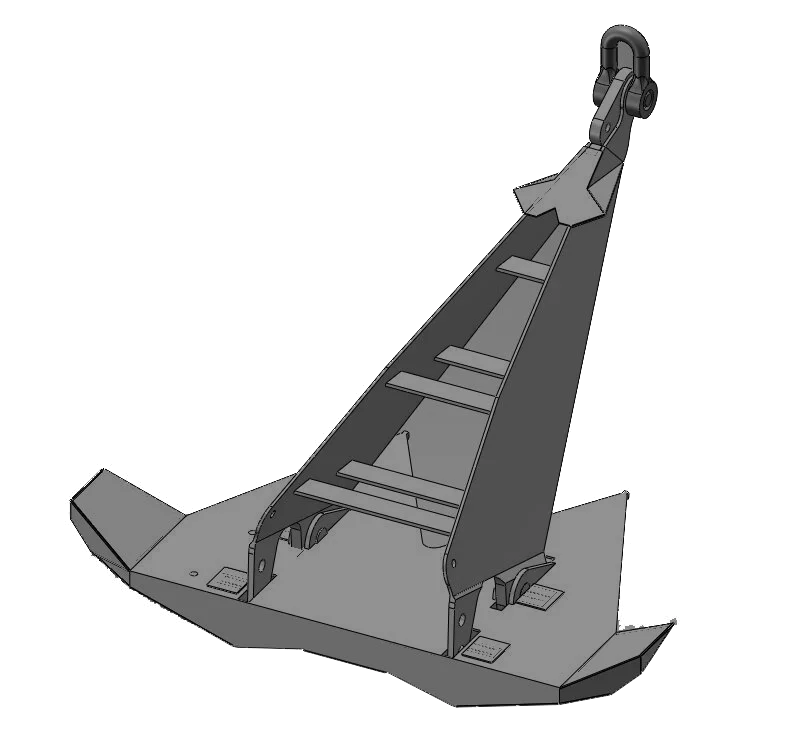

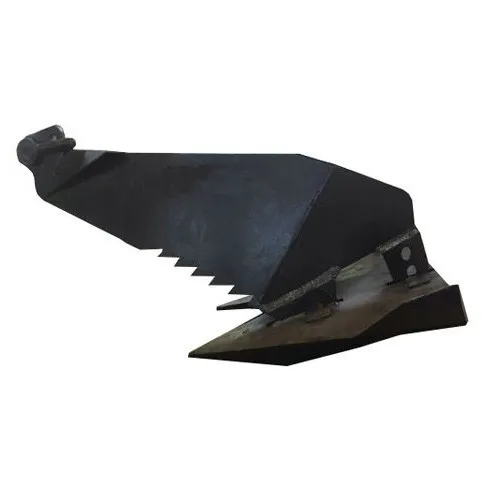

Hot Sale Steven MK5 Type High Holding Power Anchor Offshore Marine Ship HHP MK5 Stevpris Anchor
- Category: >>>
- Supplier: Qingdao Alastin Outdoor Products Co. Ltd.
Share on (11000007579199):
Product Overview
Description
Name | Marine Hardware MK5 HHP Stevin Anchor |
Material | IRON |
Size | from 1000KGS to 30000KGS |
Color | BLACK |
Application | Ship,Cargo |
Service | ODM , OEM , Accept Customization |
Marine Hardware MK5 HHP Stevin Anchor
Weight: from 1000KGS to 30000KGS
MK5 High Holding Power Anchor Certificate: ABS,LR,NK,DNV,GL,RIS,BV,KR, CCS
Material: Casting Steel
Weight: from 1000KGS to 30000KGS
MK5 High Holding Power Anchor Certificate: ABS,LR,NK,DNV,GL,RIS,BV,KR, CCS
Nominal Weight (KG) | Size(mm) | ||||||||||||||
A | B | C | E | F | H | T | S | ||||||||
1000 | 2585 | 2780 | 1582 | 1314 | 236 | 1074 | 430 | 62 | |||||||
1500 | 2954 | 3184 | 1812 | 1505 | 271 | 1230 | 493 | 80 | |||||||
3000 | 3721 | 4011 | 2283 | 1896 | 342 | 1550 | 622 | 90 | |||||||
5000 | 4412 | 4756 | 2707 | 2248 | 406 | 1837 | 738 | 110 | |||||||
7000 | 4910 | 5290 | 3011 | 2500 | 453 | 2045 | 825 | 117 | |||||||
8000 | 5161 | 5563 | 3166 | 2629 | 474 | 2149 | 862 | 130 | |||||||
10000 | 5559 | 5992 | 3410 | 2832 | 511 | 2315 | 929 | 140 | |||||||
12000 | 5908 | 6368 | 3624 | 3010 | 543 | 2460 | 988 | 150 | |||||||
14000 | 6219 | 2704 | 3815 | 3169 | 572 | 2590 | 1040 | 160 | |||||||
15000 | 6364 | 6860 | 3904 | 3242 | 585 | 2650 | 1064 | 170 | |||||||
18000 | 6763 | 7290 | 4149 | 3446 | 622 | 2816 | 1131 | 180 | |||||||
20000 | 7004 | 7550 | 4297 | 3569 | 644 | 2917 | 1171 | 190 | |||||||
22000 | 7230 | 7794 | 4436 | 3684 | 665 | 3011 | 1209 | 200 | |||||||
25000 | 7545 | 8133 | 4629 | 3844 | 694 | 3142 | 1262 | 200 | |||||||
30000 | 8018 | 8645 | 4919 | 4085 | 737 | 3339 | 1341 | 220 | |||||||
