DeviceXPlorer OPC Server Version7 for Rockwell Allen Bradley Series
- Category: >>>
- Supplier: TAKEBISHI Corporation
Share on (11000007603877):
Product Overview
Description
Products Description

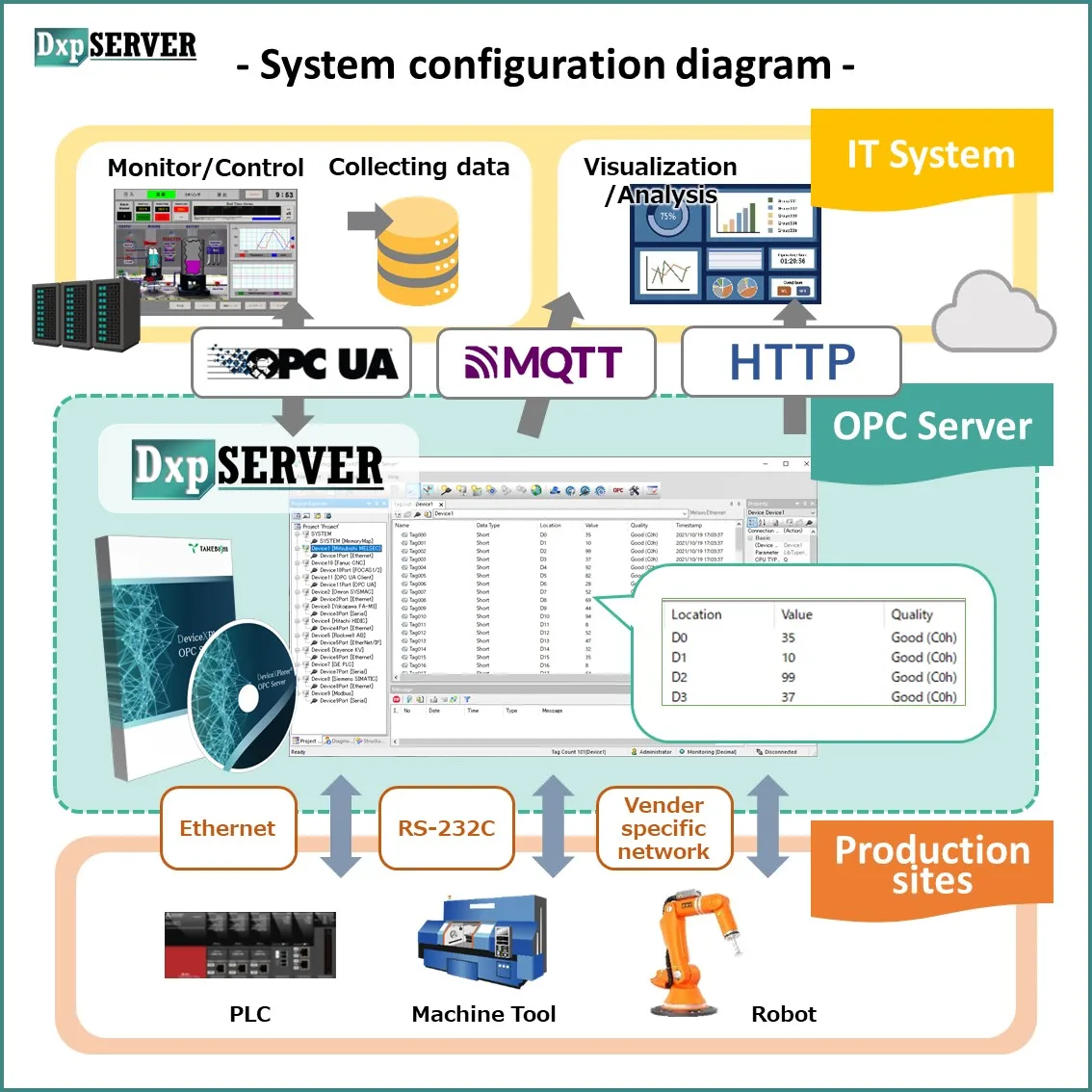

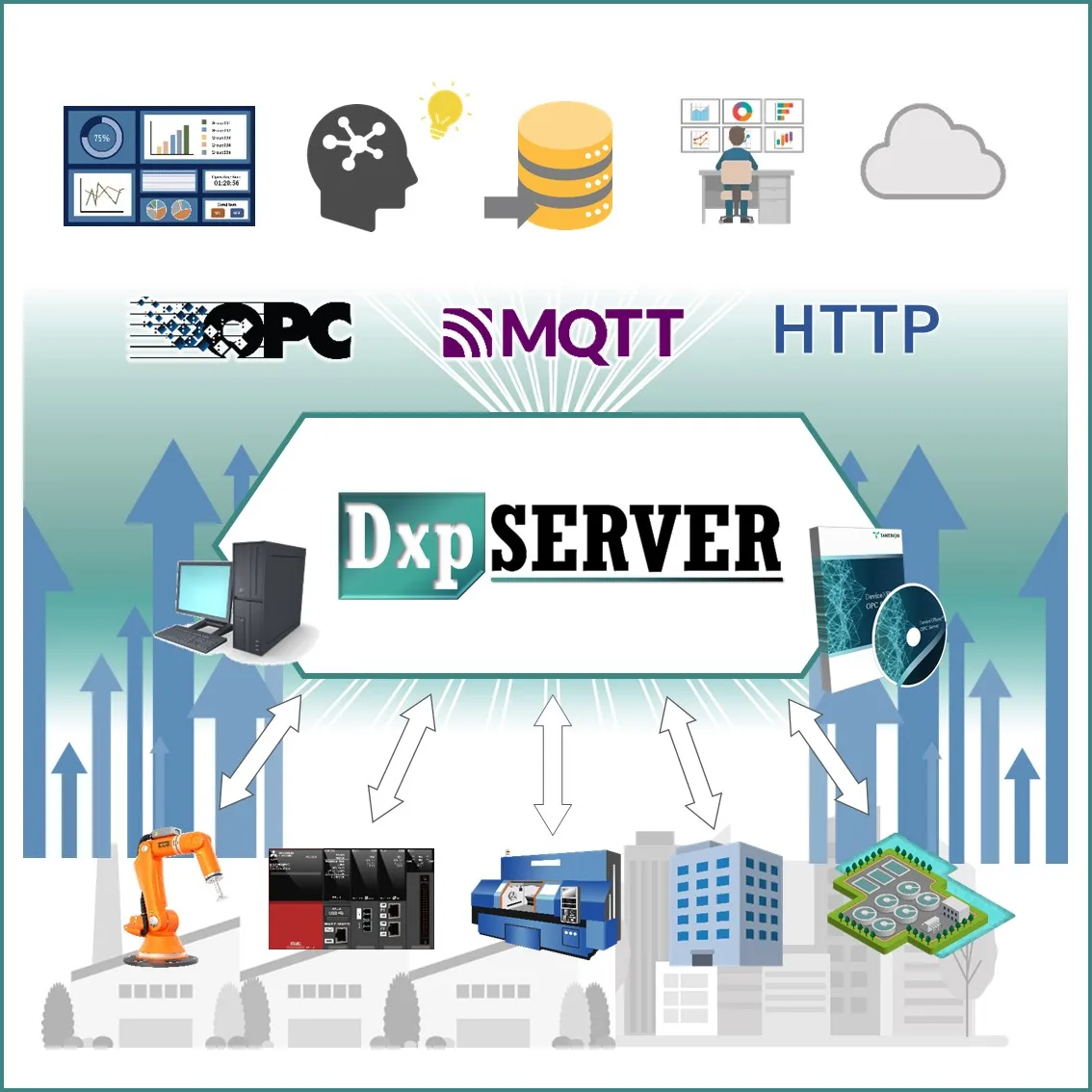

DxpServer is Industrial Communication Software that provides connectivity with control devices in a manufacturing floor such as PLCs, machine tools, and robots.
It enables to communicate with every control devices via a variety of networks such as Ethernet and bridges data to various applications.
Features
* Accessible to over 400 kinds of Devices
* Multilingual display (Japanese, English, Simplified Chinese, Traditional Chinese, Korean)

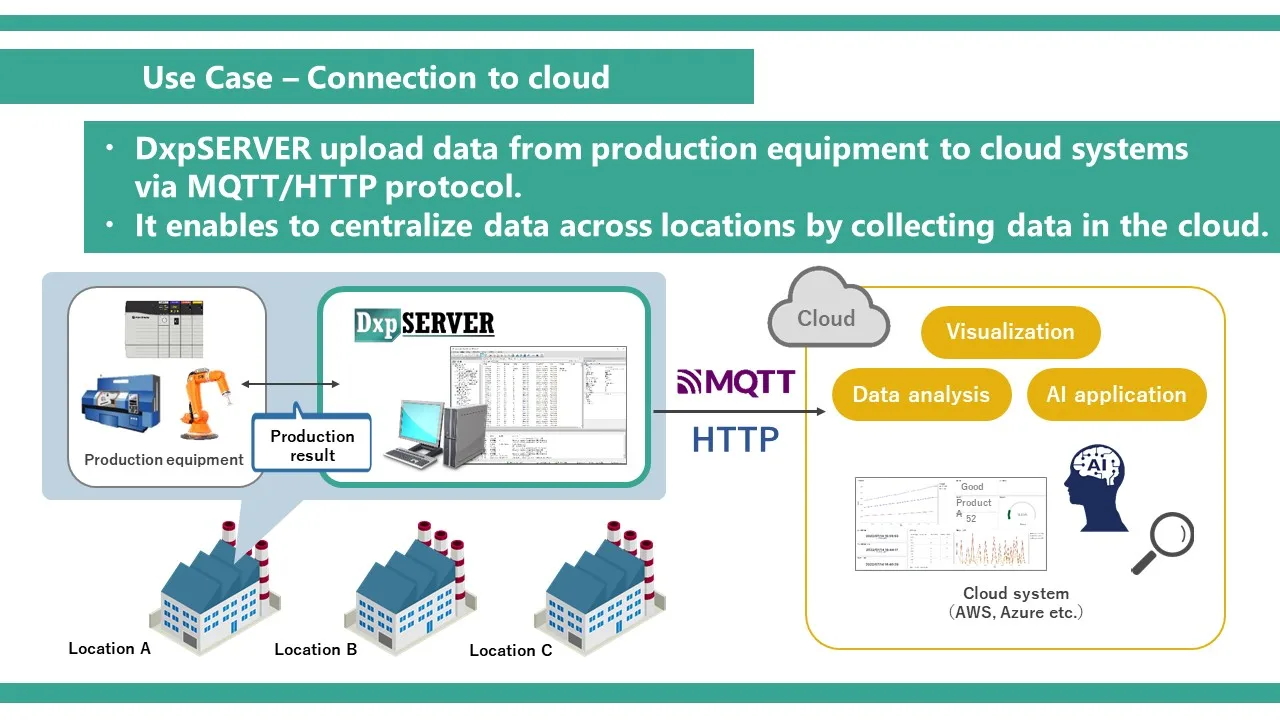

* Supports OPC UA/DA/AE, MQTT, HTTP
* Ideal for Continuous Operation System ｰ No need to shut down the whole system when changing cofiguration
Performance
- High-speed communication of 100,000 points per second
Features
* Accessible to over 400 kinds of Devices
* Multilingual display (Japanese, English, Simplified Chinese, Traditional Chinese, Korean)
* Supports OPC UA/DA/AE, MQTT, HTTP
* Ideal for Continuous Operation System ｰ No need to shut down the whole system when changing cofiguration
Performance
- High-speed communication of 100,000 points per second
- Load balancing by multiple ports concurrent communication
OverView

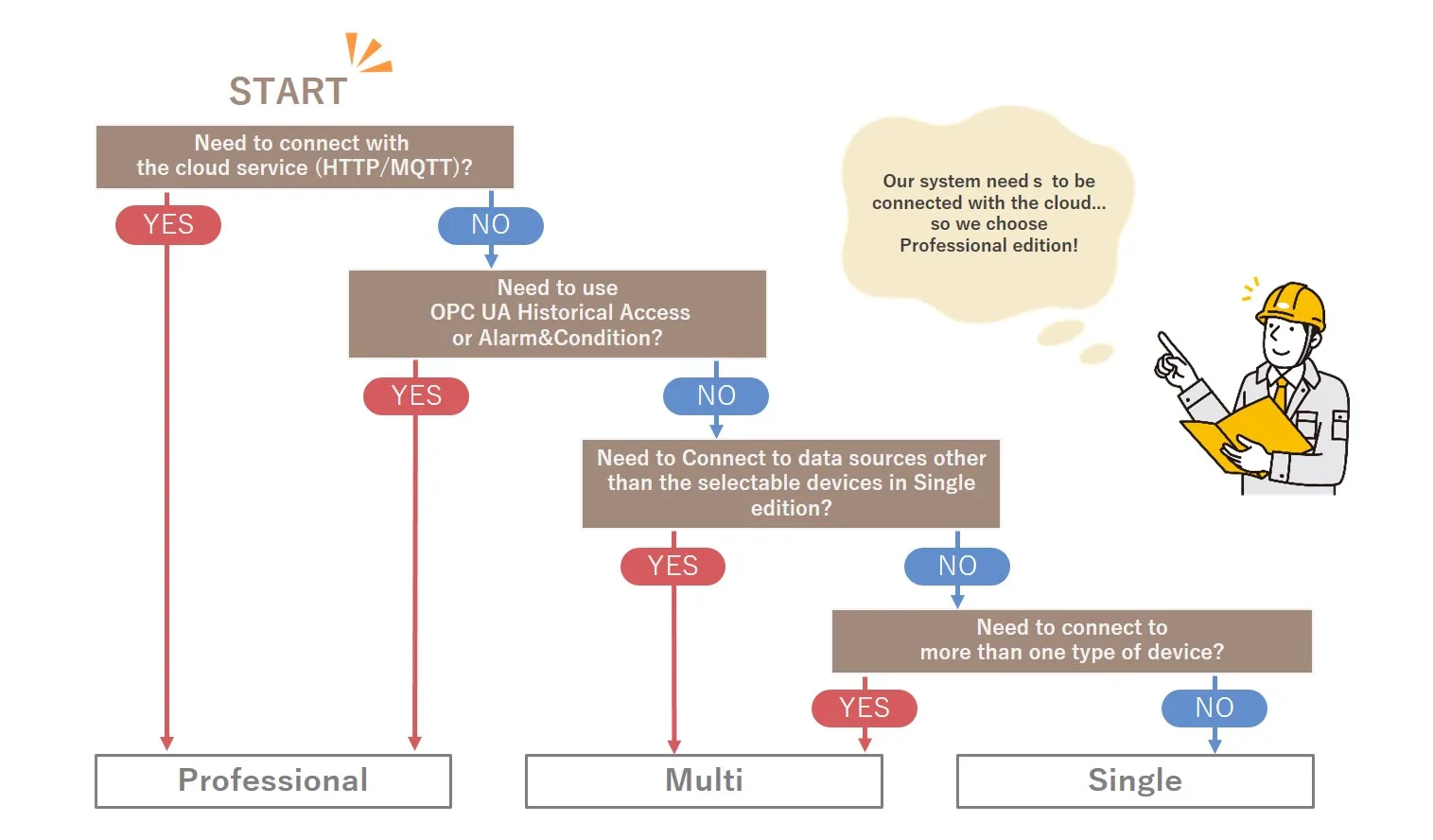

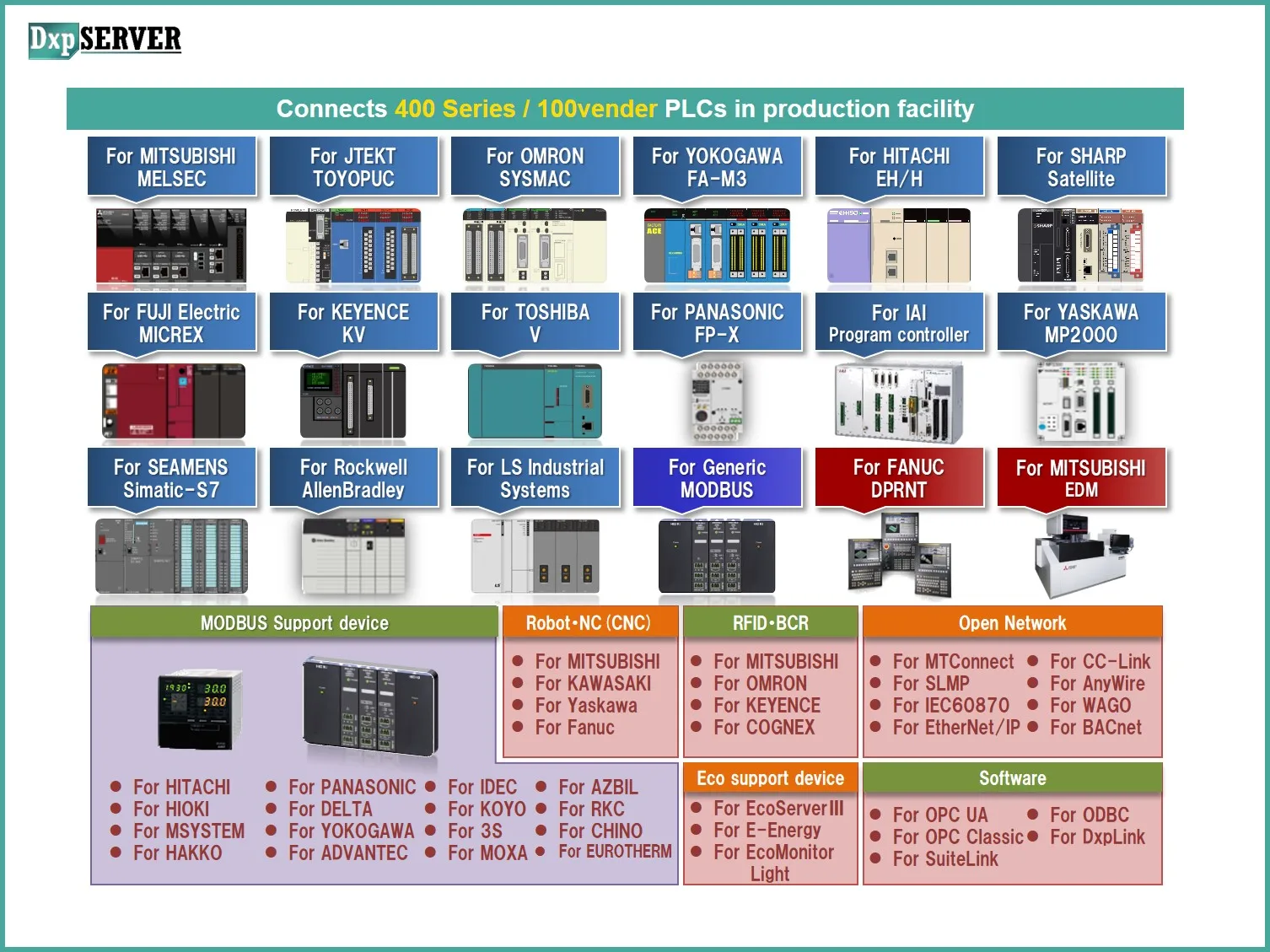

How to select the Edition
PLC | MODBUS Support device | RFID/BCR |
For MITSUBISHI MELSEC | For General Modbus | For MITSUBISHI RFID |
For OMRON SYSMAC | For Azbil | For OMRON RFID |
For JTEKT TOYOPUC | For IAI | For COGNEX BCR |
For YOKOGAWA FA-M3 | For M-SYSTEM | For KEYENCE BCR |
For HITACHI HIDEC | For OMRON | For MARS TOHKEN BCR |
For SHARP SATELLITE | For IDEC | |
For FUJI MICREX | For KOYO | Open Network |
For PANASONIC FP | For WAGO | For Modbus Client(Master) |
For YASKAWA MP | For MTT | For Modbus Server(Slave) |
For KEYENCE KV | For Phoenix Contact | For DPRINT |
For TOSHIBA PLC | For HAKKO | For MTConnect |

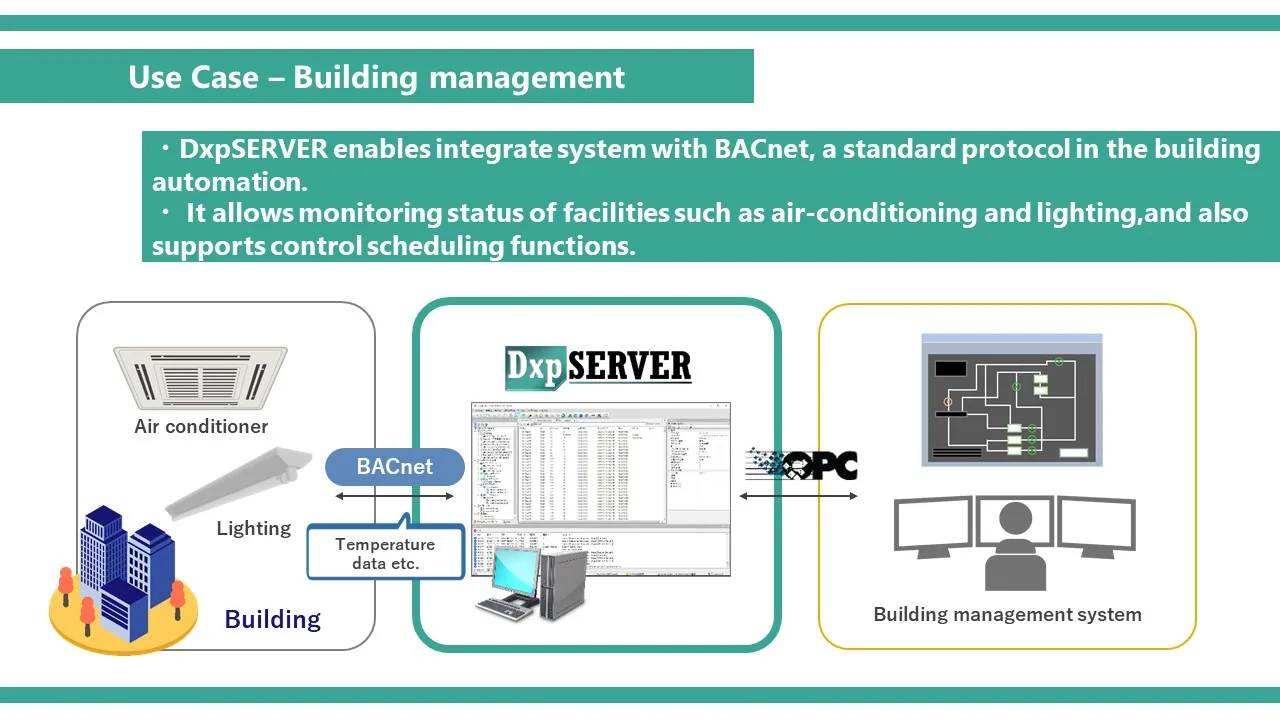

For Azbil CPL | For ANYWIRE | For BACnet |
For IAI CONTROLLER | For Eurotherm | For EtherNet/IP |
For ROCKWELL AB(AllenBradley) | For COGNEX | For IEC61850 MMS Client |
For SEAMENS SIMATIC | For HIOKI | For IEC60870-5-104 |
For GE PLC | For HITACHI | For DNP3 |
For LSIS(LS Industrial Systems) XGT | For YOKOGAWA | For OPC DA Client |
For DELTA | For OPC UA Client | |
Robot/NC(CNC) | For RKC INSTRUMENT | For OPC UA Subscriber |
For FANUC CNC | For CHINO | For ODBC Client |
For MITSUBISHI CNC | For MITSUBISHI | For DDE Client |
For MITSUBISHI EDM | For PANASONIC | For DxpLink Client |
For KAWASAKI ROBOT | For CODESYS | |
For YASKAWA ROBOT | For Moxa | Other |
For YAMAHA ROBOT | For GRAOHTECH | For MITSUBISHI ECO |
For SHIBAURA MACHINE | For PATLITE | |
For Sumitomo Heavy Industries Molding Machine | ||
For The Japan Steel Works Molding Machine |
For futher details, please contact us.
Also even if you cannot find your required vender or protocol in above list, please feel free to ask us for connectivity.
Also even if you cannot find your required vender or protocol in above list, please feel free to ask us for connectivity.
Computer | Computer running Windows |
OS*1 | Windows 11 (21H2) |
Windows 10 IoT Enterprise 2021 LTSC | |
Windows 10 IoT Enterprise 2019 LTSC | |
Windows 10 IoT Enterprise 2016 LTSB | |
Windows 10 (1809, 1903, 1909, 2004, 20H2, 21H2) | |
Windows Server 2022 | |
Windows Server 2019 | |
Windows Server 2016 | |
Windows Server 2012 R2 | |
Hard disk | 1GB or more |
Memory | 1GB or more |
Communication port | LAN adapter (in case of Ethernet connection) |
Serial port (in case of serial connection) | |
Application type *2 | 32bit application(Win32/x86) |
64bit application(Win64/x64) | |
Framework | .NET Framework 3.5(32-bit edition only) |
*1 The operation verification was performed on Japanese OS / English OS.
*2 The product includes both of 32 bit and 64 bit OPC Server. Please select when installing. The SuiteLink interfaces and some communication functions are not supported on 64 bit edition. The following connection functions are not supported on 64 bit edition.
- MELSEC EZSocket / GOT Connection
- SYSMAC FinsGateway / SysmacGateway / CX-Compolet Connection
- TOYOPUC CPU Port Connection
- FANUC FOCAS Connection
- YASKAWA Robot Connection
- Mitsubishi CNC EZSocketNc Connection
*2 The product includes both of 32 bit and 64 bit OPC Server. Please select when installing. The SuiteLink interfaces and some communication functions are not supported on 64 bit edition. The following connection functions are not supported on 64 bit edition.
- MELSEC EZSocket / GOT Connection
- SYSMAC FinsGateway / SysmacGateway / CX-Compolet Connection
- TOYOPUC CPU Port Connection
- FANUC FOCAS Connection
- YASKAWA Robot Connection
- Mitsubishi CNC EZSocketNc Connection
Company Profile
the leading developers of OPC products in Asia with over 40,000 units shipped throughout the world. Our products are OPC Fundaiton
certified and can be connected to control devices and networks of world wide PLC venders. Our products can be easily connected to
host monitoring systems such as SCADA, MES and also to the cloud, which enables significant cost saving to build systems.
