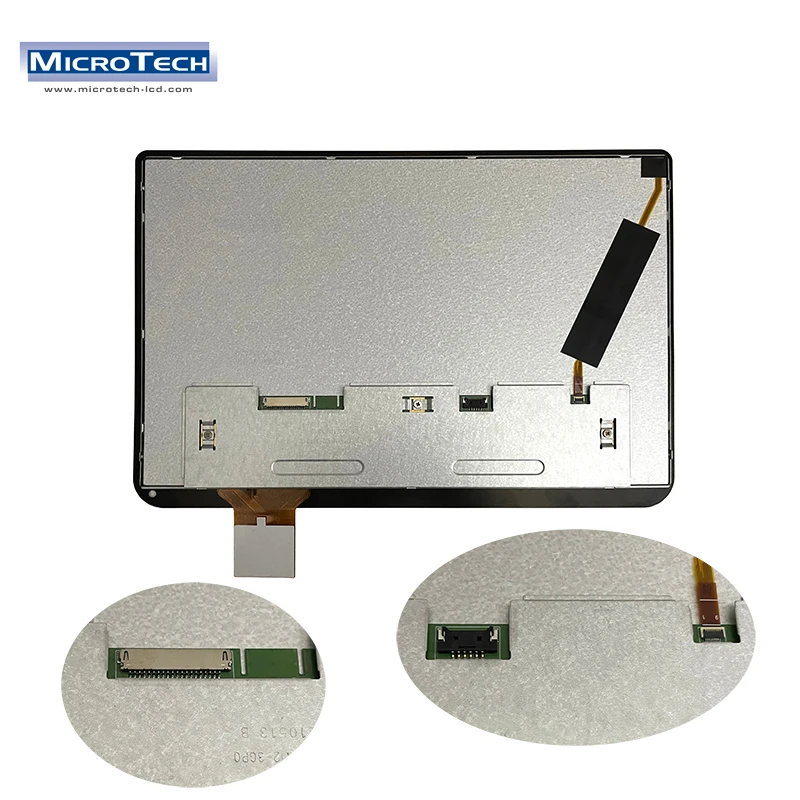

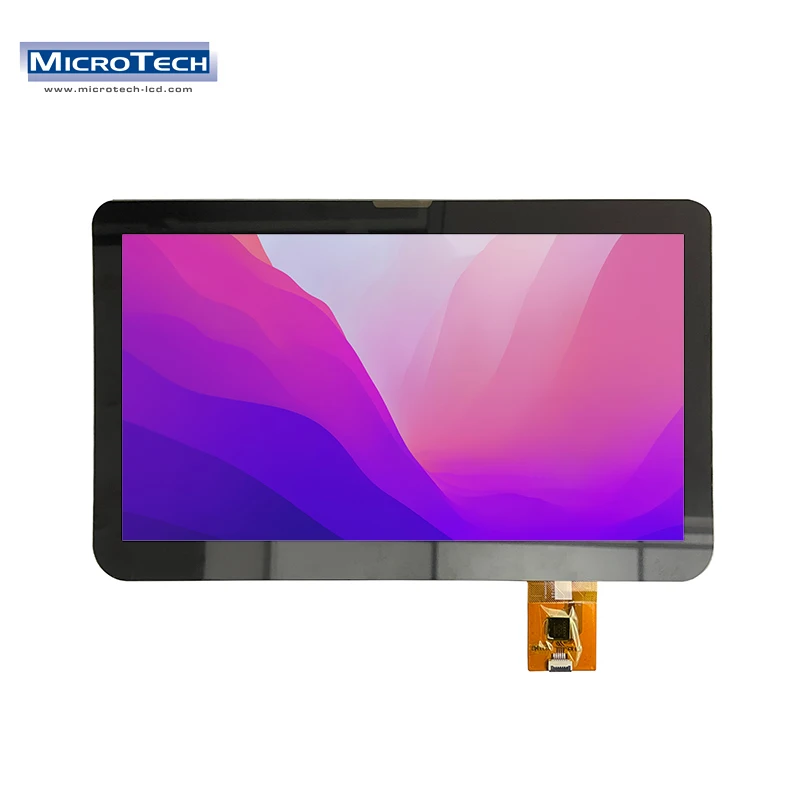

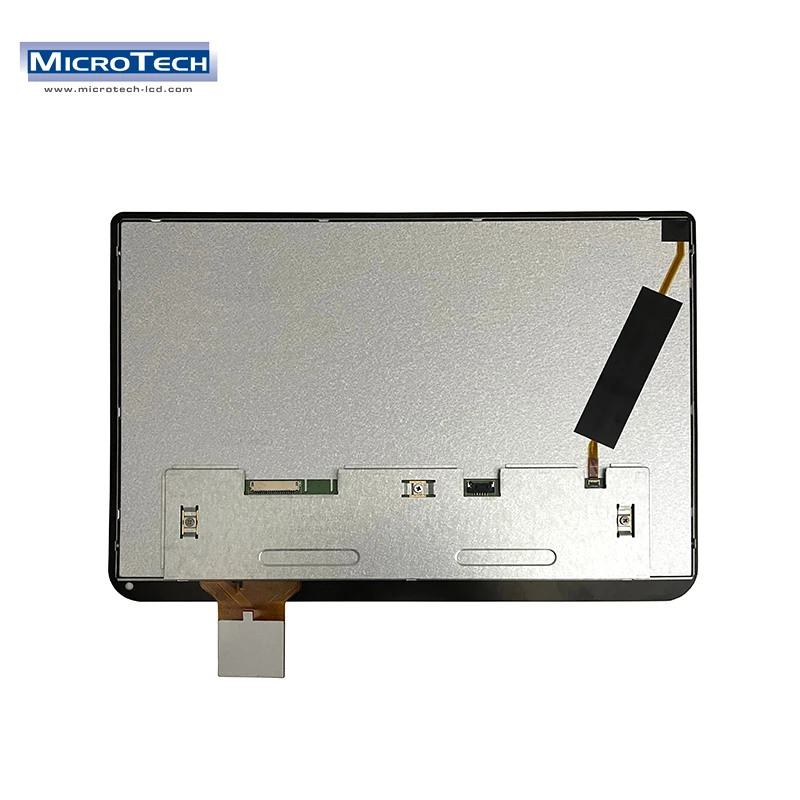

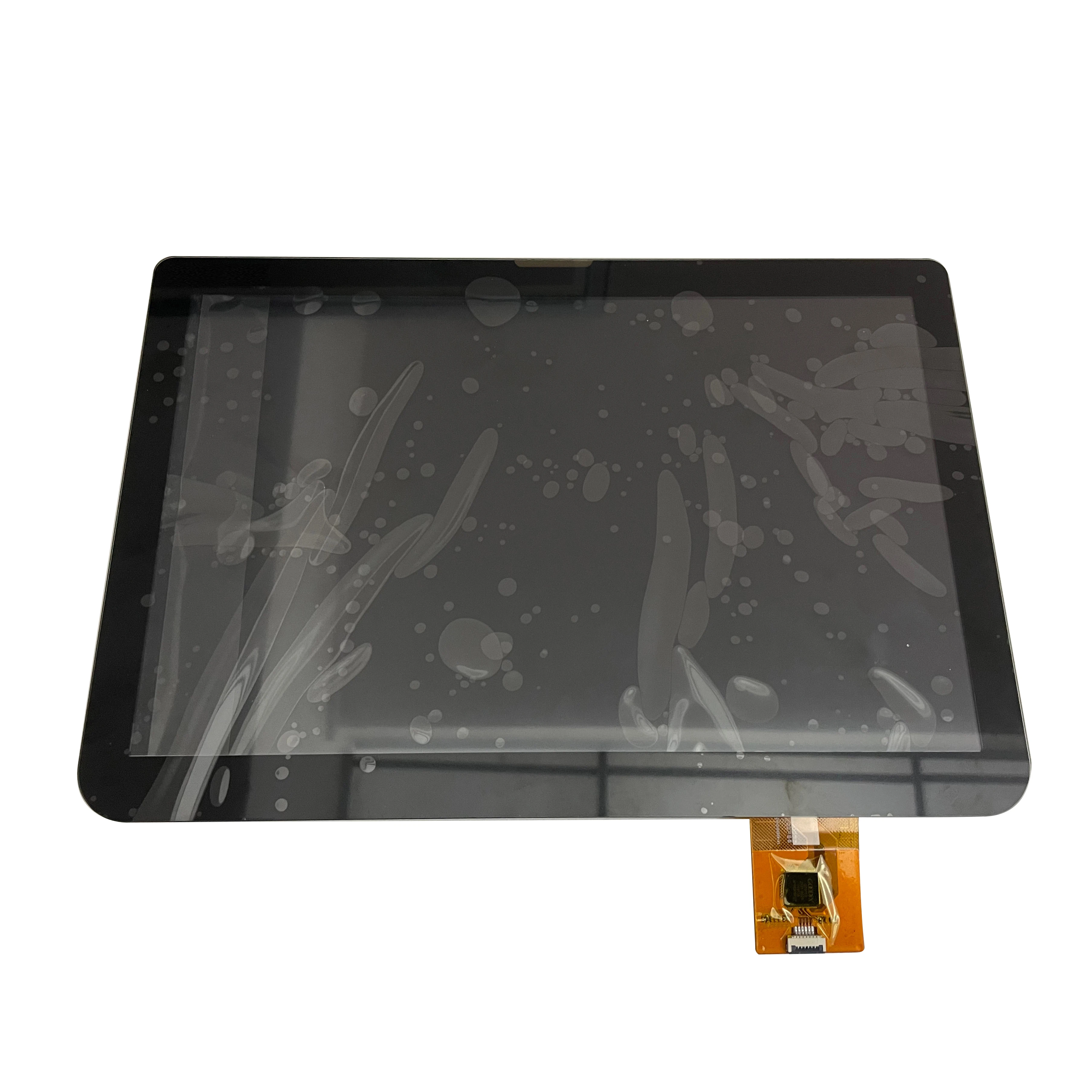

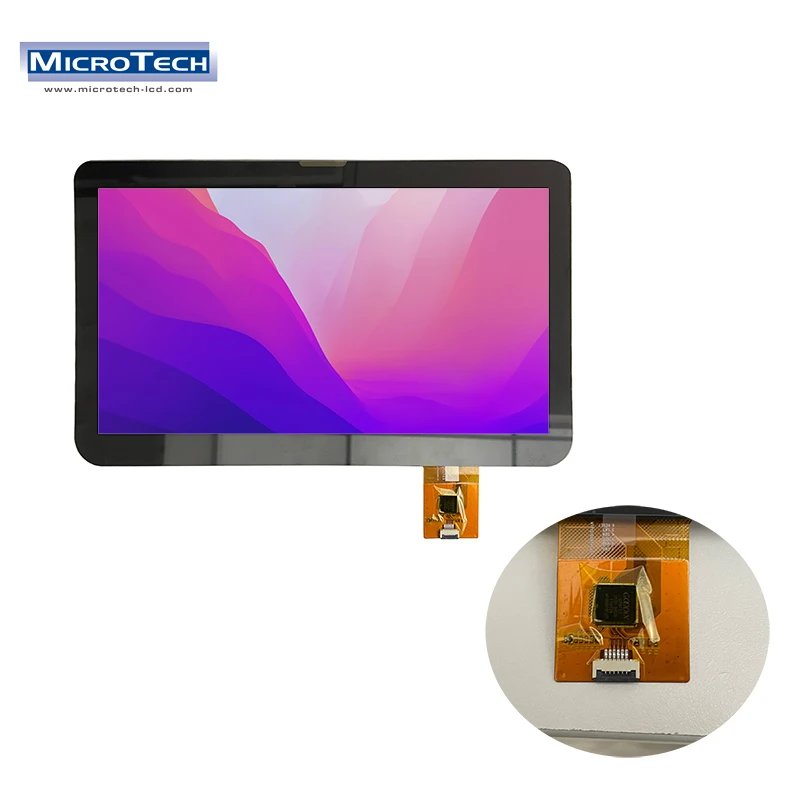

1280*800 LVDS LCD touch screen 12.1inch 16.7M TFT LCD 500 Brightness screen displays
12.1 inch lcd touch screen 12.1 inch TFT LCD screen 12.1 inch lcd displays
MTF121WX04A-V1 is a color active matrix TFT LCD module using amorphous silicon TFT‘s (Thin Film Transistors) as an active switching devices. This module has a 12.1inch diagonally measured active area with WVGA resolutions (1280 horizontal by 800 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.2M colors.


Specification






Parameter
Specification
Unit
Remarks
Active Area
261.12(H) x 163.20 (V)
mm
Number Of Pixels
1280(H) x800(V)
pixels
Pixel Pitch
68*204
mm
Pixel Arrangement
Transmissive
Display Mode
Normally Black
Display Colors
16.7M(6bit +Hi-FRC)
colors
6+FRC
Surface Treatment
AG25
Contrast Ratio
1200typ/1000min
Viewing Angle(CR>10)
85°/85°/85°/85°
deg.
U/D/L/R
Response Time
30typ/35max
ms
Color Gamut
72%
NTSC
Brightness
500
cd/m2
Typ.
Brightness Uniformity
80%
Typ.
Power Consumption
8.11
watt
Max.

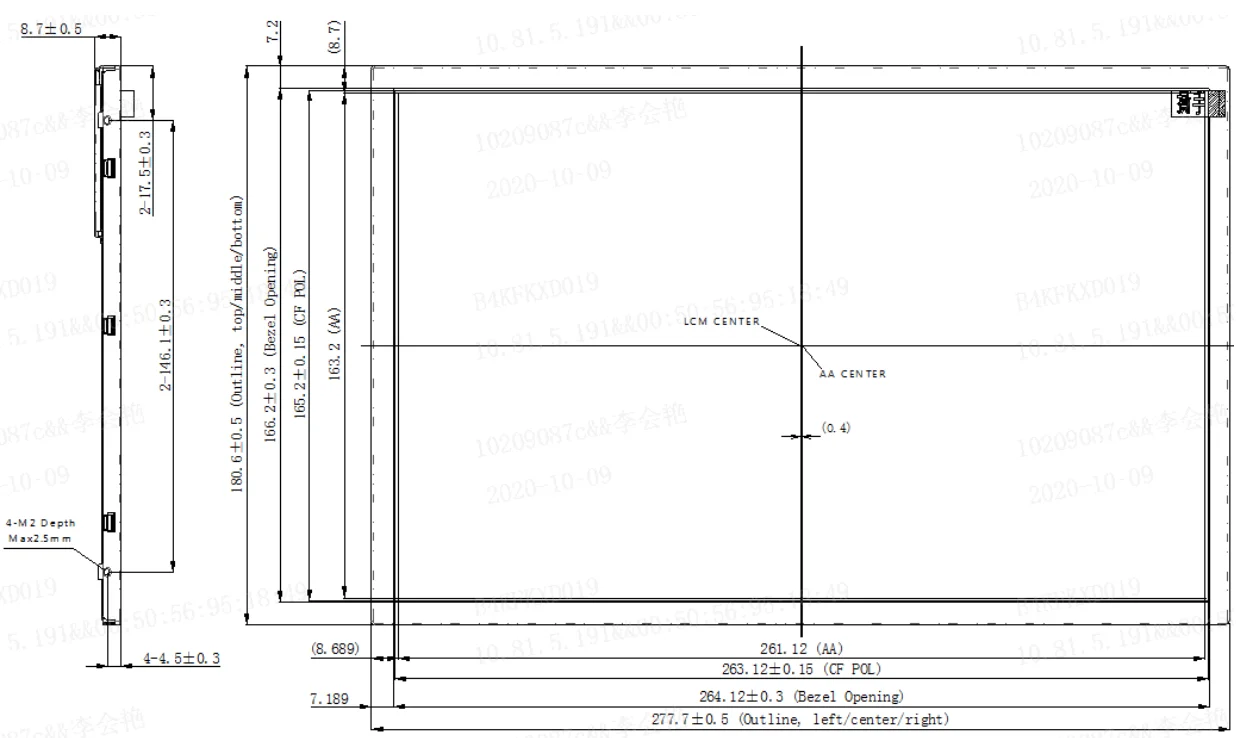

Outline Dimension
277.7 (H) x 180.6(V)
mm
Weight
TBD
gram
Display Orientation
Landscape Only
