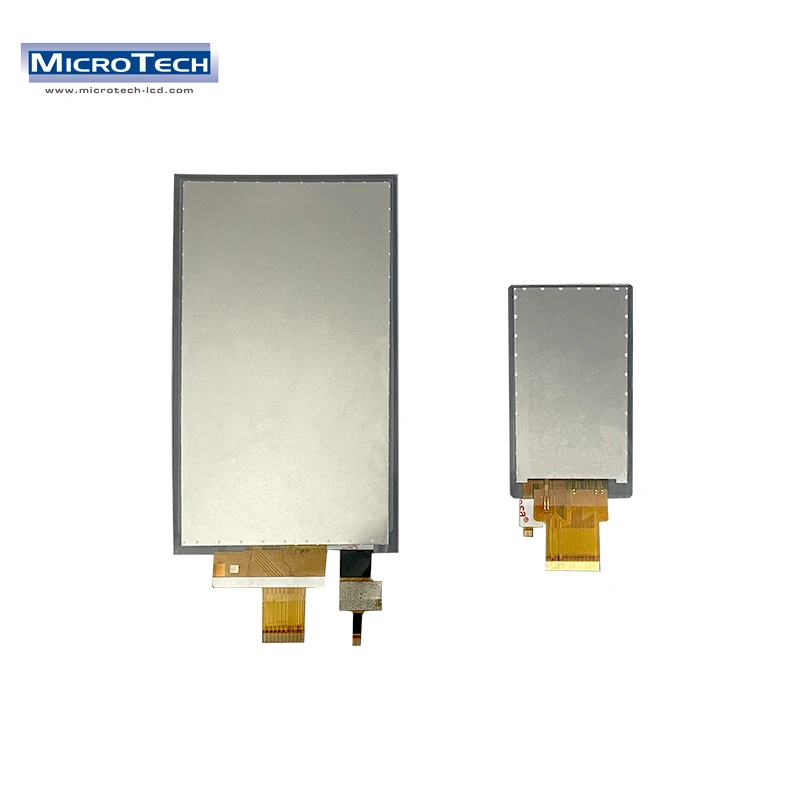

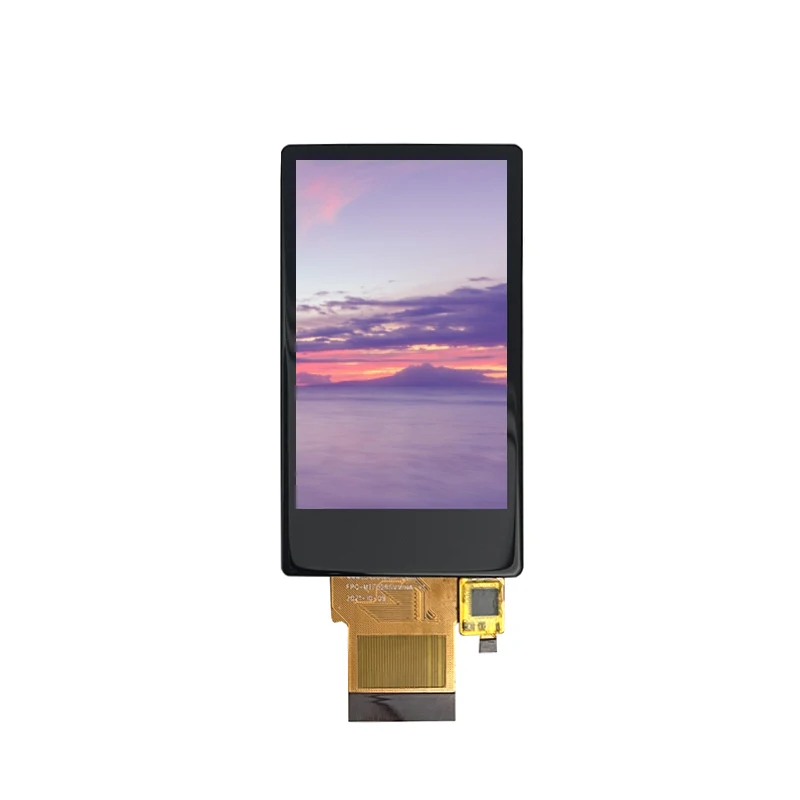

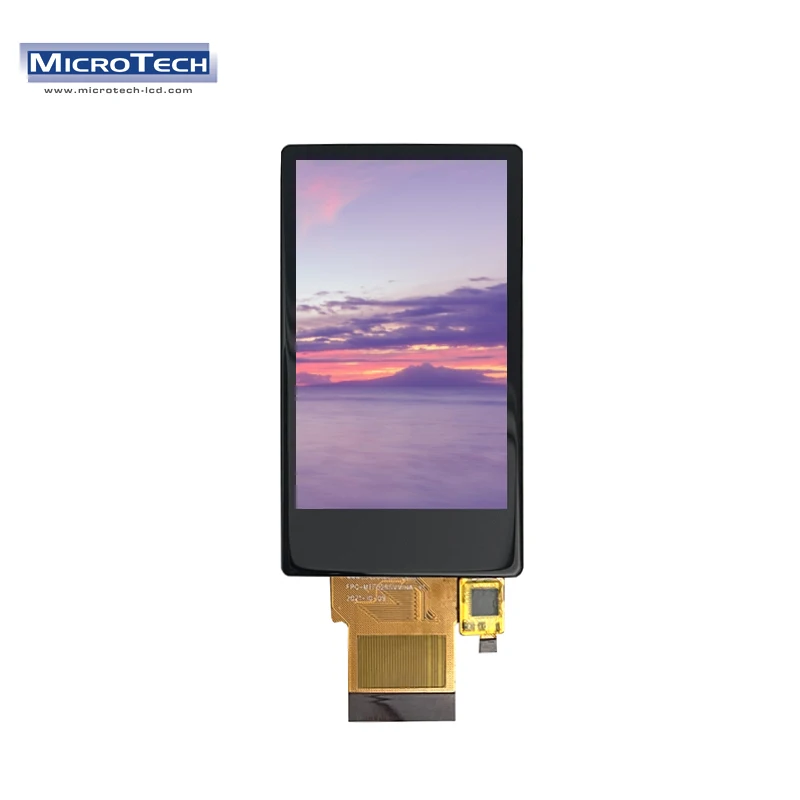

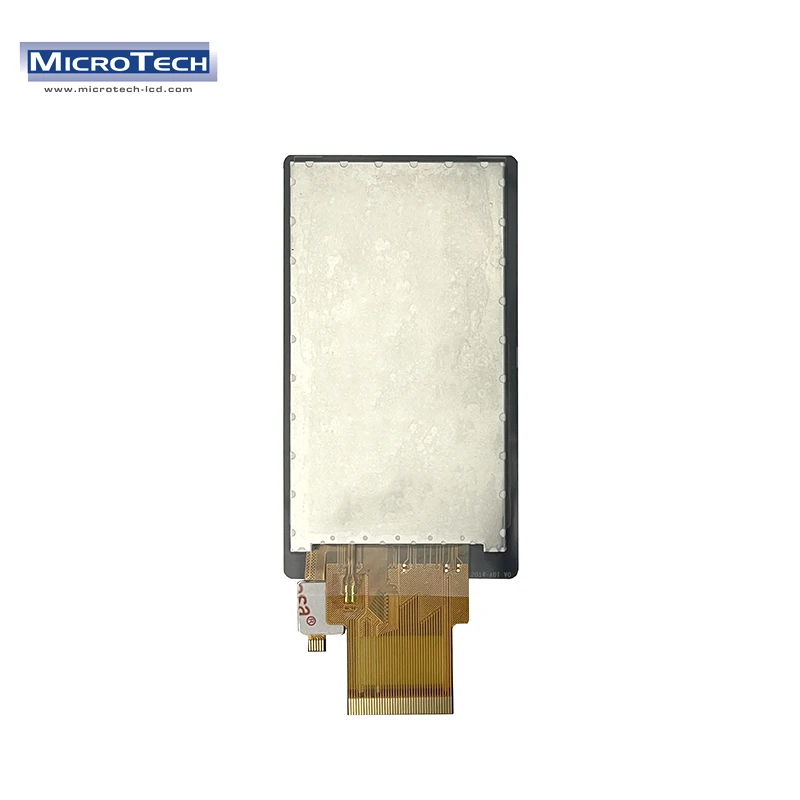

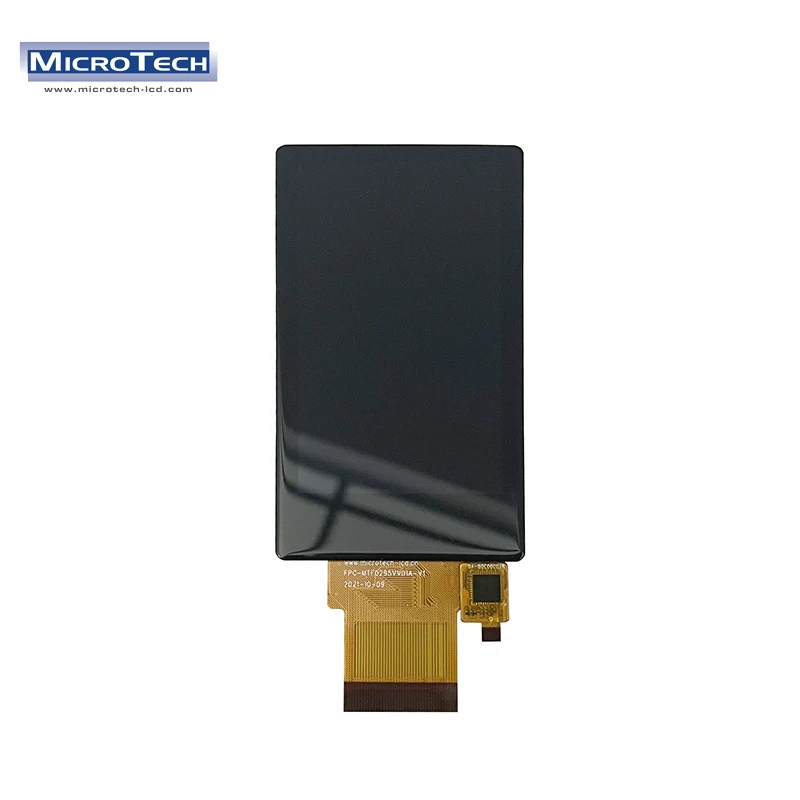

3 inch 320*640 lcd touch screen IPS RGB interface tft display 350brightness With CTP assembly module
- Category: >>>
- Supplier: MICROTECH TECHNOLOGY COMPANY LIMITED
Share on (11000007664717):
Product Overview
Description
3 inch 320*640 lcd touch screen IPS RGB interface tft display 350brightness With CTP assembly module lcd touch screen 3 inch tft display lcd modules
Specification
Feature | Spec | ||
Display Spec. | Size | 2.95 inch | |
Resolution | 360(RGB) x 640 | ||
Technology Type | a-Si | ||
Pixel Configuration | R.G.B. Vertical Stripe | ||
Pixel pitch(mm) | 0.102 (H)*0.102(V) | ||
Display Mode | Normally Black | ||
Surface Treatment | HC | ||
Viewing Direction | FREE | ||

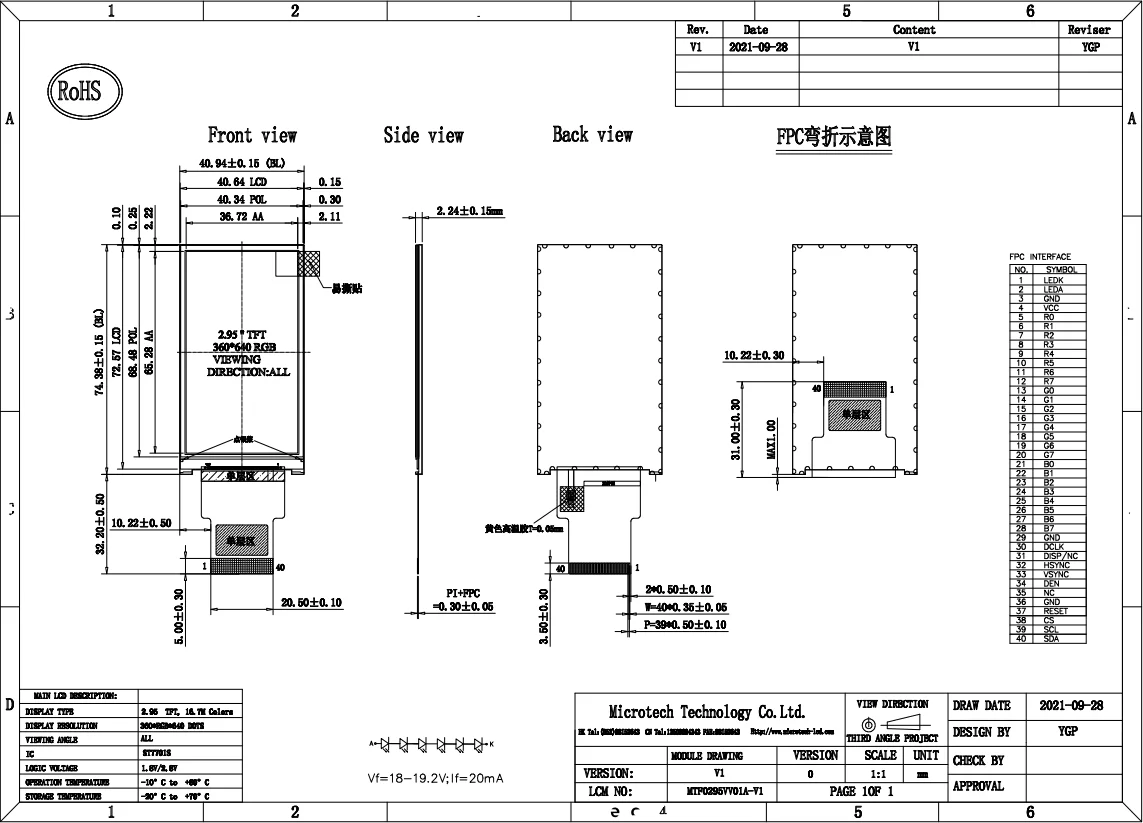

Mechanical Characteristics | Module (W x H x D) (mm) | 40.94 x 74.38x 2.24mm | |
Active Area(mm) | 35.72*65.28mm | ||
With /Without TSP | With CTP | ||
Matching Connection Type | FPC | ||
LED Numbers | 6 LEDs | ||
Weight (g) | TBD | ||
LCM Luminance | 350 Cd/m2 | ||
Electrical Characteristics | Interface | RGB 24 ibt | |
Color Depth | 16.7M | ||
LCD Driver IC | ST7701S | ||
Note 1: Viewing direction for best image quality is different from TFT definition. There is a 180 degree shift.
Note 2: Requirements on Environmental Protection: Q/S0002
Note 3: LCM weight tolerance: ± 5%
Note 2: Requirements on Environmental Protection: Q/S0002
Note 3: LCM weight tolerance: ± 5%
