Product Overview

Description

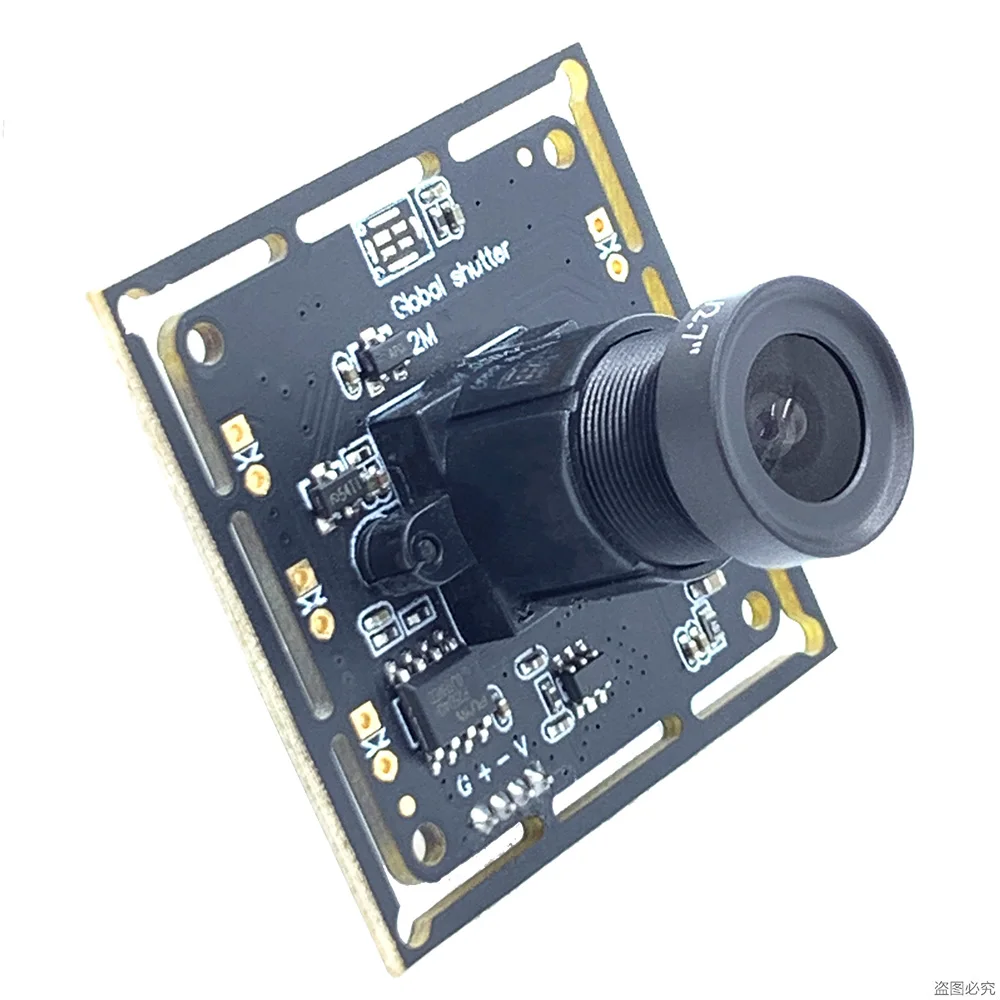

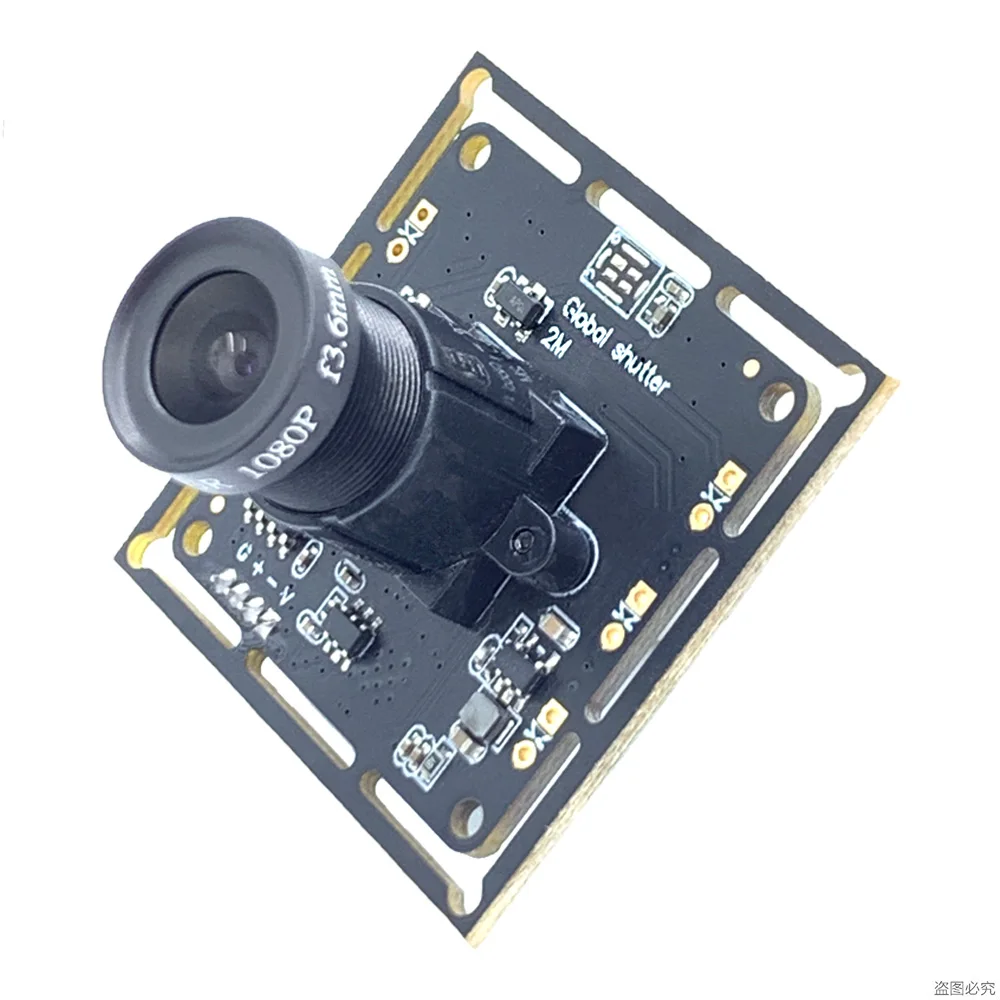

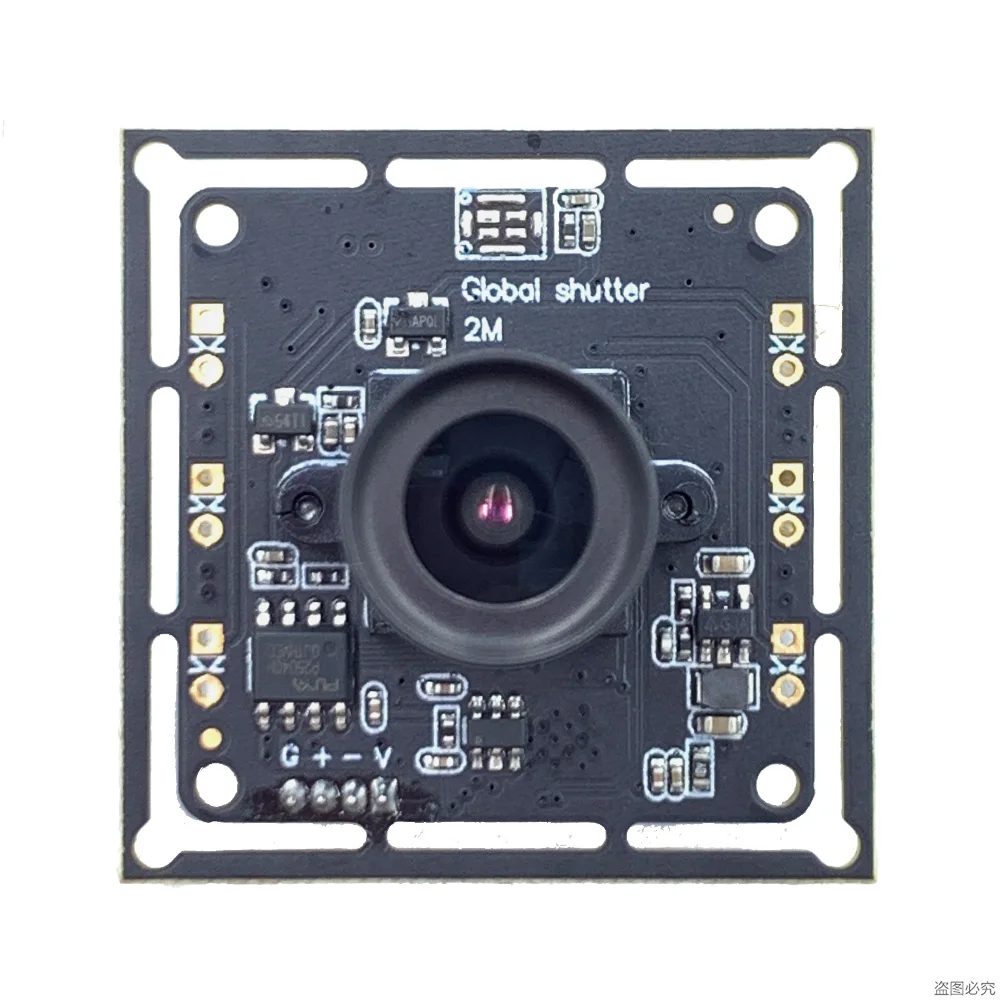

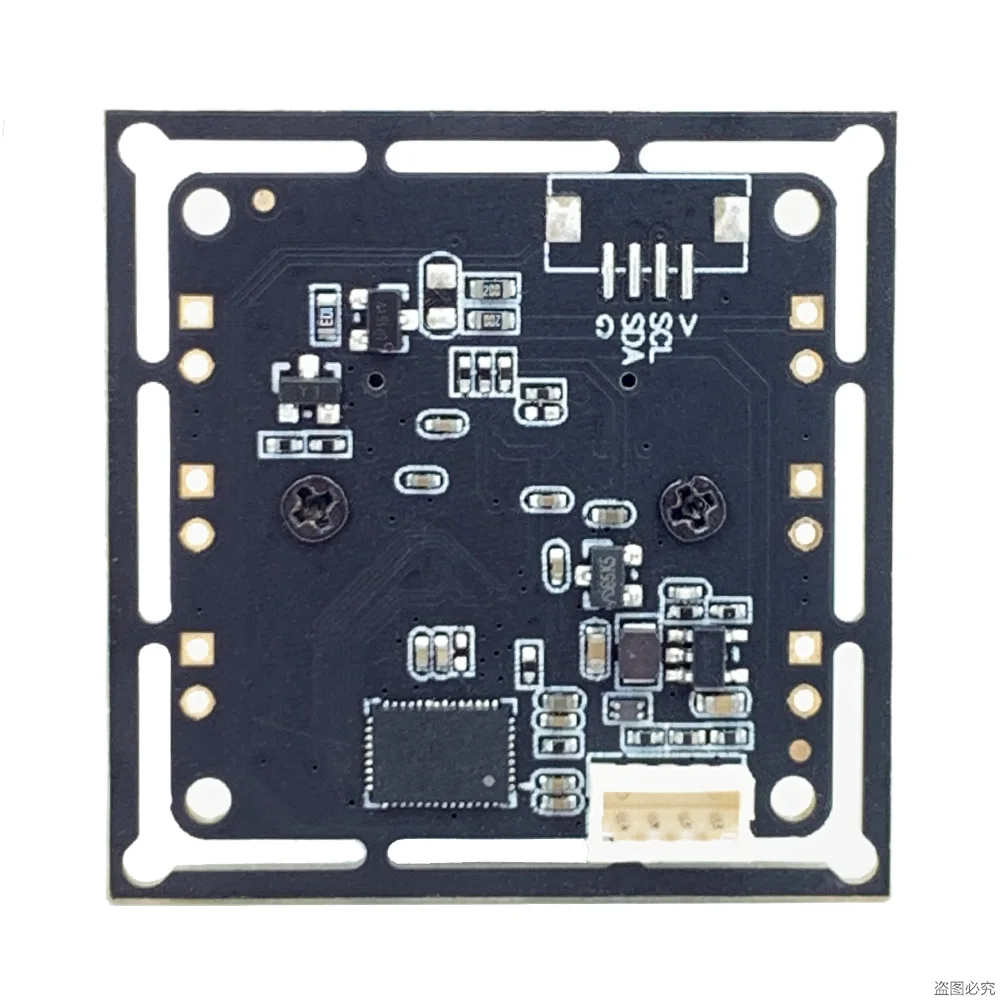

USB2.0 Monochrome 60fps 2.0MP Global shutter 1/2.9'' 1600x1200 High speed Camera Module pcb board for Machine vision Robot VR



Order Symbol:

• HDV-USB2G1-M32-L2.1     2MP USB Camera with 2.1mm Wide Angle Lens


• HDV-USB2G1-M32-L2.5     2MP USB Camera with 2.5mm Wide Angle Lens


• HDV-USB2G1-M32-EL3.6     2MP USB Camera with 3.6mm Lens


• HDV-USB2G1-M32-L4.2     2MP USB Camera with 4.2mm Lens


• HDV-USB2G1-M32-L6        2MP USB Camera with 6mm Lens


• HDV-USB2G1-M32-L8        2MP USB Camera with 8mm Lens


• HDV-USB2G1-M32-L12      2MP USB Camera with 12mm Lens


• HDV-USB2G1-M32-L16       2MP USB Camera with 16mm Lens

Features:

• Image sensor 1/2.9" 2MP CMOS


• Audio Optional


• Free Driver USB 2.0 (UVC)


• USB2.0 HIGH SPEED, compression USB1.1



• Manual focus


• View angle: 15-170 degree optional


• Compression YUY2 & MJPEG


• Support  Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;


• Linux(In 2.6.18 above the kernel version);Mac ps3; Android system


• Standard 1.8m cable, Can be connected through 10 meters USB cable


• Dimension:32*32mm/38*38mm


• USB Power: 5V±10%DC,50mA

         Advantages:

• Best Global Shutter Efficiency


• Low Dark Current/Hot Pixels


• High Linear Full Well


• Low Operational Power


• Small Form Factor


• Improved image quality for fast moving objects


• Total Noise Floor Reduction, SNR Improvement


• High Dynamic Range


• Ideal for battery powered applications



       Applications:

• Barcode Scanning


• 3D Scanning


• Virtual/Augmented Reality


• Positional Tracking


• Gesture Recognition


• Machine Vision


• Biometric Scanning



     Application Products:

• Barcode Scanners


• Head Mounted Displays


• Biometric Scanners


• Virtual Reality/Augmented Reality Glasses


• Drones


• AR/VR/MR


• Artificial Intelligence


• Robotic

USB Series	Model	HDV-USB2G1-M32-EL3.6
	Name	Global shutter 2MP usb monochrome camera module
Camera	Image sensor	1/2.9" Sensor
	Resolution	2MP (1600*1200 pixels)
	Pixel Size	3.0 µm x 3.0 µm
	S/N ratio	39dB
	Dynamic range	70dB
	Lens Standard	3.6mm Board Lens F1.2; Optional Lens as per your needs.
	Effective Pixels	MJPG/YUY2: 1600x1200@60fps/5fps; 1280x720@60fps/8fps 960x540@60fps; 640x480@60fps/30fps 640x360@60fps; 424x240@60fps; 320x240@60fps; 320x180@60fps/30fps
	Syetem	Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;Linux(In 2.6.18 above the kernel version);Mac ps3; Android System
	Exposure	Auto / Manual(Shutter Speed & AGC Control)
	White Balance	Auto / Fixed / Indoor / Initial / Outdoor
	Gamma Characteristic	Auto r>=0.45
	Manual Function	White Balance, Brightness,Contrast,Hue,Saturation,Gain
	Miscellaneous	Mirror / Flip / Back Light / Flickerless
	Cable Length:	1.8m;  2-10m Optional.
Industrial Standard	Power source	DC 5V (3.6-5V) / 80mA (USB Power)
	Operating current	85mA
	Operating Temperature	-20 °C - 60 °C (14 °F-140 °F),Humidity 90% or less (non-condensing)
	Interface Type	USB format(Complies with USB 2.0)
	Measurement (mm)	32*32mm/38*38mm
	Weight (Approx.g)	110g
Accessories	Free	Brackets *1,Screw *2,Cable *1,Manul book *1

Packing List:

1pc cctv camera

1set screws

1pc manual

1pc color box



Single Size: 95*65*55mm(LXWXH)
