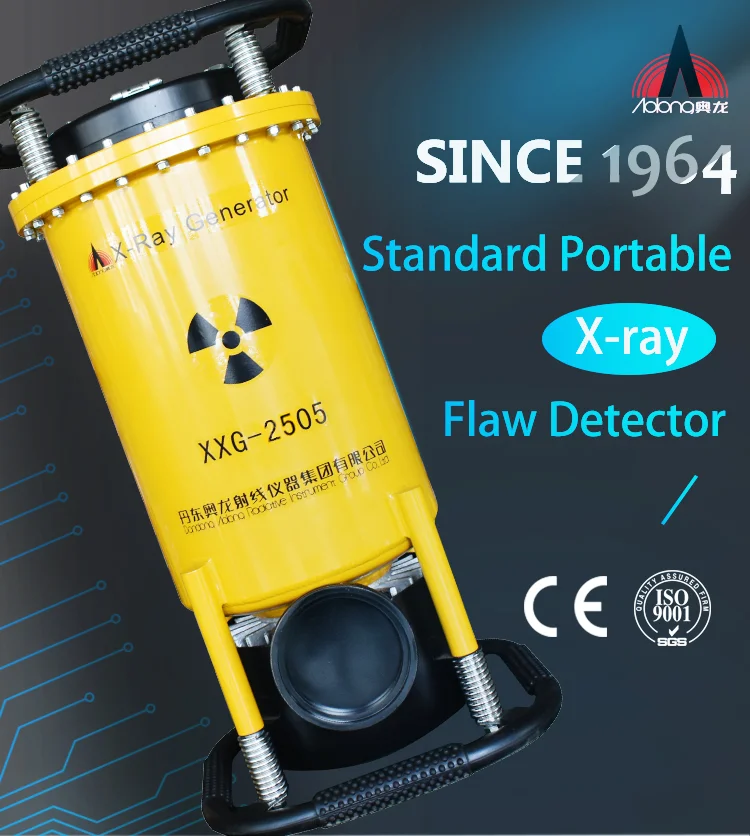

Professional Industrial NDT X Ray Flaw Detector directional ceramic tube XXG 2505 unit
- Category: >>>
- Supplier: Dandong Aolong Radiative Instrument Group Co. Ltd.
Share on (11000007693474):
Product Overview
Description
Description
XXG series Directional Portable X-ray Detector
(with Ceramic X-ray Tube)
Model | Output Voltage (kV) | Input Power （kw） | Focus Size (mm) | Beam Angle | Q235 Max. Penetration (mm) | Generator Weight / Dimension | ||
XXG-1605 | 80 ~ 160 | 1.5 | 0.8 × 0.8 | 40+5° | 19 | 14.5 kg / 225×550 mm | ||
XXG-2005 | 100 ~ 200 | 2.0 | 2.0 × 2.0 | 40+5° | 30 | 18.0 kg / 285×615 mm | ||
XXG-2505 | 150 ~ 250 | 2.5 | 2.0 × 2.0 | 40+5° | 40 | 30.5 kg / 320×640 mm | ||
XXG-3005 | 170 ~ 300 | 3.0 | 2.5 × 2.5 | 40+5° | 50 | 36.5 kg / 345×670 mm | ||
XXG-3505 | 180 ~ 350 | 3.5 | 2.5 × 2.5 | 40+5° | 60 | 38.0 kg / 345×670 mm | ||
Specifications
XXQ series Directional Portable X-ray Detector
(with glass X-ray Tube)
Model | Output Voltage (kV) | Input power (kw) | Focus size (mm) | Beam Angle | Q235 Max. Penetration (mm) | Generator weight / dimension | ||
XXQ-1005 | 60 ~ 100 | 1.2 | 0.8 × 0.8 | 40° | 8 | 11.1kg / 190×530 mm | ||
XXQ-1605 | 80 ~ 160 | 1.5 | 0.8 × 0.8 | 40° | 19 | 15.2 kg / 225×585 mm | ||
XXQ-2050 | 100 ~ 200 | 2.0 | 1.5 × 1.5 | 40+5° | 30 | 23.0 kg / 285×665 mm | ||
XXQ-2505 | 150 ~ 250 | 2.5 | 2.0 × 2.0 | 40+5° | 40 | 35.0 kg / 320×730 mm | ||
XXQ-3005 | 170 ~ 300 | 3.0 | 2.3 × 2.3 | 40+5° | 50 | 45.5 kg / 345×830 mm | ||
XXQ-3205 | 180 ~ 320 | 3.2 | 2.5 × 2.3 | 40+5° | 55 | 45.5 kg / 345×830 mm | ||
XXQ-3505 | 180 ~ 350 | 3.4 | 2.8 × 3.0 | 40+5° | 60 | 47.0 kg / 345×800 mm | ||
XXH series Panoramic Portable X-ray Detector
(with glass X-ray Tube)
Model | Output Voltage (kV) | Input (kw) | Focus Size (mm) | Beam Angle | Q235 Max. Penetration (mm) | Generator Weight / dimension | ||||||
Cone Target / Flat Target | Cone Target / Flat Target | |||||||||||
XXH-1005 | 60 ~ 100 | 1.2 | 1.0 × 3.5 | 30×360° / 25×360° | 4 / 6 | 11.1kg / 190×530 mm | ||||||
XXH-1605 | 80 ~ 160 | 1.5 | 1.0 × 3.5 | 30×360° / 25×360° | 12 / 15 | 15.0 kg / 225×585 mm | ||||||
XXH-2005 | 100 ~ 200 | 2.0 | 1.0 × 3.5 | 30×360° / 25×360° | 24 / 27 | 21.5 kg/ 285×665 mm | ||||||
XXH-2505 | 150 ~ 250 | 2.5 | 1.0 × 2.4 | 30×360° / 25×360° | 34 / 37 | 33.5 kg/ 320×730 mm | ||||||
XXH-3005 | 170 ~ 300 | 3.0 | 1.0 × 2.3 | 30×360° / 25×360° | 44 / 47 | 40.0 kg/ 345×830 mm | ||||||
XXH-3205 | 180 ~ 320 | 3.2 | 1.0 × 5.0 | 30×360° / 25×360° | 45 / 50 | 40.0 kg/ 345×830 mm | ||||||
XXH-3505 | 180 ~ 350 | 3.4 | 1.0 × 5.0 | 30×360° / 25×360° | 52 / 55 | 42.6 kg / 345×830 mm | ||||||
XXGH series Panoramic Portable X-ray Flaw Detector
(with Ceramic X-ray Tube)
Model | Output Voltage (kv) | Input (kw) | Focus size (mm) | Beam Angle | Q235 Max. Penetration (mm) | Generator weight / Dimension | ||||||
Cone target / Flat Target | Conic Target / Flat Target | |||||||||||
XXGH-2005 | 100 ~ 200 | 2.0 | 1.0 × 3.5 | 30×360° / 25×360° | 24 / 27 | 31kg / 290×615 mm | ||||||
XXGH-2505 | 150 ~ 250 | 2.5 | 1.0 × 2.4 | 30×360° / 25×360° | 34 /37 | 35 kg/ 325×705 mm | ||||||
XXGH-3005 | 170 ~ 300 | 3.0 | 1.0 × 2.3 | 30×360° / 25×360° | 44 /47 | 43 kg/ 245×715 mm | ||||||
Company
Convincing Inspection Solution Supplier
Over 50 years, Aolong Group focuses on the Non-destructive Testing technologies and gives our customers the best inspection solutions with the high quality radiographic equipment with simple operation and complete functions.
China Radiographic equipment R&D Center
Aolong Group contributed to performing NDT for Chinese lanched “Shenzhou spaceship” system, and built the Academician experts workstation in the factory, which made us being awarded as the Chinese radiographic equipment R&D center.
Global Non-destructive testing service pioneer
Our industrial X-ray equipment have been sold to over 60 countries and built our agents and after sale service centers in Europe, U.S, Africa, and Asia. We can supply both high quality products and good after sale service.
