kundenspezifischer Membranschalter (11000007700825)

Share on (11000007700825):


Price:$0.50 - $2.20

Quantity:


Product Overview

Description



VR

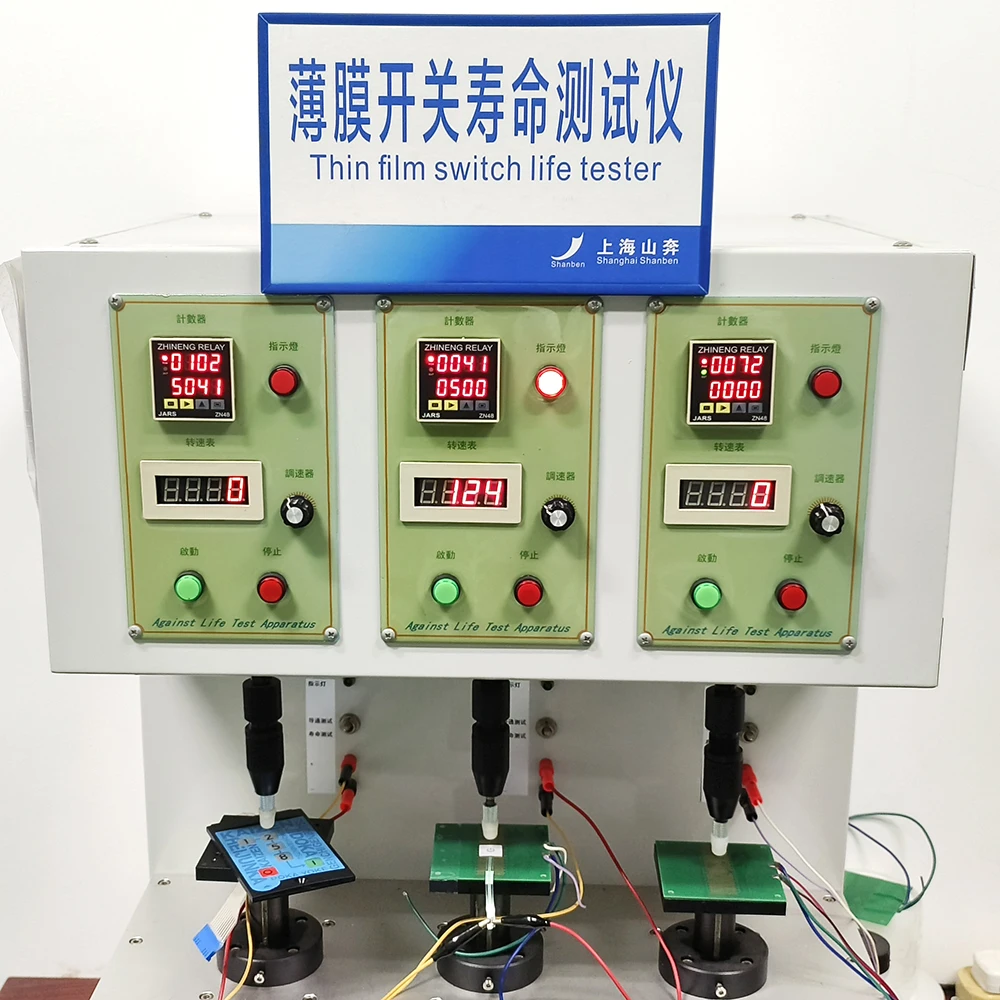

Quality Inspection




Perfect quality testing equipment
Shanben has complete testing equipment, and the testing data provides strong data support for Shanben's product quality


many patents


Patent guarantee quality
Shanghai high-tech enterprise unit with many patented technologies


System Certification


System Certification
Shanben has perfect system certification, ISO: 9001 ISO: 13485 ISO: 45001


Company Profile and Equipment






German quality, Japanese technology and Chinese cost: These are the characteristics of Shanghai Sanben.
Focus on providing membrane switches and panels for medical, industrial control, weighing instruments, automobiles and other
high-quality equipment.
Shanghai high-tech enterprise has many patents.
Compared with European and American counterparts, the quality and technology are synchronized with those in Europe and America,
and the price has nearly 50% advantage.
Compared with Chinese counterparts, the price is close, and the quality and technology have obvious advantages.
15 years of global export experience.
10 years of OEM experience (TDI in Japan).


Products Description




Circuit level
35V (DC), 100mA, 1W
Contact resistance
10 Ω~ 500 Ω (varies according to the length and material of outgoing
Insulation impedance
100M Ω 100V
Dielectric withstand voltage
no breakdown or flashover after 250V RMS (50-60Hz 1min) test
Contact jitter time
≤5ms
Service life
plane type ≥5 million times
Touch type
≥1 million times
Operating pressure
plane type 57~ 284g (2 ~ 10oz)
Tactile type
170-397g (6-14oz)
Switch stroke
plane type 0.1~ 0.5mm


Application




Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


FAQ


Q1:Are you a manufacturer or trading agent?
A:We are a experienced manufacturer and we also have a professional overseas sales team to serve our customers all over the world.

Q2:Can you offer samples?
A:(1)Stock Samples: If you paid the freight cost, we can provide free samples for you.
(2)Customized Samples: We will offer you 5 pcs free samples after we receive the set up cost.

Q3:How to control quality?
A:(1)We process the products strictly based on the raw material list.
(2)Our many engineer own many years experience and are very responsible.
(3)Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions.

Q4:Is the prototype necessary?
A:Yes.Most of the items are customized orders,so the prototype will be sent to customer for approval.

Q5:How to make an order?
A:Please tell us your material,artwork design,logic circuit principle chart,size,surface,usage etc. And better send us the design drawing or samples together with other detailed datas, then we’ll customize the membrane switch upon your requests.
