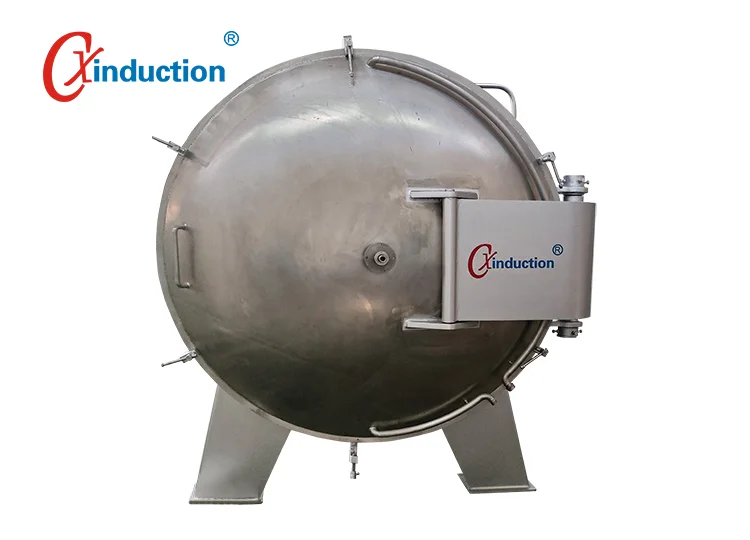

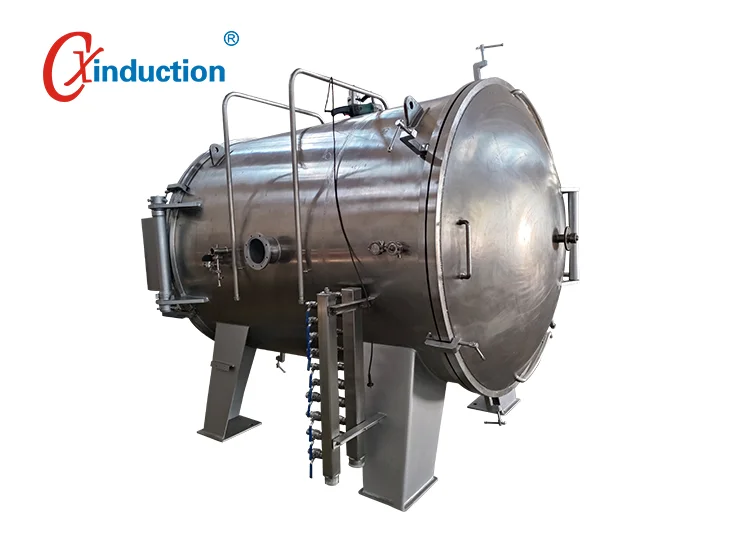

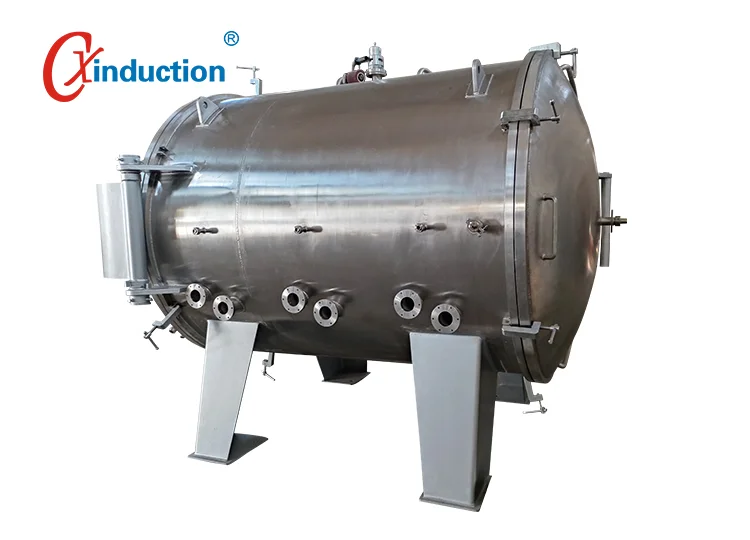

CVD CVI Horizontal chemical vapor deposition furnace carbon deposited Thermal equipment supplier

Product Description:

Horizontal chemical vapor deposition furnace (deposited carbon) is mainly used for CVD/CVI treatment of material surface or substrate with hydrocarbon gas (such as CH4) as carbon source

Application:

Carbon/carbon brake discs, carbon-carbon plates, crystal furnace crucibles, hot-pressing molds, high-temperature heating elements/fasteners, thermal field materials, etc.

CVD (Chemical vapor deposition) key elements:

Temperature process parameters

High vacuum pricision monitoring

Precise control of gas compositon

Technical characteristics of horizontal chemical vapor deposition furnace (deposited carbon)

• The shell and door are water-cooled jacketed. The furnace shell is made of SUS304 stainless steel.

• The resistance furnace can be independently controlled by multiple temperature zones, and the temperature uniformity is good;

• Over-temperature, over-pressure, gas status, water lack, and power failure alarms and automatic mechanical interlock for over-pressure protection.

• Intelligent pressure regulation is adopted, and the pressure fluctuation is small;

• Fully enclosed deposition chamber with good sealing effect and strong anti-pollution ability;

• Multi-channel process gas path, uniform flow, no deposition dead angle, good deposition effect;

• Multi-stage high-efficiency tail gas treatment system is environmentally friendly, can efficiently collect tar and by-products, and is easy to clean;

• Optional external circulation quick cooling system, short cooling time and high production efficiency;

Horizontal Chemical Vapor Deposition Furnace (Deposited Carbon) Configuration Selection

• Structural form: horizontal - single door/double door; vertical - upper discharge/bottom dischargeigh Vacuum System

• Furnace door locking method: manual/automatic

• Furnace shell material: full carbon steel/inner stainless steel/all stainless steel

• Insulation material: carbon felt/graphite felt/carbon fiber solidified felt/ceramic fiber felt

• Thermocouple: K/N/C/S graduation numberail gas treatment system

We have more than ten years of exporting experience;

We have long-term cooperation freight forwarding in exporting, customs declaration line.

We can choose the best and most economical transport way for you.

Company Information:

Founded in June 2003, Zhuzhou Chenxin Induction Equipment Co., Ltd is a scientific and technological enterprise relying on semiconductor converting technology. We have always been committed to the manufacturer of various industrial furnace products, and have won several provincial technological progress awards and patent certificates. Our products have been exported to Vietnam, Thailand, Syria, South Africa, Japan, Korea, the USA, and other countries as well as more than 20 domestic provinces and cities.

Our Customers:

Customers Visiting:

Question: Are you a factory?

[Cx-induction reply:] Yes. We are the leading company in industrial heating furnaces,we can offer the best price and excellent furnaces to meet your needs.

Question: Do you have customization or OEM service?

[Cx-induction reply:] Yes, we work with our customers to determine the proper heating method, whether resistance or induction, and then fine tune the design to meet product loading and system features. From carbonization furnaces, to graphite vacuum furnaces, to CVD furnaces, all these will exceed your expectations in both performance and quality.

Question: What kind of quality standard does your furnace follow?

[Cx-induction reply:] We are ISO 9001:2015 and CE certificated factory. All the process are strictly following the standard of the metallurgy process.

Question: Can you offer oversea services like installation and debugging?

[Cx-induction reply:] Yes. We can dispatch our engineers to your city for installation or other service. Also we will offer relevant documents to you like The plan of equipment; Foundation condition graph; The layout of equipment; Electric control system schematic diagram; Main accessories operating instructions and qualification etc.

Our industrial furnaces with Accurate Temperature Control, Excellent Uniformity and Perfect Vacuum Condition,welcome to contact us for your thermal solutions.
