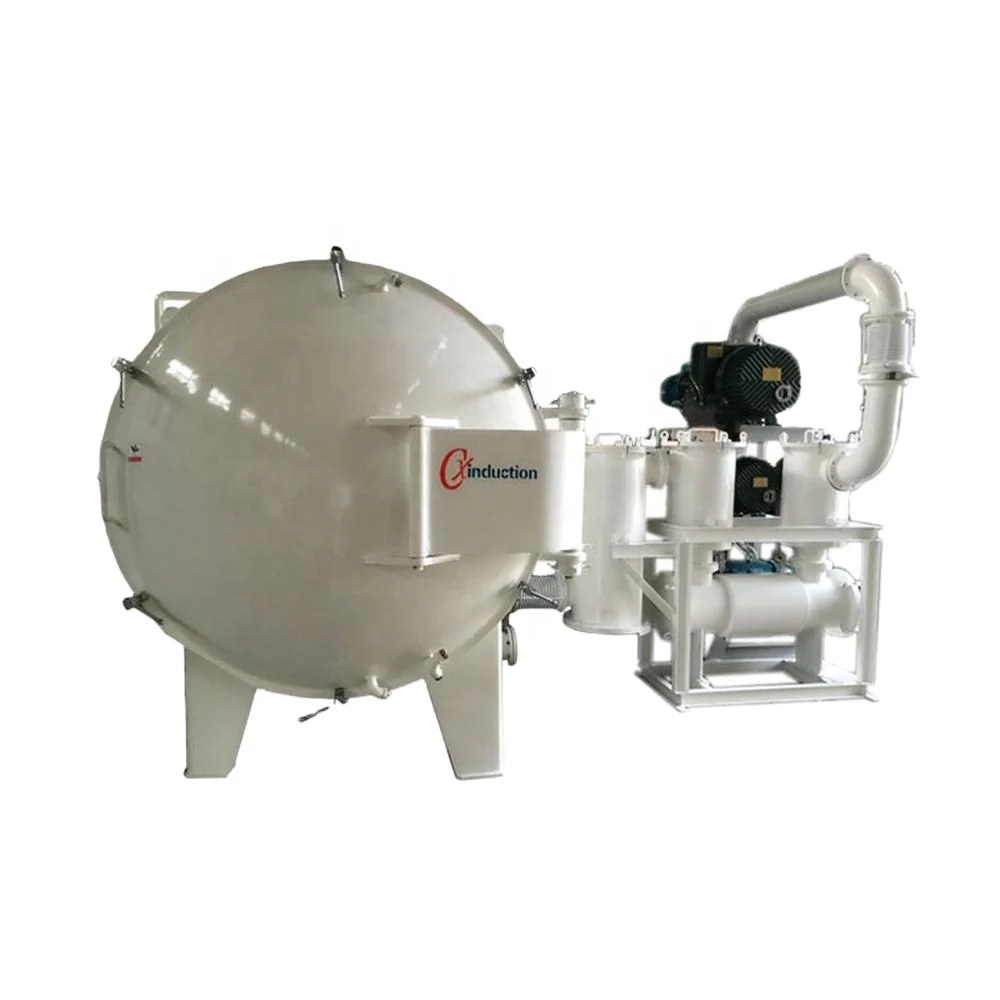

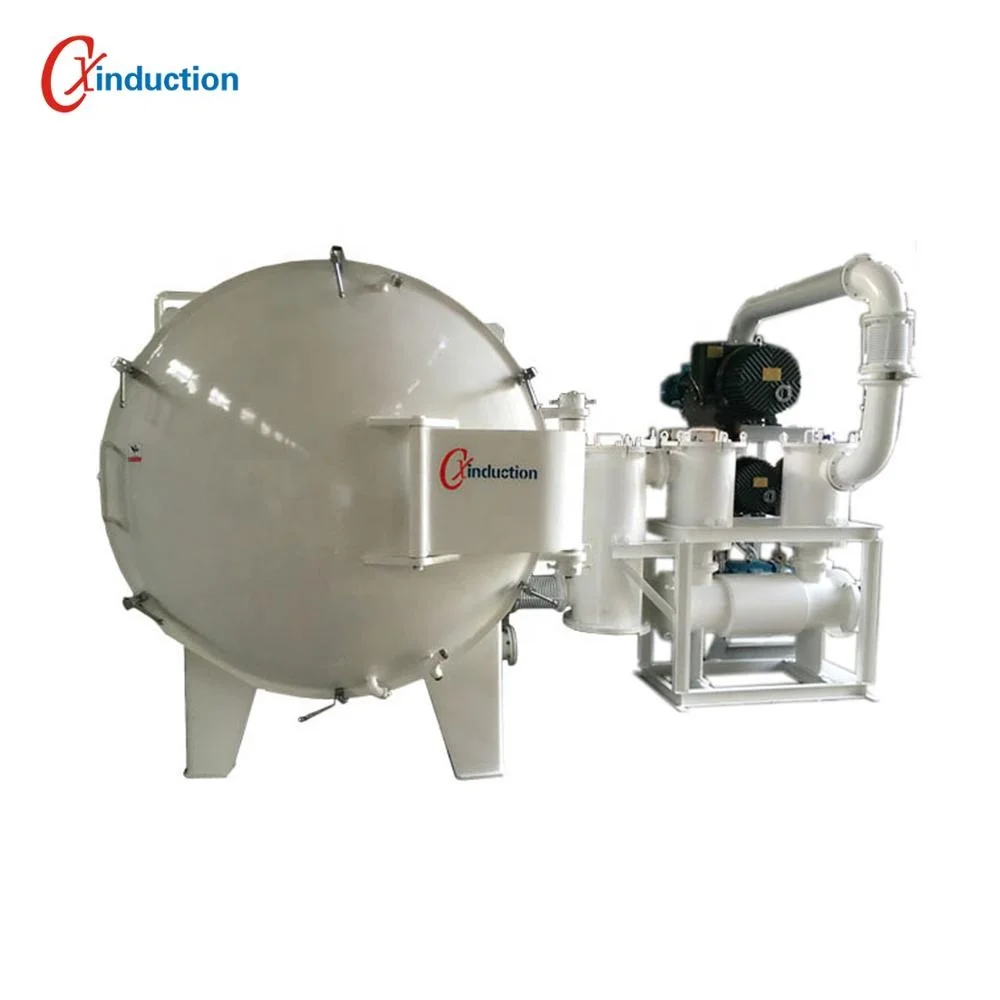

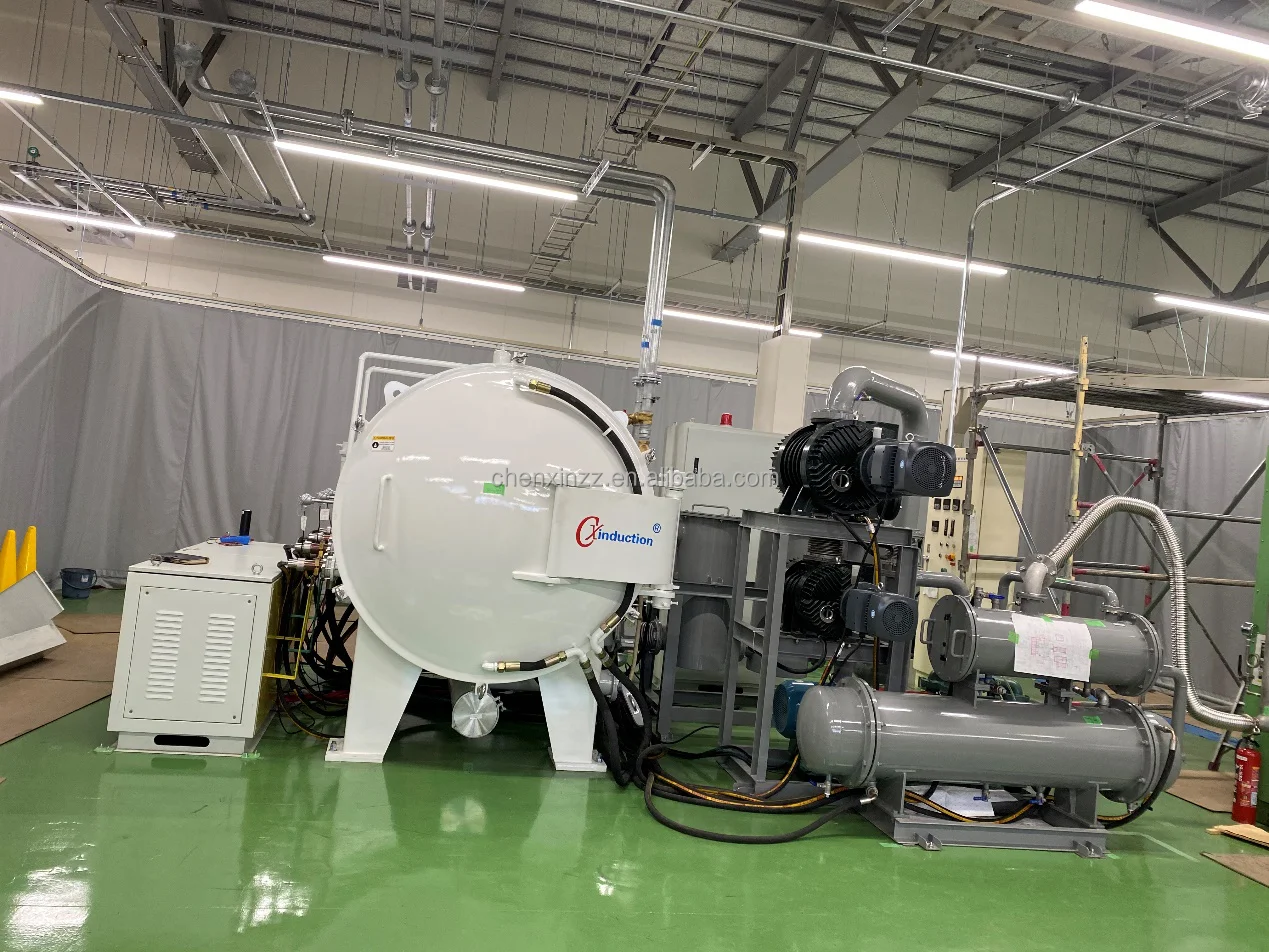

CE ISO Vertical Vacuum Carbonization Furnace for dip cured CC composite material or carbon fiber insulation material

 This furnace is used for low temperature and high temperature carbonization of composite materials. It can also be used for debinding and sintering of special materials under vacuum or atmosphere. It has both horizontal and vertical structures.

High temperature carbonization: Using graphite heating element, the max. temp can reach above 1600℃.

Low temperature carbonization: Using all metal hot zone, the max. temperature is 1100℃.

CX-CF series are resistance carbonization furnaces, The furnaces mainly used for the carbonization treatment of impregnated and cured carbon-carbon composite materials or carbon fiber insulation materials, energy storage materials and other new carbon materials.

with round or cubic hot zone shapes. Round hot zones used in vertical models while cubic hot zones in horizontal models. Rated up to 1600℃,can meet all demands in carbonization process.

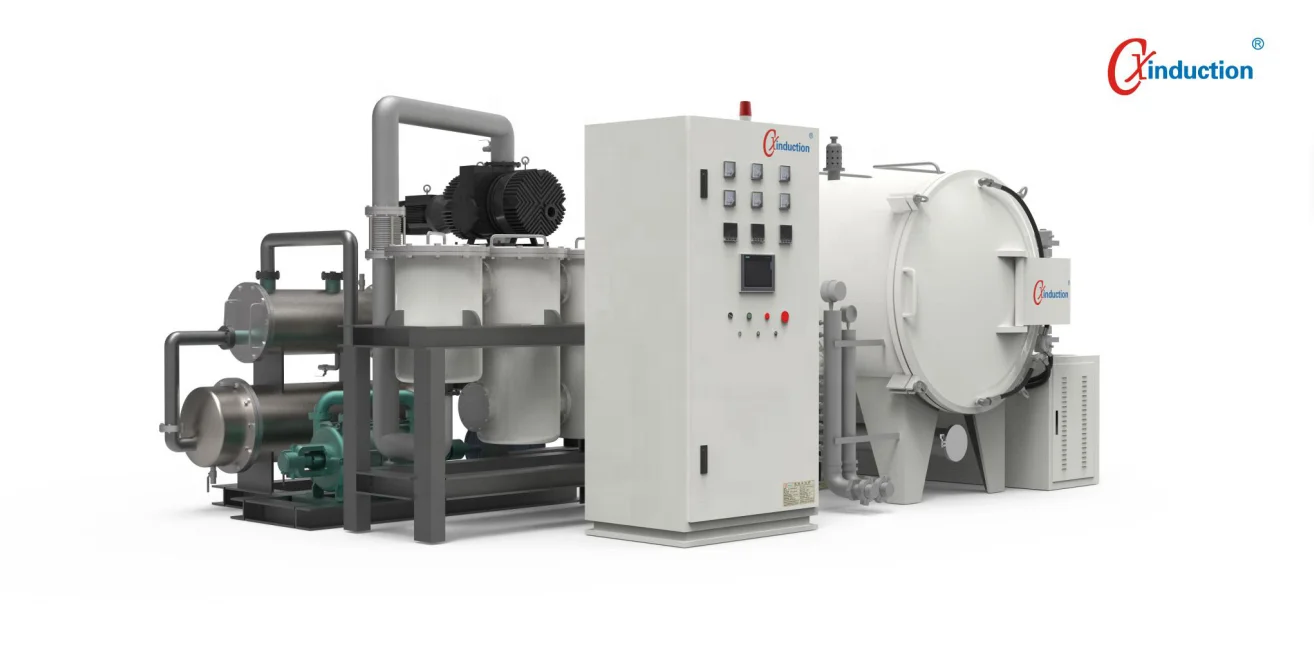

 Technical Features of Horizontal Vacuum Carbonization Furnace:

• The resistance furnace can be independently controlled by multiple temperature zones, and the temperature uniformity is good;

• Positive pressure or negative pressure carbonization process can be realized;

• Multi-stage high-efficiency tail gas treatment system can efficiently collect tar and by-products and is easy to clean;

• Optional external circulation quick cooling system, short cooling time and high production efficiency;

• Optional all-metal high-temperature muffle, which can work in the air environment, has strong anti-pollution ability, and is suitable for various atmospheres and working conditions;

• PLC with Touchscreen HMI

• Independent Over-temperature Control

• Suitable for process atmosphere: vacuum/H2/N2/Ar.

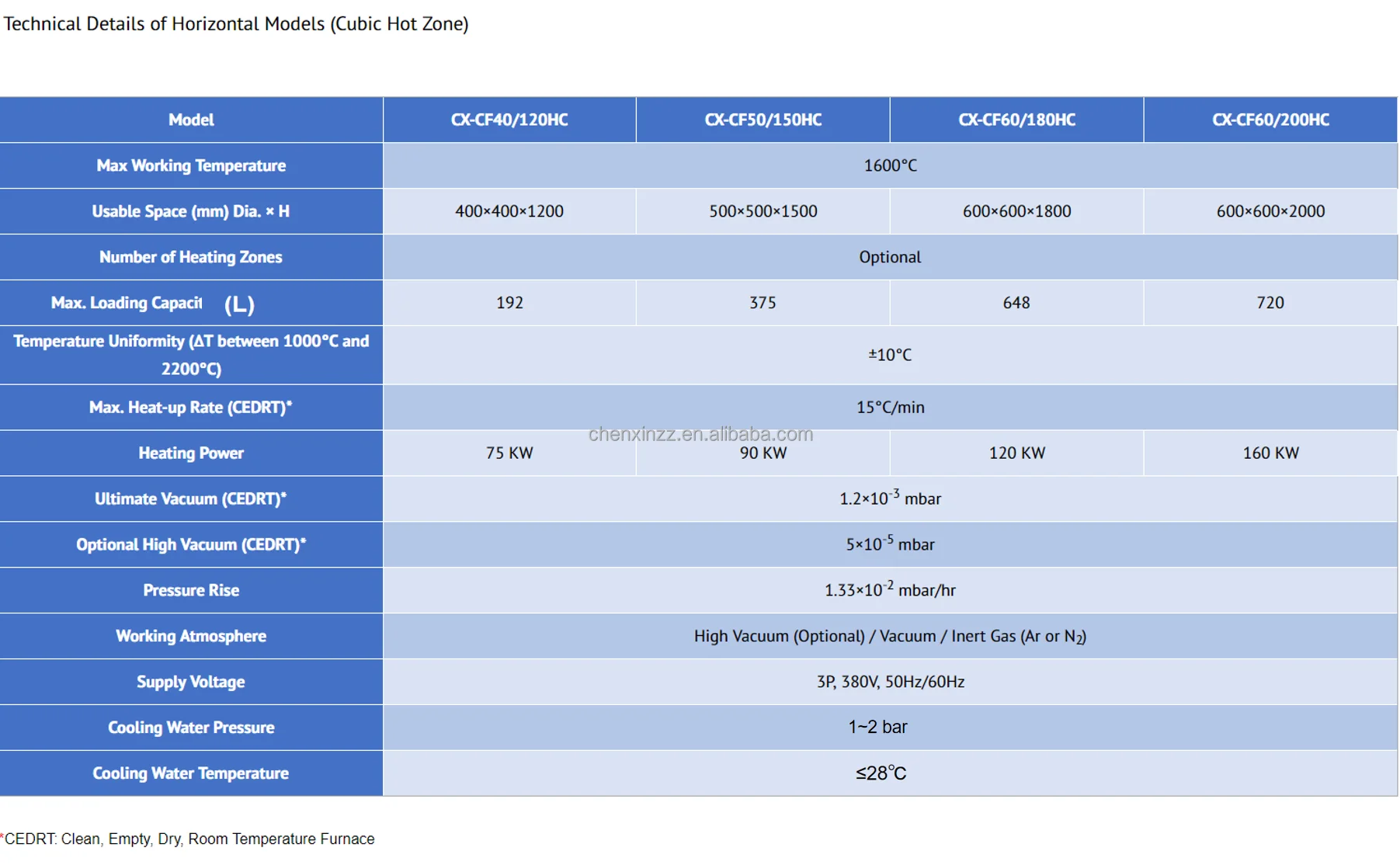

Configuration selection of horizontal vacuum carbonization furnace

*Structural form: horizontal - single door/double door; vertical - upper discharge/bottom discharge

*Furnace door locking method: manual/automatic
* Furnace shell material: full carbon steel/inner stainless steel/all stainless steel

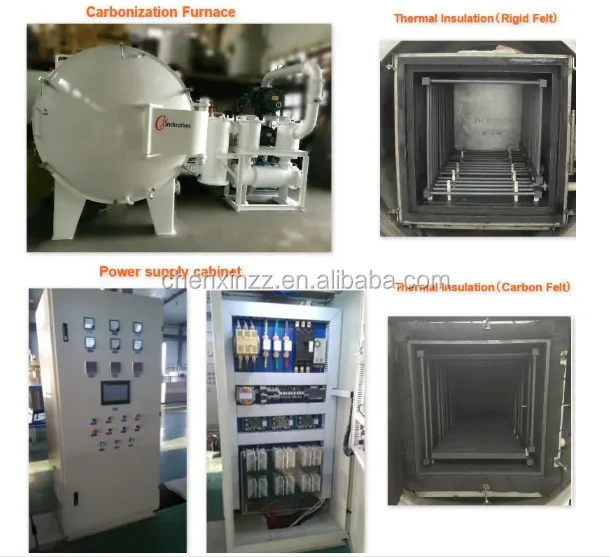

* Insulation material: carbon felt/graphite felt/carbon fiber cured felt/ceramic fiber felt/metal
* Heater, muffle material: Graphite/CFC/Metal

* Thermocouple: K/N/C/S graduation number

* Power supply: KGPS/IGBT (only for medium frequency heating)

Application:

The carbonization furnace is used for carbonization and pyrolysis of carbon fiber insulation materials, C/C composite, Carbon/carbon brake discs, carbon-carbon plates, crystal furnace crucibles, carbon fiber insulation materials, carbon paper, carbon cloth, graphene, carbon nanotubes, thermally conductive films, etc. used for the carbonize and graphite of anode material of fuel cell, polyimide films, graphite film, carbon fiber, carbon/carbon composites, carbon felt, graphite sheet and other advanced materials.

We have more than ten years of exporting experience and always follow the standard exporting packaging;

We have long term cooperation forwarder in exporting and customs declaration.

We can choose the safety and economy transportation for you.

We're a leading manufacture in industrial heating furnaces for 18 years, and have cooperated with many major coporations with good reputation. Our furnaces can be customized design to match your process requirements. With excellent heating method, accurate temperature control and perfect temperature uniformity, our vacuum furnaces will exceed your expectation both in performance and quality.

Question: Are you a factory?

[Cx-induction reply:] Yes. We are the leading company in industrial heating furnaces,we can offer the best price and excellent furnaces to meet your needs.

Question: Do you have customization or OEM service?

[Cx-induction reply:] Yes, we work with our customers to determine the proper heating method, whether resistance or induction, and then fine tune the design to meet product loading and system features. From carbonization furnaces, to graphite vacuum furnaces, to CVD furnaces, all these will exceed your expectations in both performance and quality.

Question: What kind of quality standard does your furnace follow?

[Cx-induction reply:] We are ISO 9001:2015 and CE certificated factory. All the process are strictly following the standard of the metallurgy process.

Question: Can you offer oversea services like installation and debugging?

[Cx-induction reply:] Yes. We can dispatch our engineers to your city for installation or other service. Also we will offer relevant documents to you like The plan of equipment; Foundation condition graph; The layout of equipment; Electric control system schematic diagram; Main accessories operating instructions and qualification etc.

Our industrial furnaces with Accurate Temperature Control, Excellent Uniformity and Perfect Vacuum Condition,welcome to contact us for your thermal solutions.
