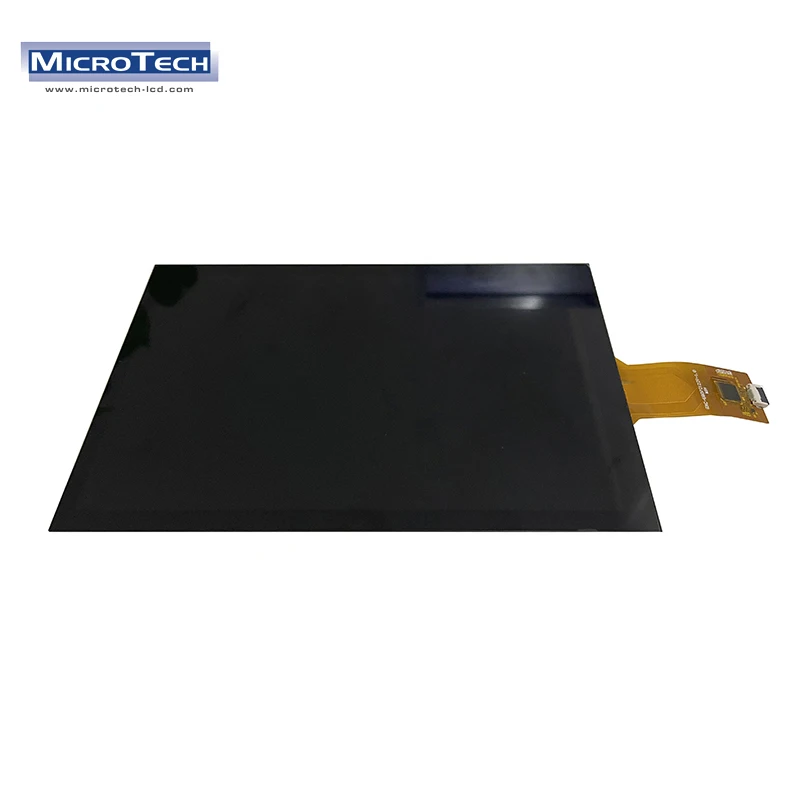

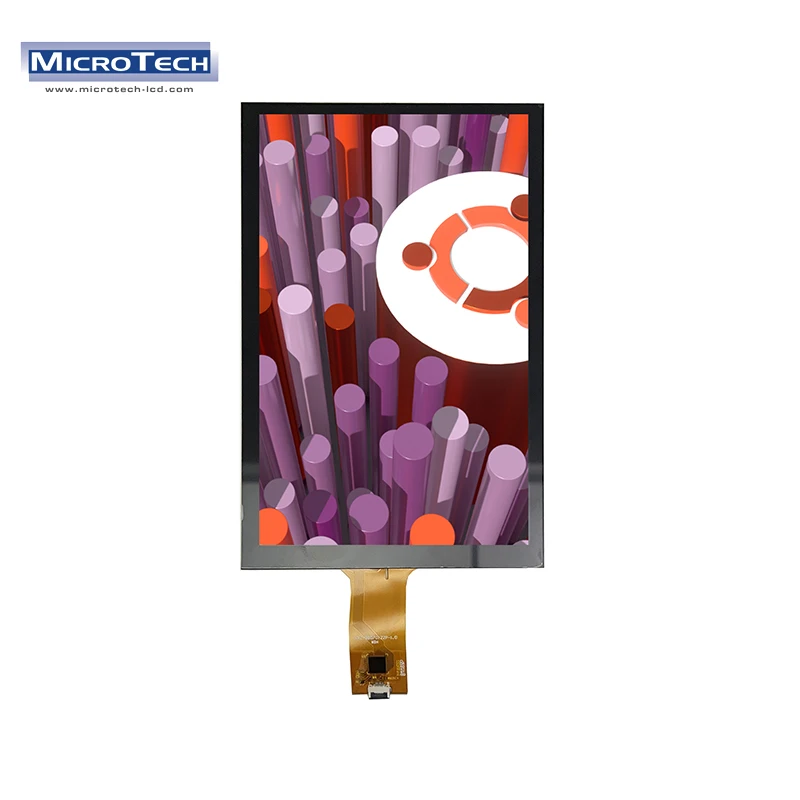

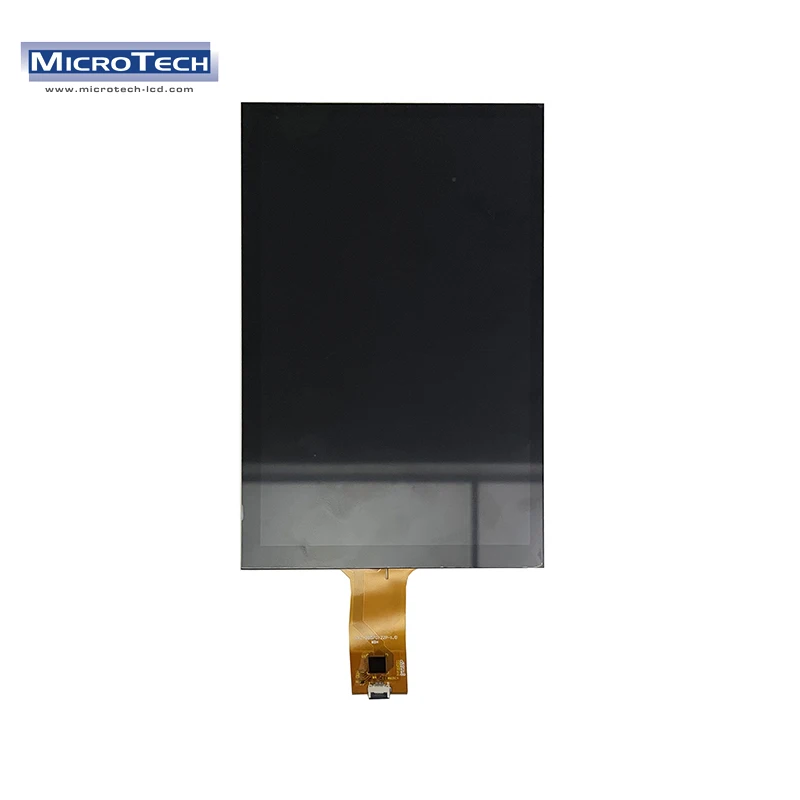

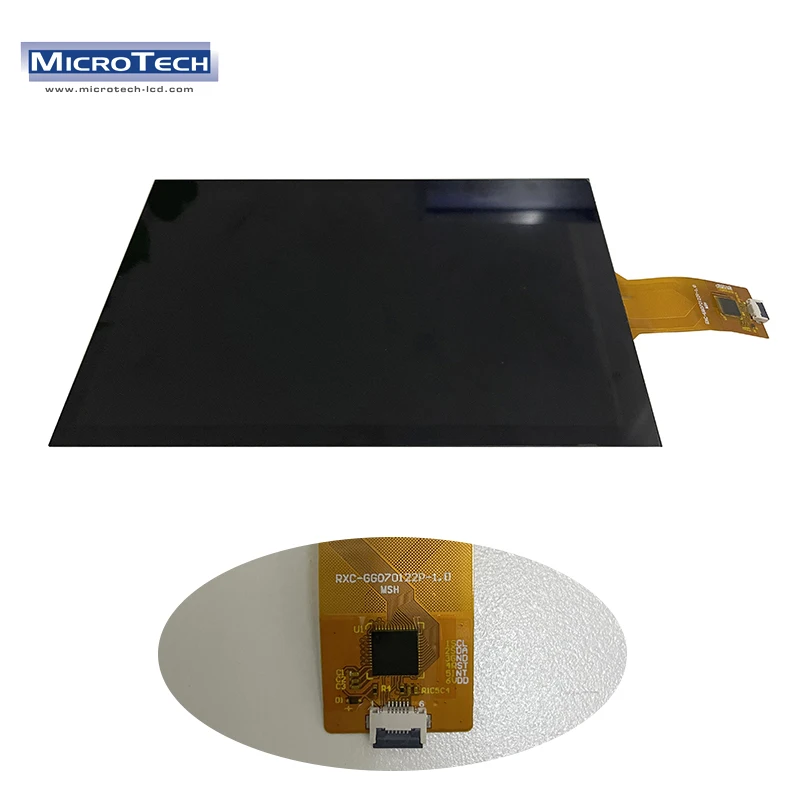

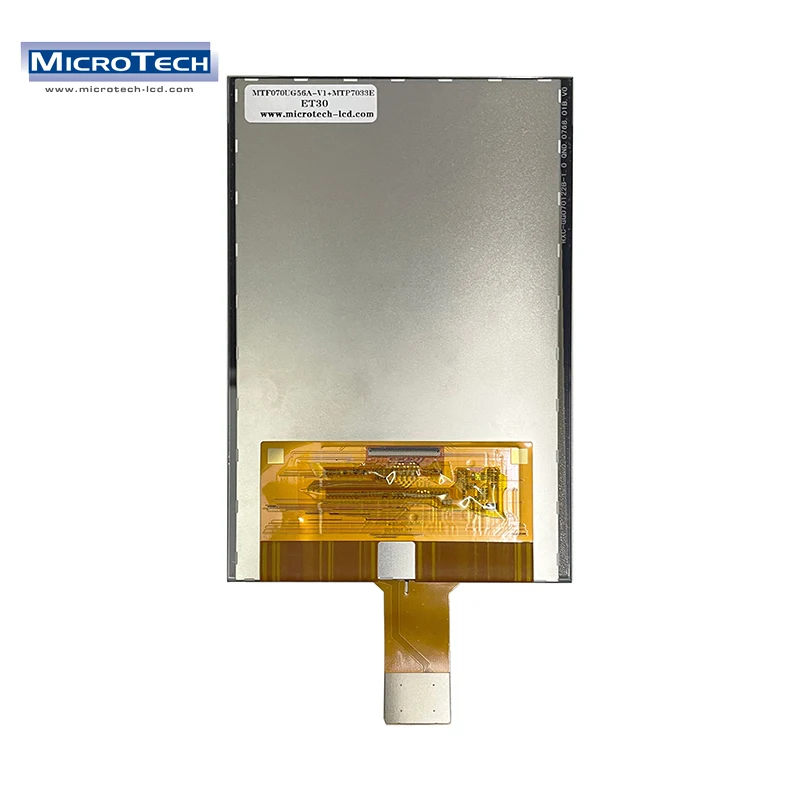

Custom Touch Screen 1200*1920 7 inch tft lcd display lcd Touch Screen Panel
- Category: >>>
- Supplier: MICROTECH TECHNOLOGY COMPANY LIMITED
Share on (11000007760273):
Product Overview
Description
Specification
Parameter | Specification | Unit | Remark |
Active Area | 94.5(H) x 151.2(V) | mm | |
Number of Pixels | 1200(H) RGB x 1920(V) | pixels | |
Pixel Pitch | 78.75 x 78.75 | um | |
Pixel Arrangement | RGB Vertical Stripe | ||
Display Colors | 1.07B | colors | 8+2Bit |
Color Gamut | 80% (typ.) | CF+C Light | |
Display Mode | Normally Black, Transmissive mode | ||
Dimensional Outline | 97.3±0.2(H) x 159.4±0.2(V) x 0.68±0.08(D) (Without FPC) | mm | |
Polarizer Surface treatment | Front POL： Hard coating Rear POL: Advanced Polarizer Film | ||
Viewing Direction (Human Eye) | 80/80/80/80 | Note 1,2 | |
D-IC | H/25U | Note 3 | |
Touch Interface | I2C | ||
Operation Temperature | -20-70 | ℃ | |
Storage Temperature | -30~80 | ℃ | |
Electrical Characteristics | Interface | LVDS 40 Pin | |
Color Depth | 16.7M | ||
Driver IC | 3*ST5821C and 1 *ST5084C |
1. At the U/D/L/R direction, the viewing angle is same;
2. The TFT and CF LC Align Direction;
3. This product’s compatible IC is Focaltech FT7250, Please contact IC manufacturer and verify it when you choose any one of them. The information we suppose about IC just for reference.

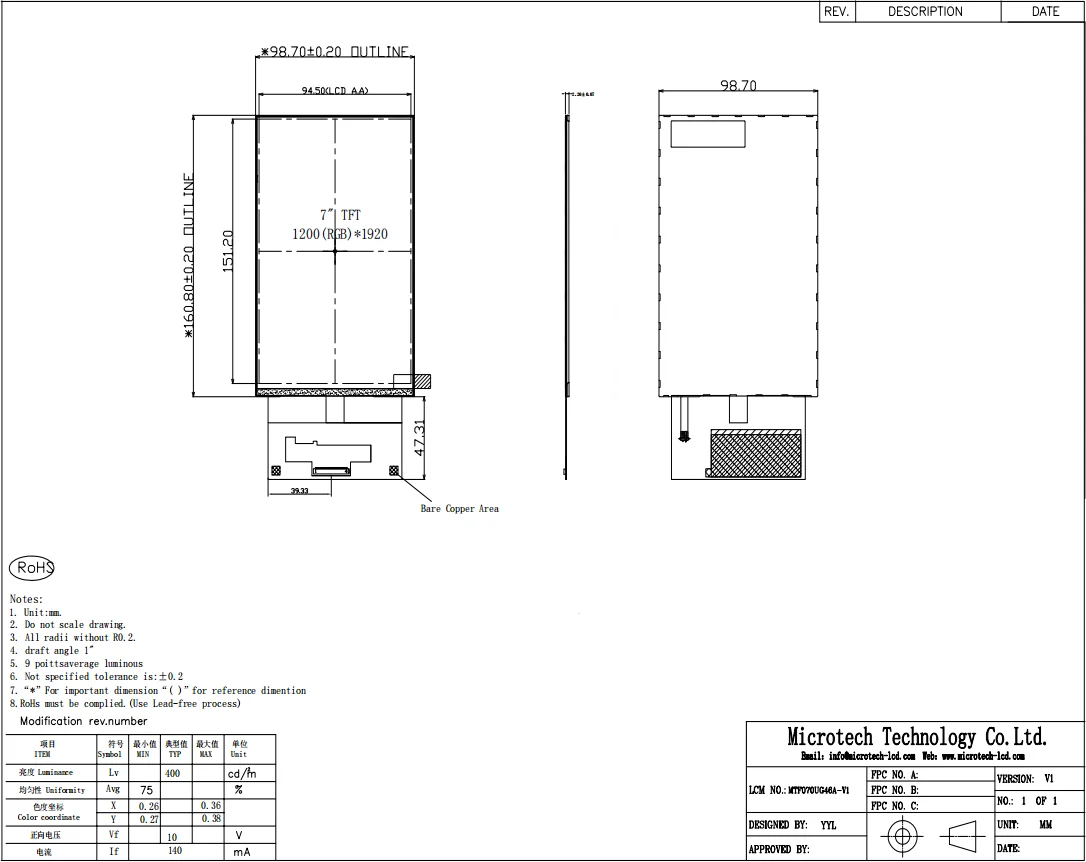

Parameter | Specification | Unit | Remark |
Panel size | 97.3(H) x 159.4(V) | mm | |
CF size | 97.3(H) x 156.2(V) | mm | |
Active area | 94.5(H) x 151.2(V) | mm | |
Number of pixels | 1200(H) RGB x 1920(V) | pixels | |
(1 pixel = R + G + B dots) | |||
Dot pitch | 26.25(H) x 78.75(V) | urn | |
Pixel arrangement | RGB Vertical stripe | ||
Panel ID | 10*1.7 | mm | |
COG pad area | 3.2 | mm | |
D-IC to FPC distance | 0.5 | mm | Note |
D-IC width | 1.372 | mm | |
D-IC to CF edge | 0.528 | mm | |
Seal Area (U/D/L/R) | 1.4/3.6/1.4/1.4 | mm | |
Dimensional Outline | 98.7(H) xl60.8(V) x2.2 | mm | |
Display mode | Normally Black |
The size specified is calculated by IC-driver FT7250, the size maybe changed if customer use other IC.
Products Description
TFT LCD Display
After more than 20 years of mature technology developed by the factory, a color screen with an all-glass structure is made
Support Custom
Customized LCD Size & Resolution
Customized Interface and Pins definition
Customized FPC Shape and Material
Customized Interface and Pins definition
Customized FPC Shape and Material
FPC design
Achieve micron level ultra-fine circuit, stable function.
Viewing Angle
Using professional tempered glass, the surface strength is as high as 7H or more, the structure can be made of ultra-thin
thickness, and Borderless all-round viewing angle.
thickness, and Borderless all-round viewing angle.
