miTEC Hospital Nurse Call System with Pull Cord Emergency Button and 2 Way Intercom for Assistance Wired System with UPS Backup
- Category: >>>
- Supplier: Dongguan Mitec Electronics Company Limited
Share on (11000007760540):
Product Overview
Description
Products Overview
miTEC Nurse Call Intercom System
miTEC Emergency Call System provides the perfect solution for emergency call for assist or general call for communication between patients and officials(Nurse/Doctor/Assistant). This system is best for hospital, nursing home, elderly center and confinement center.
The addressable control panel of the kit work as the power supply unit and backup UPS for the system, connect and supply power to all components through simple wiring, and ensure system well function even when power outages.
This system is meant to provide a simple and secure way for patients to notify and communicate with officials, such as nurses, doctors and helpers.

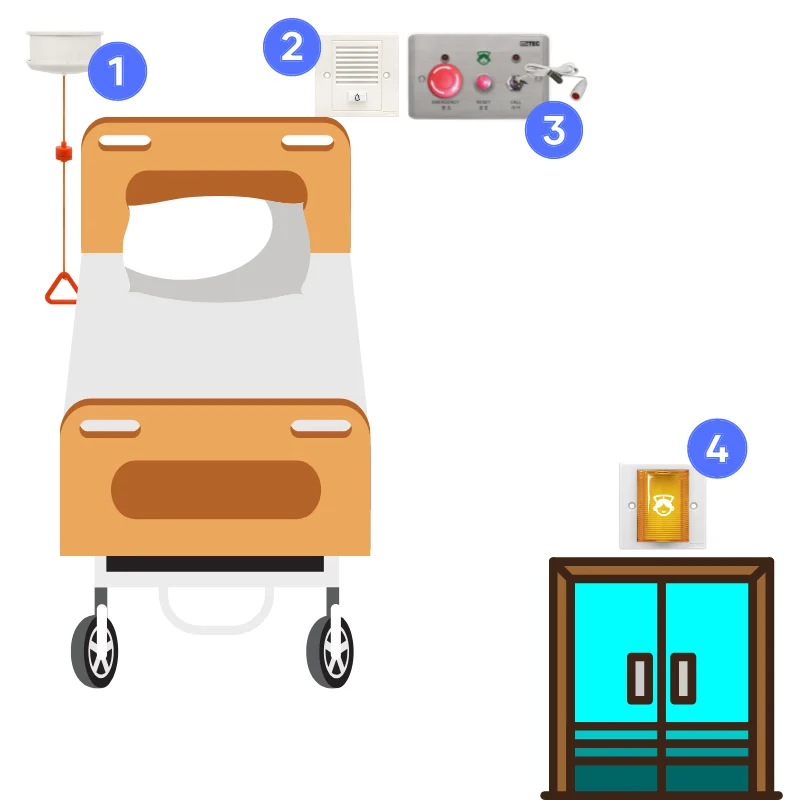

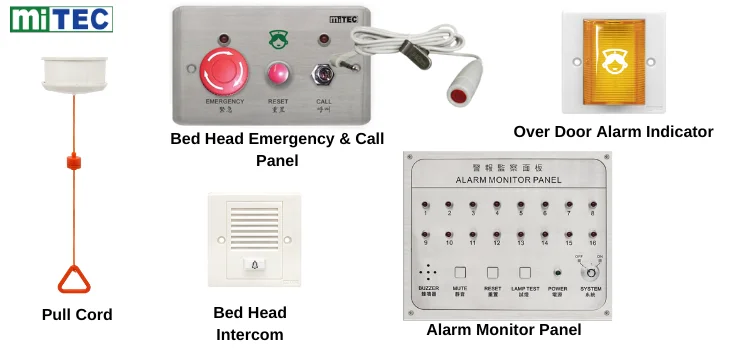

Installation Guide Diagram
1. The Pull Cord should be installed on ceiling in a position where is close and easy access from the bed. The pulling handle should be positioned right above the bed height level.

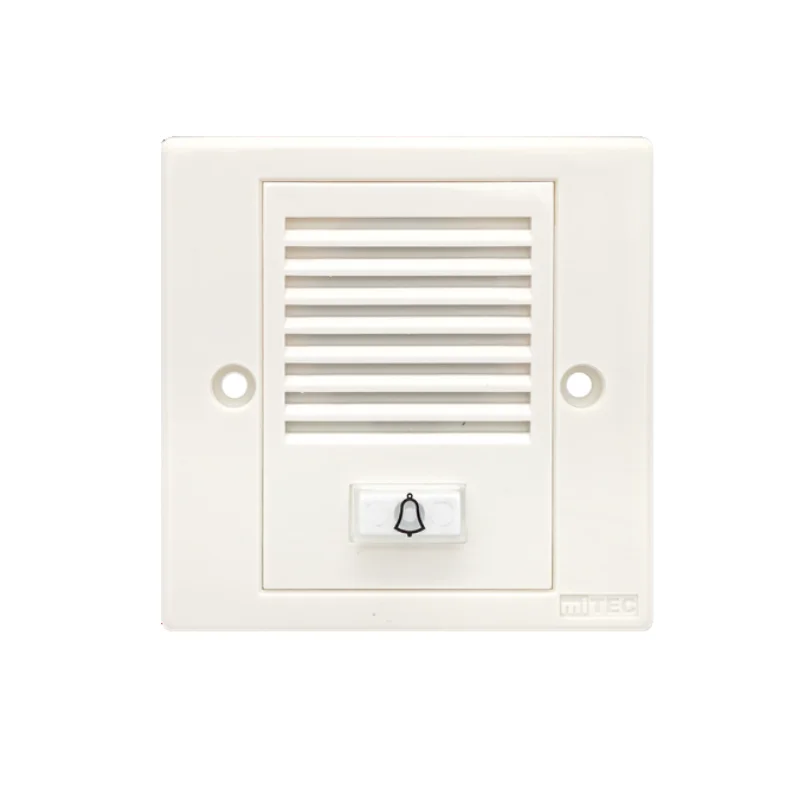

2. The Bed Head Intercom should be installed right next to patients bed head where patients can clearly communicate with the calling center.

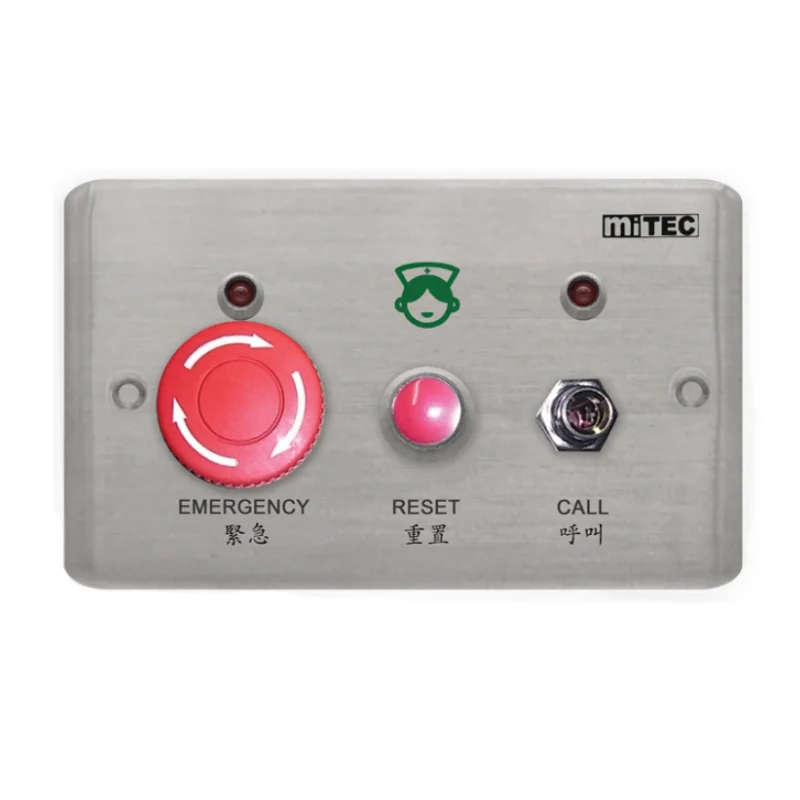

3. The Bed Head Emergency & Call Panel should be installed beside the Bed Head Intercom, where the patients can easily reach while laying on bed, the Calling Cord should plug into panel and place on the bed.

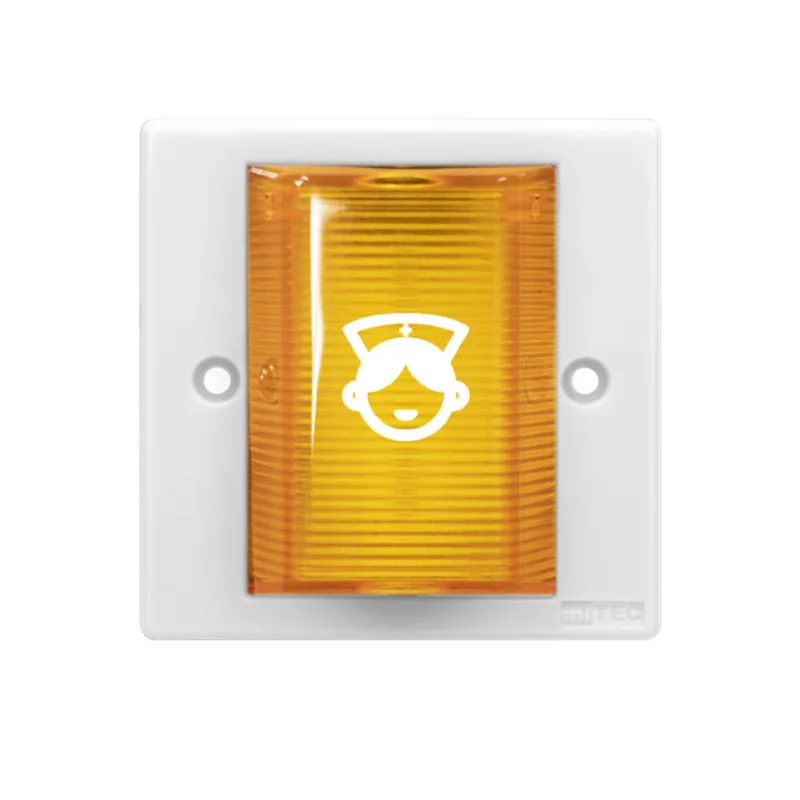

4. The Over Door Alarm Indicator should be installed outside of the room, which provide visible and audible indication to the coming officials.

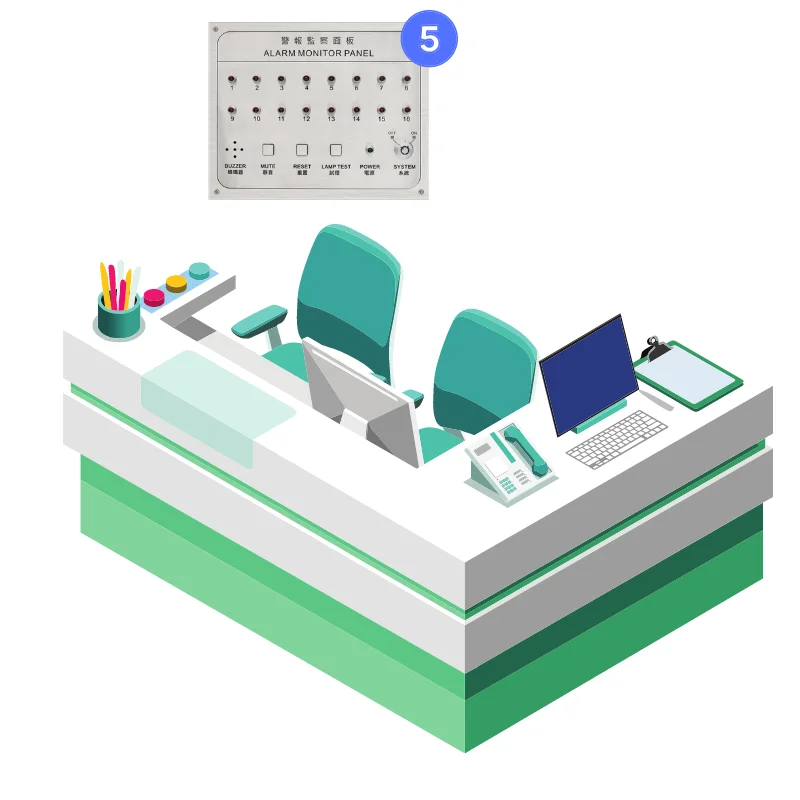

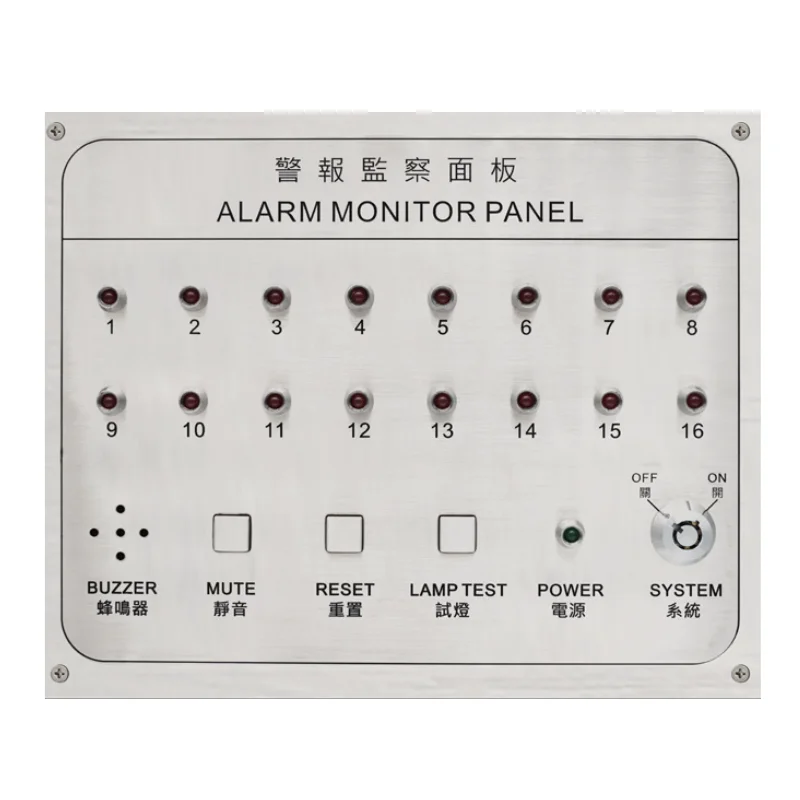

5. Alarm Monitor Panel should be installed at the calling center where officials can monitor 24*7

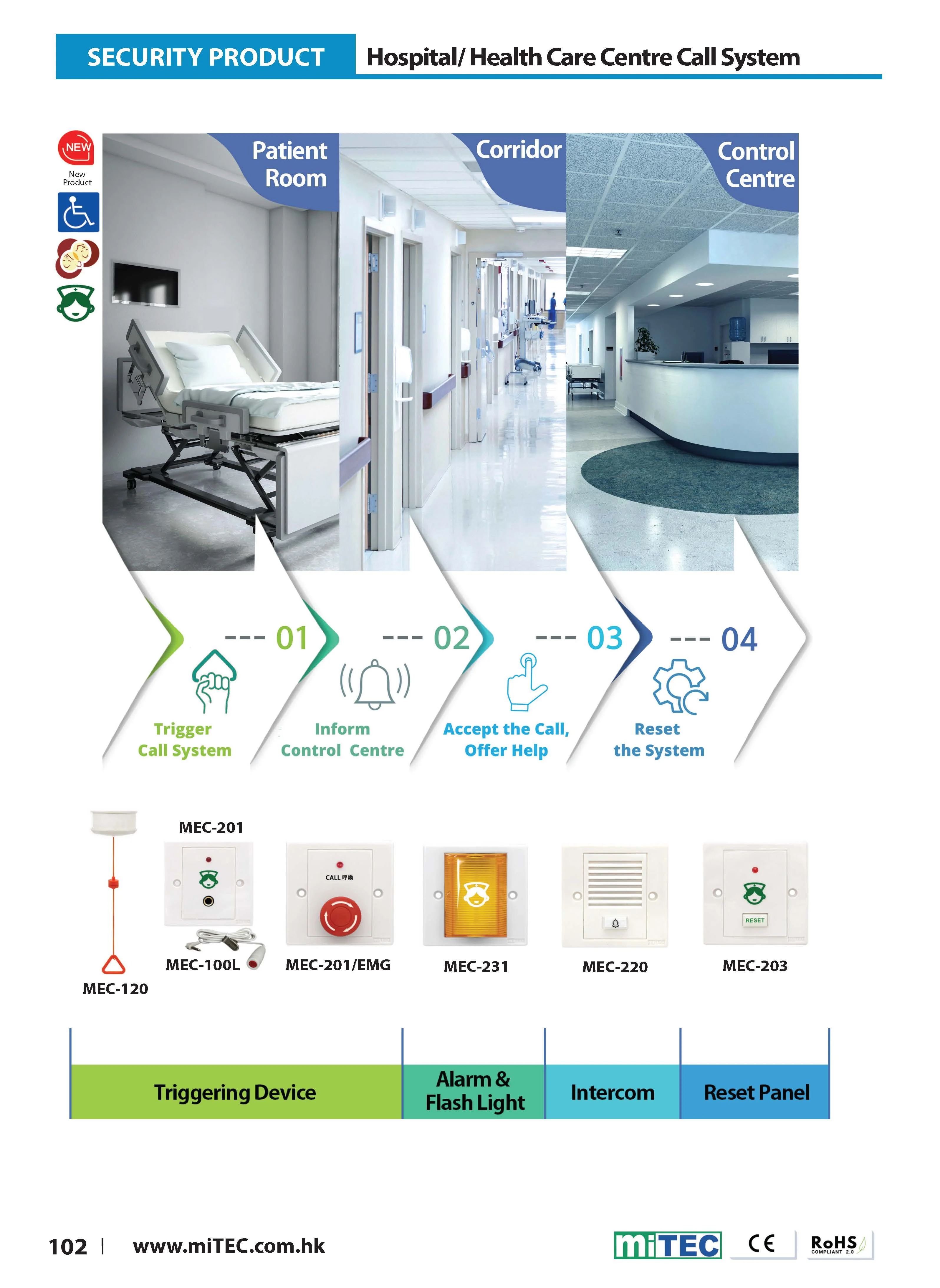

Operation Work Flow
1. Standard Calling: Users Press Call by pressing calling cable or bell button of bed head intercom, alarm A trigger control panel ring and and start communicate with officials, call can cancel by pressing "RESET" on Bed Head Panel
2. Emergency Calling: Users Press Emergency Button or pulling pull cord, alarm B trigger alarm monitor panel buzzing and over door alarm, control panel indicated the location of users, officials arrive to assist immediately. System reset by pressing "RESET" button on alarm monitor panel.
Model | MEC-302 |
Function | Bed Head Emergency+Reset+Call Functions |
Power Input | DC 12V 150mA Max |
Alarm Output | 2 Channel Alarm Output (Emergency & Call) DC12V 0.5A |
Visible Indication | Red LED Active during Alarm |
Contact Rating | DC 30V 2A |
Dimensions | 145(W) x 86(H) x 65(D)mm |

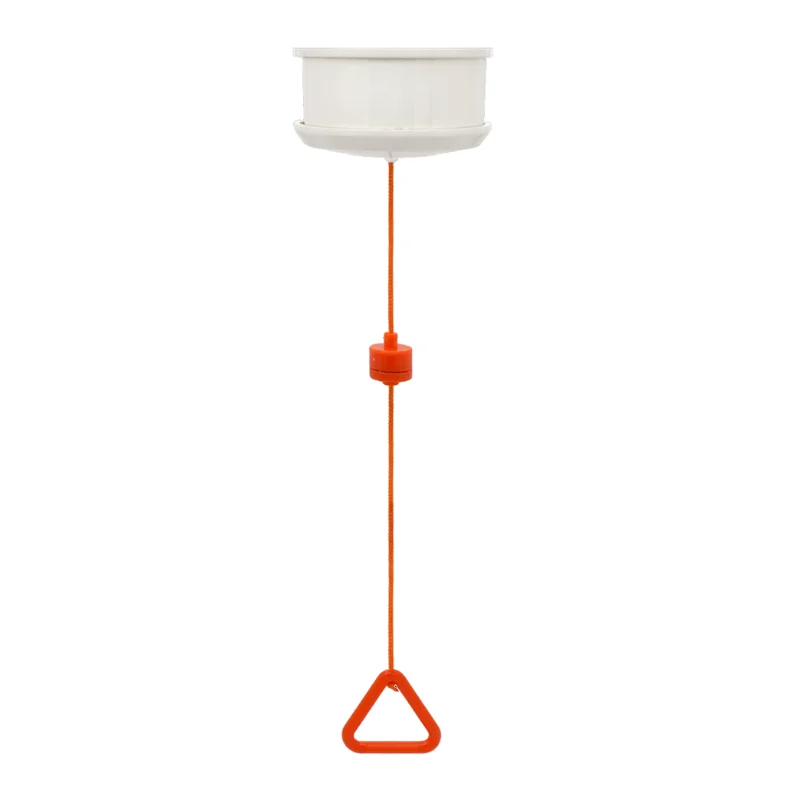

Model | MEC-120 |
Function | Pull Cord Alarm Trigger |
Power Input | DC 12V 10mA |
Visible Indication | Red LED Active During Alarm |
Pull Length & Force | 1.5M Length / 9N |
Dimensions | 90(R) X 48(H) mm |
Model | MEC-220 |
Function | Intercom and Call Function |
Power Input | DC 12V |
Speaker Rating | 80Ω /1.5W |
Visible Indication | Red LED Active During Calling |
Protection Standard | IP 54 |
Dimensions | 86(W)x86(H)x26(D)mm |
Model | MECK-BL |
Function | Over Door Visible & Audible Indication |
Power Input | DC 12V 60mA |
Visible Indication | Constant On when Alarm Trigger, Slow Flash when Call Accept |
Audible Indication | 85dB 30cm; 66dB 100cm Constant Beep when Alarm Trigger, Short Beep when Call Accept |
Protection Standard | IP 30 |
Dimensions | 87 (L) x 87 (W) x 41 (H) mm |
Model | MAM-216 |
Function | Addressable Alarm Monitoring and Control |
Power Input | AC100-240V 50/60Hz |
Alarm Output | 16*2 Channels Alarm Output (2 per each Zone) DC12V 500mA |
Relay Rating | DC 24V/3A |
System Backup | Lead Acid Battery Charging Function |
Dimensions | 87 (L) x 87 (W) x 56 (H) mm |
