Factory Sale Quarry Crushing Machine Plant Manufacturer Aggregate Stone Crusher Max Customizable Jaw Crusher
- Category: >>>
- Supplier: EIE INSTRUMENTS PRIVATE LIMITED
Share on (11000007802973):
Product Overview
Description
Product Description

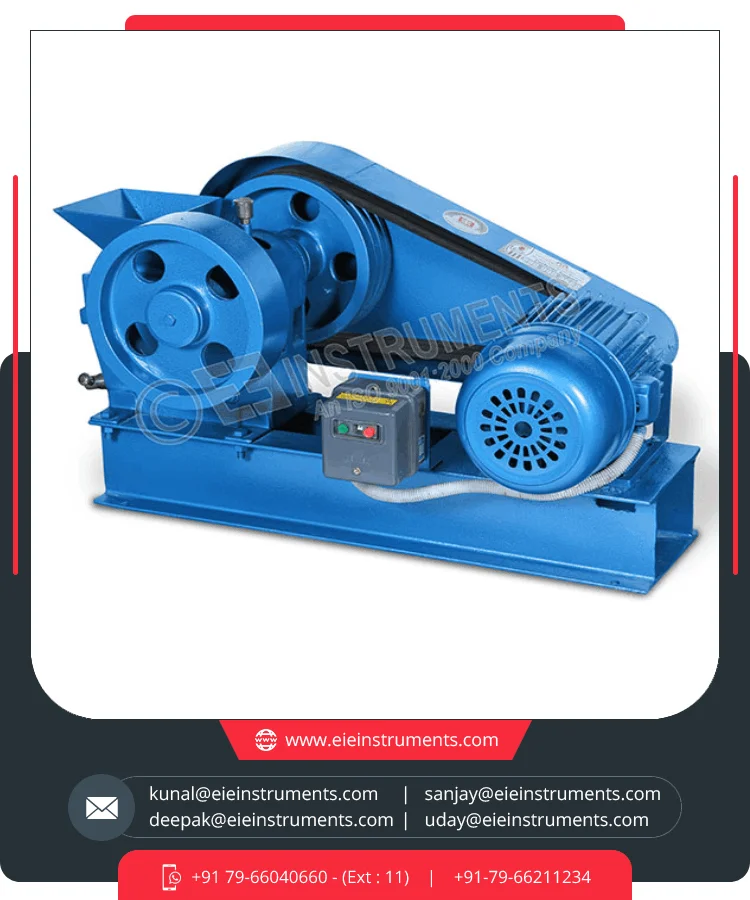

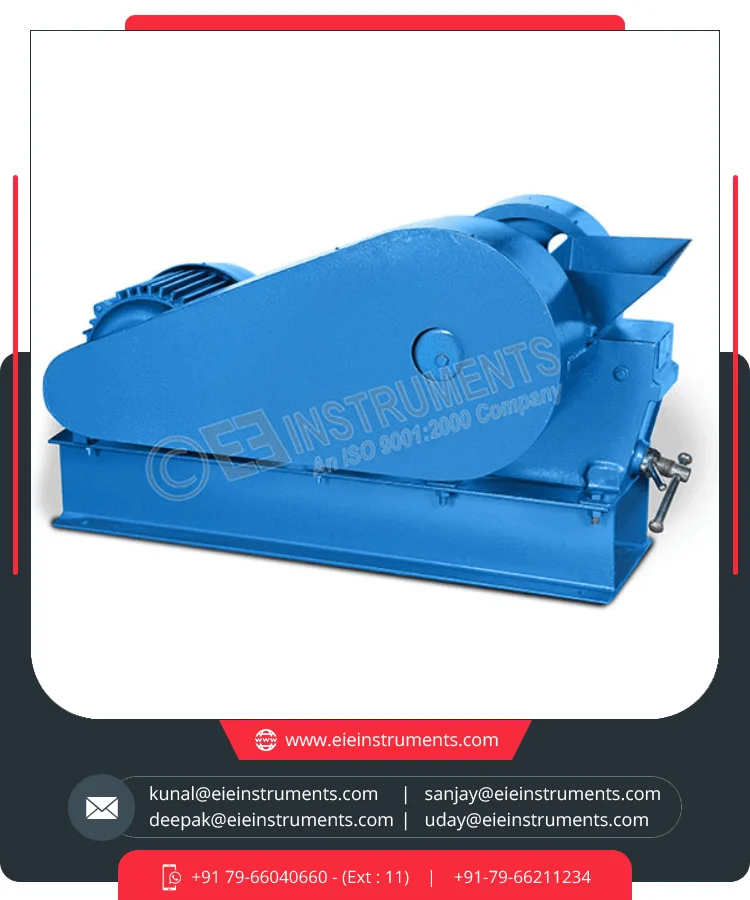

Jaw crusher
Applications
To speed crushing process of aggregate, iron ores, minerals, coals, coke, chemicals and other similar materials
Construction Details
- Compact and Rugged construction
- Identical choice for general laboratory or small pilot plant
- Easy cleaning & Maintenance
- Extremely fast & efficient primary crushing
- Two jaws of manganese steel are provided in the jaw crusher.
- Moveable jaw produces two blows for every revolution, thus reducing over sizing to a minimum.
- Combination of forward and downward strokes with a rocking action exerts pressure on the coarse material to pass through the jaws.
- Fitted with hopper at the top for feeding materials.
- Smooth jaws ensure a uniform product output
- Start & Stop push button, overload protection for motor
Available in following sizes
| Jaw size | Max size of feed | Product discharge size | Capacity | Operation |
|---|---|---|---|---|
| 100 x 150 mm (4” x 6”) | 50 mm (Approx) | 6-18 mm adjustable | 100 kg/hour | 440V, 3 phase, 50Hz, A.C. Supply |
| 150 x 200 mm (6” x 8”) | 80 mm (approx) | 12-22 mm adjustable | 200 kg/hour | 440V, 3 phase, 50Hz, A.C. Supply |
| 200 x 300 mm (8” x 12”) | 100mm (approx) | 12-50 mm adjustable | 500 kg/hour | 440V, 3 phase, 50Hz, A.C. Supply |
Product Images
Product Range

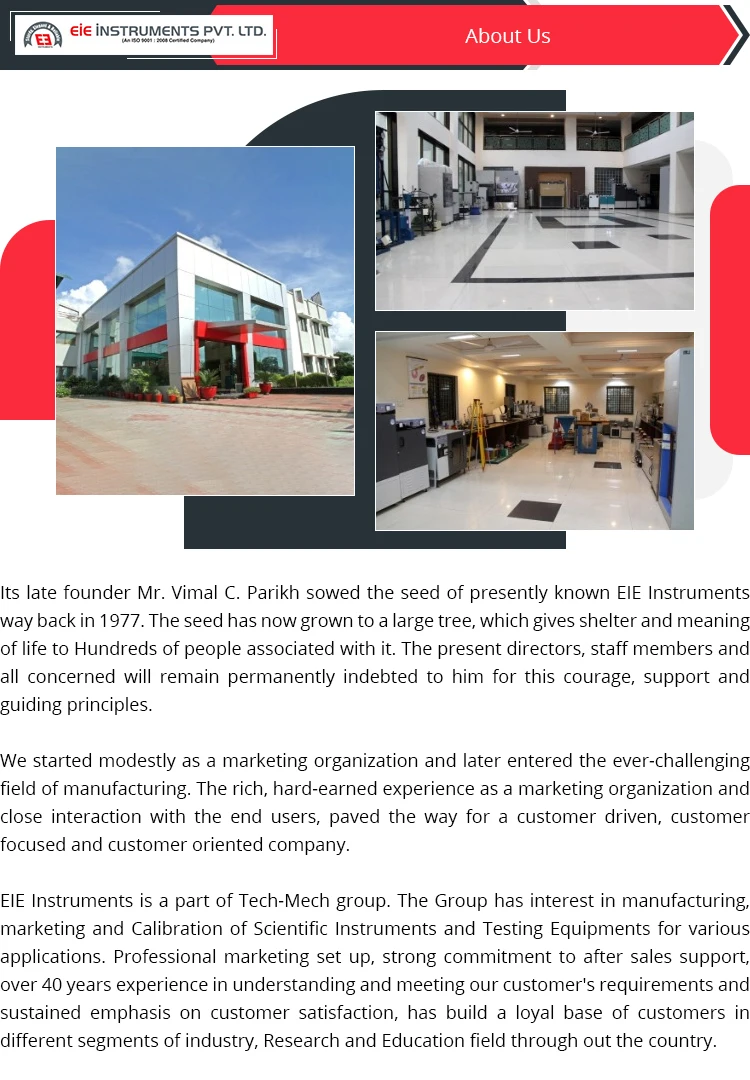

About Us

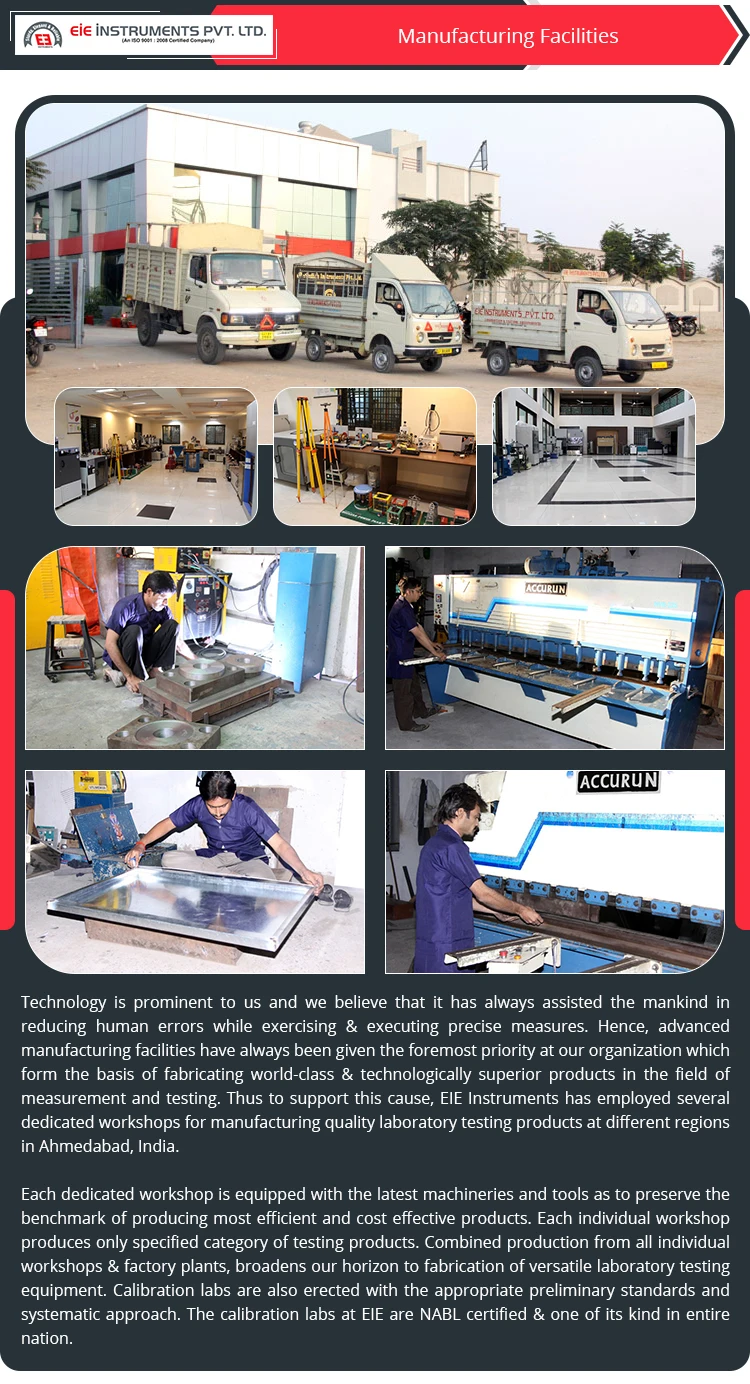

Manufacturing
Our Valuable Client

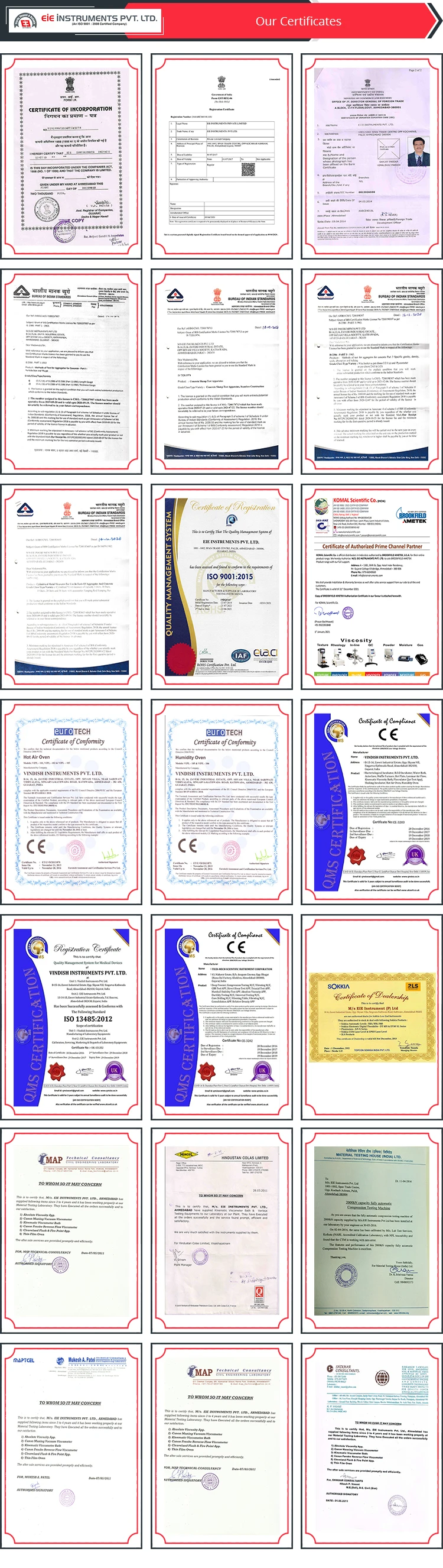

Certificates
