Product Overview
Description
Product Description
Factory price 3000C university lab ultra high temperature graphitization furnace CE ISO certification

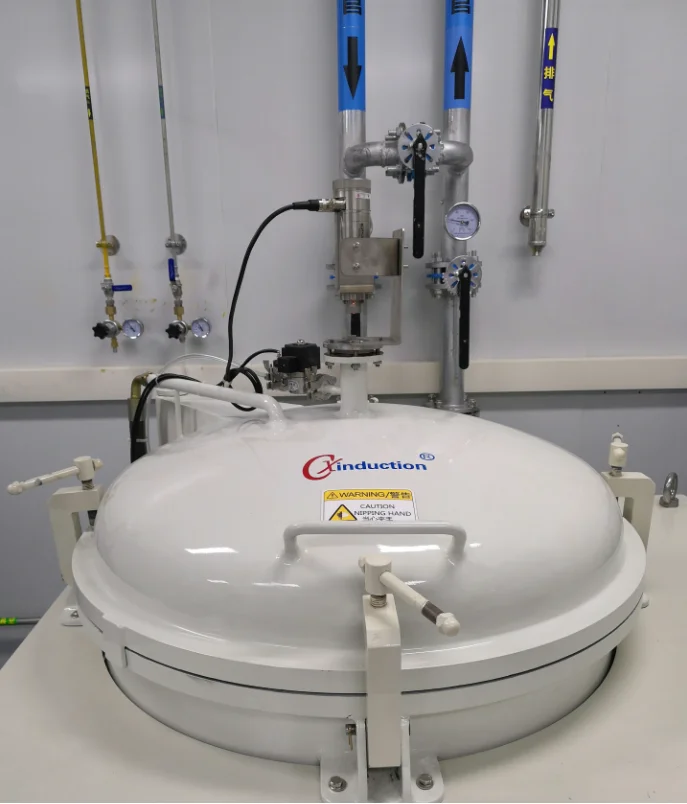

CX-GF- 20/30 VT is vertical top loading induction heating furnace with round hot zone shape. This model is ideal for various research applications and new materials development. Simple operation and easy maintenance process of this furnace, save time and budget in research projects. With maximum operating temperature of 3200 ℃, this model can be used for many applications.

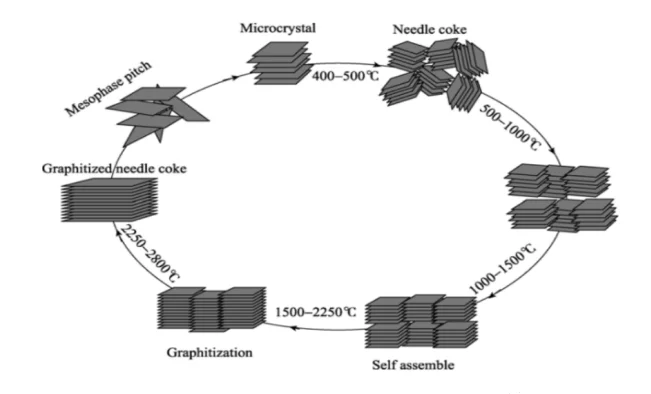

Graphitization process
The high-temperature graphitization furnace is mainly used in the carbon material industry to provide a high-temperature thermal field protected by an inert gas to convert thermodynamically unstable carbon atoms from a disordered layer structure to an ordered graphite crystal.
Main Application:
Carbon/carbon brake discs, carbon-carbon plates, crystal furnace crucibles, hot-pressing molds, high-temperature heating elements/fasteners, thermal field materials, graphite products, carbon paper, carbon cloth, graphene, carbon nanotubes, heat-conducting films, etc.
During the R&D stage, you can send materials to us for heat treatment in our 3000℃ furnace to verify the process and material properties.
Model | CX-GF 20/30 VT |
Configuration | Vertical, Top loading |
Max. Working Temperature | 3200 ℃ |
Continuous Working Temperature | ≥ 3000 ℃ |
Usable Space (mm) | Dia. * H: Φ200*300 |
Heating Power | ≤ 100 KW |
Frequency | 4000 Hz (auto-track) |
Ultimate Vacuum | can be customized |
Optional High Vacuum | 50pa |
Working Atmosphere | High Vacuum (Optional) / Vacuum / Inert Gas (Ar or N2) |
Supply Power | 3 N/PE, AC/380V, 50/60Hz |
Cooling Water Pressure | 1.5 - 2.5 bar |
Cooling Water Temperature | ≤ 28℃ |
Overall Dimension (L*W*H, mm) | Overall Dimension (L*W*H, mm) |
Weight (KG) | 1500 |
Furnace Structure
Related Products
Packing&Shipping
We have more than ten years of exporting experience.
We have long term cooperation freight forwarding in exporting, customs declaration line.
We can choose the best and economy transport way for you.
We have long term cooperation freight forwarding in exporting, customs declaration line.
We can choose the best and economy transport way for you.
After Sales Service
Company Introduction
Founded in June 2003, Zhuzhou Chenxin Induction Equipment Co.,Ltd is a scientific and technological enterprise relying on semiconductor converting technology. We has always been commitied to the manufacturer of various industrial furnace products, and have won several provincial technological progress awards and patent certificates. Our products have been exported to Vietnam, Thailand, Sayria, South Africa, Japan, Korea, USA and other countries as well as more than 20 domestic provinces and cities.
