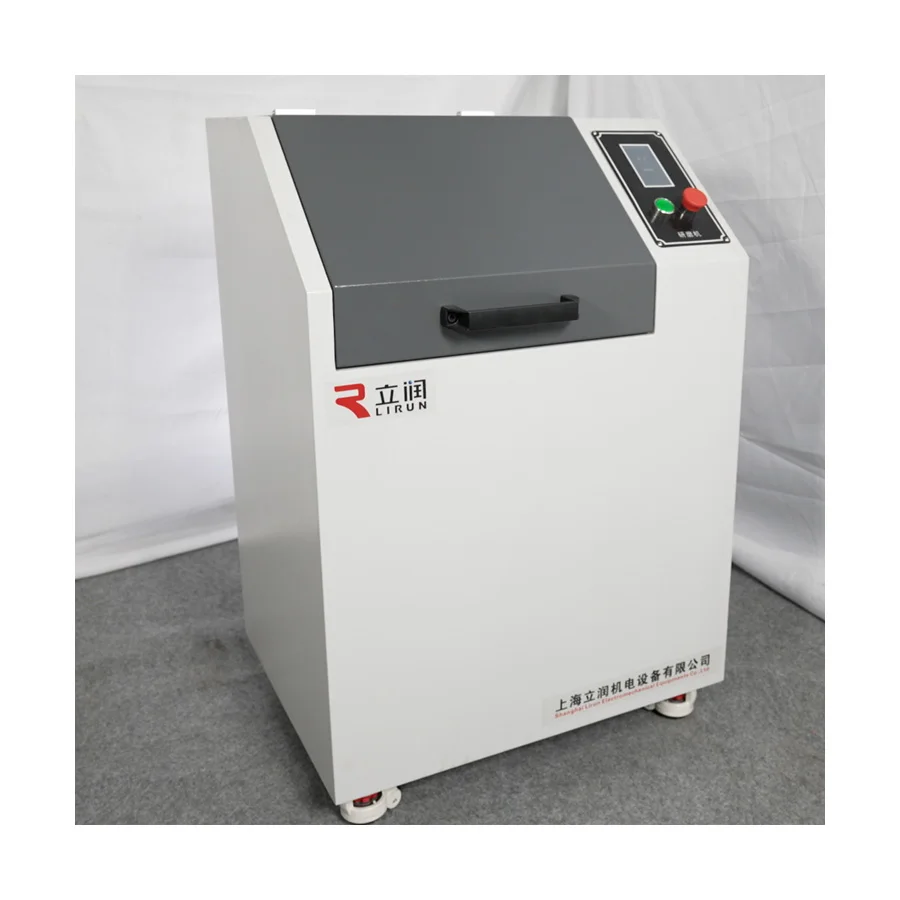

GPZ I РФА вибрационная мельница для подготовки образца мельница лаборатории шлифовальный станок для лаборатории
- Category: Other Test Instrument >>>
- Supplier: Shanghai,Lirun,Electromechanical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Overview
Technical parameter
Model : | GPZ-I | Key Selling Points: | Long Service Life |
Brand Name: | Lirun | Applicable Industries: | Various minerals,slag,ores,cements,raw materials etc |
Motor Type: | AC Motor | Warranty: | 1 years |
Core Components: | Motor | Warranty of core components: | 1 years |
Motor specifications: | 3- phase 380V 1.5KW | Showroom Location: | None |
Motor frequency: | 50Hz | Usage: | pulverizing blending of Ore, ceramics, glass, cement, refractory |
Feeding size: | ≤10mm | After Warranty Service: | Video technical support, Online support, Spare parts |
Discharge size: | ≤80um（200 mesh） | After-sales Service Provided: | Field installation, commissioning |
Feed quantity: | 10～30 cm3 | Video outgoing-inspection: | Provided |
Grinding box volume: | 100 mm3 | Machinery Test Report: | Provided |
Grinding time range: | 1～9999 seconds | Power Supply: | 380V±10％ 50Hz 3-phase 5-wire (zero, ground) |
Grinding vessel material: | Cr steel or Tungsten carbide | Weight (KG): | 200kg |
Motor speed: | 1400 r/min | Dimension(L*W*H): | 650mm*550mm*1010mm |
Product Details

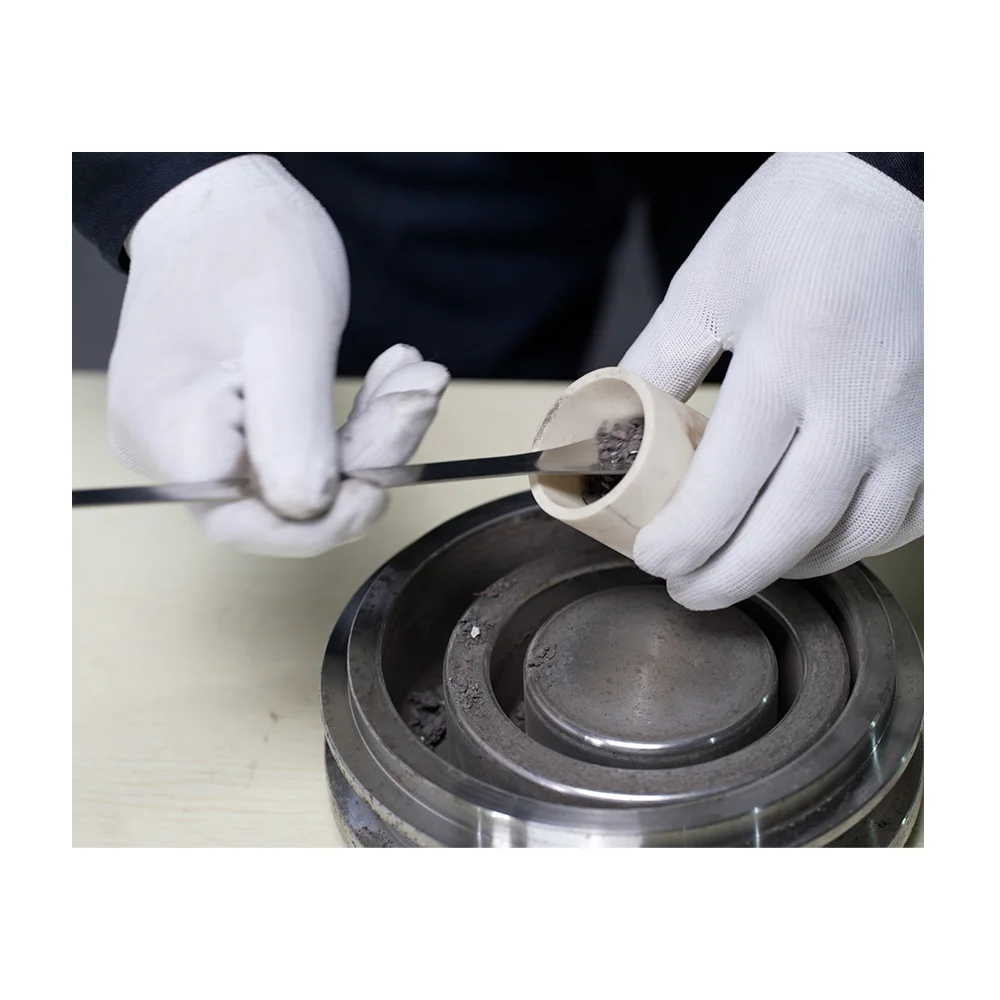

This is a Cr steel mortar for sample preparation
Company Profile
VR
Our Advantages
1.Two Grinding vessel material, Two Choice
Tungsten carbide mortar is required for grinding preparation of ferroalloy materials. Cr steel used for grinding preparation of other materials.
2.Homogeneity
Tungsten carbide mortar is required for grinding preparation of ferroalloy materials. Cr steel used for grinding preparation of other materials.
2.Homogeneity

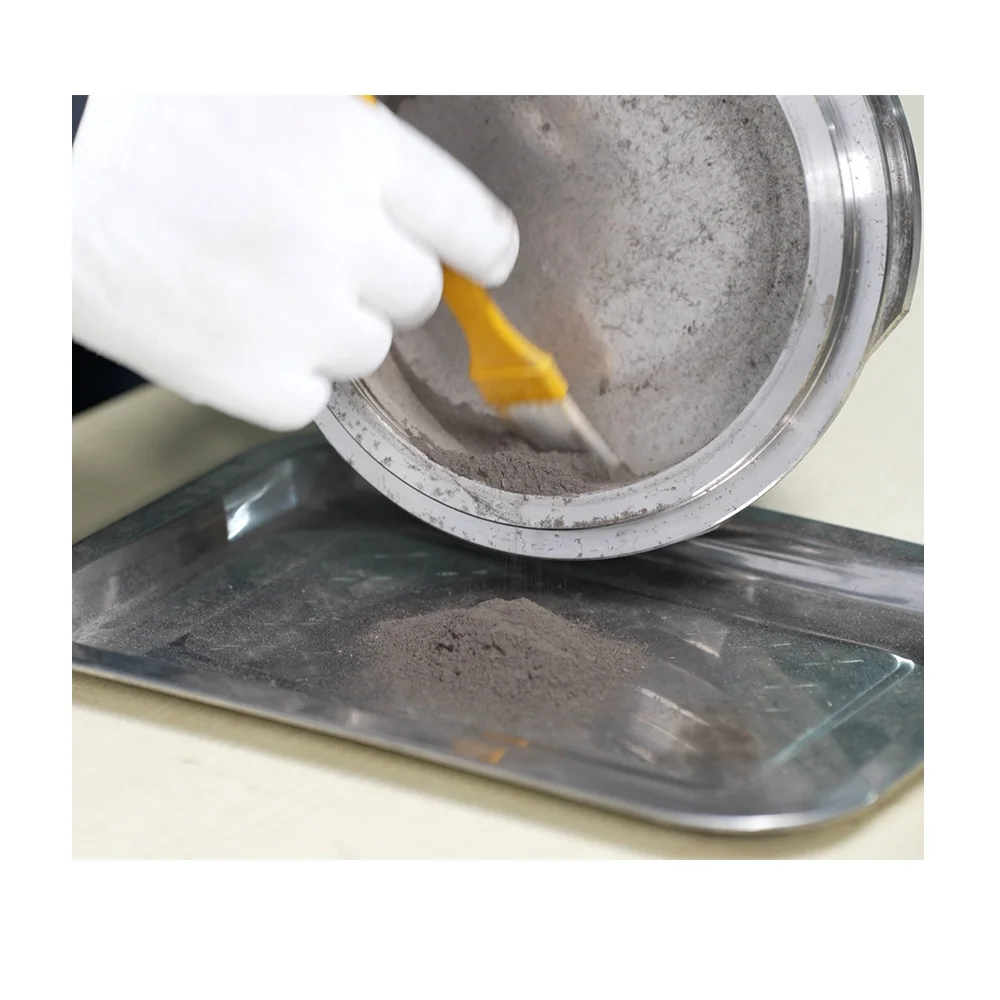

The sample powder has extremely high fineness and homogeneity.
The Price Remarks:
1.The price of one Cr steel mortar is USD$4788 .The price of USD$6588 includes a Cr steel mortar and a tungsten carbide mortar.
The above equipment prices do not include the travel, board and lodging expenses of Chinese engineers for on-site installation and commissioning, which are calculated on an actual basis.
2.The whole machine warranty is guaranteed from 12 months after installation and acceptance or 18 months after delivery, whichever comes first.
3.Free providing with training and guidance on remote video installation, commissioning and operation .
4.Payment method:T/T .
2.The whole machine warranty is guaranteed from 12 months after installation and acceptance or 18 months after delivery, whichever comes first.
3.Free providing with training and guidance on remote video installation, commissioning and operation .
4.Payment method:T/T .
Our Factory
Certifications
Packing & Delivery
FAQ
Q1:Are you manufacture?
A1:Yes,we are the original manufacturer of melting furnaces,which are used to prepare the laboratory sample . With our melting furnaces, people can prepare high-precision uniform samples for X-ray fluorescence spectrometry and Spark atomic emission spectrometry to ensure the analysis accuracy.
Q2:How long does your machine warranty last?
A2:One year warranty.
Q3:How is your machine quality?
A3:The main components of our machines are using domestic and world first-class brands. The quality is reliable and stable.
Q4:Where are your factory located?
A4:We are located in Shanghai China.
A5: Usually customers can use for more than 6 years without any problems if it's under normal condition using and maintenance. If you have any troubles, you may provide us a video to describe what the problem is so that our engineer can judge and give you a solusion.Within the warranty period, we'll send you the parts free of charge for replacement. After the warranty ,we'll provide you the parts at a reasonable costs. Everlasting technical support is offered freely.
