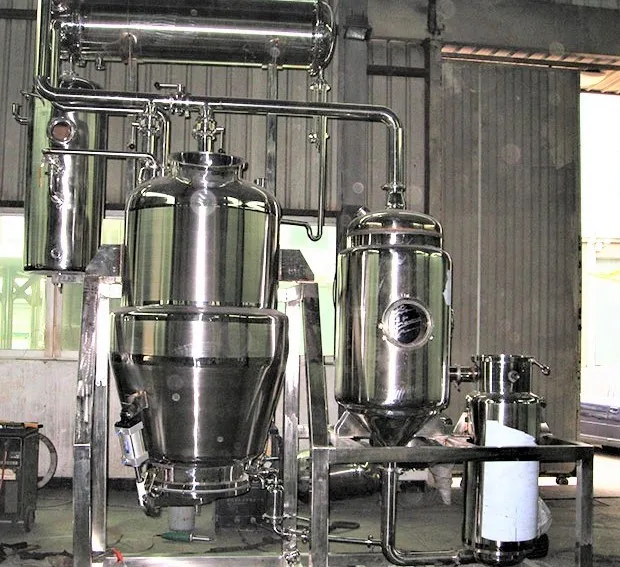

JOSTON Low Temperature Plant Chinese NATURAL PLANT extractor extract Oil Laboratory Extraction And Concentration Machine
- Category: >>>
- Supplier: Wenzhou Yinuo Machinery Co. Ltd.
Share on (11000007863423):
Product Overview
Description
Video Description
Usage Scope:
Laboratory extraction and concentration machine is a combined unit of extraction and concentration, which is suitable for the extraction, concentration, ointment collection, percolation, volatile oil extraction and alcohol recovery of heat sensitive materials such as plants, natural products , traditional Chinese NATURAL PLANT , food additives, etc. and it can meet the requirements of universities, scientific research institutions, hospitals, etc. determination of new technological parameters, intermediate test, new variety development, etc

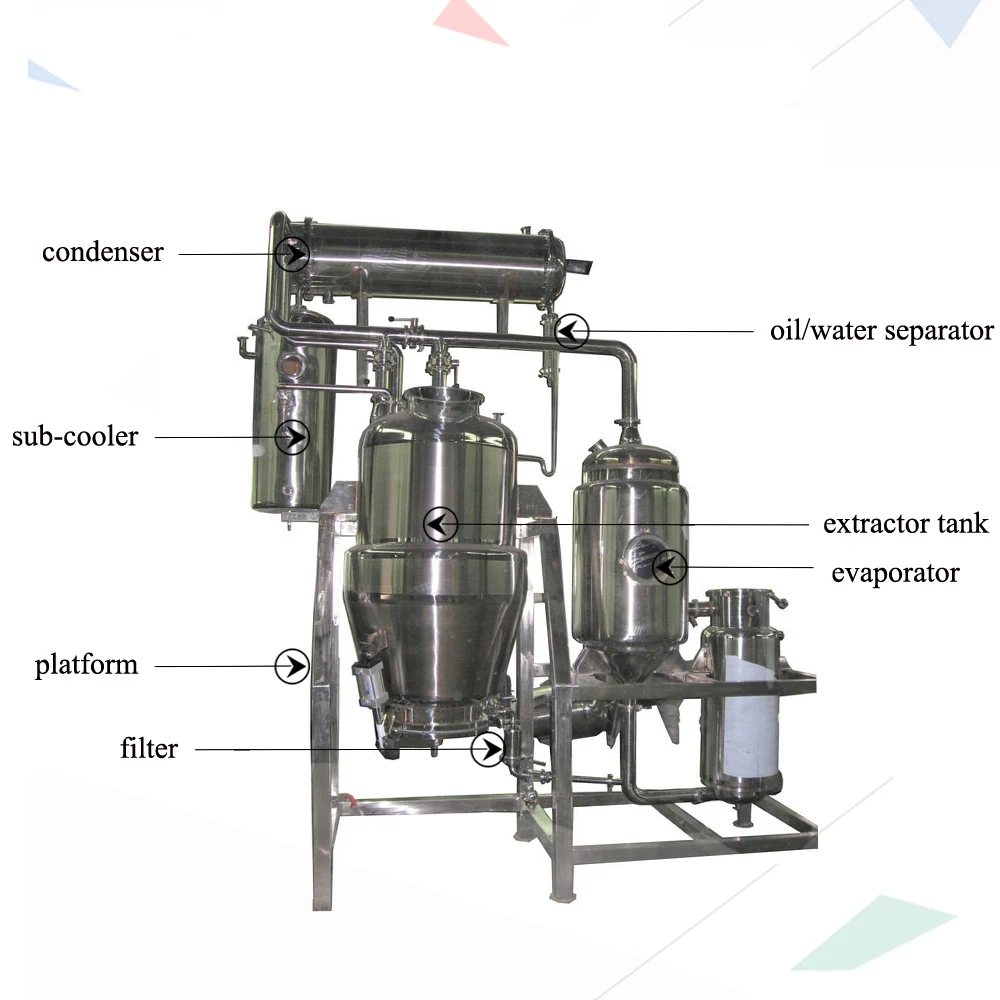

Laboratory extraction and concentration machine Working Principle :
Put the raw material materials into the extraction tank, add 5-10 times of the solvent solution, such as purified water or
ethanol, according to the solvent required in the extraction process.
and first open the steam valve of the extraction tank. After boiling for about 1 hour, open vacuum to pump the liquid medicine in the extraction tank into the evaporator heater, open the steam valve of the heater, it heat the extraction tank with the generated vapor, open the buffer water storage tank valve to condense the liquid from the vapor through the spray tank in the spray pipe at the top of the extraction tank, and cycle for 3-4 hours, Finally, close the steam valve of extraction tank and the heater, then collection the ointment
Laboratory extraction and concentration machine Technology data Specification:
1.extractor tank volume can be made from 100L to 10000L
2.equipments material can be made SS304 and SS316L
Laboratory extraction and concentration machine is a combined unit of extraction and concentration, which is suitable for the extraction, concentration, ointment collection, percolation, volatile oil extraction and alcohol recovery of heat sensitive materials such as plants, natural products , traditional Chinese NATURAL PLANT , food additives, etc. and it can meet the requirements of universities, scientific research institutions, hospitals, etc. determination of new technological parameters, intermediate test, new variety development, etc
Laboratory extraction and concentration machine Working Principle :
Put the raw material materials into the extraction tank, add 5-10 times of the solvent solution, such as purified water or
ethanol, according to the solvent required in the extraction process.
and first open the steam valve of the extraction tank. After boiling for about 1 hour, open vacuum to pump the liquid medicine in the extraction tank into the evaporator heater, open the steam valve of the heater, it heat the extraction tank with the generated vapor, open the buffer water storage tank valve to condense the liquid from the vapor through the spray tank in the spray pipe at the top of the extraction tank, and cycle for 3-4 hours, Finally, close the steam valve of extraction tank and the heater, then collection the ointment
Laboratory extraction and concentration machine Technology data Specification:
1.extractor tank volume can be made from 100L to 10000L
2.equipments material can be made SS304 and SS316L

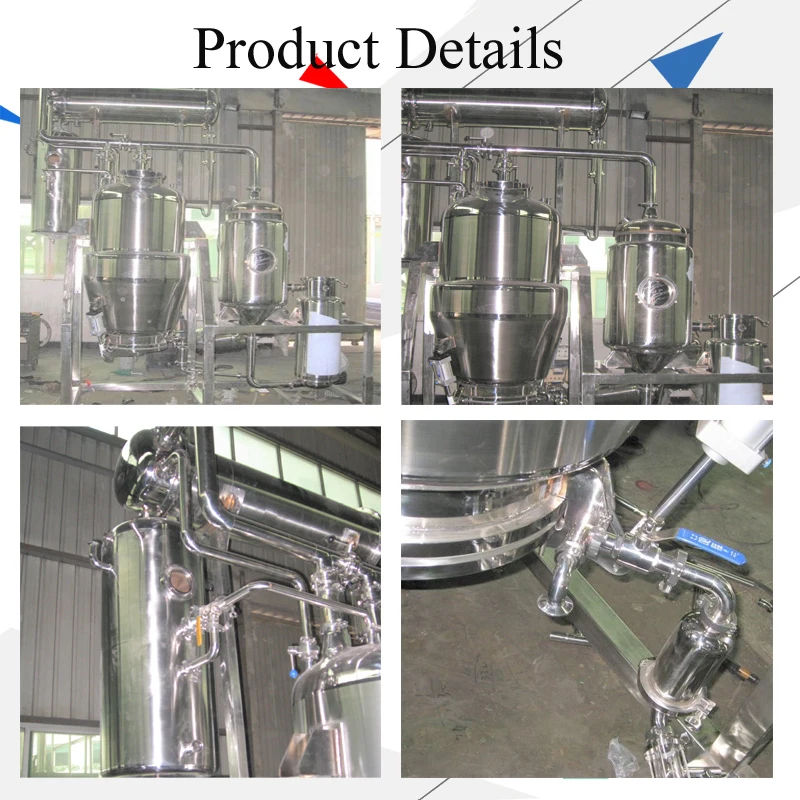

Products Description
Technical Data Related
Model | RHJ-100 | RHJ-300 | RHJ-500 | RHJ-1000 |
Extraction tank working volume :L | 100 | 300 | 500 | 1000 |
Evaporator heater area M2 | 0.4 | 1.2 | 2 | 4 |
Condenser cooling area M2 | 1 | 3.1 | 5 | 10 |
Steam consumption :kg/h | 30 | 100 | 150 | 300 |
Recommend Products
About Us
Service
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technology document (Quotation PI )
4.Engineering and Manufacturing (Production &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technology document (Quotation PI )
4.Engineering and Manufacturing (Production &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
FAQ
1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 year warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the running.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accordingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
10.how about your company after-sale service ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
