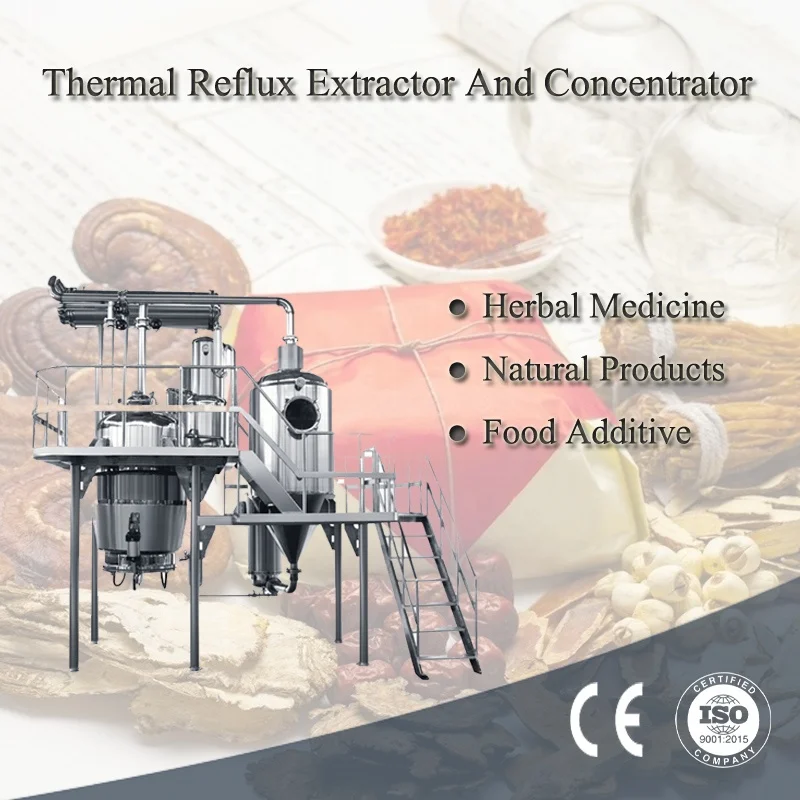

Usage Scope :
Thermal reflux extractor and concentrator is applicable to the extraction and concentration of Chinese natural plant ,like leaf ,stem ,flower ,seed ,root ,fruits , tea and natural products ,like food additive ,and the recovery of volatile aromatic oil, with the output of the extraction solution concentration in semi-solid status ,the ptorduct proportion density reach 1.1-1.38.
working methods:
Thermal reflux extractor and concentrator is incoprated the extractor tank functions and evaporator functions together ,so this equipments can extractor the herbal raw material and also can evaporator the water and solvent from the extraction solution too. so it have the advantagous as below point
1.multifunctional tank strcture :it can work for the various type natural plant material .
2.extraction time is fast and short compare with the common traditional extractor tank .
3.solvent and water consumption is all much less .
4.energy saving ,like steam consumption ,cooling water consumption
working pressure:
Thermal reflux extractor and concentrator can working in different pressure as the natural raw material requirement : extractor & concentrator in atmospheric pressure ;extractor in atmospheric pressure& concentrator in vacuum pressure ;extractor &concentrator in vacuum pressure ;steam distill volatile oil .especially for the water based and
solvent extractor etc.process .
Thermal reflux extractor and concentrator Working principle:
The extractor solution outlet from the bottom of the extractor tank to the single effect concentrator to evaporate,and the
evaporated solvent condenser then reflux back to the extractor tank as the fresh solvent . The fresh solvent mixture with the solution completely and evaporate again,till to extractor all the activity ingredents from the raw material herbs .
Thermal reflux extractor and concentrator structure and Features:

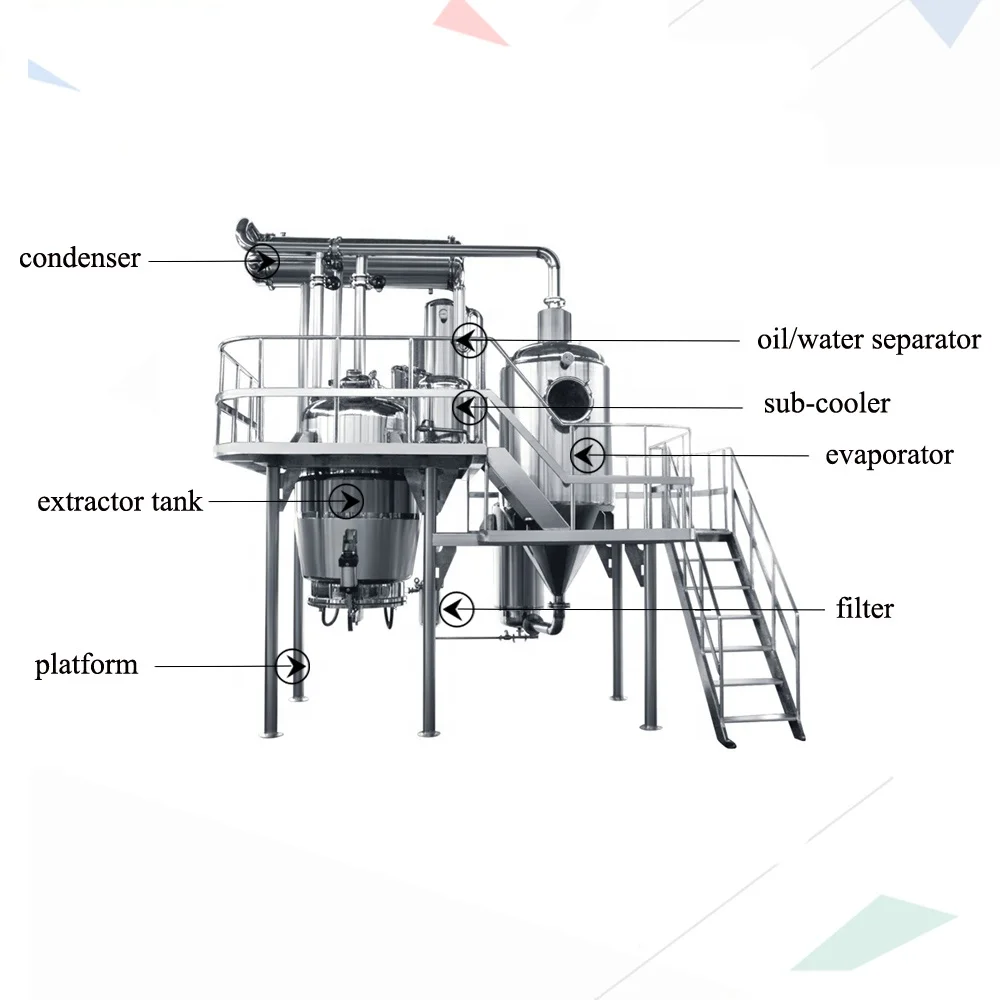

Thermal reflux extractor and concentrator including extractor tank,single effect concentrator ,condenser ,oil/water separator,water(solvent ) automatic drain system,pipeline,platform and control panel.
Thermal reflux extractor and concentrator operation mode:
Manual operationand PLC/HMI automatic operation.
Thermal reflux extractor and concentrator main parameter:
1.extractor tank capacity :50L-10000L
2.material is SS304 and SS316L
3.heating source : steam/electrical heating thermal oil
4.cooling medium : water ,chiller
5.vacuum pump system ( optional )
Thermal reflux extractor and concentrator is applicable to the extraction and concentration of Chinese natural plant ,like leaf ,stem ,flower ,seed ,root ,fruits , tea and natural products ,like food additive ,and the recovery of volatile aromatic oil, with the output of the extraction solution concentration in semi-solid status ,the ptorduct proportion density reach 1.1-1.38.
working methods:
Thermal reflux extractor and concentrator is incoprated the extractor tank functions and evaporator functions together ,so this equipments can extractor the herbal raw material and also can evaporator the water and solvent from the extraction solution too. so it have the advantagous as below point
1.multifunctional tank strcture :it can work for the various type natural plant material .
2.extraction time is fast and short compare with the common traditional extractor tank .
3.solvent and water consumption is all much less .
4.energy saving ,like steam consumption ,cooling water consumption
working pressure:
Thermal reflux extractor and concentrator can working in different pressure as the natural raw material requirement : extractor & concentrator in atmospheric pressure ;extractor in atmospheric pressure& concentrator in vacuum pressure ;extractor &concentrator in vacuum pressure ;steam distill volatile oil .especially for the water based and
solvent extractor etc.process .
Thermal reflux extractor and concentrator Working principle:
The extractor solution outlet from the bottom of the extractor tank to the single effect concentrator to evaporate,and the
evaporated solvent condenser then reflux back to the extractor tank as the fresh solvent . The fresh solvent mixture with the solution completely and evaporate again,till to extractor all the activity ingredents from the raw material herbs .

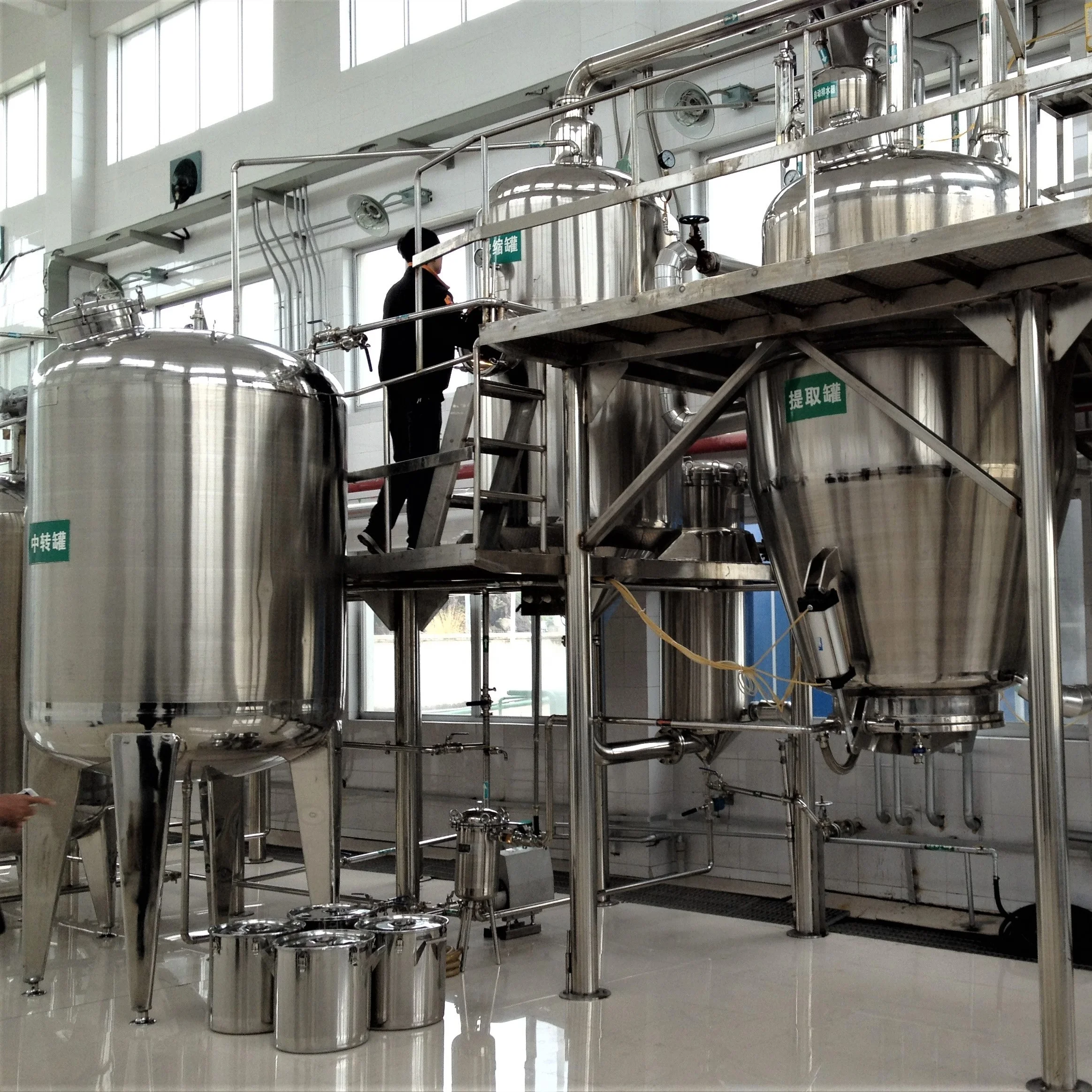

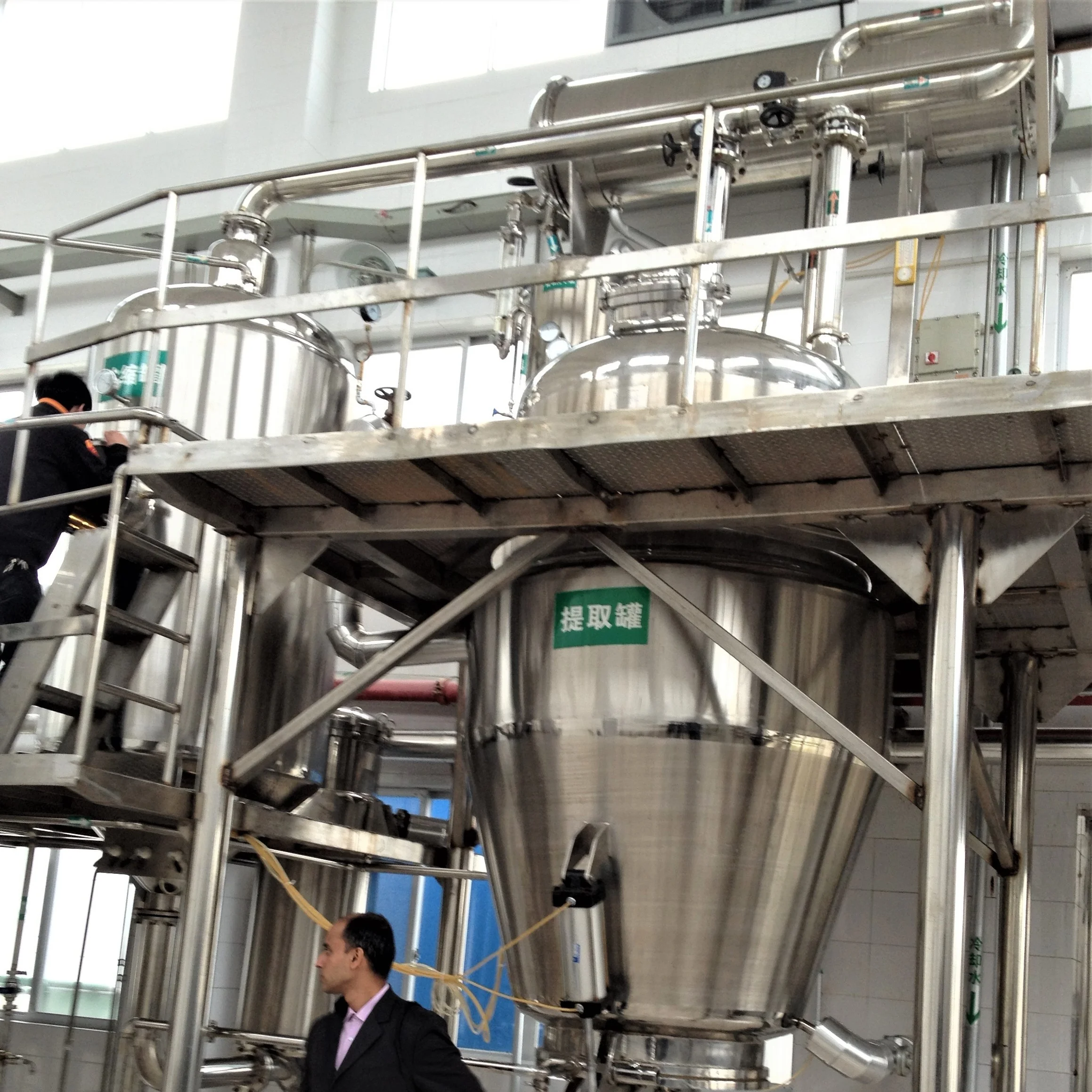

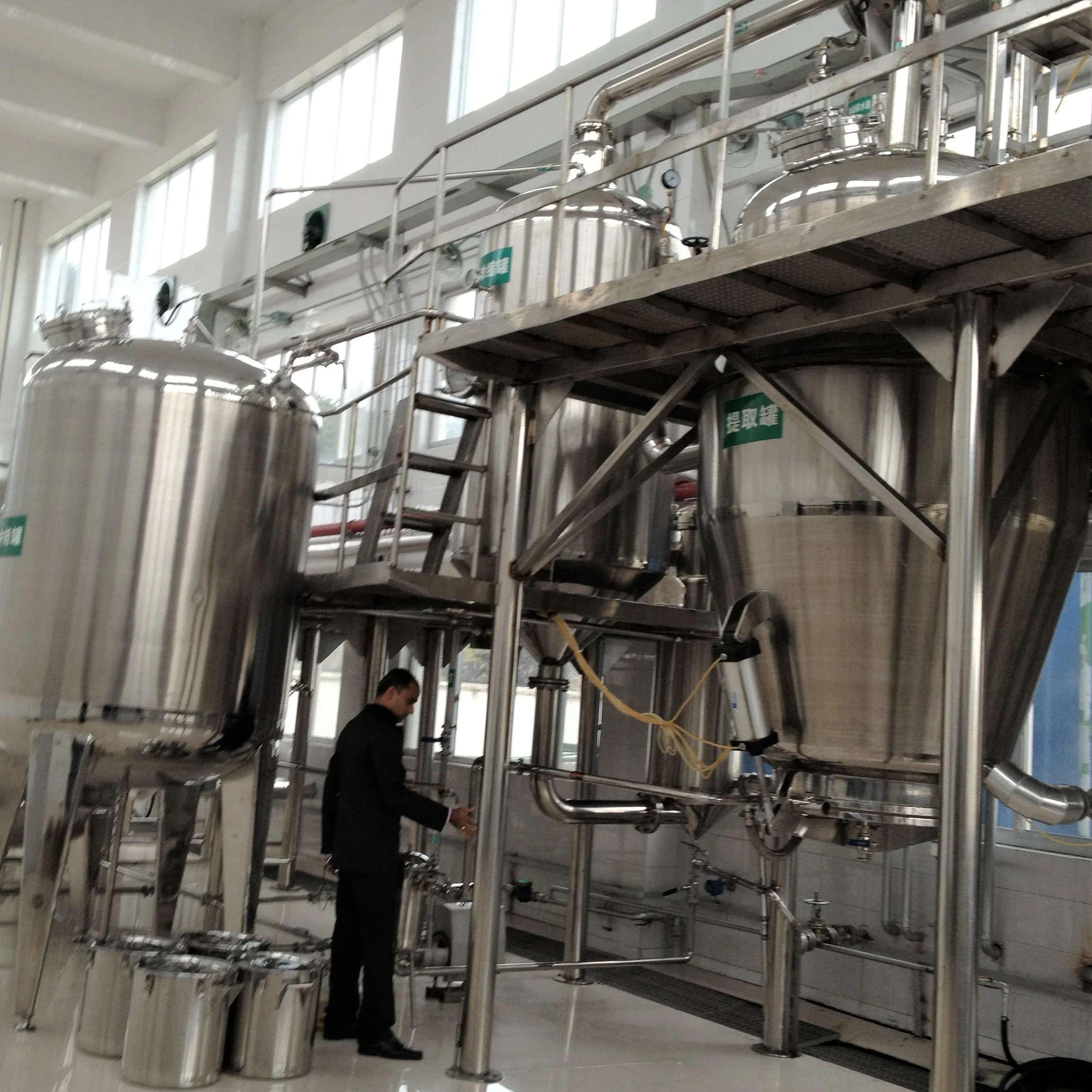

Thermal reflux extractor and concentrator structure and Features:
Thermal reflux extractor and concentrator including extractor tank,single effect concentrator ,condenser ,oil/water separator,water(solvent ) automatic drain system,pipeline,platform and control panel.
Thermal reflux extractor and concentrator operation mode:
Manual operationand PLC/HMI automatic operation.
Thermal reflux extractor and concentrator main parameter:
1.extractor tank capacity :50L-10000L
2.material is SS304 and SS316L
3.heating source : steam/electrical heating thermal oil
4.cooling medium : water ,chiller
5.vacuum pump system ( optional )
Technical Data Related
Model Item | RHL-1.0 | RHL-2.0 | RHL-3.0 | RHL-6.0 | ||||||||
extractor | concentrator | extractor | concentrator | extractor | concentrator | extractor | concentrator | |||||
Steam pressure: MPa | 0.3 | 0.2 | 0.3 | 0.2 | 0.3 | 0.2 | 0.3 | 0.2 | ||||
Working pressure:MPa | ≤0.09 | -0.084 | ≤0.09 | -0.084 | ≤0.09 | -0.084 | ≤0.09 | -0.084 | ||||
Jacket temperature : ºC | 142 | 132 | 142 | 132 | 142 | 132 | 142 | 132 | ||||
Working temperature ºC | ≤100 | 60 | ≤100 | 60 | ≤100 | 60 | ≤100 | 60 | ||||
Evaporator capacity :KG/H | 500 | 800 | 1000 | 2000 | ||||||||
Heating area: m2 | 6.2 | 9.8 | 12.2 | 25 | ||||||||
Condenser area: m2 | 21 | 30 | 44 | 82 | ||||||||
Steam consumption:kg/h @3bar | 600 | 950 | 1200 | 2500 | ||||||||
Cooling water consumption:kg/h Inlet temperature is 25ºC,outlet temperature is 32ºC | 25 | 35 | 50 | 90 | ||||||||
Dimension (L×W×H) | 4000×1800×4600 | 4500×2200×5900 | 5200×2400×7250 | 6600×2800×7550 | ||||||||
