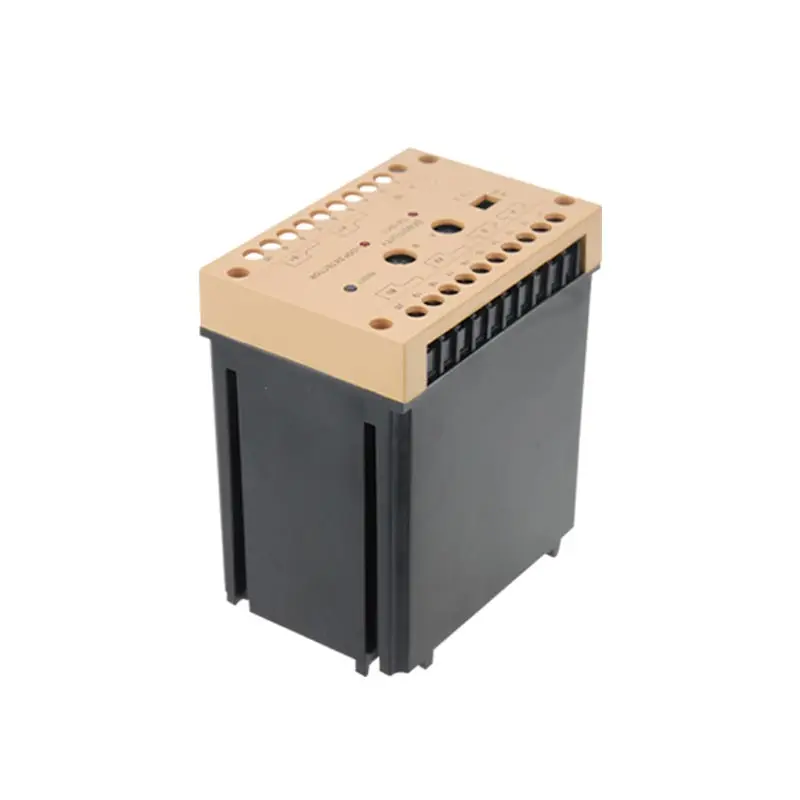

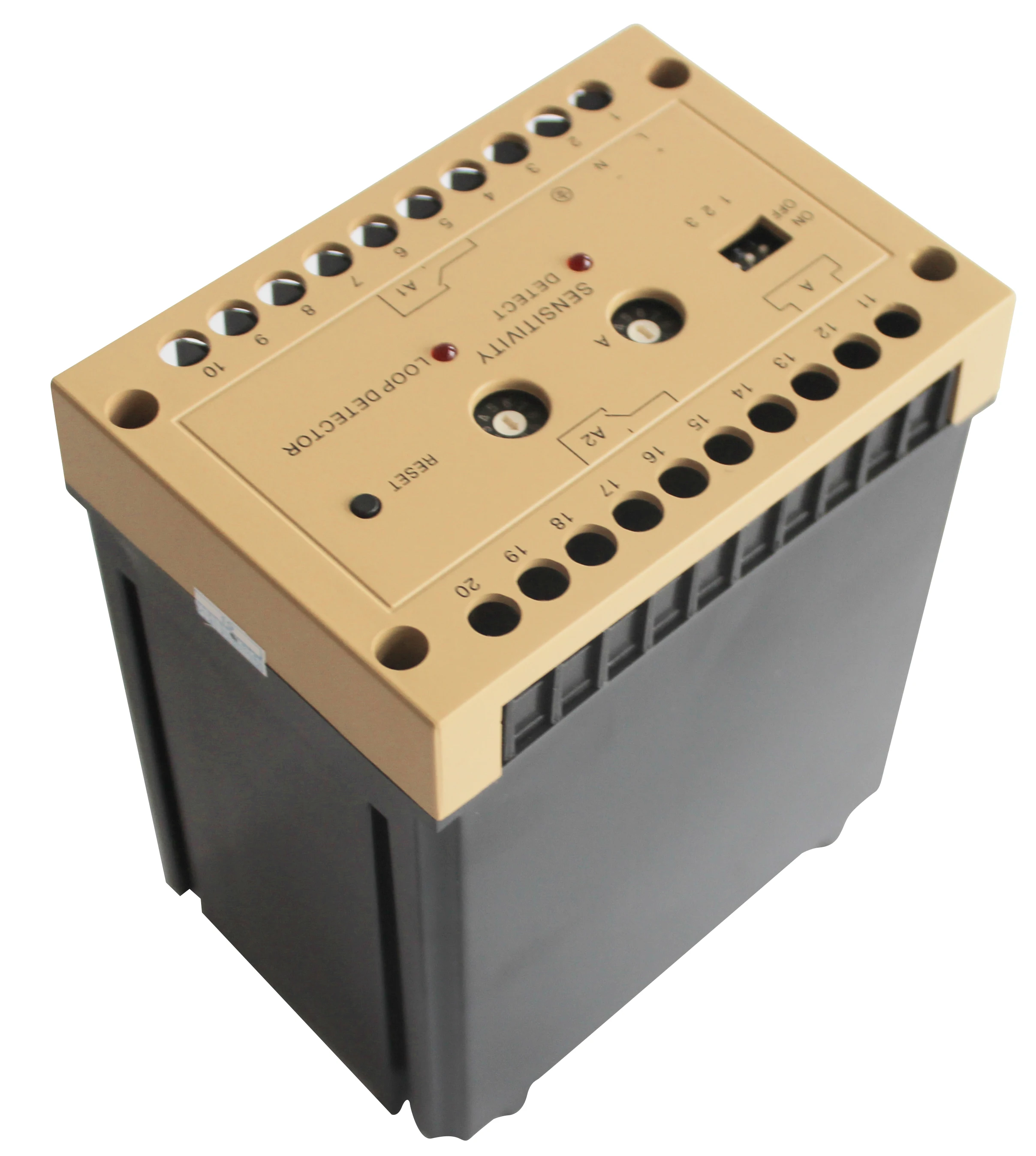

PD232C Double Loop Vehicle Detector

1. Introduction
ZE-600 is used for wherever vehicles have to be detected, for example for monitoring and safe-guarding access ways or for counting vehicles. The output signal can be used for controlling door drive mechanisms, operating barriers, activating card dispensers etc.

2. Technical parameters
﹡Type：ZE-600（double channel）
﹡Operating temp.: -30℃ ～ +75℃
﹡Storage temp.:\t -40℃ ～ +85℃
﹡Relative humidity: ≤95%
﹡Shell: PC + ABS engineering plastics
﹡Installation: DIN rail
﹡Dimensions: 110×60×100 mm (L×W×H)
﹡Net Weight: 400g
﹡Operating voltages：\tAC220V±10%
﹡Power consumption：＜5W
﹡Relay output：DC24V /3A
﹡Frequency range：20kHz ～ 170kHz
﹡Reaction time：10 ms
﹡Sensitivity：10 grades adjustable
﹡Loop inductance: Ideal 100µH～300µH Max 50µH～1000µH
﹡Loop conn. Wiring: Max 100m, twisted at least 20 times per meter, total resistance <10 Ohm
﹡Automatic calibration time:2s～5s
3. Principle
It is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor.

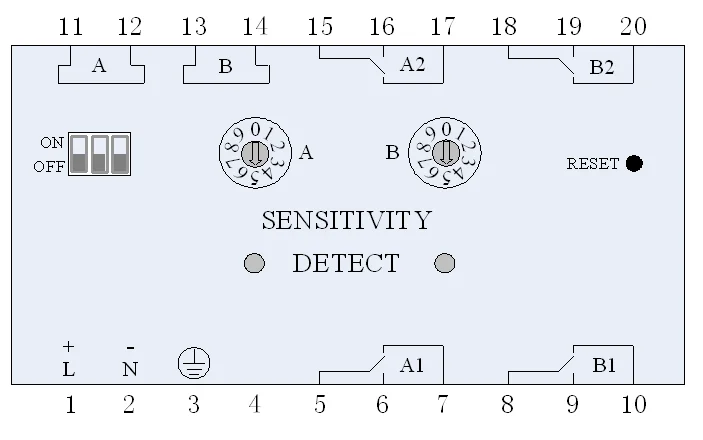

Double loop detector ZE-600 panel
a. Tune
The tuning range is from 50µH to 1000µH, and such wide tuning range ensures low requirements for the loop and wiring. Any inductance changes will feedback to the compensation circuit in detector to ensure normal work.

b. Adjustable sensitivity
When in low sensitivity, the detector will detect vehicles with high chassis or trailers correctly except cars, bicycles and other small metals. The sensitivity adjust button is the rotary encoder switch on the panel, “0” with low sensitivity and “9” with high sensitivity. The A switch on left is corresponding to loop A, while B on right is corresponding to loop B.

c. Reaction time
Its definition is the time starting from the metal enters into the loop and ending when the detector gives indication signals.

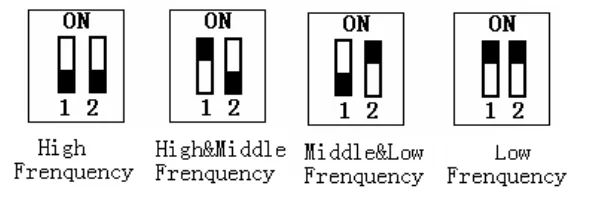

d. Frequency adjustment

When power on, the detector can calibrate itself automatically and the two red lights are on which will continue for 2s.
e. Output mode of relay

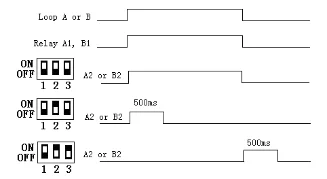

Every channel has two relay outputs in our detectors. There are two relays A1 and A2 with channel A. And there are two relays B1 and B2 with channel B. Relay A1 and B1 are existing output (on when metals on the loop and off when metals leaving). Relay A2 and B2 are multifunctional output set by the three bit code switch on the left of the panel. Operate as follows:

Relay A2 and B2 output vehicles’ detection signals
