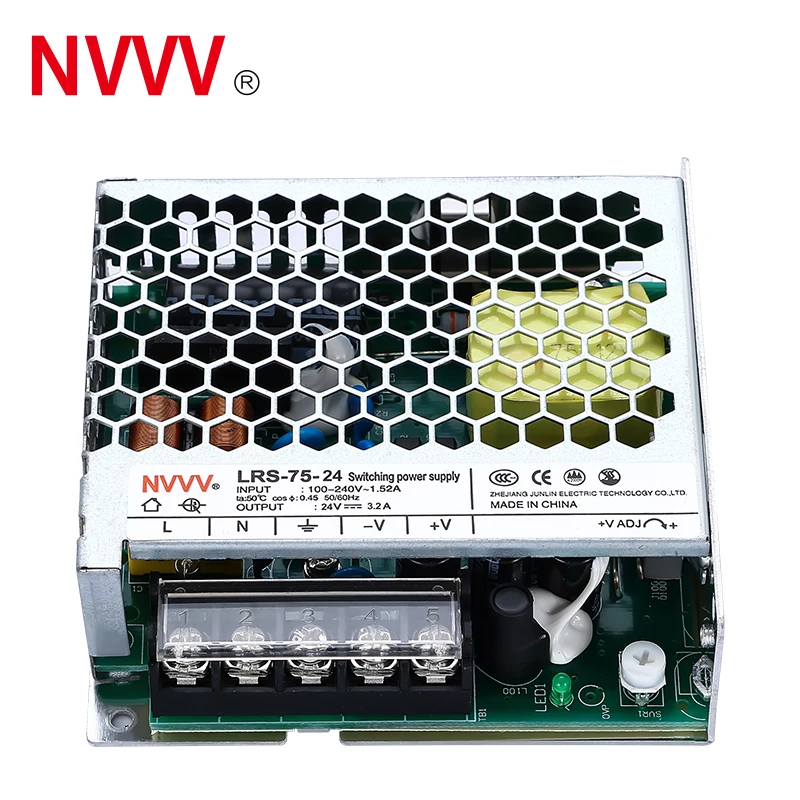

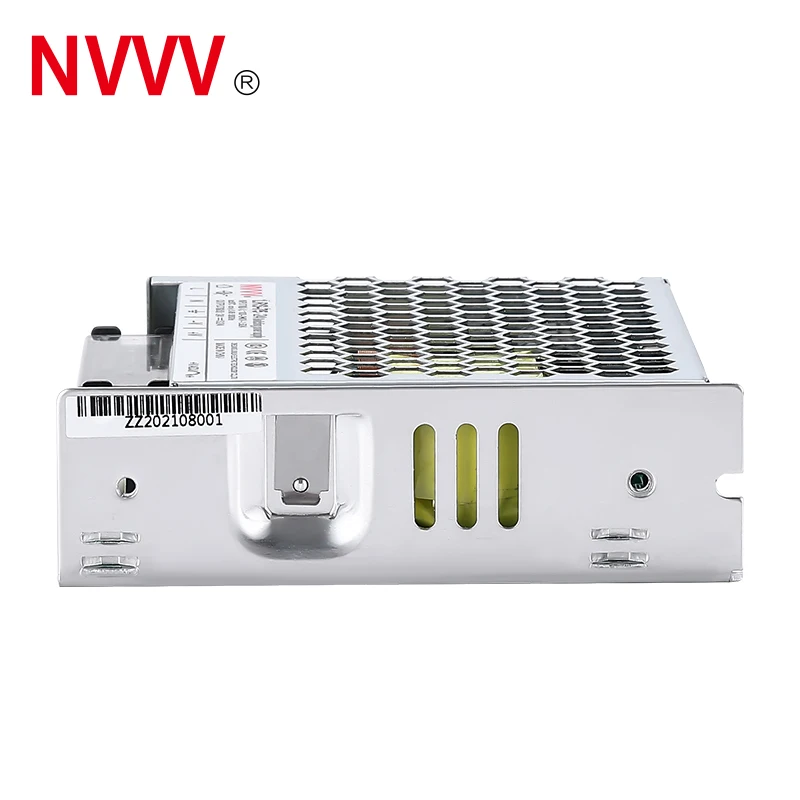

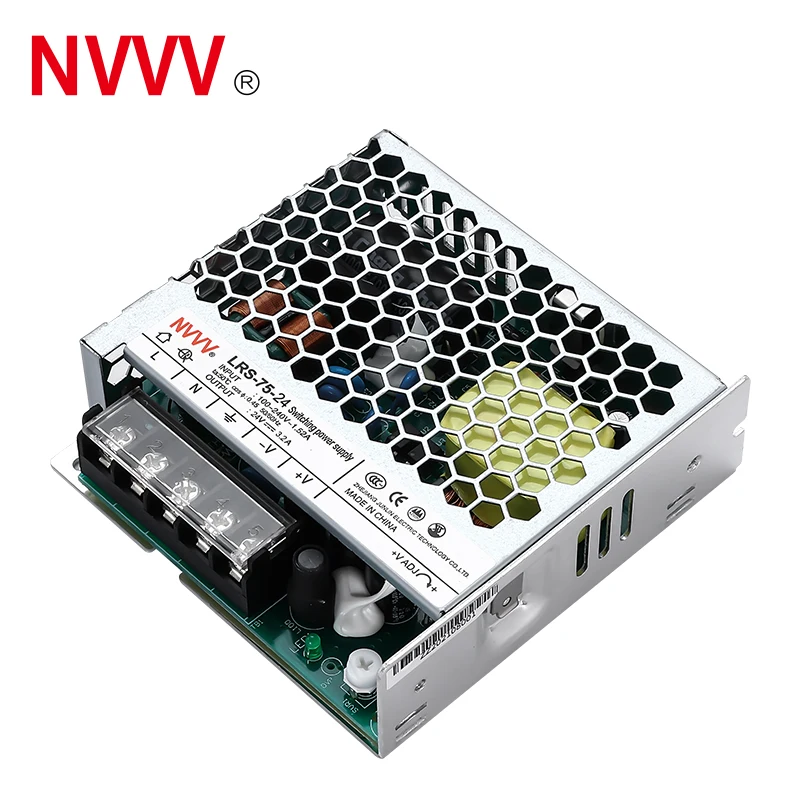

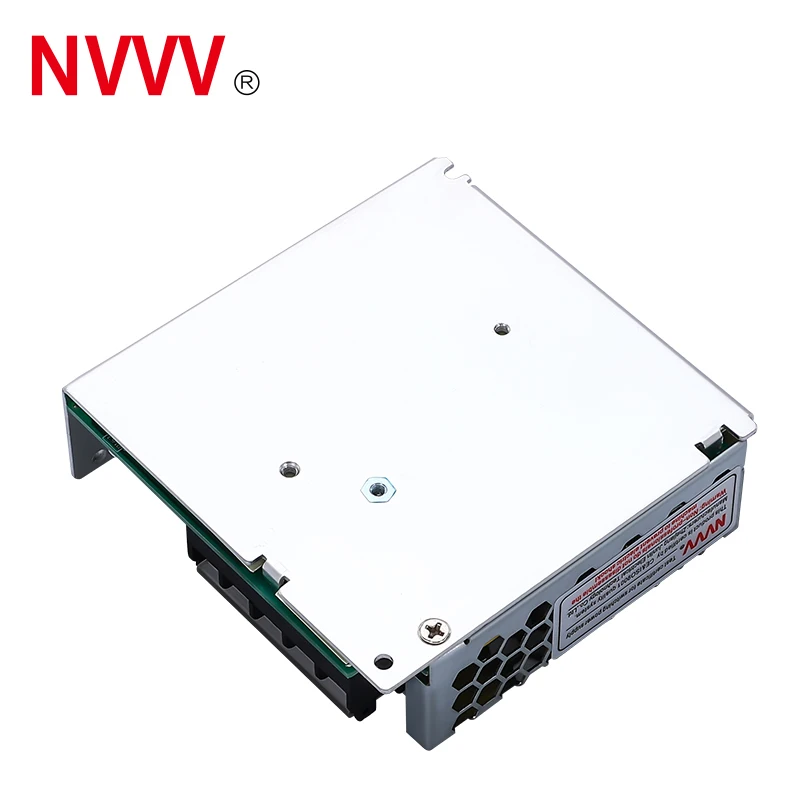

24V 75W LRS 75 24 DC Switching Power Supply LED power supply
- Category: >>>
- Supplier: Zhejiang Junlin Electric Technology Co. Ltd.
Share on (11000007907137):
Product Overview
Description
Product Description
Specification
LRS-75 Series 75W Switching Power Supply | ||||||||||
Project | Technical index | |||||||||
Output | DC voltage | 5V | 12V | 24V | 48V | |||||
Rated current | 14A | 6A | 3.2A | 1.6A | ||||||
Rated power | 70W | 72W | 76.8W | 76.8W | ||||||
Ripple and noise ① | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | ||||||
Ripple and noise | ±10% | |||||||||
Voltage accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ||||||
Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||||||
Load adjustment rate | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ||||||
Starting and rising time | 500ms、30ms/230VAC 500ms、30ms/115VAC(full load) | |||||||||
Retention time | 60ms/230VAC 12ms/115VAC(full load) | |||||||||
Input | Voltage range / frequency | 85-264VAC / 120-373VDC 47Hz～63Hz | ||||||||
Efficiency (typical) ② | 86.50% | 89% | 90% | 91.50% | ||||||
Working current | 1.4A/115VAC 0.85A/230VAC | |||||||||
Impulse current | Cold boot：65A/230VAC | |||||||||
Leakage current | ＜0.75mA 240VACTime | |||||||||
Protect | overload protection | 110%-130% Protection type: burping mode, automatic return to normal after removing abnormal conditions | ||||||||
Overvoltage protection | ≥ 115% - 145% protection type: close output, restart and automatically return to normal | |||||||||
Function | Working temperature and humidity | -30℃～+70℃；20%～90RH | ||||||||
Storage temperature and humidity | -40℃～+85℃；10%～95RH | |||||||||
Safety regulations | Withstand voltage | Input output: 4kvac input shell: 2kvac output shell: 1.25kvac for 1 minute | ||||||||
Insulation impedance | Input output, input shell, output shell: 500VDC / 100M Ω 25 ℃ 70% RH | |||||||||
Other | size | 99*97*30mm(L*W*H) | ||||||||
Net weight / gross weight | 250g/272g | |||||||||
