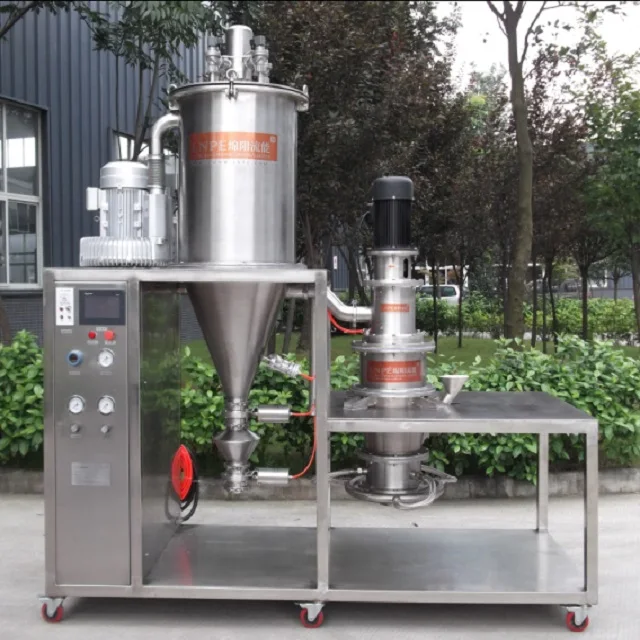

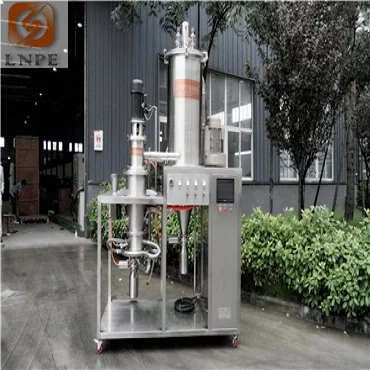

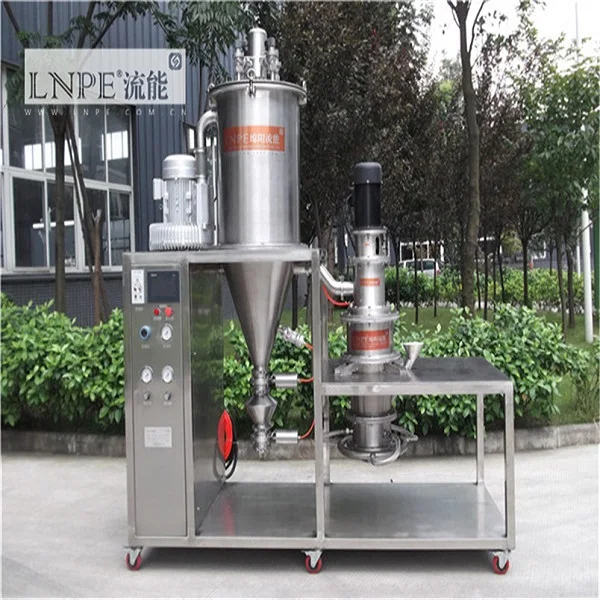

LNJ Fluidized Bed Jet Mill
- Category: >>>
- Supplier: Mianyang Liuneng Powder Equipment Co. Ltd.
Share on (11000007908480):
Product Overview
Description
Product Overview
新型节能型气流磨
节能型气流磨是我公司根据流体绝热流动过程能量转换特性开发的一种新型粉碎设备，其充分利用了流体的压力能和内能，实现对物料的高效粉碎，相对一般的气流粉碎设备，可实现单位节能30%左右.1.能量利用率高。
•常规气流磨用空压机，为了避免排气温度过高影响气缸润滑油性能，获得更高的压力，采用中间冷却进行多级压缩，级数越多，能量利用率越低，如一级压缩能量利用率78%，二级压缩为58%。
•节能型气流磨可采用一级压縮机排出的高温压缩气体用于粉碎，可实现常规气流磨用二级空压机相同的粉碎强度，不但利用气体的湿度能量，而且避免了压縮机冷热抵消造成的能量损耗，节能优势明显。
2.利于物料的粉碎，
对于有解理裂隙弱作用面的物料粉碎时，由于高温的热胀冷缩效应，利于对物料的粉碎与剥离，如云母、硅灰石、滑石等。
3.升温后利于物料干燥。
SIMILAR PRODUCTS
.

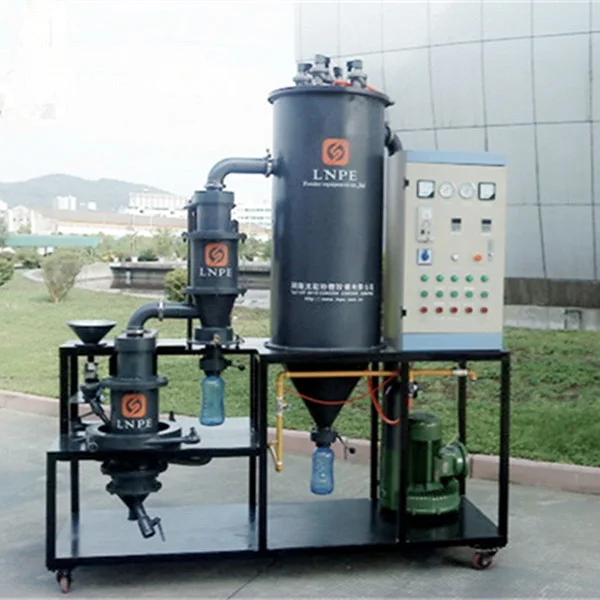

Lab Jet Mill
Superfine grinding, where material collision each other lead to breaking without contamination. Specially designed for universities and research institutions.
Superfine grinding, where material collision each other lead to breaking without contamination. Specially designed for universities and research institutions.
Still Under Construction
New products will be released next week
New products will be released next week
Still Under Construction
New products will be released next week
New products will be released next week
Products Description

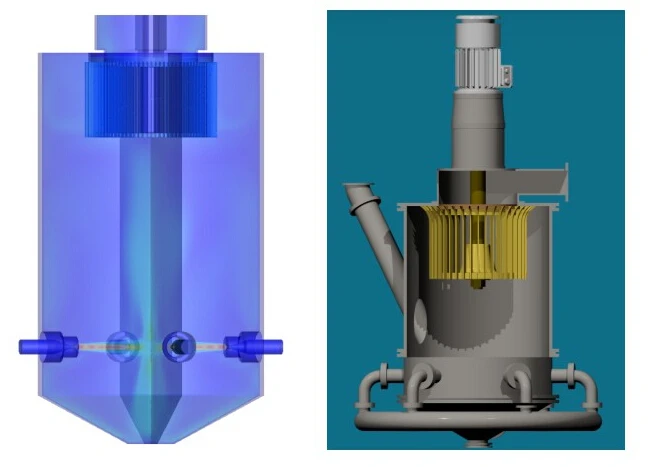

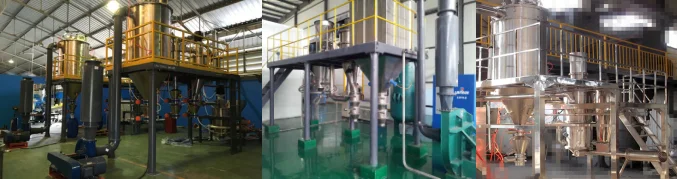

LNJ Fluidized Bed Jet Mill

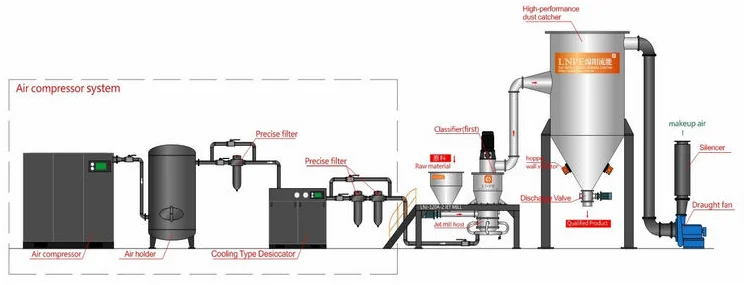

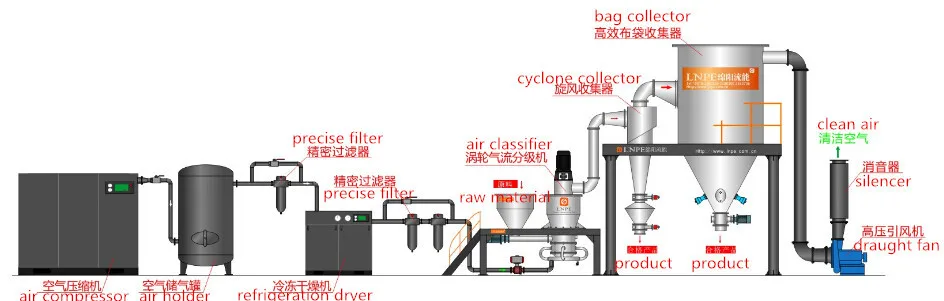

Energy-saving Jet Mill is a newly developed grinding equipment based on the fluid energy conversion character in adiabatic flow process. It makes the most of fluid pressure and internal energy to grind material with a high efficient and saves about 30 % energy than other ordinary grinding equipment. 1.High energy utilization *The air compressor used for ordinary jet mills prevent operation fault caused by high exhaust temperature. A higher pressure is got through intercooling for multistage compression, the more stages it Is, the lower the energy utilization rate Is, for instance,the energy utilization in the primary compression is 78% and 58% when it's in secondary compressor. *Energy-saving Jet Mill adopts Primary high exhaust temperature compressed gas to grindmaterial and the grinding force is the same with secondary compressor. Using the energy of air temperature prevents energy loss in cold and heat offset during intercooling in compressor.
2.Helpful in material grinding Materials with joints and fissures weak effect plane such as :Talc, wollastonite, etc, are easily ground due to thermal expansion effect.
3. Materials are dried after warming
Models
Models | Air Flow | Pressure | Max Feed Size | Product size | Capacity | Power |
LNJST-36A | 6m^3/min | 0.3—0.4Mpa | <3 mm | 2-100um | 50-300kg/h | 44 kW |
LNJST-60A | 10m^3/min | 0.3—0.4Mpa | <3 mm | 2-100um | 100-500 kg/h | 56 kW |
LNJST-120A | 20m^3/min | 0.3—0.4Mpa | <3 mm | 2-100um | 200-1000kg/h | 114kw |
LNCST-240A | 40m^3/min | 0.3—0.4Mpa | <3 mm | 2-100um | 300-2000 kg/h | 205kw |
Note 1: The price indication given above is for reference only. It is not the final price. Please contact us to get a more accurate quote
