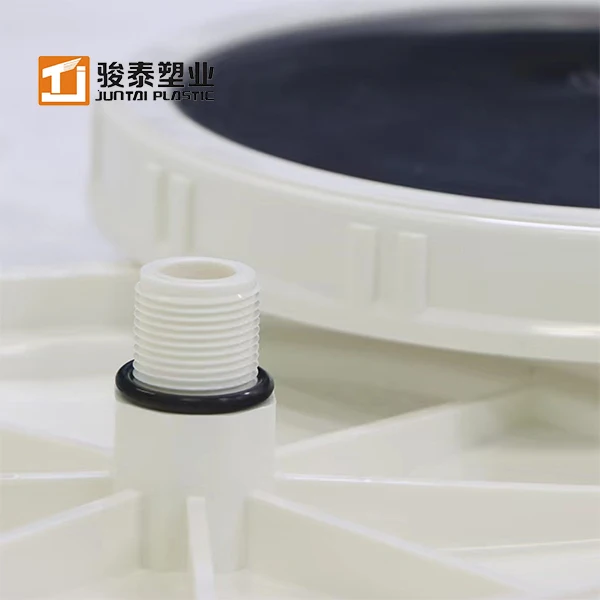

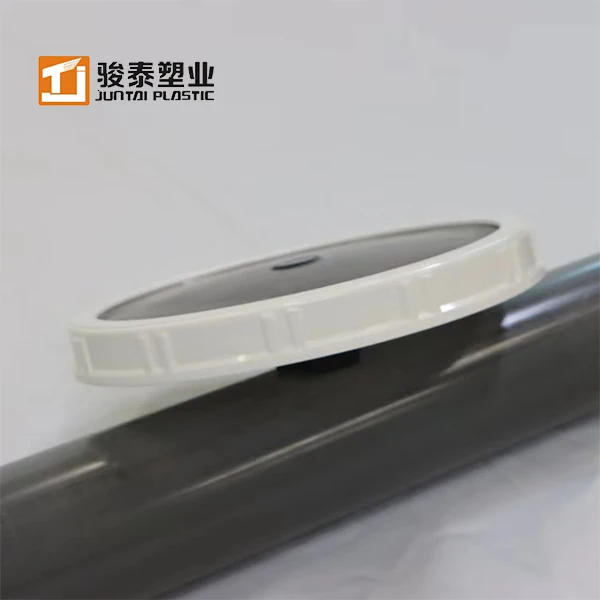

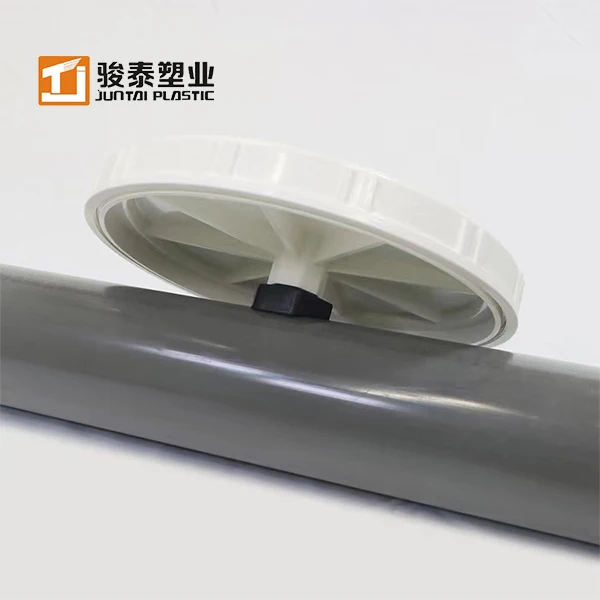

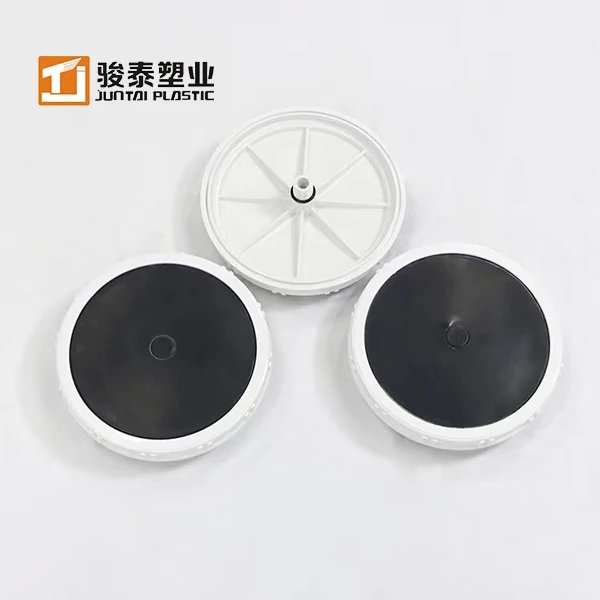

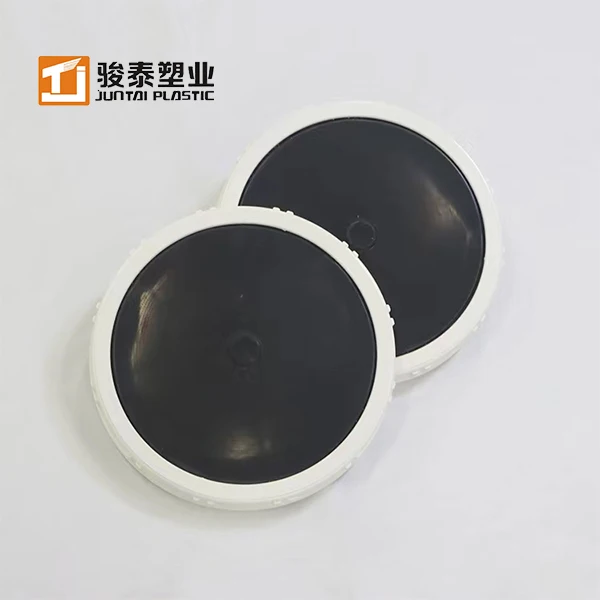

2023 high quality products EPDM membrane fine bubble aeration diffuser disc air diffuser for water treatment or fish tank
- Category: >>>
- Supplier: Hangzhou Juntai Plastic Products Co. Ltd.
Share on (11000007914061):
Product Overview
Description
Product Description

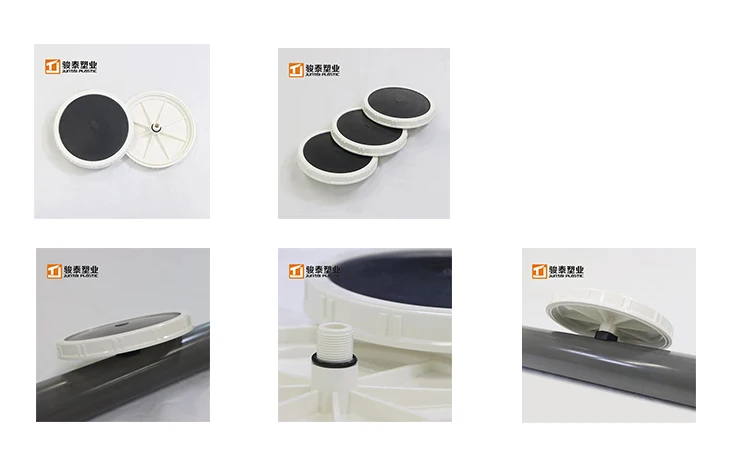

What Is The Best Advantages For Juntai Smart Disc Diffuser ?
In order to make long life of the Disc diffuser, the most important is the good fomula of EPDM (Ethylene-Propylene-Diene Monomer).
After 10 years development,Juntai design a very good formula which be 3 to 5 years longer life and lower resistant, high deformation resistance and elasticity
After 10 years development,Juntai design a very good formula which be 3 to 5 years longer life and lower resistant, high deformation resistance and elasticity
Smart Disc Diffuser Parameter
Super Disc Diffuser Parameter
Applicable Scope：Municipal sewage and industrial sewage can also be used for the restoration and management of lakes and rivers and aquaculture.
Aeration Diaphragm：EPDM Silica gel
Diaphragm Thickness：1.8±0.1mm
Lined Pipe:PP-TV
Diaphragm Thickness：1.8±0.1mm
Lined Pipe:PP-TV
Size Specifications：Φ215/Φ260/Φ330
Thread Standard: The standard size is DN20 and DN25; other specifications of thread standards can also be customized according to actual needs.
Thread Standard: The standard size is DN20 and DN25; other specifications of thread standards can also be customized according to actual needs.
Item number | SDD170 | SDD215 | SDD260 | SDD330 |
Bubble type | Coarse Bubble | Fine Bubble | Fine Bubble | Fine Bubble |
Diameter | 6 Inch | 8 Inch | 9Inch | 12Inch |
Material | EPDM/Silicon Membrane | EPDM/Silicon Membrane | EPDM/Silicon Membrane | EPDM/Silicon Membrane |
ABS/PP Carrrier Plate | ABS/PP Carrrier Plate | ABS/PP Carrrier Plate | ABS/PP Carrrier Plate | |
Connector | 3/4" NPT Male thread | 3/4" NPT Male thread | 3/4" NPT Male thread | 3/4" NPT Male thread |
Bubble size(mm) | 4-5 | 1-2 | 1-2 | 1-2 |
Design Flow(m3/h) | 1-5 | 1.5-2.5 | 3-4 | 5-6 |
Flow Range(m3/h) | 6-9 | 1-6 | 1-8 | 1-12 |
Standard Oxygen Transfer Efficiency( 6m submerged) | ≥36% | ≥38% | ≥38% | ≥38% |
Service Area(m2) | 0.5-0.8 | 0.2-0.64 | 0.25-1.0 | 0.4-1.5 |
Service Life(years) | ≥6 | ≥6 | ≥6 | ≥6 |
About The Juntai Smart Disc Diffuser Core Material

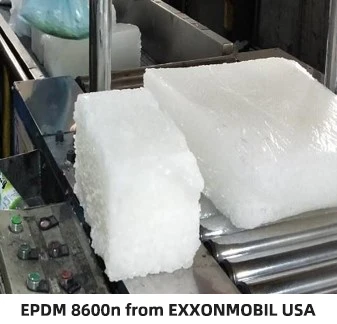

1. Import High quality EDPM 8600 from Exxon Mobil USA

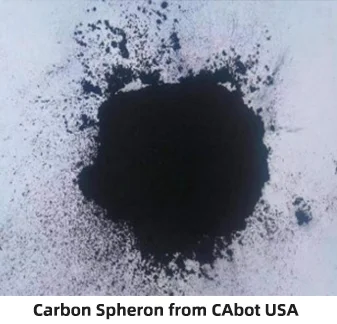

2. High quality Carbon which from Cabot from USA

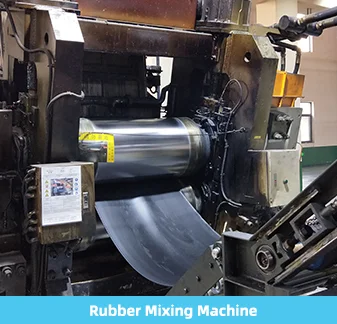

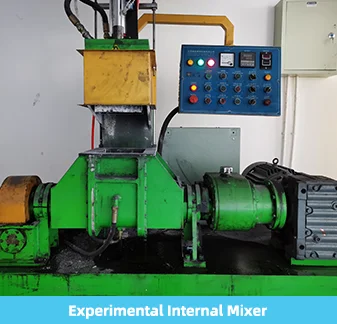

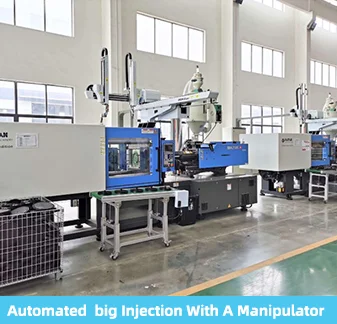

Juntai Has The Most Advanced Production Equipment
Juntai are a production-oriented factory, and advanced equipment is the basis for quality assurance. Try to use the control of the device to reduce the chance of human error. Use equipment to improve production efficiency and reduce labor intensity.

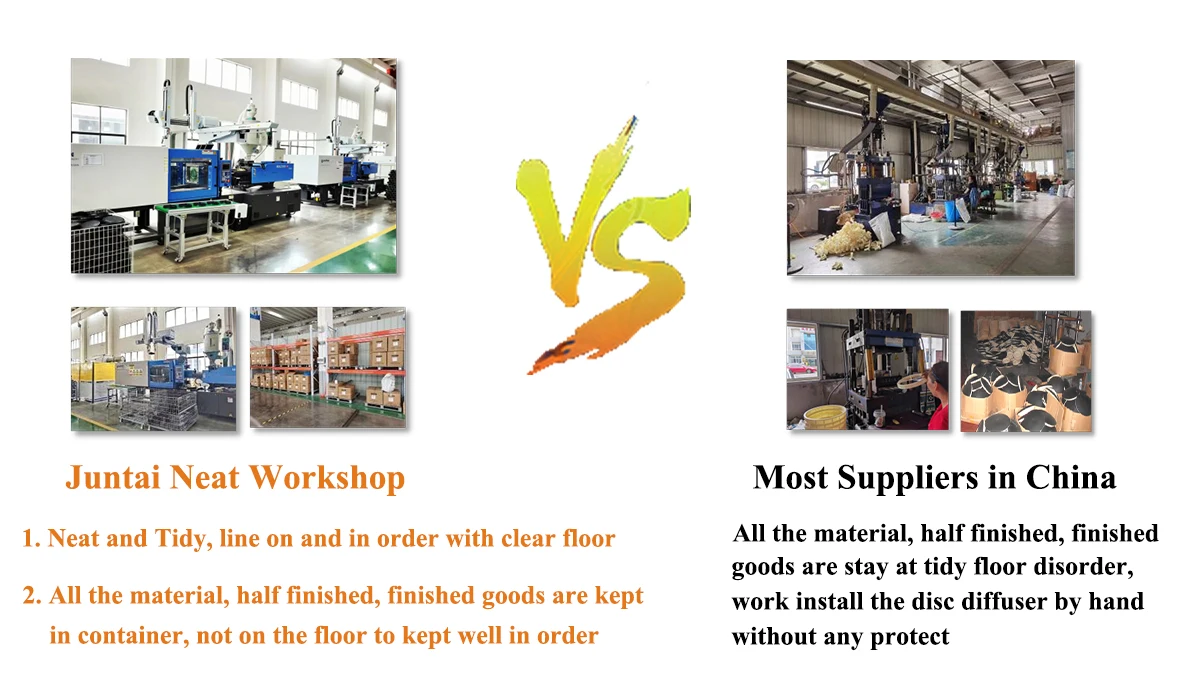

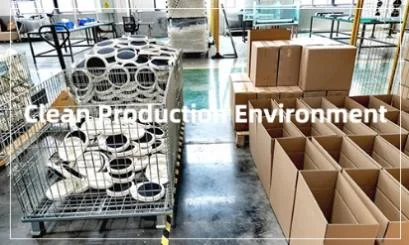

Your Must Be Curious About Our Production Environment

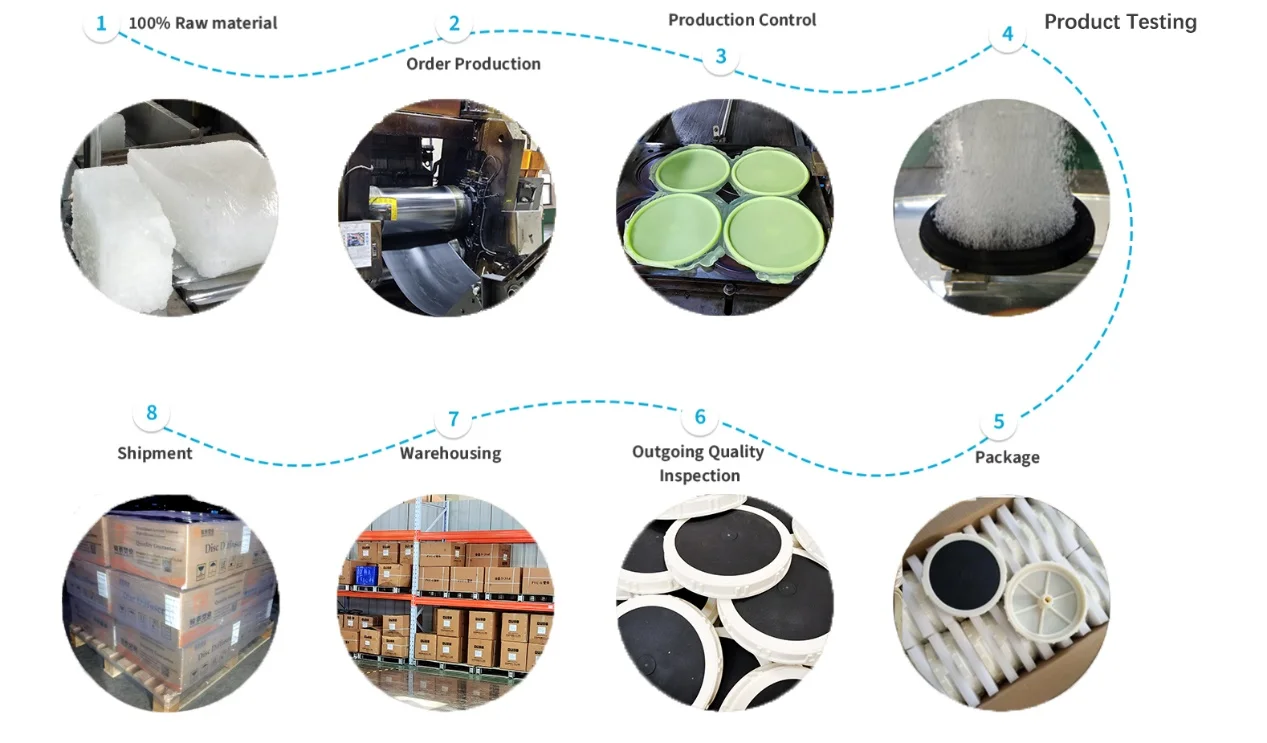

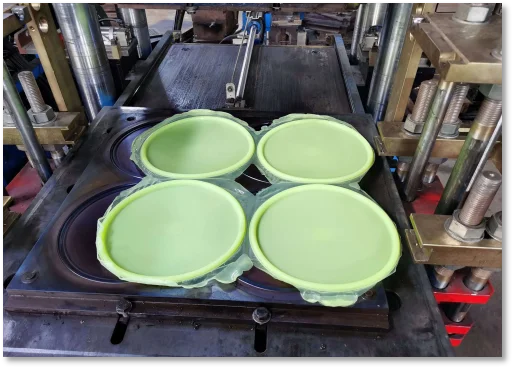

How Does A Perfect Disc Diffuser Come Out?

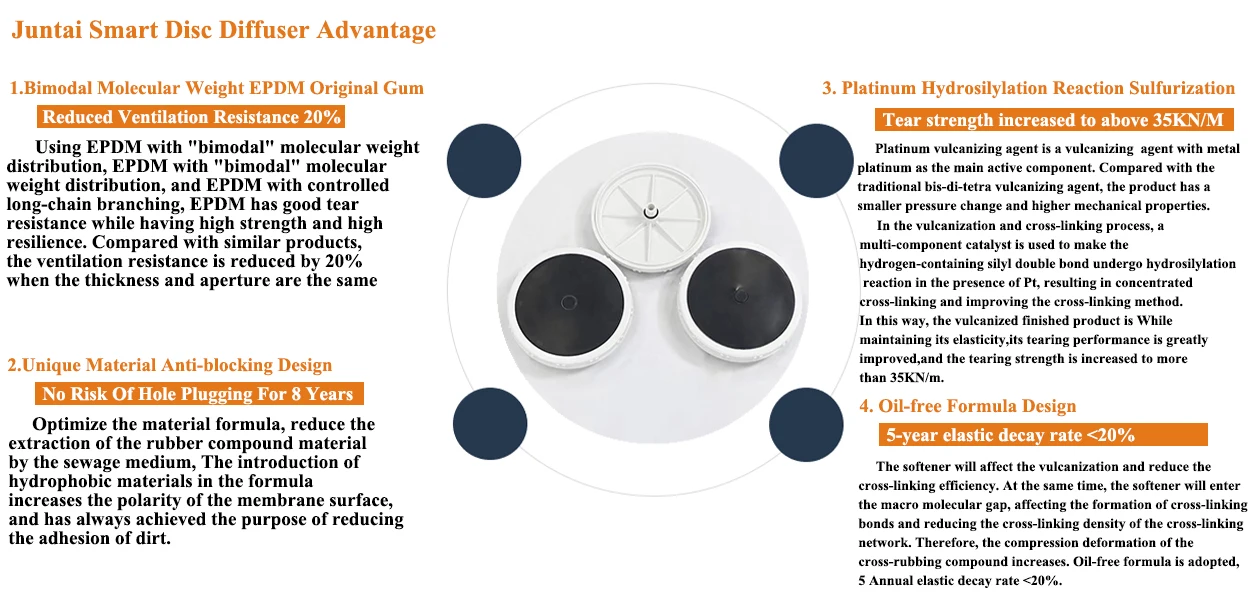

Development of Membrane Materials
1.Exxon Molecular Weight "Bimodal" Distribution EPDM Original Gum
2.DMS company controllable long chain branching technology EPDM
3.Double peroxide vulcanization crosslinking technology :
The peroxy system forms carbon-carbon crosslinks, which have short crosslinks, high rigidity, high stability, low compression set, and high resilience, but also have the disadvantages of low tear strength and elongation.
The double peroxycuring system improves tear strength and elongation.
2.DMS company controllable long chain branching technology EPDM
3.Double peroxide vulcanization crosslinking technology :
The peroxy system forms carbon-carbon crosslinks, which have short crosslinks, high rigidity, high stability, low compression set, and high resilience, but also have the disadvantages of low tear strength and elongation.
The double peroxycuring system improves tear strength and elongation.
The increase in strength makes it possible to increase the number of pores per unit area:
1.The number of holes is increased to: 25-30 holes/cm2
2.Tubular aeration membrane, 32,000 holes per meter
3.The pores are 30% smaller, and the ventilation resistance is also 20% smaller
2.Tubular aeration membrane, 32,000 holes per meter
3.The pores are 30% smaller, and the ventilation resistance is also 20% smaller

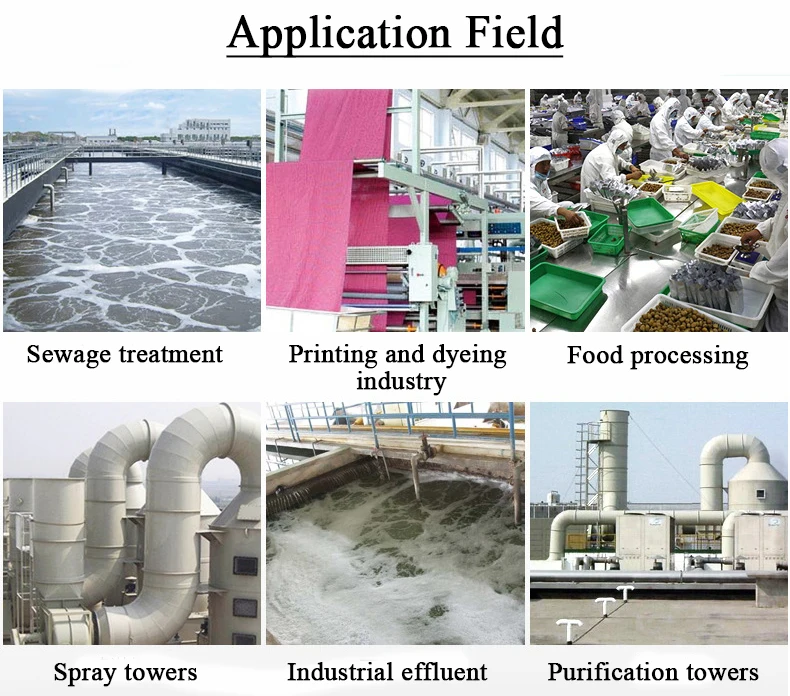

Application Field
Disc Diffuser Aeration Application
1. Aeration for SBR reaction basin, contact oxidation pond, and activated sludge aeration basin in sewage disposal plant;
1. Aeration for SBR reaction basin, contact oxidation pond, and activated sludge aeration basin in sewage disposal plant;
2.Aeration for denitrification / dephosphorization aerobic processes;
3. Aeration for excreta and animal wastewater treatment plant;
4. Aeration of deep aeration basin;
4. Aeration of deep aeration basin;
5. Aeration for high concentration wastewater aeration basin, and aeration for regulating pond of wastewater treatment plant;
6. Aeration of fishpond and other applications.

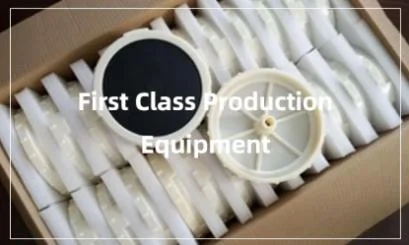

Product Packaging
Company Profile ：
Hangzhou Juntai Plastic Products Co. Ltd. , was founded in 2013 in Hangzhou.After Three years,We established factory Anhui Juntai.Technology Co., Ltd in Anhui.
★we won the National high-tech enterprise in 2019 and has 29 patents for MBBR and pvc profiles.Now we become one of leader manufacturer for Disc Diffuser,MBBR Bio Filter Media and PVC profiles. With 21000 m2 factory in Yuexi Anhui; 105 High speed automatic extruded lines and 30 injection lines, The annual capacity of MBBR is more than 70000 CBM.
★The annual Capacity of PVC profiles and injection parts is more than 5000 tons. High quality with ISO9001-2015, SGS, ROHS and other certifications. With 63 young people with full of passion of Juntai company and try to offer the best plastic goods to the world. Here we have 11engineers teams of plastic and water treatment, we can design the plastic items for customers. Juntai MBBR Biofilter media widely used in waste water treatment; RAS and other field. With professional environmental engineers , cooperated with three China Universities to ensure high quality while ensuring better service.
★Juntai products have been exported more than 36 countries,including USA, Sweden, Malaysia, etc. The annual sale more is $15 million.
Choose Juntai, and Juntai people will return back you full satisfied !
FAQ
1.Q:What is your MOQ ?
A: Two cartons for minimum order quantity
2. Q:What is your production time ?
2. Q:What is your production time ?
A: The production time is two to four weeks
3. Q:What is your package ?
A:We packed it by carton boxes.
4.Q:What is your trade way ?
A:Usual we trade with FOB / CIF term.
5. Q:What is your payment term ?
A:We can accept T/T, L/C at sight, Credit Card, Alipay and so on.
6: Do you provide sample?
A: We can offer free sample for test, and customer needs to pay the freight charge.
