Energy Saving Wet Clay Cylinder Dryer Coal Sludge Rotary Dryer Sludge Cylinder Dryer Factory
- Category: >>>
- Supplier: Meron Machinery Co. Ltd.
Share on (11000007933052):
Product Overview
Description
Products Description
Dryer
Dryer is a kind of drying equipment generally used to remove moisture contained in wet materials. Most dryers include a rotating drum with an inner cylinder driven by a beit and hot air around the drum to evaporate water. Drying cylinder is the principle of positive and negative roller rotation, to achieve the role of drying goods.
Large dryer can be divided into rotary dryer, three cylinder dryer, There are also some material exclusive dryer, such as iron powder dryer, chicken manure dryer, slag dryer and so on.Users can make different choices according to their own needs.
Three - cylinder dryer is an efficient and energy - saving product improved on the basis of single - cylinder rotary dryer. The rotary three-cylinder dryer improves the internal structure of the original single-cylinder dryer, increases the pre-drying of wet materials before the machine and prolongs the drying time of wet materials in the machine. Coupled with sealing, insulation and reasonable supporting measures, the production capacity of the dryer is increased by 48-80% compared with the original single-cylinder dryer, and the evaporation strength per unit volume can reach 120-180kg/m3. Standard coal consumption is only 6-8kg/t. Its advanced technology, reasonable operating parameters, simple and feasible operation, widely used in various industries of slag, clay, coal.
Long drum dryer is the most common and widely used drying equipment in mining equipment. Suitable for drying metal and non - gold ore magnetic, heavy, floating concentrate and cement industry clay and coal industry slime. It is characterized by high productivity and easy operation.
Long drum dryer is the most common and widely used drying equipment in mining equipment. Suitable for drying metal and non - gold ore magnetic, heavy, floating concentrate and cement industry clay and coal industry slime. It is characterized by high productivity and easy operation.
Product Paramenters
Specifications (Diameter×Length) (m) | Barrel volume ( m³) | Capacity(t/h) | Installation Slope(%) | Intake Temperature(°C) | Motor Power(kw) | Gross Weight(t) |
Φ1.2×8.0 | 9 | 1.9~2.4 | 3~5 | 700~800 | 7.5 | 9 |
Φ1.2×10 | 11.3 | 2.4~3.0 | 3~5 | 700~800 | 7.5 | 11 |
Φ1.5×12 | 21.2 | 4.5~5.7 | 3~5 | 700~800 | 15 | 18.5 |
Φ1.5×14 | 24.7 | 5.3~6.6 | 3~5 | 700~800 | 15 | 19.7 |
Φ1.5×15 | 26.5 | 5.7~7.1 | 3~5 | 700~800 | 15 | 20.5 |
Φ1.8×12 | 30.5 | 6.5~8.1 | 3~5 | 700~800 | 18.5 | 21.5 |
Φ1.8×14 | 35.6 | 7.6~9.5 | 3~5 | 700~800 | 18.5 | 23 |
Φ2.2×12 | 45.6 | 9.7~12.2 | 3~5 | 700~800 | 22 | 33.5 |
Φ2.2×14 | 53.2 | 11.4~14.2 | 3~5 | 700~800 | 22 | 36 |
Φ2.2×16 | 60.8 | 13.0~16.2 | 3~5 | 700~800 | 22 | 38 |
Φ2.4×14 | 63.3 | 13.5~16.9 | 3~5 | 700~800 | 37 | 45 |
Φ2.4×18 | 81.4 | 17.4~21.7 | 3~5 | 700~800 | 37 | 49 |
Φ2.4×20 | 90.4 | 19.3~23.1 | 3~5 | 700~800 | 45 | 54 |
Φ2.4×22 | 99.5 | 21.2~26.5 | 3~5 | 700~800 | 45 | 58 |
Φ2.6×24 | 127.4 | 27.2~34.0 | 3~5 | 700~800 | 55 | 73 |
Applicable Materials
It can adapt to the drying of clay, coal, slag, iron powder and other raw materials, but also suitable for the drying of various
bulk materials in metallurgy, chemical industry and other departments
bulk materials in metallurgy, chemical industry and other departments
Product Details
Production Flow

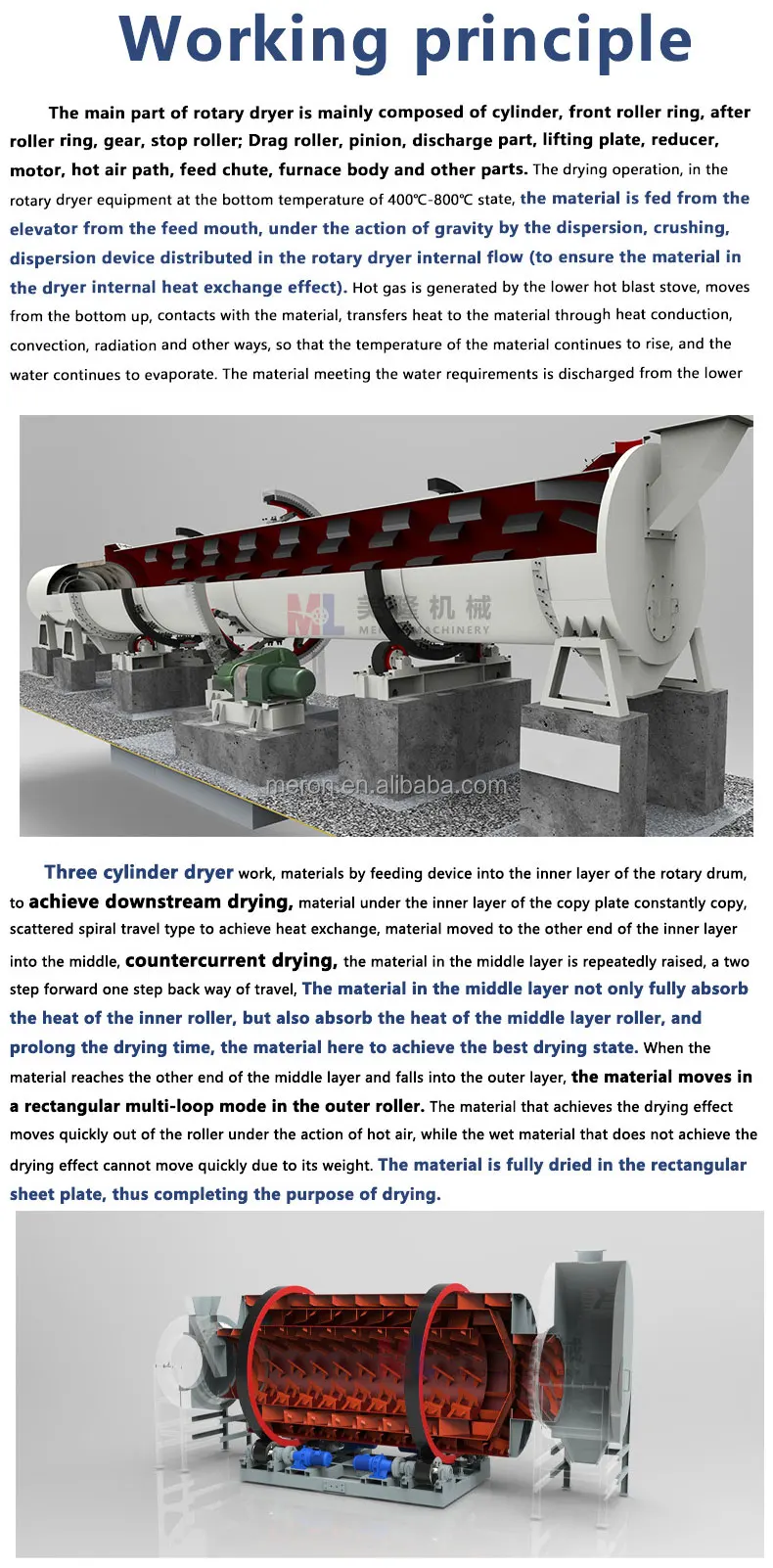

Dryer cylinder part is composed of three coaxial horizontal placement of the inner, middle and outer cylinder, which makes full use of the cross section of the cylinder. The total length of its cylinder shape is about 30-35% of that of its equivalent single cylinder. Thus greatly reduce the floor area and plant building area.
The supporting device of this machine is supported by the wheel belt on the outer cylinder and the supporting wheel, which is directly driven by the motor. Friction between the supporting wheel and the belt makes the cylinder rotate. The overall structure of the machine is compact, reasonable, simple, in order to facilitate the maintenance and replacement of wear parts, in the middle design into the axial split type, with bolts fixed connection.
The supporting device of this machine is supported by the wheel belt on the outer cylinder and the supporting wheel, which is directly driven by the motor. Friction between the supporting wheel and the belt makes the cylinder rotate. The overall structure of the machine is compact, reasonable, simple, in order to facilitate the maintenance and replacement of wear parts, in the middle design into the axial split type, with bolts fixed connection.

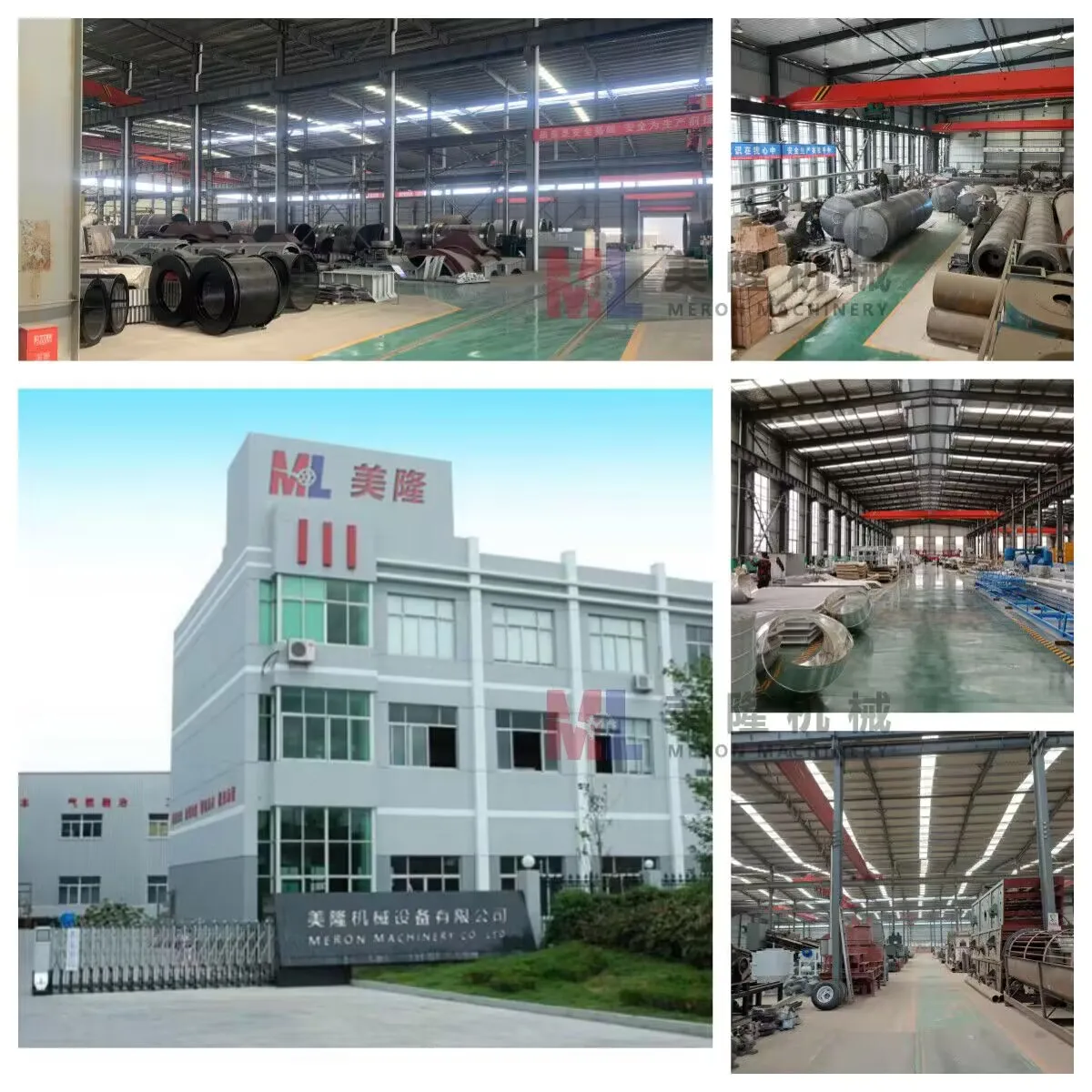

Company Profile
Henan Meron Machinery Manufacturing Co., Ltd. is a company integrating science, industry and trade. Based in Zhengzhou,our company possesses the independent developing, processing and manufacturing capacity and also it has independent R&D center and production base. In the past few years,as an import and export trading company we also pro- vide supply chain solutions and procurement execution services for local and over- seas projects from all over the world. At the same time,compared with other companies in the same industry,preferential and perfect services are our obvious advantages.We support on-site inspection of our products, and engineers are also available at anytime.As a result of our high quality products and outstanding customer service,we have gained a global sales network reaching South Africa,Korea,Pakistan,Vietnam and other countries.
Certificate

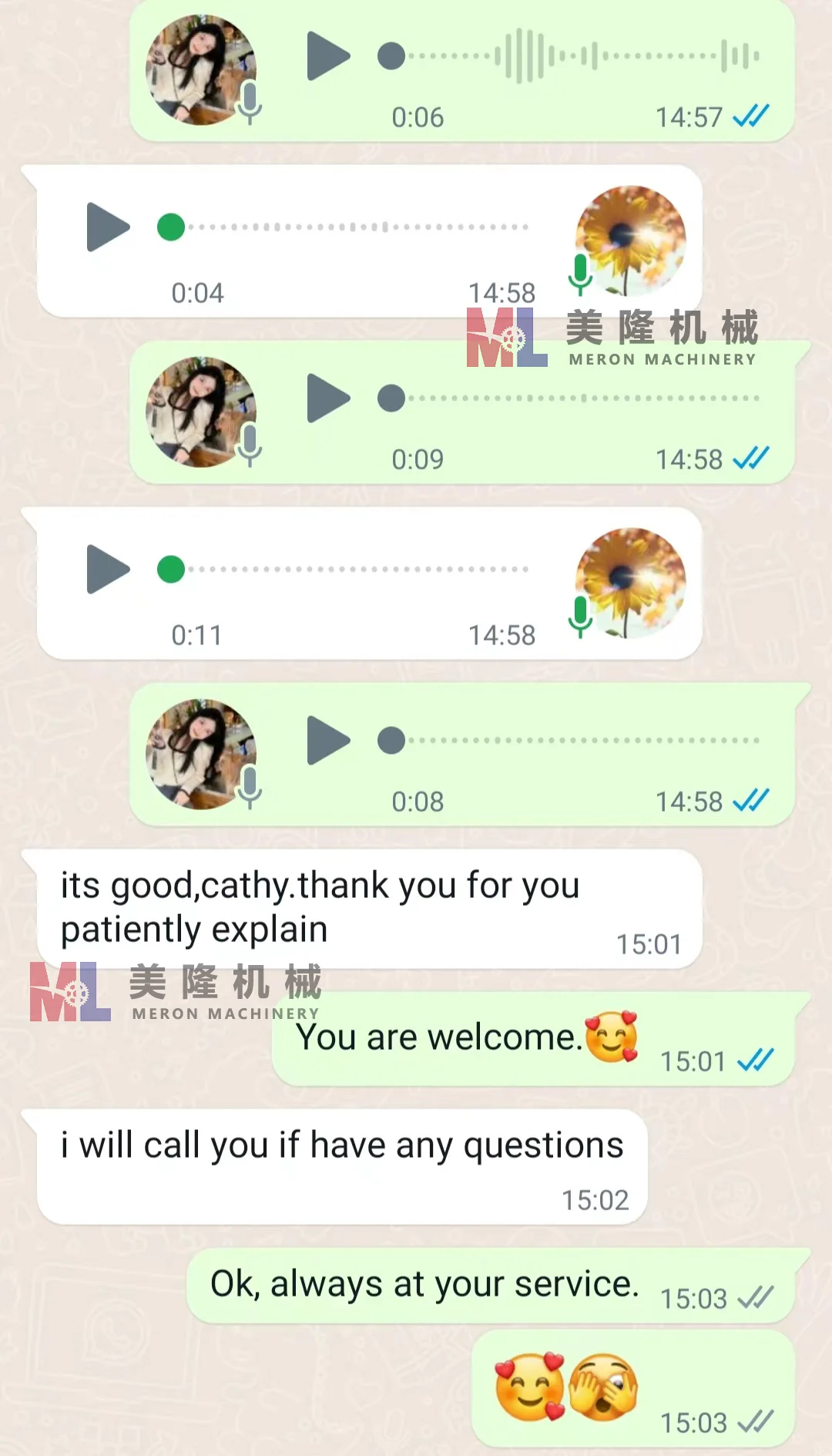

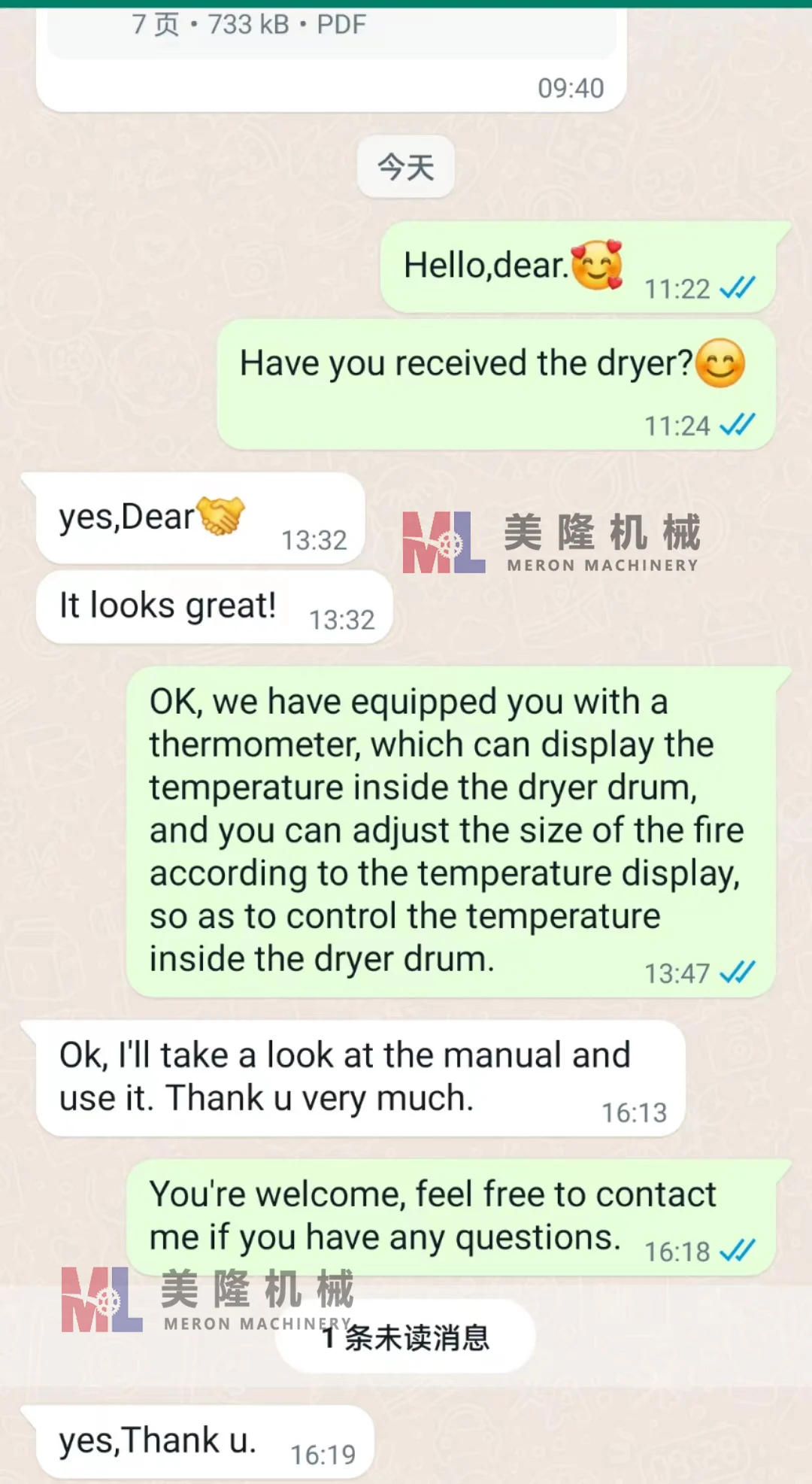

Customer and feedback
FAQ
Q1：Does your company provide training？
Yes, we provide a series of instructional videos and after-sales service videos, supporting Chinese, English, French, Spanish, and Arabic.
Q2：What's your company after-sales service?
Our machine will be checked three times before shipment to ensure that the machine itself has no problems. If the machine has some problems under incorrect operation: 1.
improper operation problem, we will solve all the usage problems by video call. 2. machine parts problem, we will send you
accessories to ensure the normal use of the machine. 3.In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company .
improper operation problem, we will solve all the usage problems by video call. 2. machine parts problem, we will send you
accessories to ensure the normal use of the machine. 3.In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company .
Q3：About after-sales service?
One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure that the machine is in the best condition when it arrives at your address. Some
minor problems of the machine are usually caused by incorrect operation by novices, so we provide a full set of English
instruction videos and common problem solving videos, To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time.
instruction videos and common problem solving videos, To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time.
Q4: How to transport without customs clearance experience ？
We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service.
