ZW Group Brand new Heavy duty 4 axles lowbed trailer 70 tons capacity
- Category: Truck Trailers >>>
- Supplier: Shandong,Tiger,International,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
12m 3 axles 20ft 40ft Lowbed Semi Trailer
Low-bed semi-trailers are commonly used to transport heavy-duty vehicles such as tractors, buses, special purpose vehicles, rail vehicles, mining machinery, forestry machinery, And other heavily loaded goods, the lower the center of gravity, the better stability and safety, and the greater the ability to transport super-tall loads and to pass overhead obstacles.

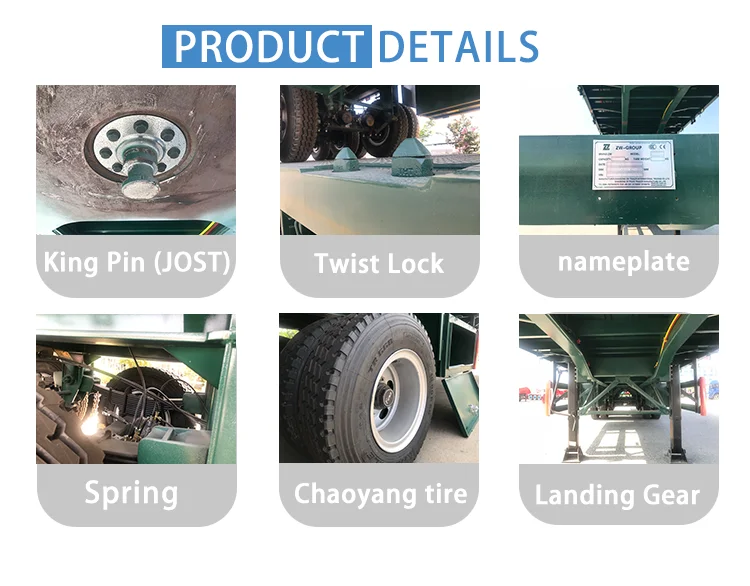

Details Images
3 axle lowbed semi trailer use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.
We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. This’ll ensure the long service life of the trailers.
We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. This’ll ensure the long service life of the trailers.
Product parameters
Trailer Model | low bed loader Truck Trailer |
Dimension(Lx W x H)(mm) | 13000 x 3000 x 1650 |
Curb Weight(KG) | 10000 |
Loading Weight( KG) | 60000-80000 |
Departure Angle | 16 |
Axle Brand | 13TON Axle FUWA Brand |
Axle Number | 3 |
Suspension system | Mechanical suspension |
Gooseneck and Ladders | Commen |
Steel Spring | 10/10/10 |
Frame | The height of the beam is 500mm, upper plate is 16mm, down plate is 18mm, middle plate is 10mm. |
Platform plate | 6mm Diamond Plate |
Tire Type and quantity | 12R22.5 12units Chinese brand |
Traction Pin | 50mm or 90mm JOST brand |
Spare Wheel Bracket | 2 pieces |
Tool Box | 1 Unit |
Landing Leg | JOST 28T load landing leg |
Brake system | Dual Line braking system (ABS optional) |
Brake air chamber | 6 big air chambers |
Electrical system | 24V,7 Pole plug |
Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Side Guard | None |
Painting | Color by customer’s requirement |
Packing | Polish with wax before shipping |
Delivery way | Transfer to China port, and carry by bulk ship, the freight cost depends on the volume. |
Packing & Delivery
Company Profile
FAQ
1.Do you have your own factory?
We have our own factory with 10 years experiences in trailer production.Also we own modified factory for trucks.Besides trucks and trailers,various international brand earthmoving machines is available.We sincerely welcome you to visit our factory.
2.How long it will take for an order to be delivered?
15 to 20 working days after we received your 30% payment inadvance or 100% L/C at sight. The specific delivery time depends on the items and the quantity of your order.
3.Can I get a sample or order 1 unit?
Yes, our MOQ is 1 set.
4.What is the time for delivery?
If standard model we have in stock can ship it out within 10 days after payment. If used trailer or truck,we can ship it out
within 10 days after payment. Because we have to renovate and paint it. If it is a new production, usually cases in 20 days can be finished for shipment.
5.What's your payment terms?
T/T: 30% deposit by T/T,70% balance should be paid before shipment. L/C: 100% irrevocable Credit of Letter at sight.
We have our own factory with 10 years experiences in trailer production.Also we own modified factory for trucks.Besides trucks and trailers,various international brand earthmoving machines is available.We sincerely welcome you to visit our factory.
2.How long it will take for an order to be delivered?
15 to 20 working days after we received your 30% payment inadvance or 100% L/C at sight. The specific delivery time depends on the items and the quantity of your order.
3.Can I get a sample or order 1 unit?
Yes, our MOQ is 1 set.
4.What is the time for delivery?
If standard model we have in stock can ship it out within 10 days after payment. If used trailer or truck,we can ship it out
within 10 days after payment. Because we have to renovate and paint it. If it is a new production, usually cases in 20 days can be finished for shipment.
5.What's your payment terms?
T/T: 30% deposit by T/T,70% balance should be paid before shipment. L/C: 100% irrevocable Credit of Letter at sight.
