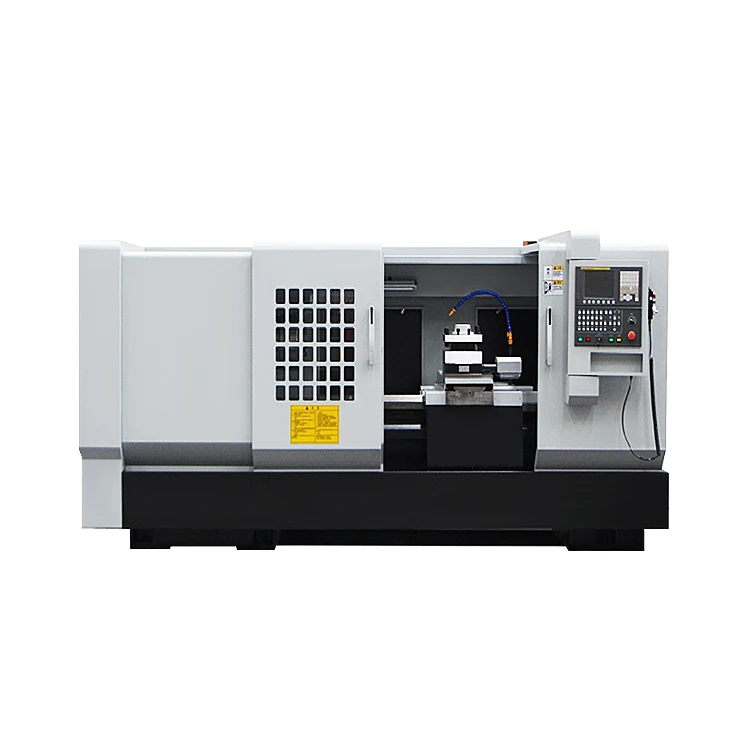

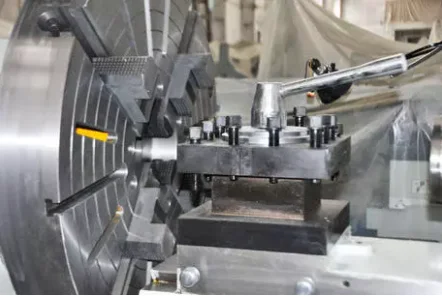

CK6140S Auto Bar Feed Bench Metal Turning Flat Bed Cnc Lathe for Metal
- Category: >>>
- Supplier: Almaco Machine Tool Co. Ltd.
Share on (11000007942918):
Product Overview
Description
Recommend Products
Products Description
222
Numerical control machine tool is in accordance with the pre programmed processing program, automatically processing the parts to be processed.
Specification
MODELS | CK6140S | |
CAPACITY | ||
Max.swing over bed | Ф400mm | |
Max.swing over carriage | Ф225mm | |
Max. length of workpiece | 1000mm | |
Max.turning length | 950mm | |
6-way turret max turning length | 840mm | |
6-way turret max turning diameter | Ф300mm | |
TRAVEL | ||
Max.cross travel(X) | 235mm | |
Max.longitudinal travel(Z) | 490/740/990mm | |
FEED | ||
Rapid feed for axis X | 8m/min | |
Rapid feed for axis Z | 10m/min | |
SPINDLE | ||
Spindle nose | C6 | |
Spindle bore | Ф52mm | |
Taper bore of spindle | M.T.NO. 6 | |
Steps of spindle speed (manual) | Variable | |
Range of spindle speed | 200~2800rpm | |
TOOL POST | ||
Tool post stations | 6 stations | |
Tool cross section | 20×20mm | |
TAILSTOCK | ||
External diameter of tailstock sleeve | Ф60mm | |
Taper bore of tailstock sleeve | M.T.NO.4 | |
Max.traverl of tailstock sleeve | 120mm | |
OTHERS | ||
Min. input | 0.001mm | |
Main motor power | 3.7kw (optional: 5.5kw) | |
Coolant pump power | 75w | |
Overall dimensions(L×W×H) | 2370×1200×1415mm | |
Net weight | 2000kg | |

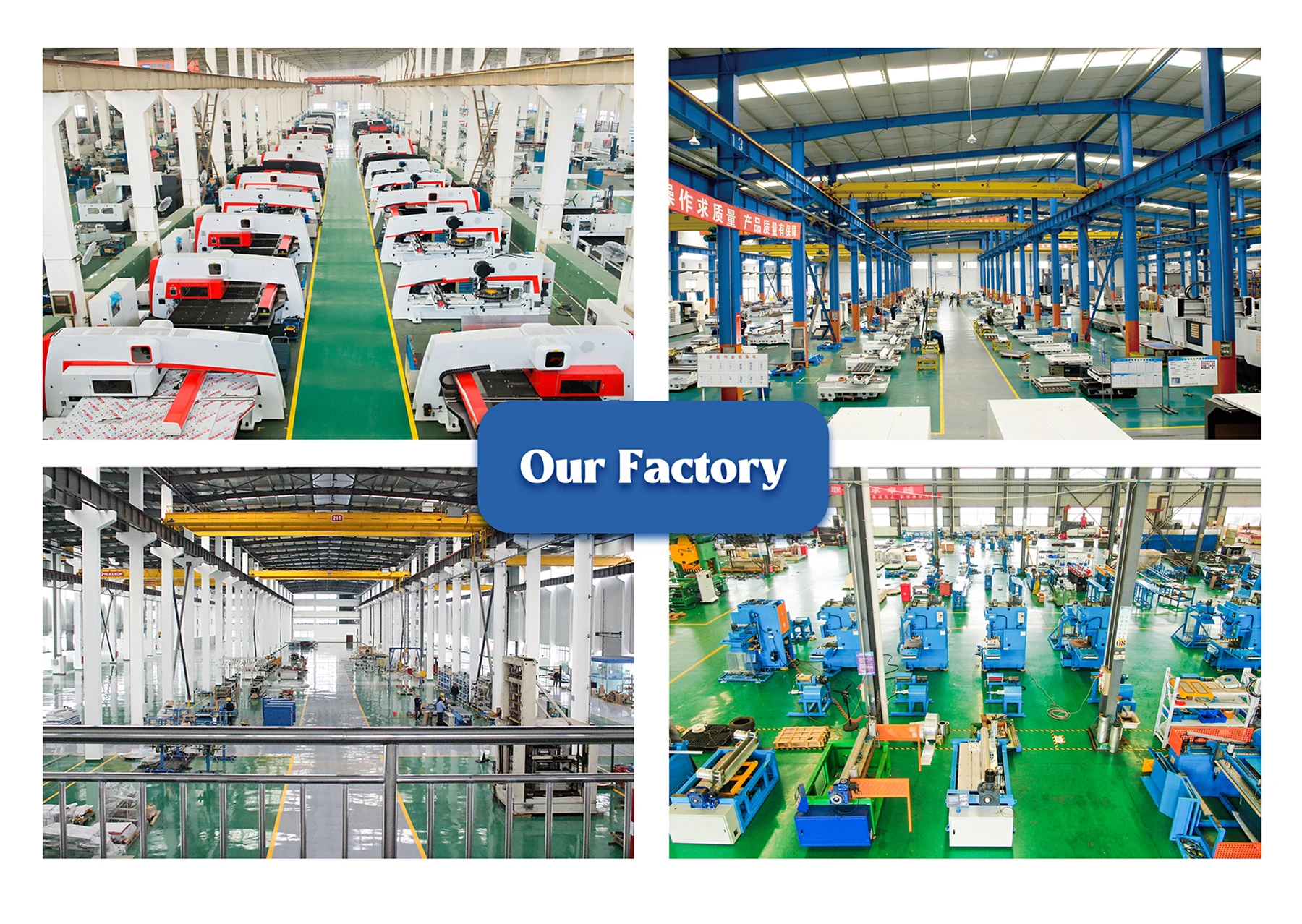

Company Profile
Exhibition
Certifications
FAQ
1. How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.
4. What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
You can also send us the products drawing ,we will choose the most suitable machines for you .
2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.
4. What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
