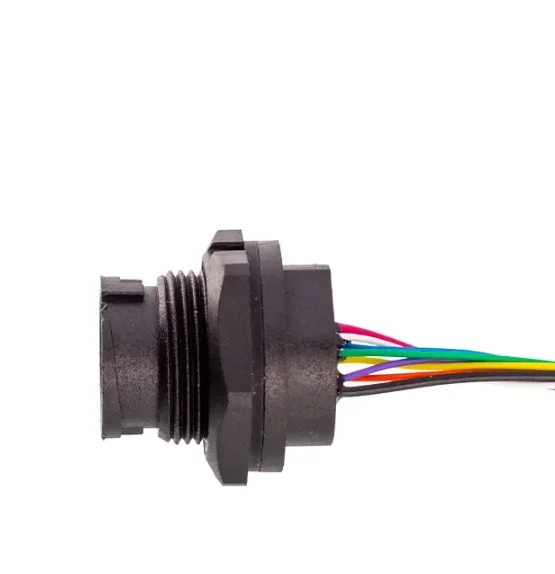

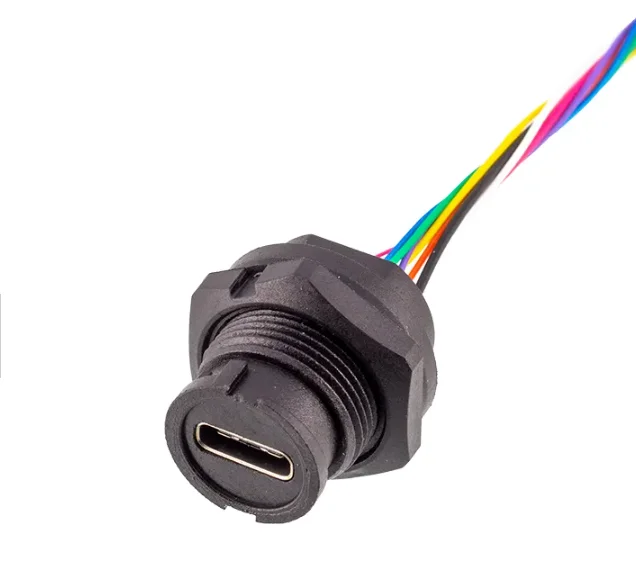

IP67 USB 3.0 2.0 female receptacles socket jacks Type c usb panel mount wire waterproof connector
- Category: >>>
- Supplier: Shenzhen Sta Electronic Co. Ltd.
Share on (11000007948865):
Product Overview
Description
Products Description
IP67 Standard plug 2 3 4 5 6 7 8 10 12pin Bayonet locking male female Panel mount M10 receptacle
Specifications: 5/8"-27UNS U.S. standard screw
Pins number: 2-12 pins, Current: 2A, 5A, 10A and Mix-current
2 Coupling way: Threaded, Bayonet
Plug: Assembly type, Injection type
Socket: Front Mount, Back Mount, PCB Mount
Protection grade: IP67, IP68
Rich structure: Widely used in LED display, monitoring, automation equipment and outdoor communication equipment.
Pins number: 2-12 pins, Current: 2A, 5A, 10A and Mix-current
2 Coupling way: Threaded, Bayonet
Plug: Assembly type, Injection type
Socket: Front Mount, Back Mount, PCB Mount
Protection grade: IP67, IP68
Rich structure: Widely used in LED display, monitoring, automation equipment and outdoor communication equipment.

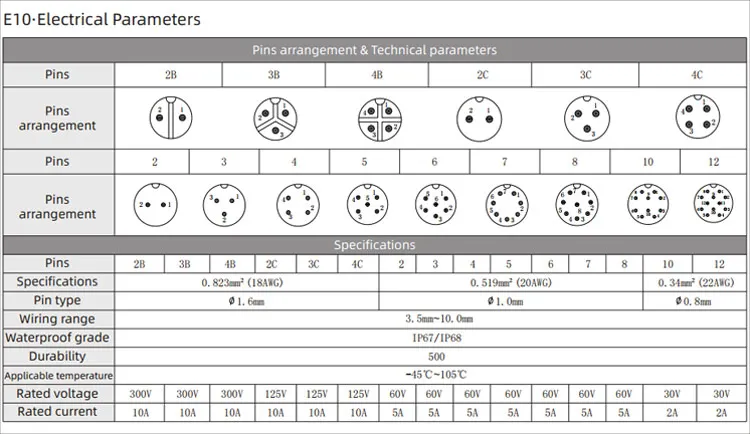

Materials/Technical parameters
Shell Material | Thermoplastic plastic PA66, flame retardant grade: V-0 | Insulation resistance | 2000 mΩ |
Contact Material | Copper gold-plated | Applicable temperature | -40℃~+105℃ |
Coupling | Bayonet(B) | Cable diameter | 4.0mm~8.0mm |
Termination Way | Solder/PCB | Waterproof grade | IP67/IP68 |
Durability | More than 500 cycles |

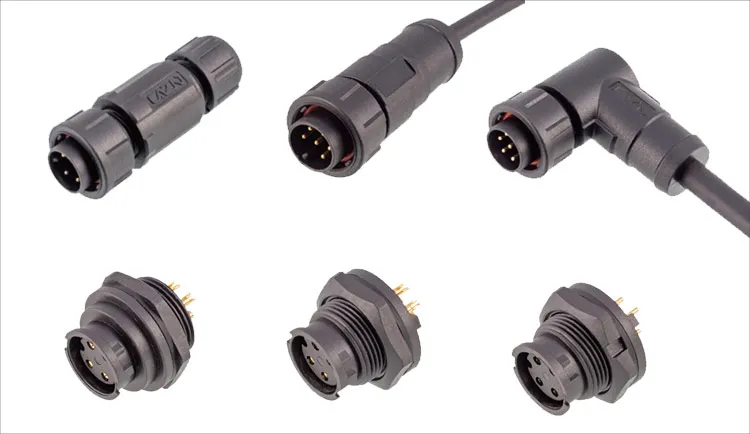

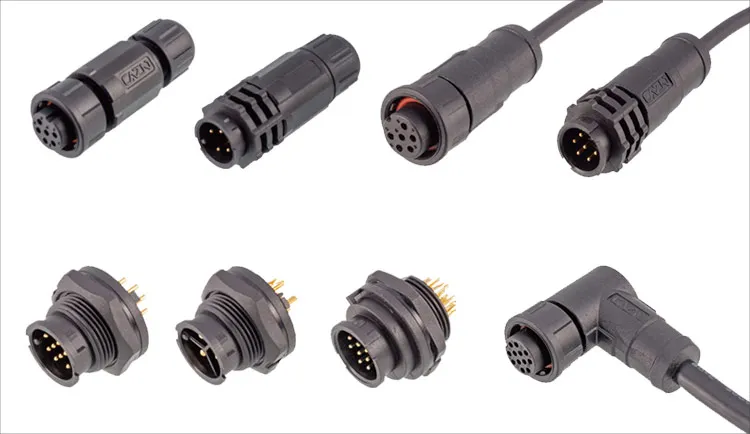

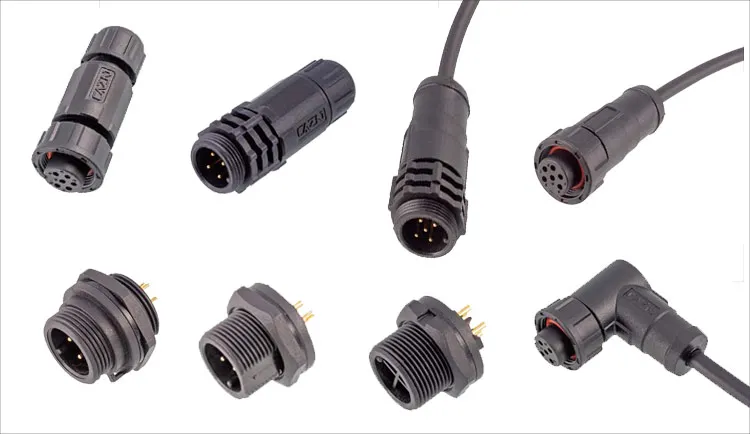

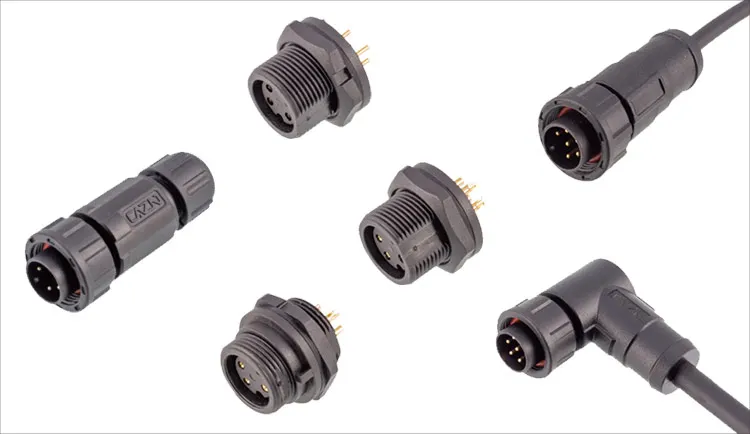

Details Images
Packaging & Delivery
Packing details:
1, Standard packing: 1pcs connector put into a transparent polybag, every big polybag with a label. then put into a carton.
2, packing as buyer's option.
2, packing as buyer's option.
Delivery details:
1, the lead time for samples is 1~3 days, 5~15 days for the production.
2, for the shipping, the goods can be shipping by client's international express account like DHL,TNT,UPS,Fedex, or shipping by our forwarder.
2, for the shipping, the goods can be shipping by client's international express account like DHL,TNT,UPS,Fedex, or shipping by our forwarder.
Company Profile
About STA:
Shenzhen STA Electronics Co., LTD., was founded in 2009, is now a subsidiary of Zhengcheng Group. We share the sales system and the same price system with our brand factory -CAZN, mainly focusing on domestic and foreign sales business. Our brand factory -CAZN has passed the ISO9001 system certification, the products have obtained CE/ROHS/SGS and some products of UL and other quality certification, products have been widely recognized and praised by customers around the world.
Our main brand is "CAZN/STA/STARF". Our products cover circular connectors, terminal blocks, waterproof connectors, military standard connectors (civilian type), RF connectors, antennas, wire harness processing and mold making, etc. Our products are widely used in different fields such as logistics, electric power control system, rail transportation, automation control, new energy, communication, navigation, etc.
We adhere to the "quality first, customer first, service first"! We have professional R & D team, high-quality staff, modern production equipment, perfect testing laboratory, the production process strictly implement ISO9001, management strictly implement 6S policy, effectively ensure product quality and work of high quality and high efficiency!
Our concept is "professional focus on every product", the purpose is "the highest quality, sincere service", willing to work with you to create brilliant!
Our main brand is "CAZN/STA/STARF". Our products cover circular connectors, terminal blocks, waterproof connectors, military standard connectors (civilian type), RF connectors, antennas, wire harness processing and mold making, etc. Our products are widely used in different fields such as logistics, electric power control system, rail transportation, automation control, new energy, communication, navigation, etc.
We adhere to the "quality first, customer first, service first"! We have professional R & D team, high-quality staff, modern production equipment, perfect testing laboratory, the production process strictly implement ISO9001, management strictly implement 6S policy, effectively ensure product quality and work of high quality and high efficiency!
Our concept is "professional focus on every product", the purpose is "the highest quality, sincere service", willing to work with you to create brilliant!
FAQ
Q1: Are you a manufacturer?
A1: We are Trade-Manufacture, have own factory and factory Brand"CAZN", which had passed ISO9001 at 2018. we can provide one-stopstation service for connectors and cables with factory price.
Q2:How about your quality?
A2: We guaranteed that 100% in good quality, the price will be nicer than other same suppliers.
Q3: After-sales service
A3: All the inquiry will be response within 24 hours, the commucation will be effective.
Q4: Is it customizable?
A4: We offer you with OEM oders but with smaller quantity than others.
Q5: What is your lead time?
A5: It depends on the order quantity and the season you place the order. Usually we can ship within 10-30 days for small quantity, and about 30 days for large quantity.
A1: We are Trade-Manufacture, have own factory and factory Brand"CAZN", which had passed ISO9001 at 2018. we can provide one-stopstation service for connectors and cables with factory price.
Q2:How about your quality?
A2: We guaranteed that 100% in good quality, the price will be nicer than other same suppliers.
Q3: After-sales service
A3: All the inquiry will be response within 24 hours, the commucation will be effective.
Q4: Is it customizable?
A4: We offer you with OEM oders but with smaller quantity than others.
Q5: What is your lead time?
A5: It depends on the order quantity and the season you place the order. Usually we can ship within 10-30 days for small quantity, and about 30 days for large quantity.
