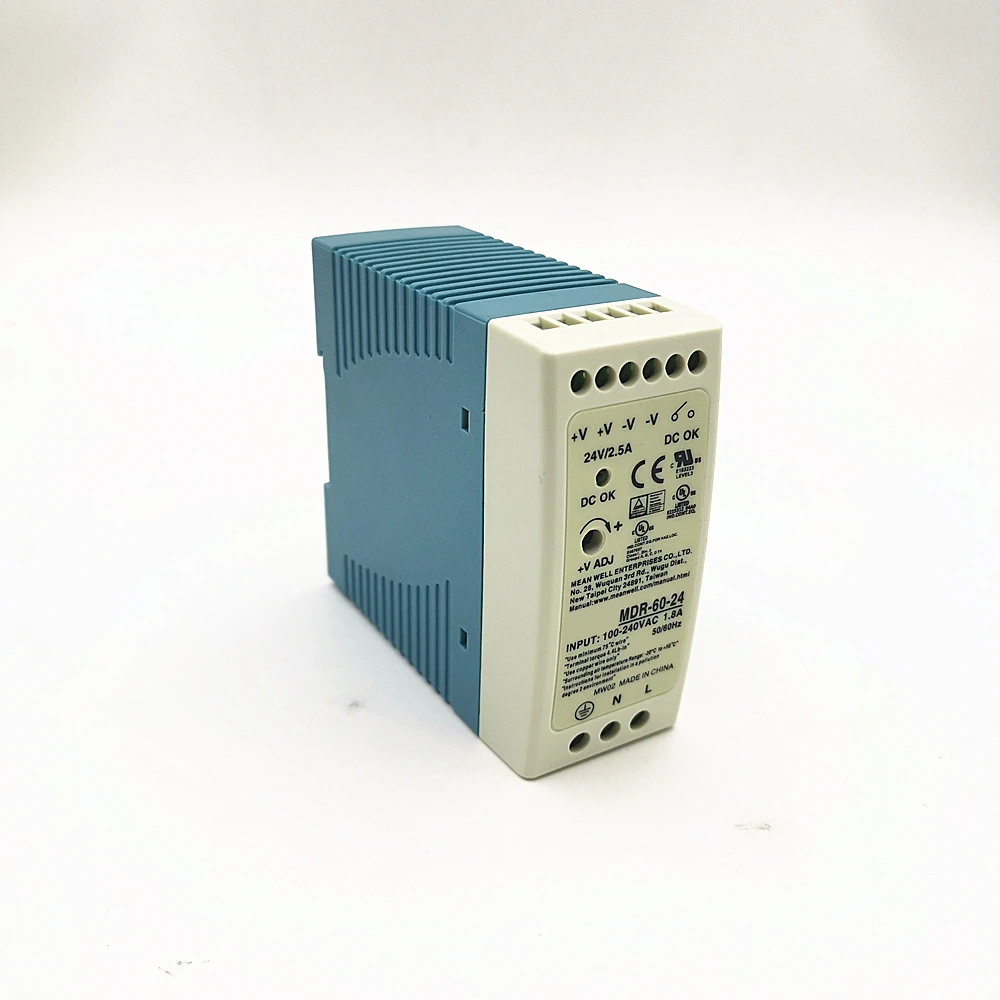

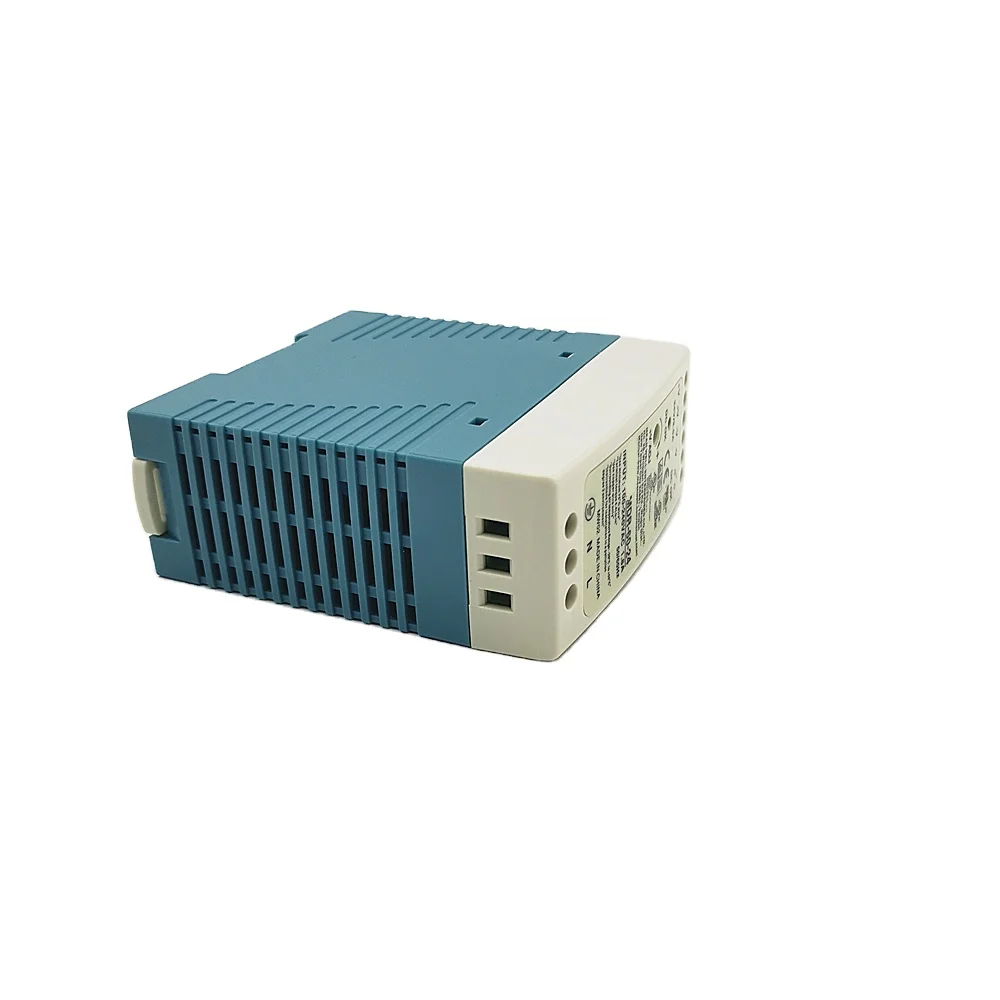

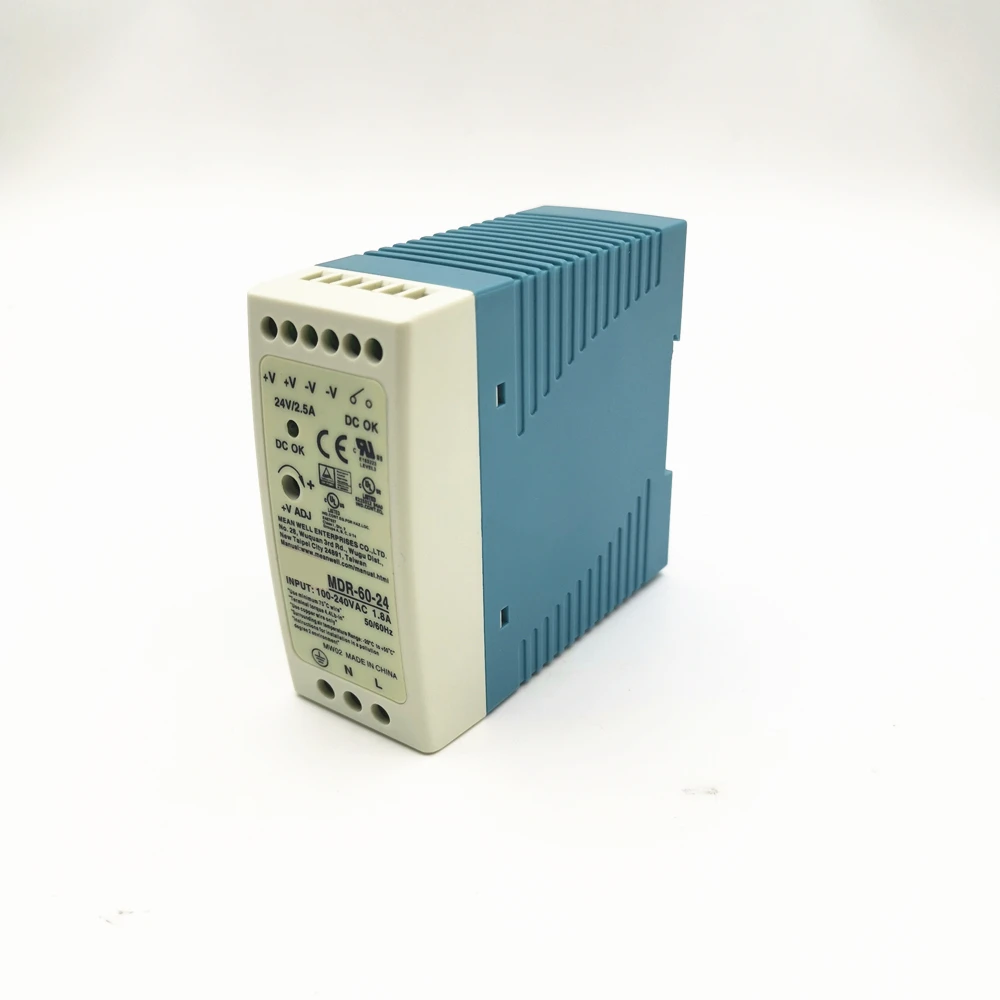

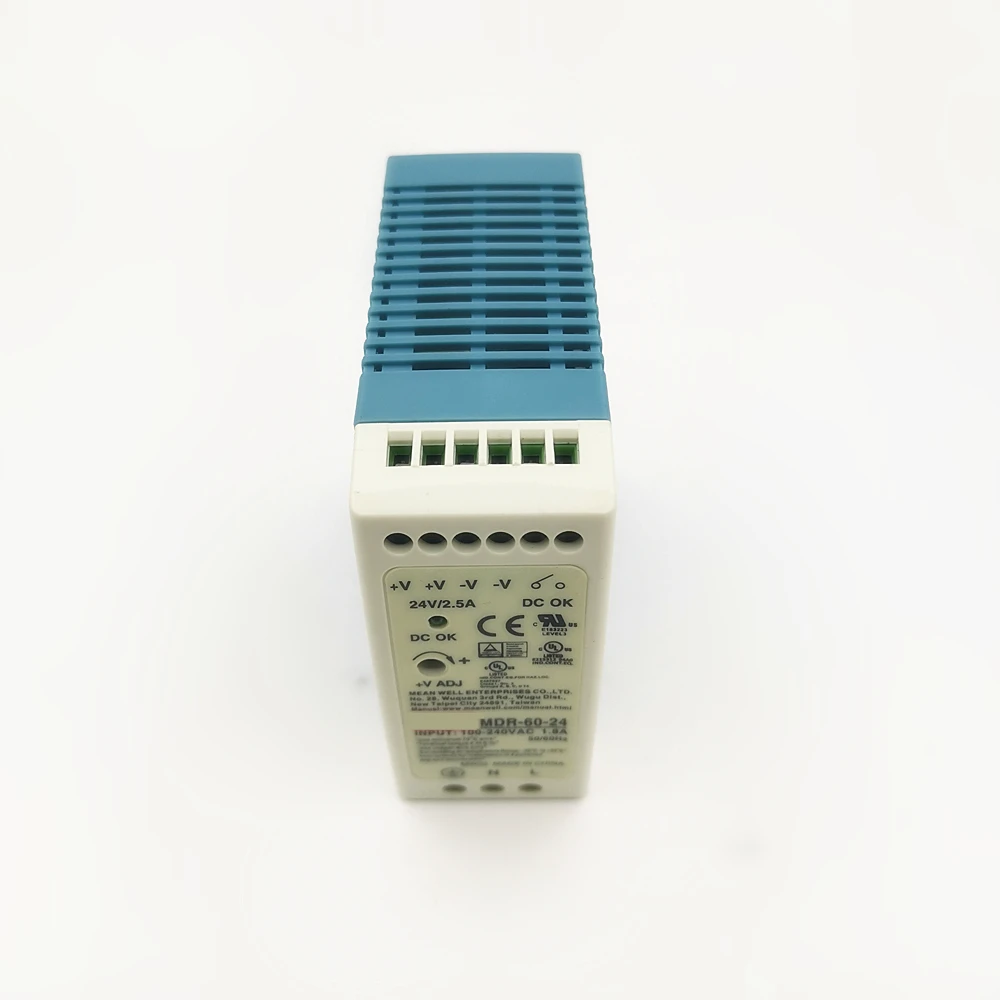

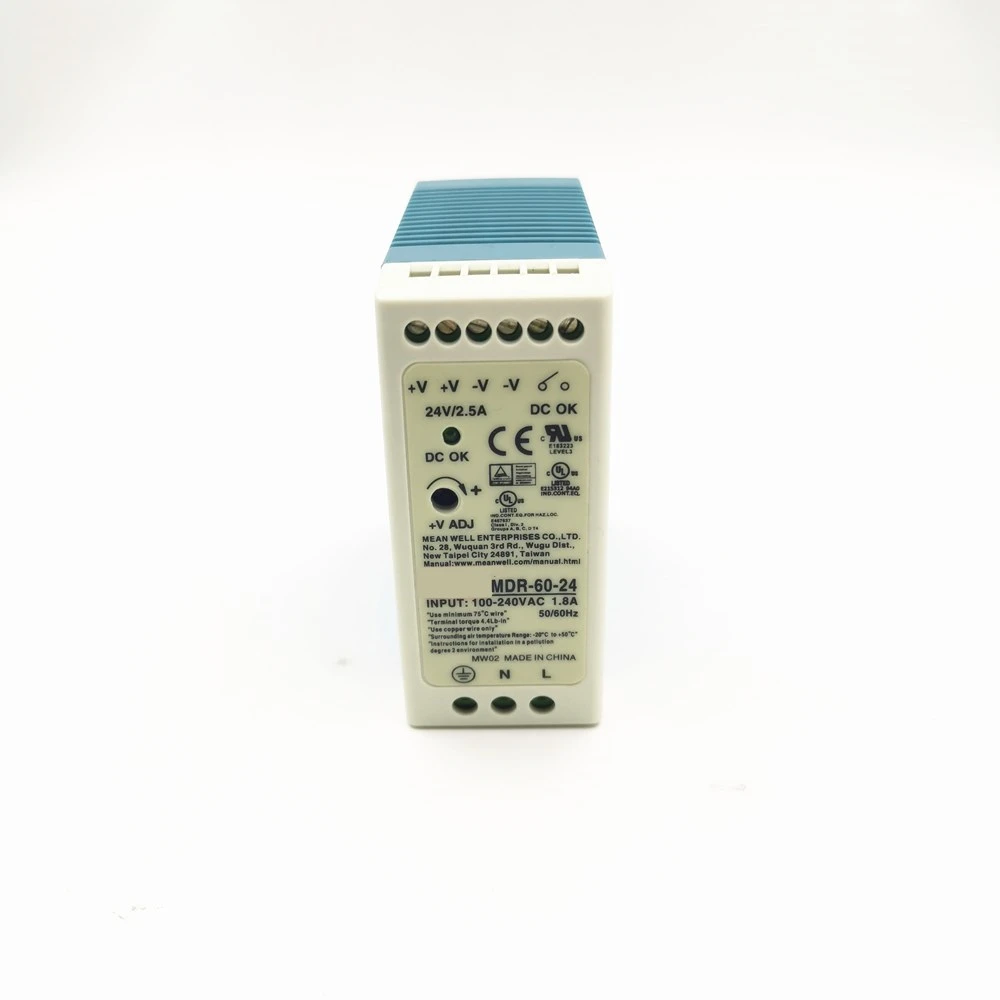

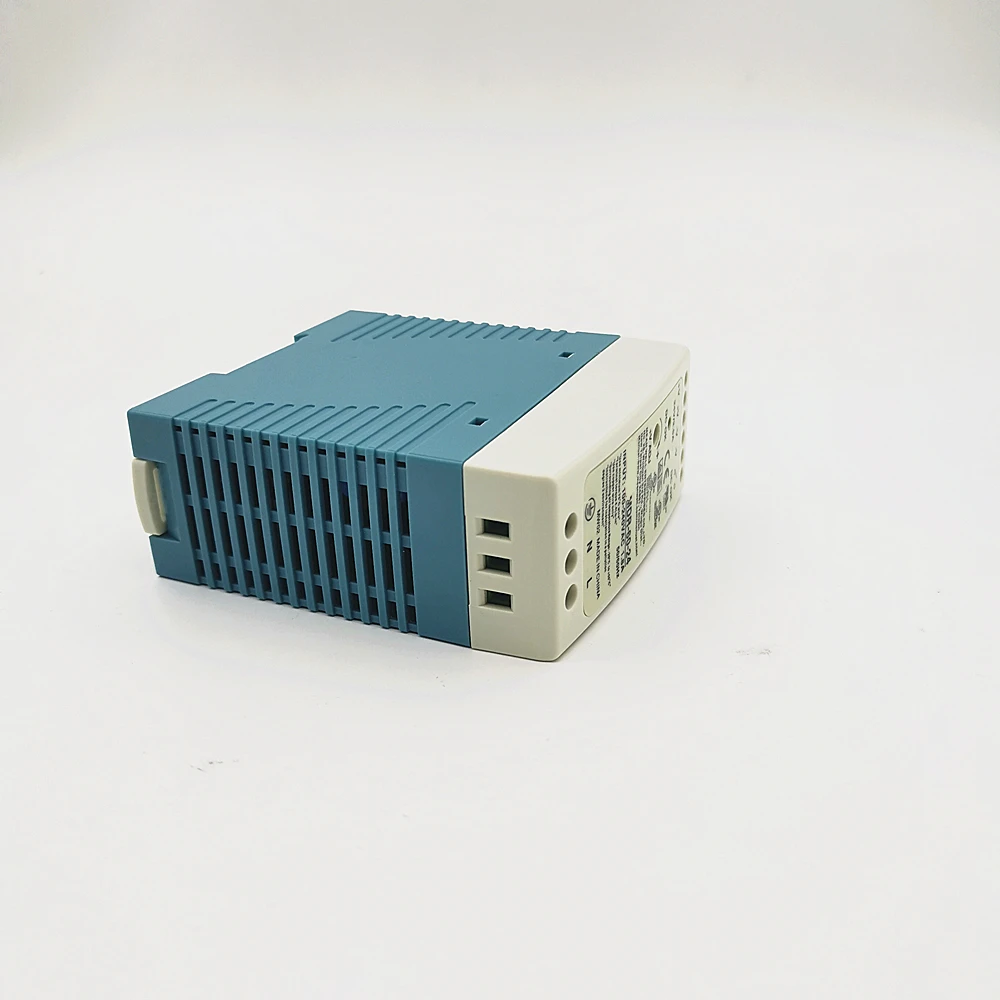

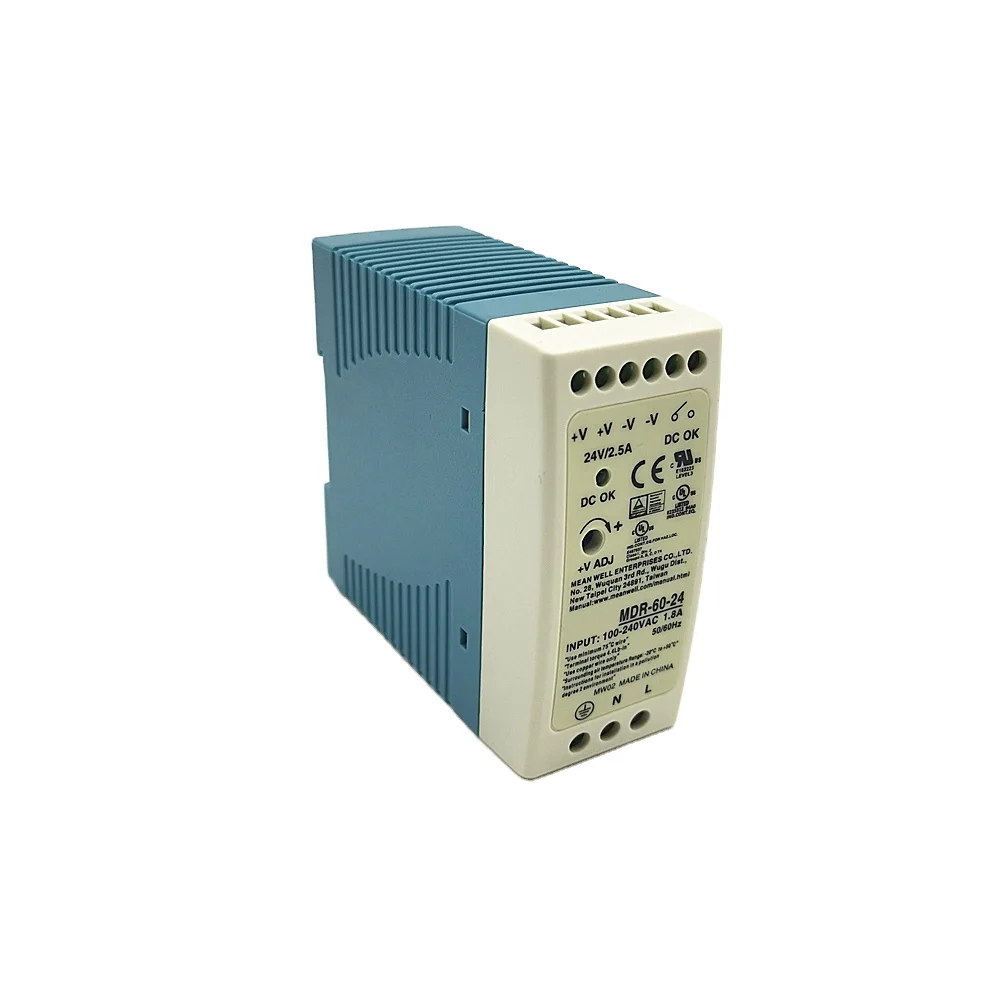

New professional MDR DIN switching led power supply super quality AC/ DC 60W 12V, 5A switching power supply driver for led strip

Product Overview

Description



· Universal AC input/Full range

· LED indicator for power on

· Protections: Short circuit / Overload / Over voltage

· No load power consumption<0.75W

· Cooling by free air convection

· 100% full load burn-in test

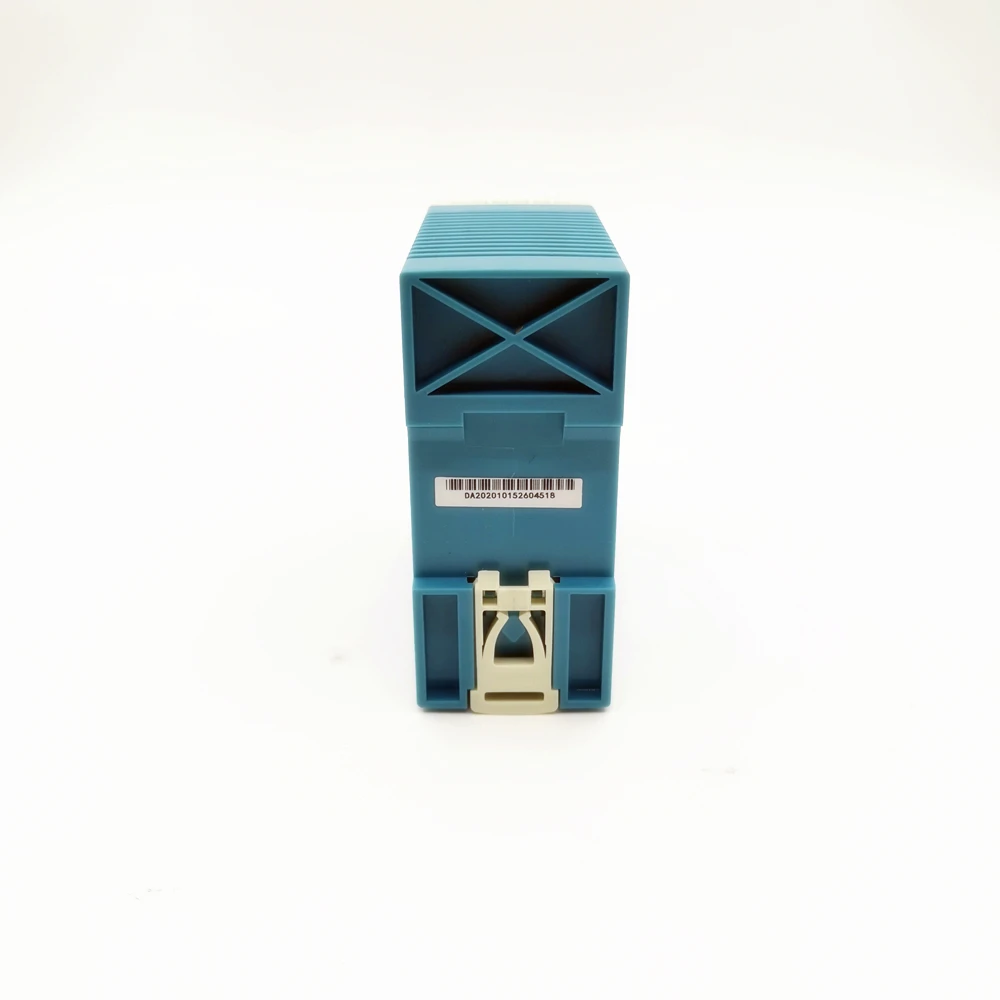

· Can be installed on DIN rail TS-35/7.5 or 15

· 2 years warranty

· Built in DC OK active signal



Model		MDR-60-5	MDR-60-12	MDR-60-24	MDR-60-48
	DC voltage	5V	12V	24V	48V
output	Current range	0~10A	0~5A	0~2.5A	0~1.25A
	Rated power	50W	60W	60W	60W
	Ripple &noise	80mvp-p	120mvp-p	150mvp-p	200mvp-p
	DC voltage ADJ .range	±10%	±10%	±10%	±10%
	Voltage range	85~264VAC,120~370VDC   47-63Hz
	Efficiency	76%	80%	81%	84%
	Inrush current	Cold start current 30A/115VAC, 60A/230VAC
	Over load	105%~150% cut off the output ,automatic recovery
	Over voltage	120%-140% shut down O/P voltage, re-power on to recover
environment	Working temperature	-10°C~+50°C
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
others	Dimension	40*90*100mm (L*W*H)
	Weight/packing	0.33kg/60pcs/20kg/45.5*32.5*23cm
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance : includes set up tolerance, line regulation and load regulation.



Q1.How we control the quality?

A1: Aging test for 8 hours, after then we put them into the market.





Q2. Can we accept samples customized?

A2:  No problem for samples order, and welcome your testing before your big order.





Q3. What about the production capacity?

A3: 4 days for samples order under 100pcs, 7-15 days for general order under 10000pcs.





Q4. OEM and ODM are available?

A4:  Yes, we accept customized products





Q5. Will the delivery time be long for a big order?

A5: No, we have two special parts in production line, one for samples orders, another for big orders, so we can control the delivery time as we promise in the contract.





Q6. What is our warranty service?

A6: For all products we sell have 2 year warranty.
