MPPT solar wind hybrid inverter charge controller 12v 24v 48v for 300w 400w 500w 600w 800w wind turbine
- Category: >>>
- Supplier: Anhui Jnge Power Co. Ltd.Anhui Ltd.
Share on (11000007957031):
Product Overview
Description
Product Introduction
MPPT Hybrid Wind Solar Charge Controller
Product Parameters
Technical Parameters | ||||||||||||
Model | JW1230 | JW1240 | JW1250 | JW2450 | JW2460 | |||||||
Rated voltage | 12v/24v auto | 12v/24v auto | 12v/24v auto | 24V | 24V | |||||||
Solar panel power | 100W | 100W | 100W | 300W | 400W | |||||||
Wind turbine power | 300W | 400W | 500W | 500W | 600W | |||||||
Charging | Charging current | 33.33A | 41.66A | 50A | 33.33A | 41.66A | ||||||
Equalization charge | 14.4V±1% | 28.8V±1% | ||||||||||
Floating Charge | 13.8V±1% | 27.6V±1% | ||||||||||
Equalization charge recovery | 13.2V±1% | 26.4V±1% | ||||||||||
Temperature Compensation | -24mV/℃ | -48mV/℃ | ||||||||||
Over Discharge | Disconnect (DC) | 10.8V±1% | 21.8V±1% | |||||||||
Recovery (DC) | 12.3V±1% | 24.6V±1% | ||||||||||
Over Voltage | Shut off (DC) | 16V±1% | 32V±1% | |||||||||
Recovery (DC) | 15V±1% | 30V±1% | ||||||||||
No-load | ≤0.1A | ≤0.1A | ||||||||||
Voltage drop (DC) | ≤0.5V | |||||||||||
Control mode | Wind generator MPPT charge function, PWM uninstall function, PWM over-current limiting | |||||||||||
Boost charge | Flexible independent step-up circuit (optional) | |||||||||||
Display | LCD | |||||||||||
Show parameters | Voltage、charge current，battery voltage | |||||||||||
Protected type | Lightning protection, solar cell anti-reverse protection, open battery protection, reverse battery protection, over-wind speed and over-voltage soft automatic braking protection | |||||||||||
Heat emanation way | Radiator | |||||||||||
Working Temperature | -25℃~+55℃ | |||||||||||
Height | ≤5500m(2000m above the need to reduce power use) | |||||||||||
Environment humidity | 0~90%，No condensation | |||||||||||
Product Details
Hybrid Wind Solar Charge Controller
▷ 12/24V auto and 48V independent system
▷ Fit all kind of batteries, Lead acid, Gel, LIFEPO4, LiNiCoMn
▷ Advanced MPPT maximum power point tracking technology,tracing efficiency > 99.5%, maximum conversion efficiency > 98%; full-load efficiency can reach 97%
Hybrid Wind Solar Charge Controller

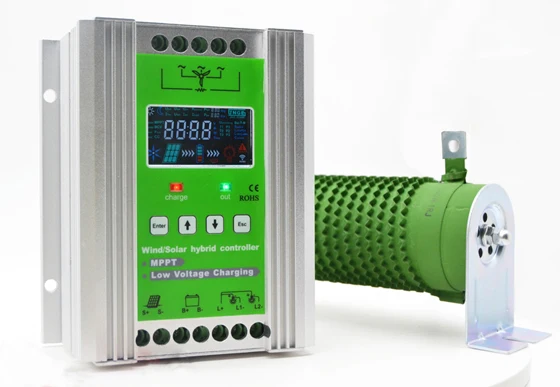

▷ Dump load resistance is default part, no need pay additional for it
▷ Comprehensive protection functions : overcharge, over discharge and overload etc
▷ In the high wind speed or fan’s power is beyond scope of battery and load absorption, controller immediately launched step-less unloading resistance protection system
▷ It has various load control modes, DC load has two route outputs, output power and time can be set
▷ Time Control: street light & household
Street light mode: time can be set by UP & DOWN keys, default Value “15H”, you can set other hours as you want, this time set is street light work time at night.
Household mode: time is “24H”, it means DC load need work at 24H
