Product Overview
Description
Product Description

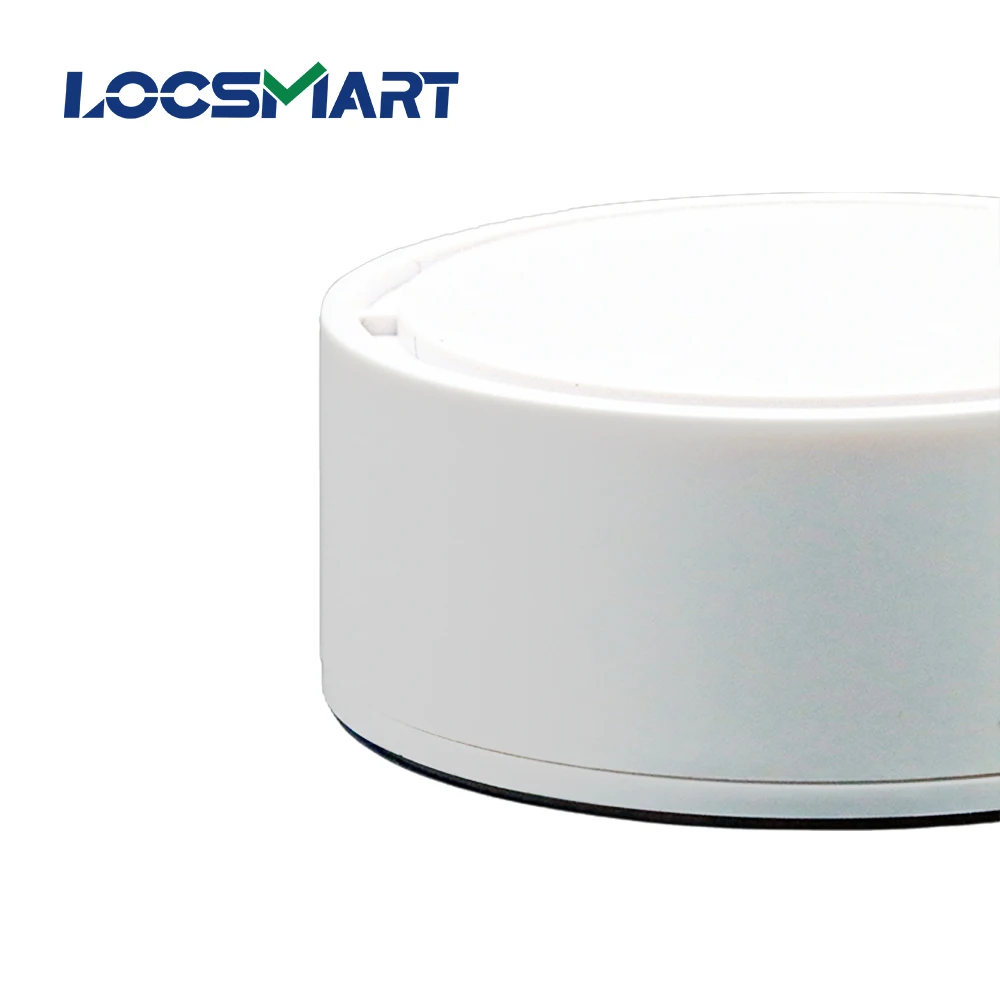

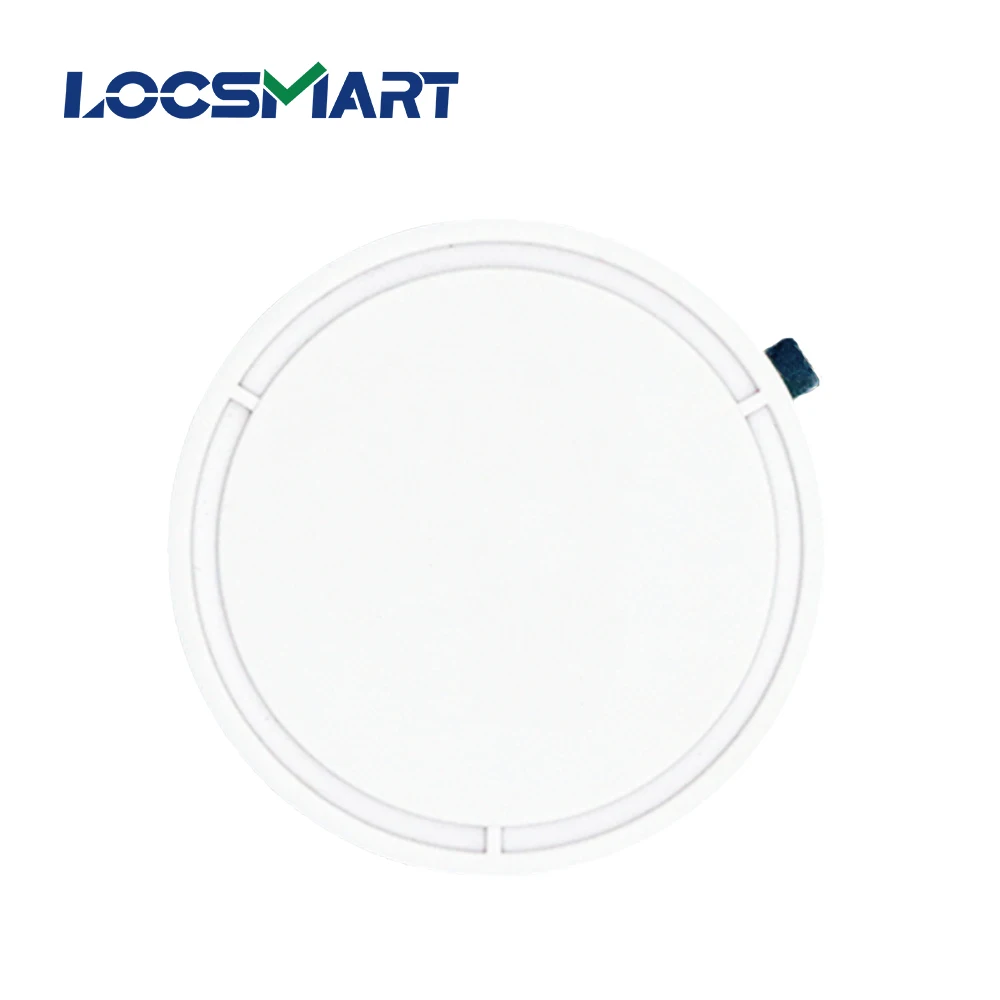

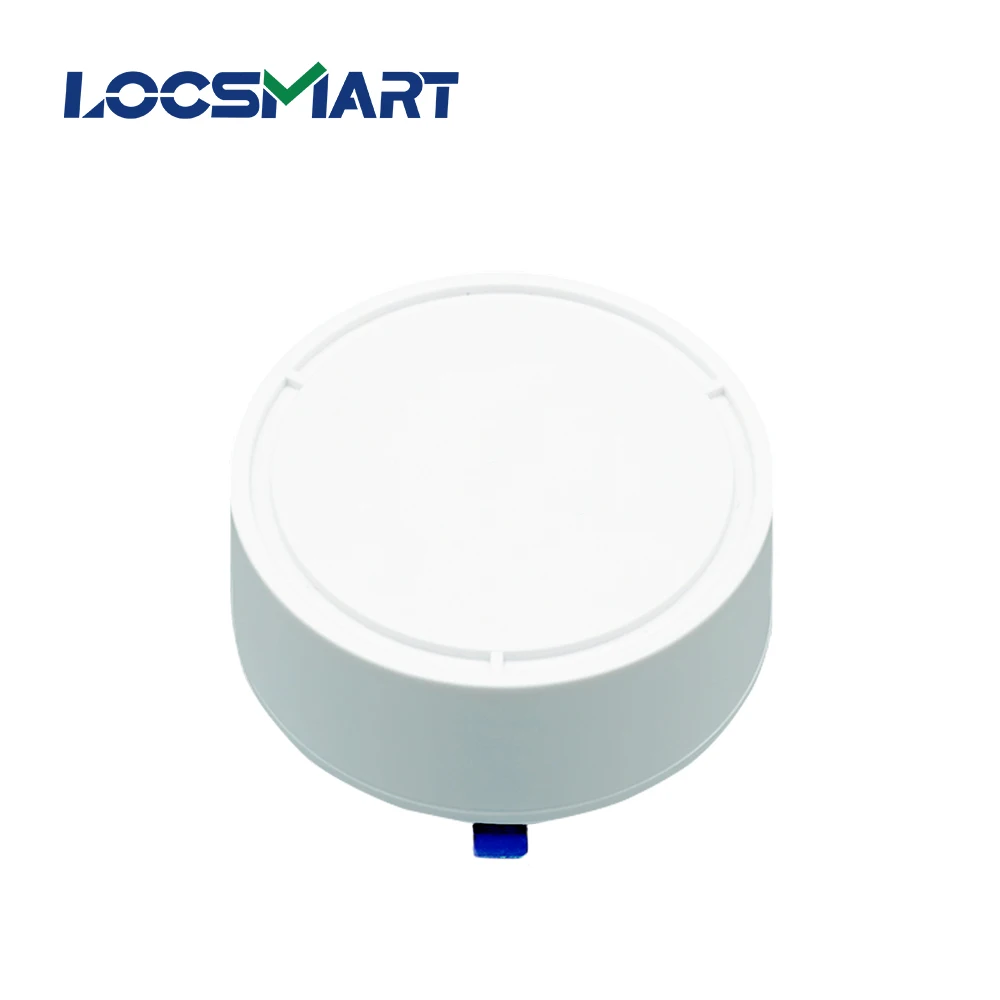

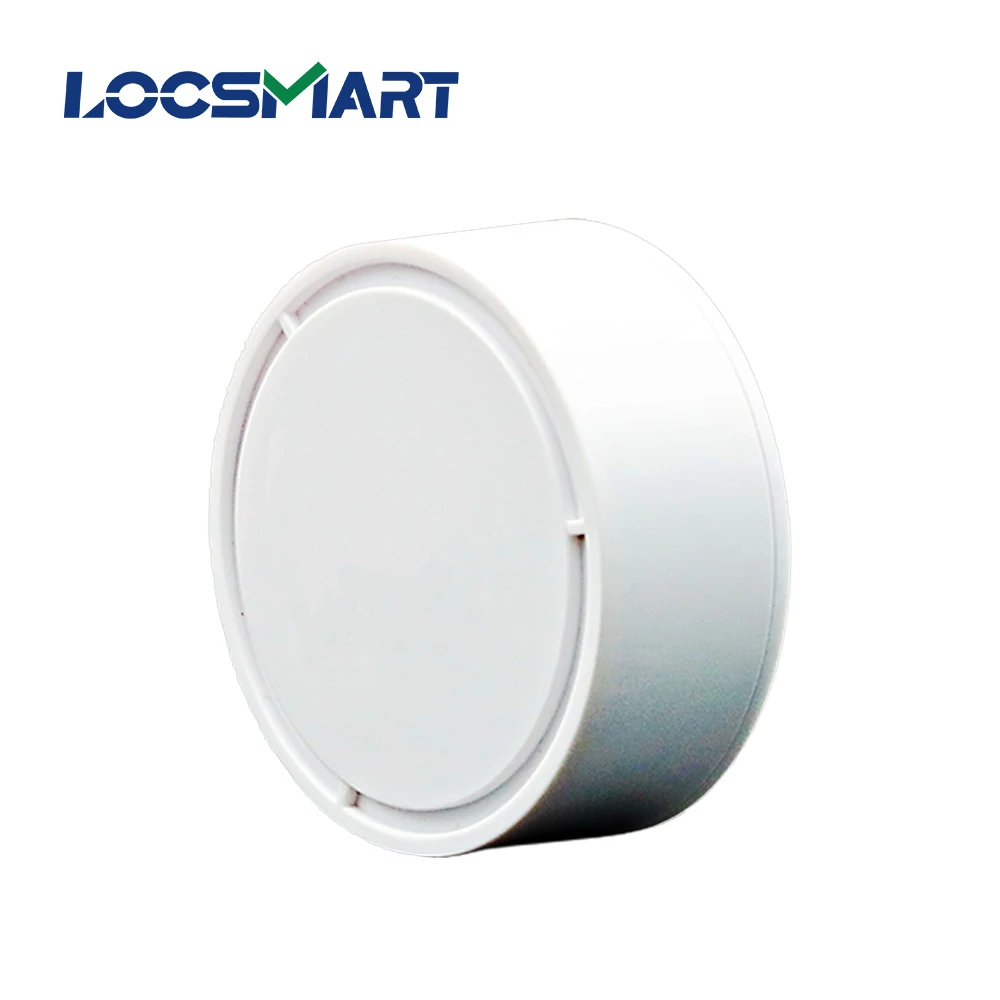

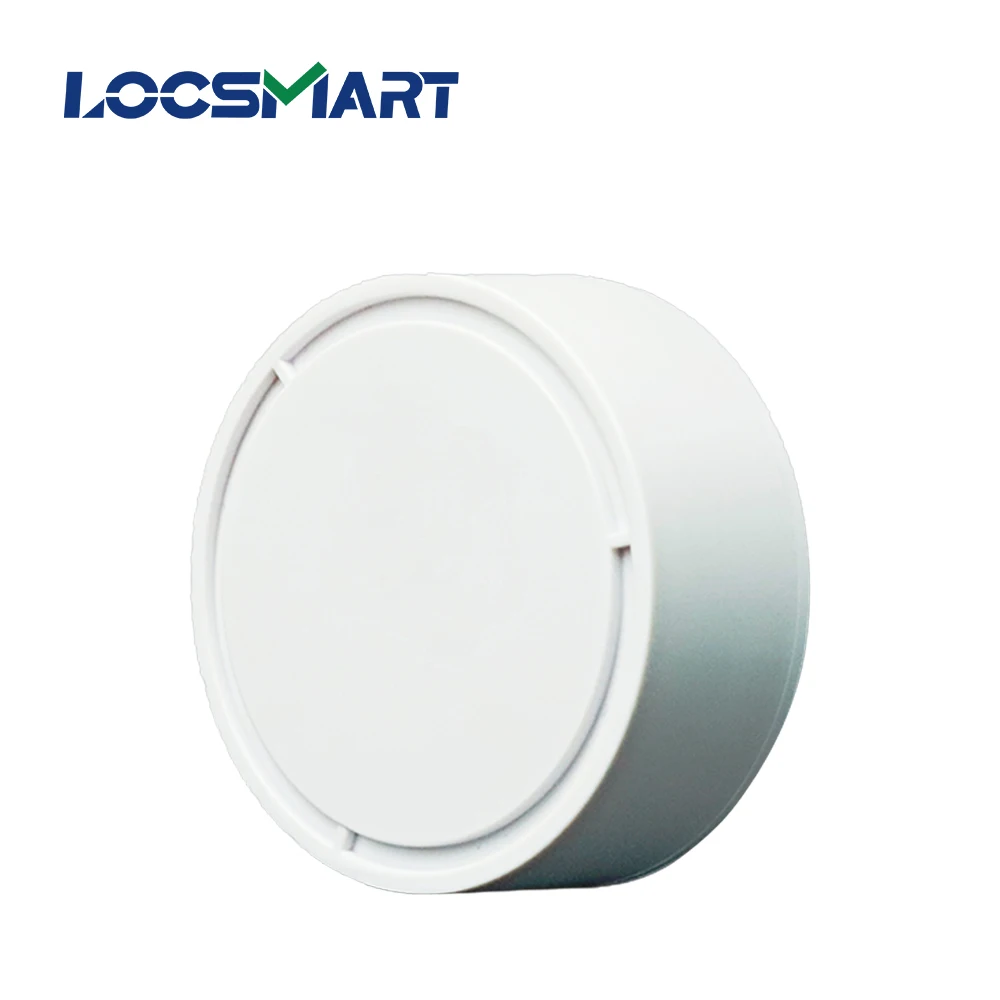

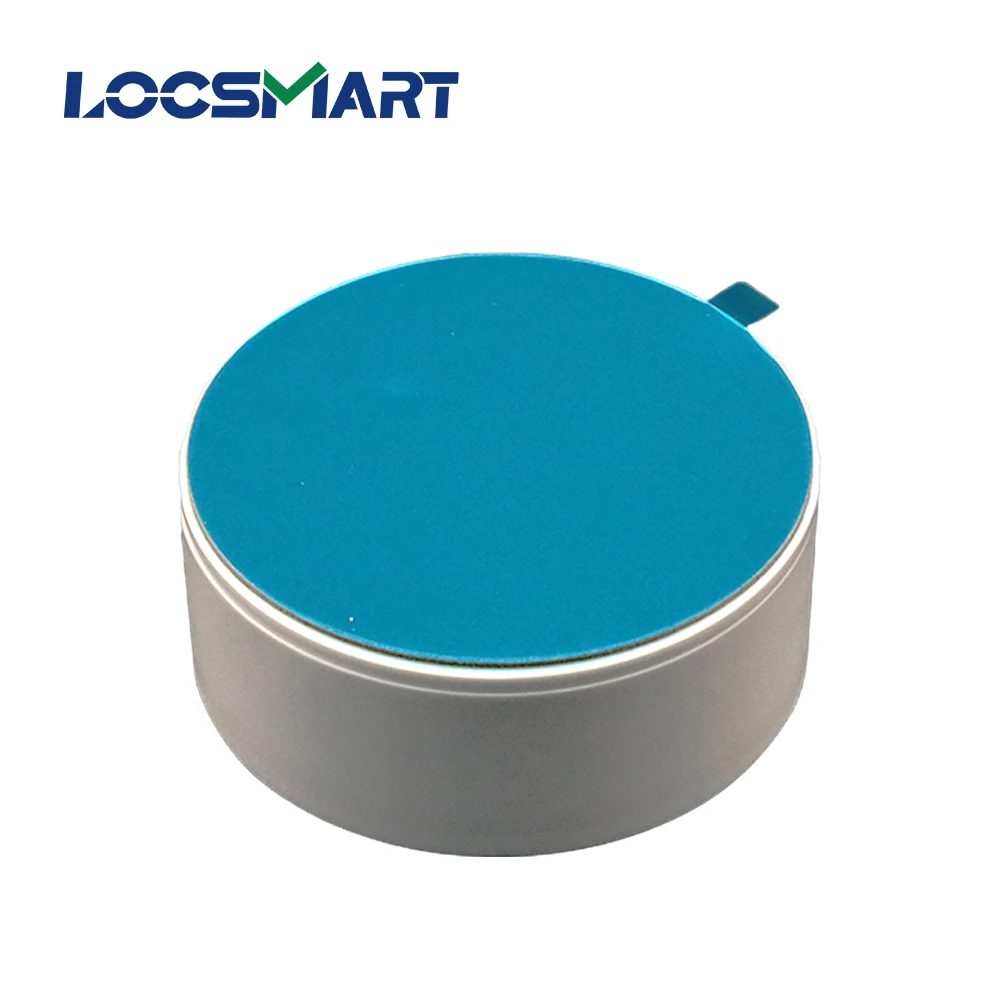

R5 indoor universal beacon is a Bluetooth beacon product for indoor positioning and marketing.

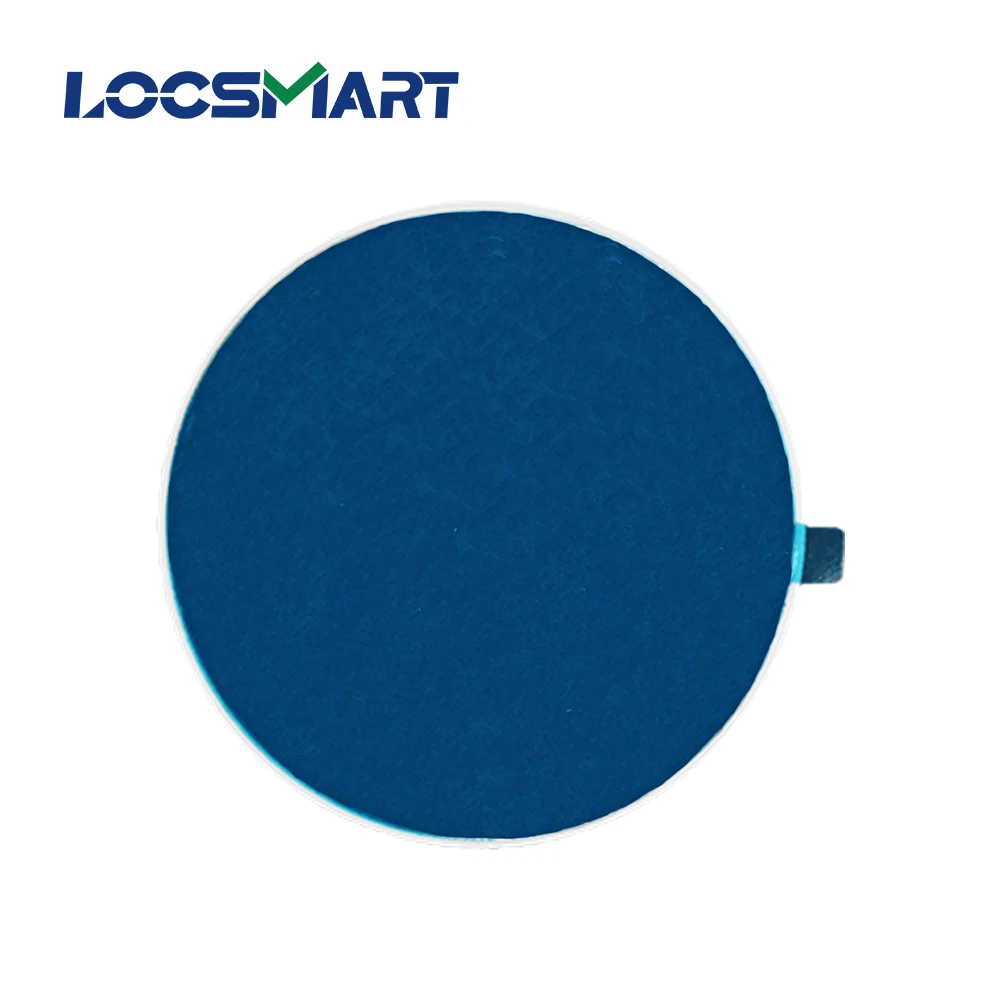

By using advanced low-power Bluetooth chip and unique power supply scheme, the beacon 's endurance time is four times higher than that of the same level ( size ) products in the industry. It can be used for five to six years, which solves the problems of frequent battery replacement and system maintenance. With a circular shell design, high-quality 3M VHBTM back adhesive has stronger adhesion and more reliable use. The deployment and disassembly are convenient, and can be implemented in large areas in public places such as hospitals, nursing homes, shopping malls, airports, and exhibition halls to build a positioning and marketing service network.
Specification
Chip | Dialog 14580 |
Bluetooth protocol | BLE 4.2 |
Battery | ER14505, lithium 2400mAh |
Endurance | 5~6 years |
Operating voltage | 3.6V |
Transmission current | 100mA |
Transmission distance | 80M |
Antenna | PCB onboard |
Sensor parameters | NA |
Waterproof gradation | IP64 |
Overall dimensions | 65mm*25mm (Φ*H) |
Weight ( including battery | 55g |
Certification | TBD |
Color | White |
Installation method | Viscose, locking screws |
Scenario application
1.Rapid positioning personnel position, real-time push marketing information. 2. Tracking the customer 's activities during the shopping period provides important insights into customer habits and shopping behavior for accurate offers.
3. Quick and easy access to tourist attractions, museums, exhibitions and other areas of the relevant explanation.
4.To help tourists and customers in the airport, station, museum, shopping center and other places to obtain the optimized route, convenient and quick to reach the destination.
Company Profile
Certifications
Packing & Delivery
FAQ
Q1： Can the products compatible with iBeacon and Eddystone?
A1: Yes, it's the standards compatibility of our beacons.
Q2: What's the warranty of the product?
A2: We supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
Q3: Could brand the product with our company LOGO?
A3: Sure,all of the beacons can be customized in color/logo/laber according to your requirements.
Q4: Which certifications do you have?
A4: All of our Beacons are with FCC/CE/RoHS Certificates,we can provide to customers anytime if needed.
Q5: Will you provide technical support for customer?
A5: Sure. We will provide the technical support as below:
Configure APP for IOS&Android
SDK for iOS&Android APP
User Manual.
Q6: What's your advantages?
A6: Our advantages as following:
* Focus on PCB Design & Manufacturing for 14 years.
* We provide IoT Devices ODM & OEM Services.
* We design & manufacture iBeacons/Bluetooth Beacons.
* FCC CE certified beacons supporting Eddystone&iBeacon.
* Programmable beacons & related SDK provided for your development.
* Product customization allowed, like adding motion sensor, different colors, adding logo…
* All the parameters like UUID, major minor, URL can be modified by configuration app
Q2: What's the warranty of the product?
A2: We supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
Q3: Could brand the product with our company LOGO?
A3: Sure,all of the beacons can be customized in color/logo/laber according to your requirements.
Q4: Which certifications do you have?
A4: All of our Beacons are with FCC/CE/RoHS Certificates,we can provide to customers anytime if needed.
Q5: Will you provide technical support for customer?
A5: Sure. We will provide the technical support as below:
Configure APP for IOS&Android
SDK for iOS&Android APP
User Manual.
Q6: What's your advantages?
A6: Our advantages as following:
* Focus on PCB Design & Manufacturing for 14 years.
* We provide IoT Devices ODM & OEM Services.
* We design & manufacture iBeacons/Bluetooth Beacons.
* FCC CE certified beacons supporting Eddystone&iBeacon.
* Programmable beacons & related SDK provided for your development.
* Product customization allowed, like adding motion sensor, different colors, adding logo…
* All the parameters like UUID, major minor, URL can be modified by configuration app
