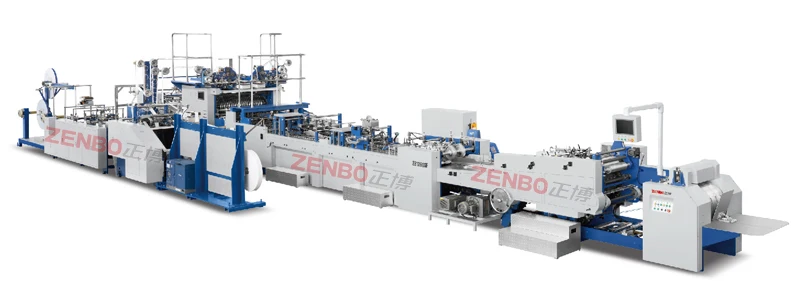

ZB1260SF 450 Fully automatic sheet feeding paper bag machine with handle online for environmental paper bag
- Category: >>>
- Supplier: Zhejiang Zenbo Intelligent Machinery Co. Ltd.
Share on (11000007963635):
Product Overview
Description
Product Description
| Main Technical |  |  |  |  |

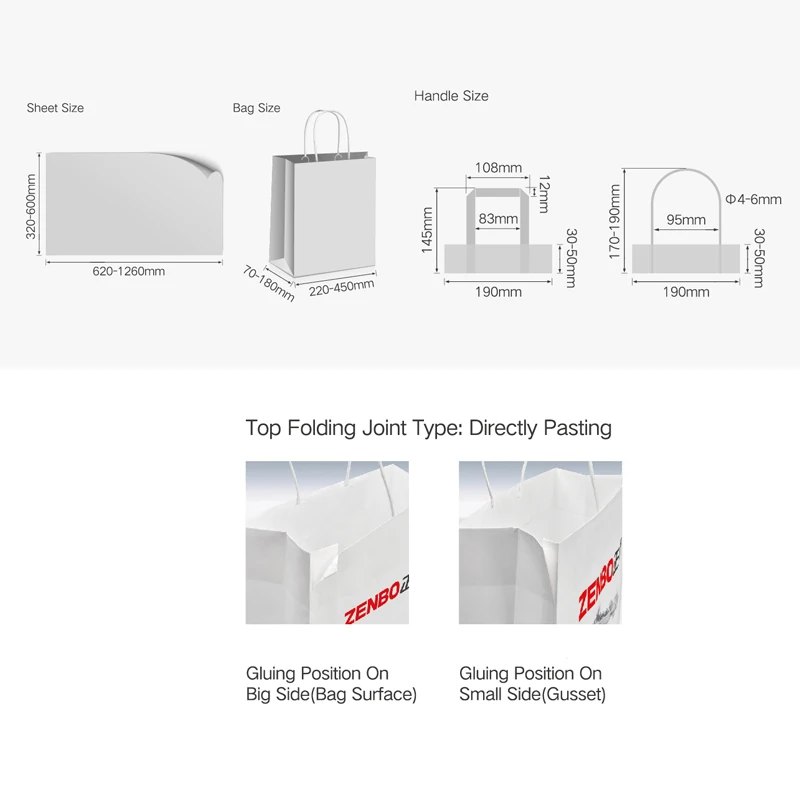

| Max Sheet(LXW) | 1260*600mm | 1260*560mm | 1260*600mm | 1260*600mm |
| Min Sheet(LXW) | 620*320mm | 620*320mm | 620*320mm | 620*320mm |
| Sheet Weight | 120-190g/m^2 | 120-190g/m^2 | 120-190g/m^2 | 120-190g/m^2 |
| Bag Width | 220-450mm | 220*450mm | 220*450mm | 220*450mm |
| Bottom Width | 70-180mm | 70-180mm | 70-180mm | 70-180mm |
| Bag Tube Length | 280-560mm | 320-560mm | 280-560mm | 280-560mm |
| Top Folding Depth | 40-60mm | - | 40-60mm | 40-60mm |
| Handle Patch Length | 190mm | 190mm | 190mm | 190 |
| Handle Patch Width | 30-50mm | 30-50mm | 30-50mm | 30-50mm |
| Handle Patch Weight | 140-200g/m^2 | 140-200g/m^2 | 140-200g/m^2 | 140-200g/m^2 |
| Handle Patch Roll Diameter | Φ1000mm | Φ1000mm | Φ1000mm | Φ1000mm |
| Handle Patch Roll Width | 60-100mm | 60-100mm | 60-100mm | 60-100mm |
| Paper Rope Diameter | Φ4-6mm | Φ4-6mm | - | - |
| Falt Handle Roll Width | - | - | - | 46mm |
| Falt Handle Paper Weight | - | - | - | 110-130g/m^2 |
| Handle Rope Height | 170-190mm | 170-190mm | - | 145mm |
| Speed | 40-70bags/min | |||
| Total/Production Power | 46.5/25KW | |||
| Voltage | 380V | |||
| Total Weight | 23.5T | |||

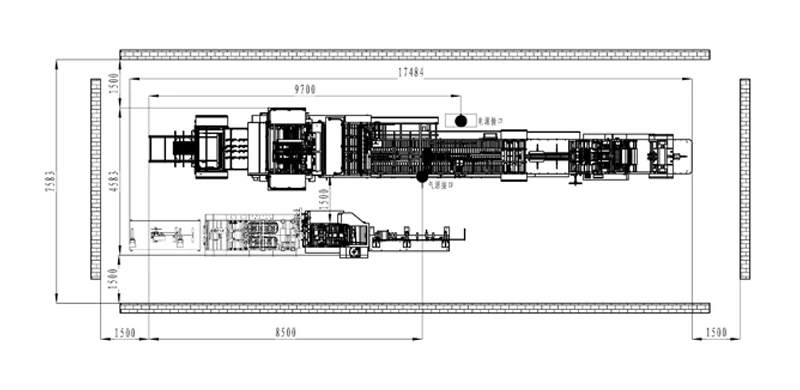

| Machine Size(LXWXH) | 17500*5600*2950mm | |||
| Glue Type | Water Base Glue And Hot-melt Glue | |||
