Product Overview
Description

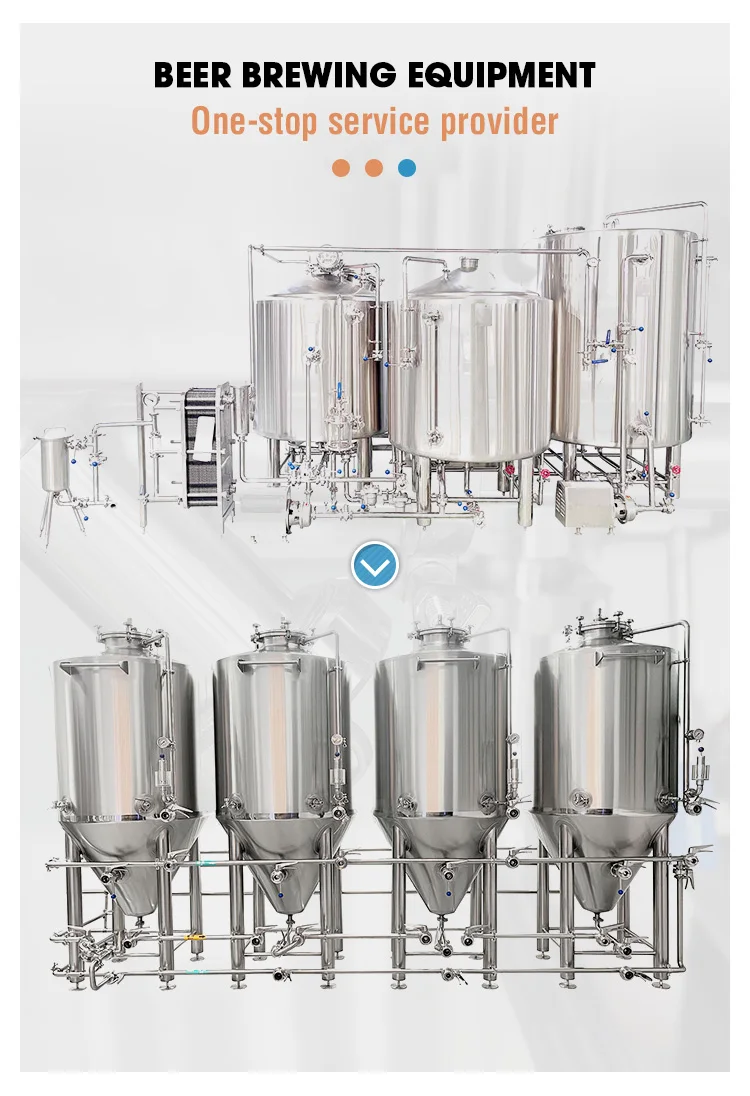

Competitive Price 600L Brewery Beer Brewing Equipment For sale

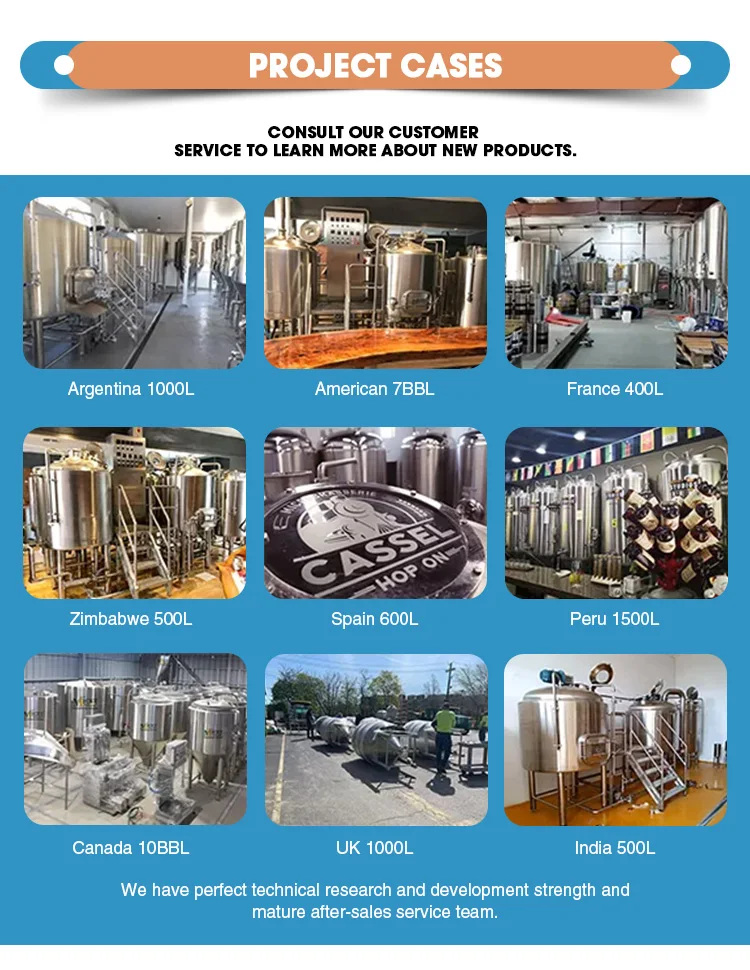

Most brewery installations in restaurants, bars, and hotels used microbreweries. MICET microbreweries are installing at the customer's company turn-key solution. Micet has reached cooperation with many breweries around the world. We can design and manufacture professional containers and systems for breweries, cellar equipment, and other complex breweries. Micet has decades of experience in beer brewing, manufacturing sanitary stainless steel systems, and integrated automation and control systems.
Output/Brew | 600L | 800L | 1,000L | 1,500L | 2,000L | 2,500L | 3,000L | 3,500L | 5,000L | ||||||||
Brew/Week | 2~6 | ||||||||||||||||
Output/Week | 1,000~3,000L | 1,600~4,800L | 2,000~6,000L | 3,000~9,000L | 4,000~12,000L | 15,000~30,000L | 18,000~36,000L | 21,000~42,000L | 24,000~36,000L | ||||||||
Area Request | ＜45㎡ | ＜60㎡ | ＜70㎡ | ＜90㎡ | ＜120㎡ | ＜140㎡ | ＜150㎡ | ＜180㎡ | ＜150㎡ | ||||||||
Brew master | 1 | 1 | 1-2 | 1-2 | 2-3 | 2-3 | 3-5 | 3-5 | 3-5 | ||||||||
Material | Interior Shell: SUS304; TH=3mm; Exterior Shell:SUS304; TH=2mm / red copper | ||||||||||||||||
Heating | Electric/Steam/Direct fire for optional | ||||||||||||||||
Voltage | 3 phase/380(220, 415,440...)v/50 (60)Hz | ||||||||||||||||
Milling System | Malt Miller | 300-500 kg/h | 1 pc | ||
Auger (option) | Ability is 1,000-1,500 kg/h | 1 pc | |||
Hopper(option) | Volume is 0.5m³, SUS 304 with pre-masher | 1 pc | |||

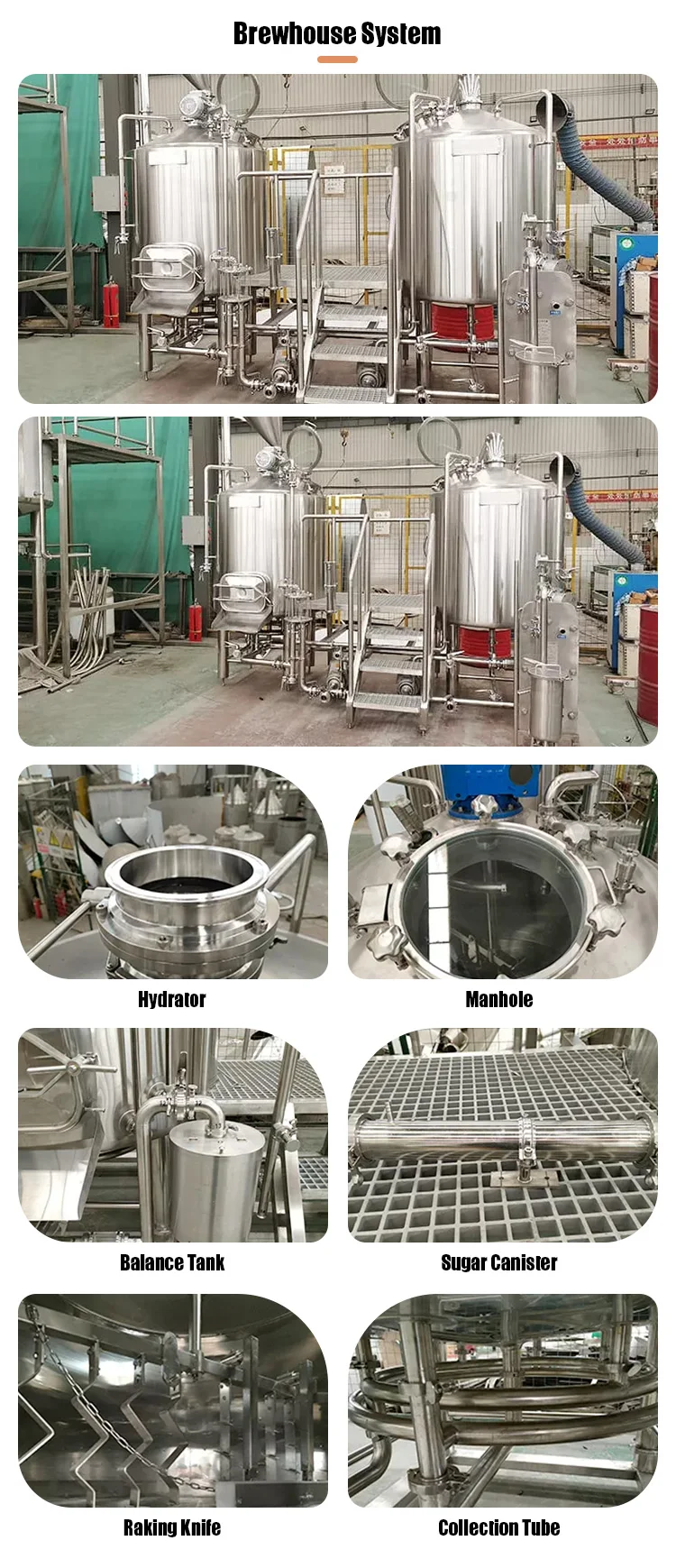

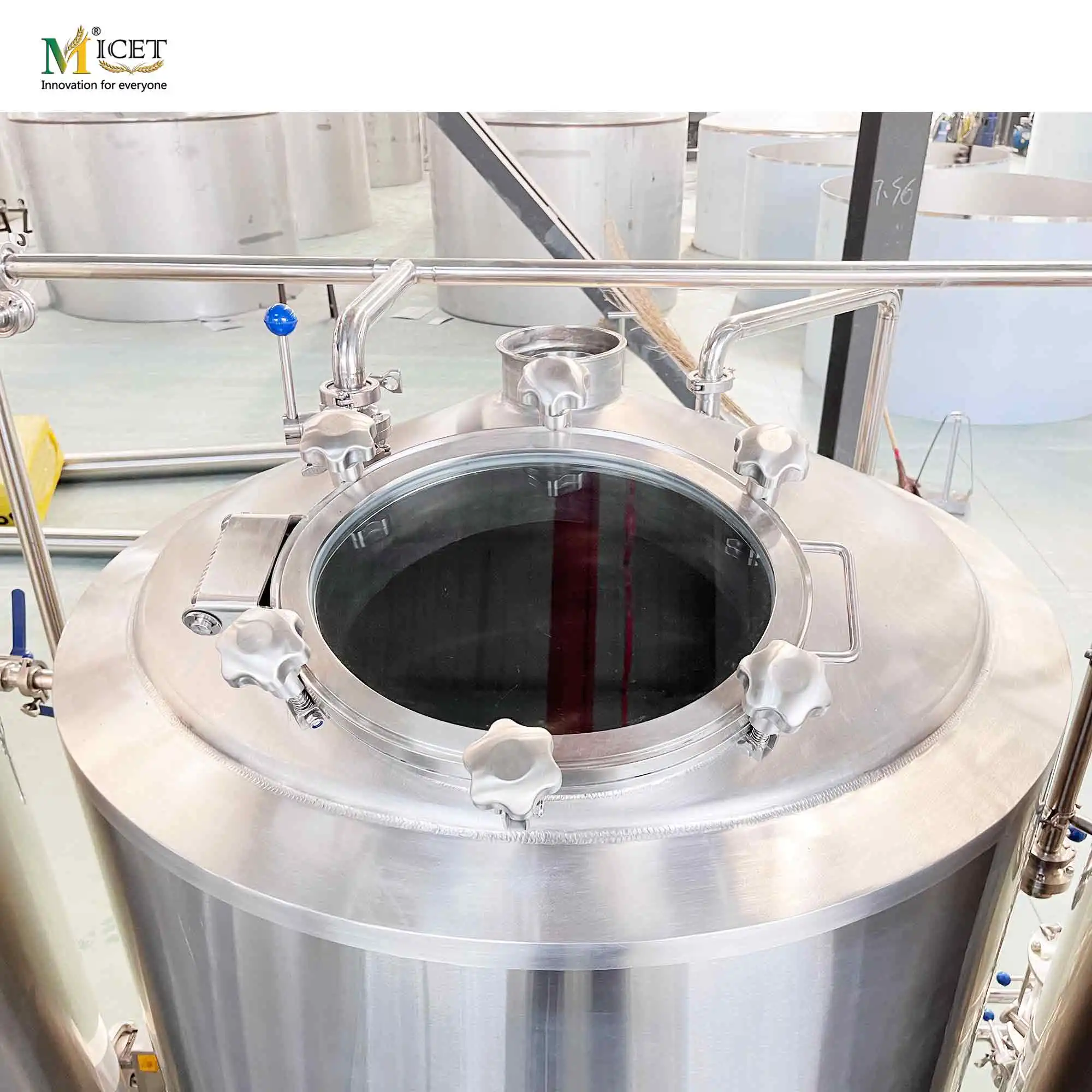

Brewhouse system | Mash Tun / Lauter Tank | Volume is 600L, with false bottom, grant, raker with motor | 1 pc | ||
Kettle / Whirlpool Tank | Volume is 600L, electric heating | 1 pc | |||
HLT Water Tank | Volume is 600L, electric heating | 1 pc | |||
Includes plate heat exchanger, wort pump, motors, hops filter, yeast adding tank, oxygen device and pipelines | |||||

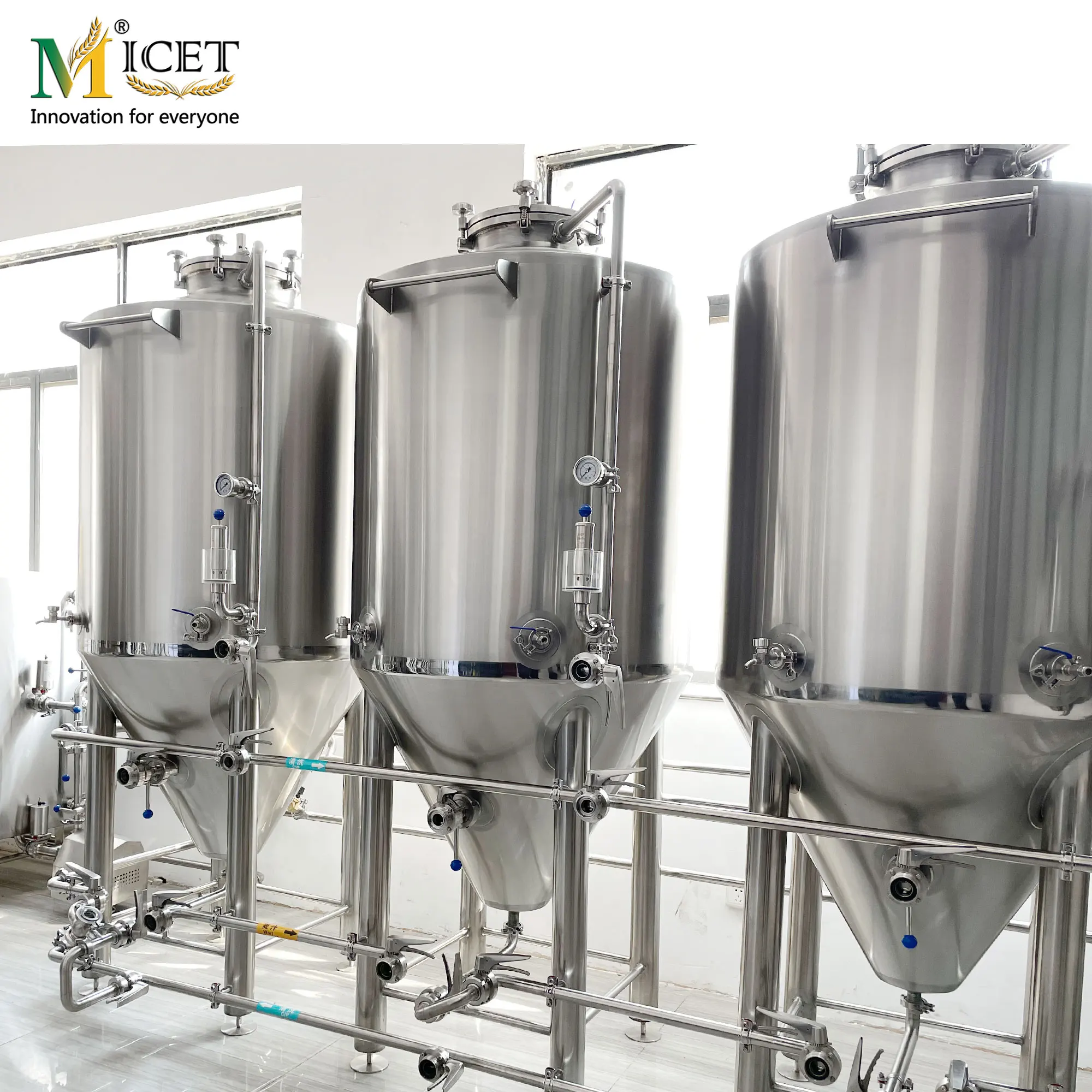

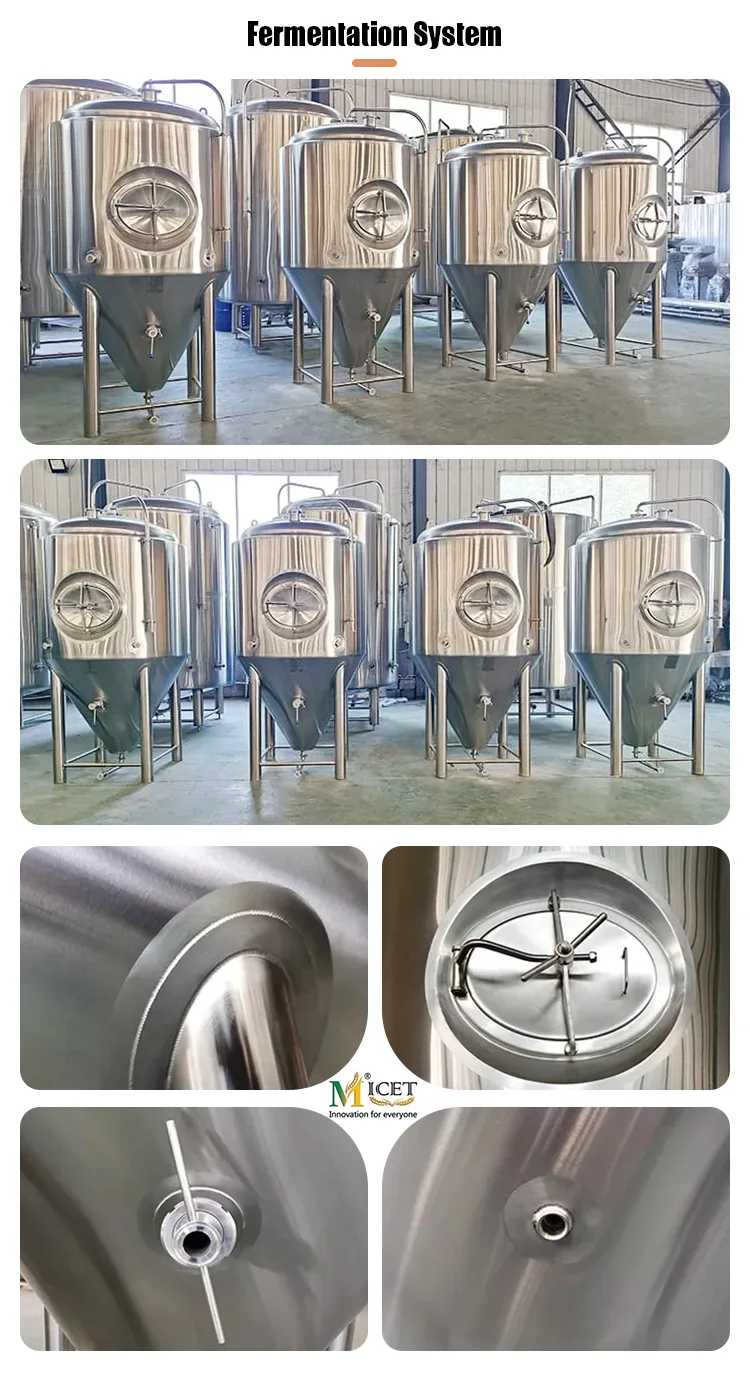

Fermentation system | Fermenters | Volume is 600L or 1200L (double batches) | 6 pcs | ||
BBT (option) | Volume is 600L or 1200L (double batches) | 2 pcs | |||

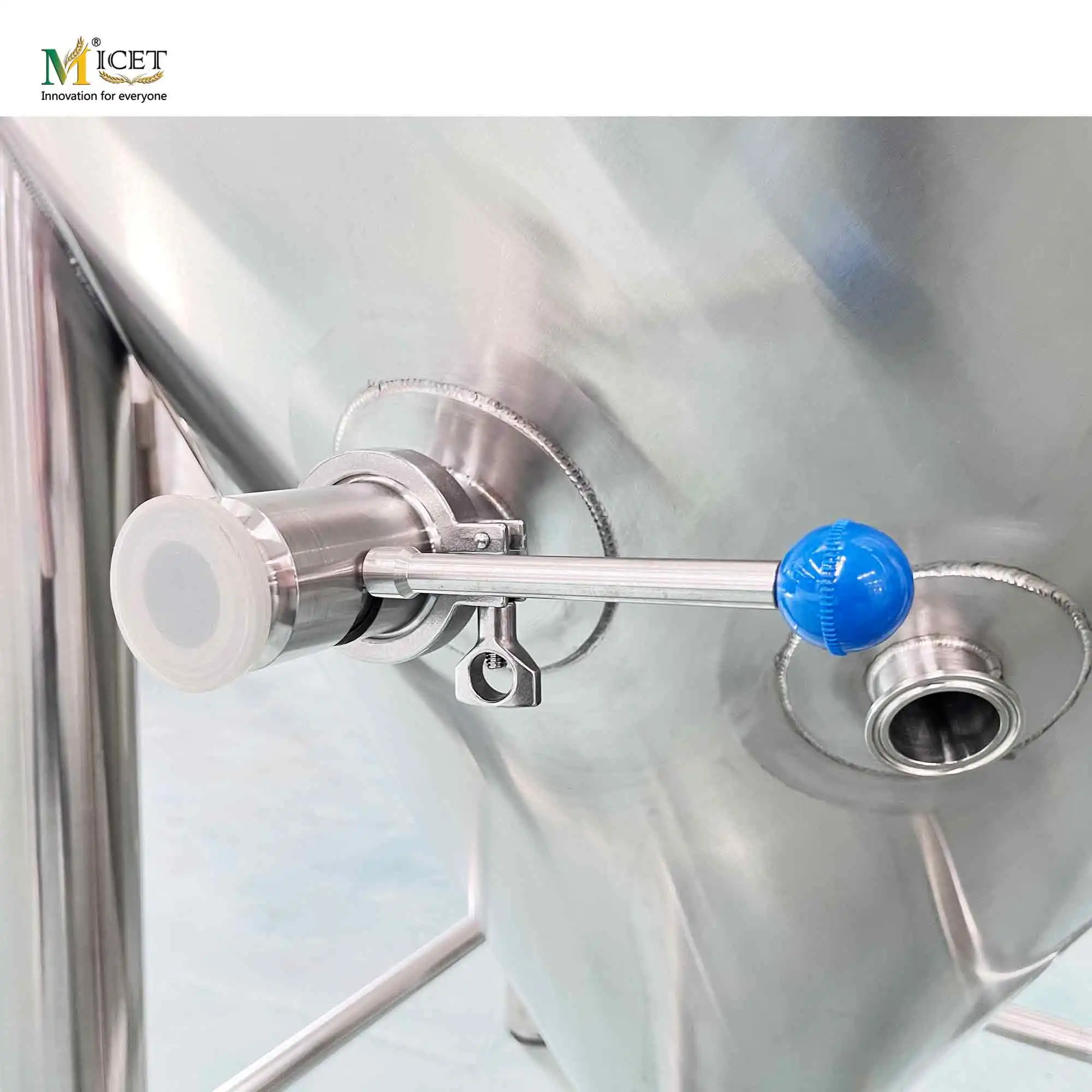

Racking arm, spunding valve, pressure gauge, carbonation stone, sample valve | |||||
Cooling system | Glycol tank | Volume 600L or 1200L | 1 pc | ||
Cold water tank (option) | Volume 1200L, cooled by glycol tank | 1 pc | |||
Chiller | 3HP, Copeland | 1 pc | |||
Cleaning system | CIP | 50L two tanks, heated by electric, with pump and trolley | 1 pc | ||
Controlling system | Control cabinet | PLC touch screen or PID controller | 1 pc | ||
1. We can customize the equipment design as per customer brewing method and brewing beer types can make beer highest to 33 Plato.
2. All Construction uses high-quality SUS 304 food-grade stainless steel, all pipes are SUS304, perfect 3mm inner shell and 2mm outer shell.
3. All tanks are equipped with specially designed jackets to ensure heating and cooling efficiency. Both cone top and shell bottom have jackets, exchanging areas are big enough.
4. The headspace of our tanks is much bigger, the total volume does not include the cover headspace.

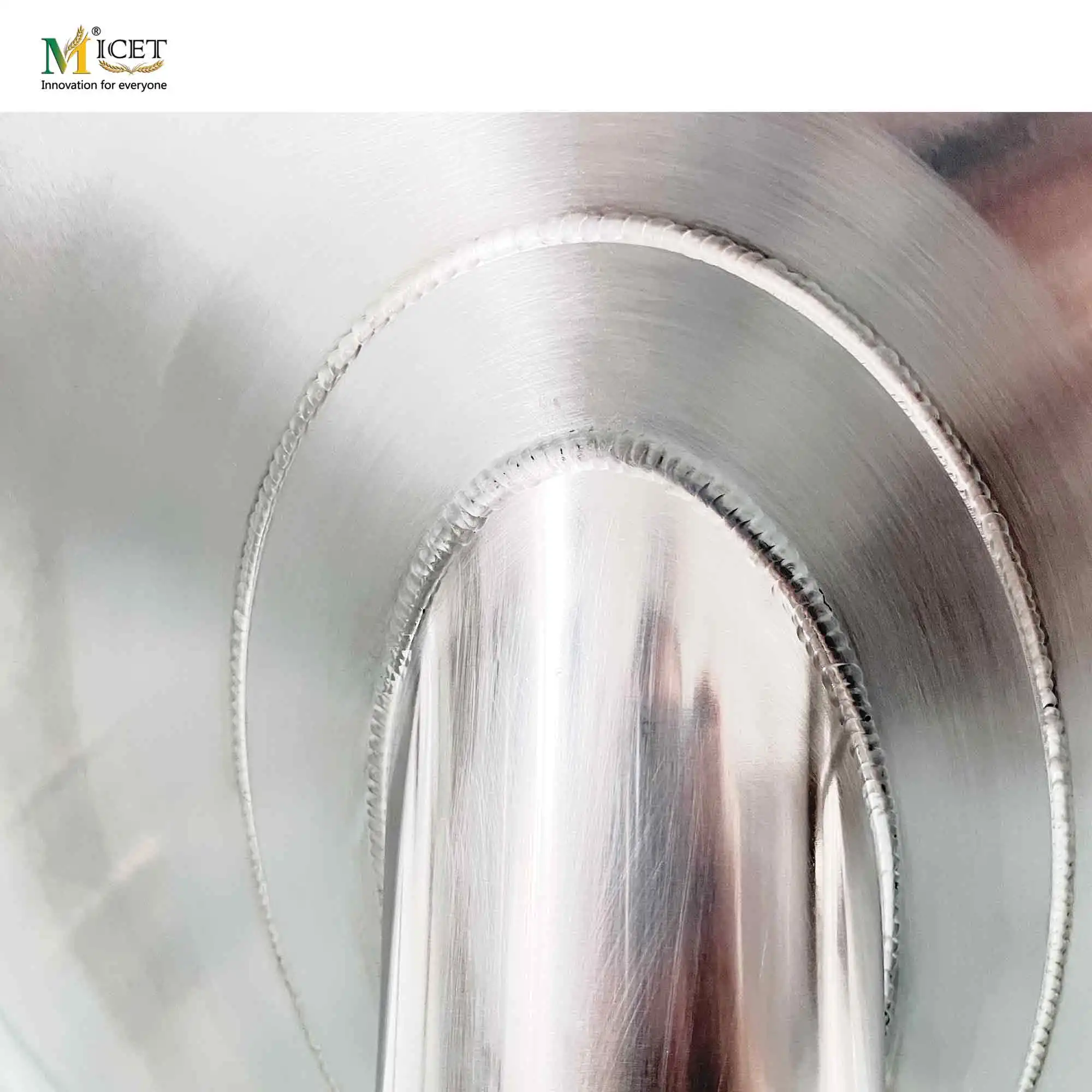

5. 100% TIG welding process to weld the tank, jackets welding are all full welding by water, uniform dimpled cooling jacket to ensure no leaking and long life, welds passivated!
6. Our polishing is overall mirror polishing, polishing 6 times to make Ra 0.4um mirror finish, can clean 360° without dead ends.
7. Jacket testing 12 hours with air and water, jacket testing pressure is 5Bar, internal shell testing pressure is 4Bar, and before packing we will also have 48hours of water testing.
8. Strict quality control and process inspection & testing system, which all the testing records will show on our data late with the tanks shipping, with checking the list and serial numbers to track.
9. We insist on a high-end product line to manufacture our tanks, all components like chiller, exchanger, steam boiler, and Schneider/ABB electronics control systems all adopt international brands to ensure quality and convenient after-sales.
FCL shipping
1. All piping mark numbers before shipping. Meanwhile, In order to help customers to install easily, we will provide a whole process piping installation diagram as per the installation sequence.
2. All the accessorizes for brewhouse and fermenting will be counted and packed separately.
3. Each of our ports will have a lid in case the dust goes inside during shipping. For packing, the stand tank will be fully packed in case of any salt corrosion on the sea, for horizontal tanks, tanks will be packed by a steel frame on the skid and the legs will be fixed by a thread in case of any moving during transportation.
3. Each of our ports will have a lid in case the dust goes inside during shipping. For packing, the stand tank will be fully packed in case of any salt corrosion on the sea, for horizontal tanks, tanks will be packed by a steel frame on the skid and the legs will be fixed by a thread in case of any moving during transportation.
How does Micet do quality control?
Micet will have at least 4 times inspections for each order, including materials come inspection, production process control, finished production inspection, and full line testing and inspection before shipping to ensure the final product will meet the client's requirements.
How to choose brewhouse equipment?
Brewhouse system selection for purchasing beer equipment there are about basically four types including 2 vessel brewhouse, 3 vessel brewhouse, and 4 vessel brewhouse. The combination type can be chosen depending on the client's budget, space size, local brewing process. We will also recommend according to old clients' experiences and different country brewing features.
How long is the delivery time?
1. The manufacturing time is 40 working days and will be enforced as soon as receiving the deposit.
2. The technical files (layout, drawings, etc) confirmation time shall not be included in the manufacturing time.
What is your payment term?
1. T/T transfer, 40% advance payment for start production, after paying 60% balance payment for shipping.
2. Paypal or trade assurance is available.
What is your warranty term?
Main machine guarantee for three years we'll provide free repairing. If anywhere goes wrong during. During this period accessories and electronic components will have a one-year free warranty. Anything is broken during the warranty. The replacements will be sent immediately and get within. Provide daily maintenance and technical services.
