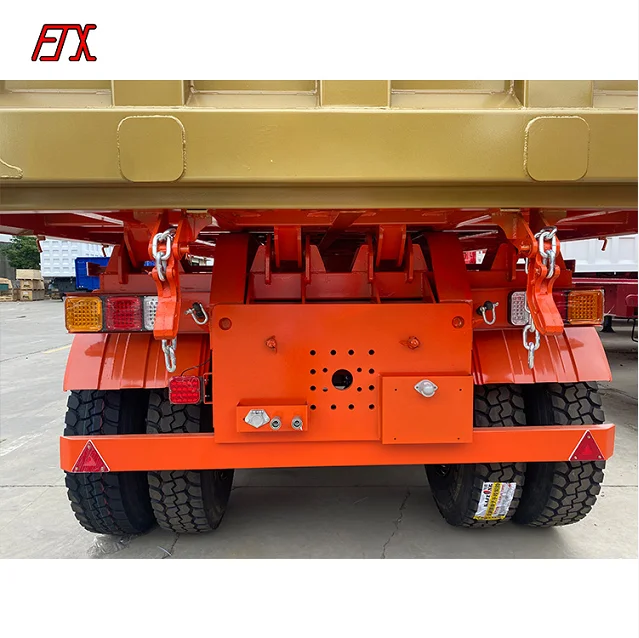

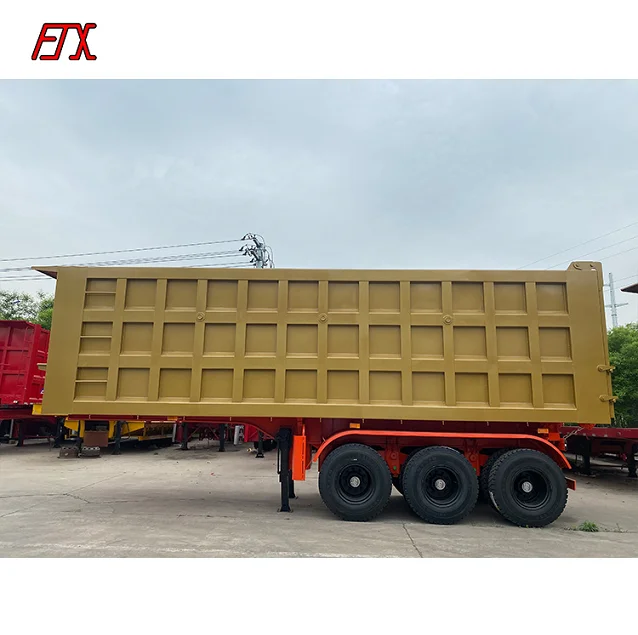

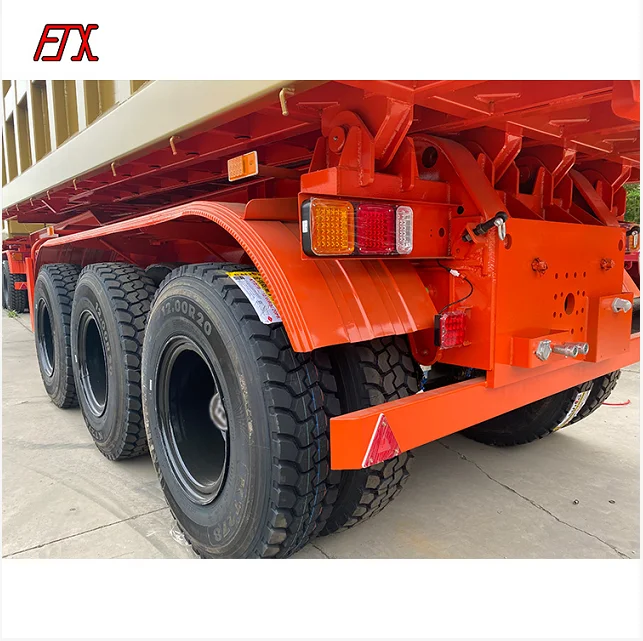

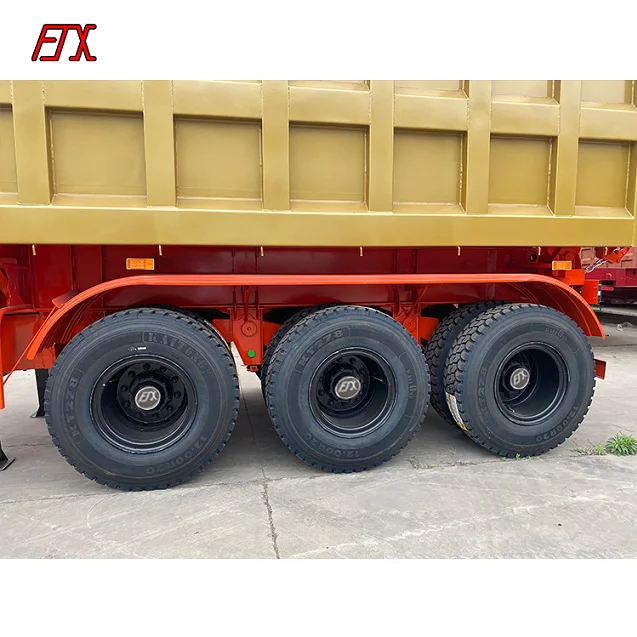

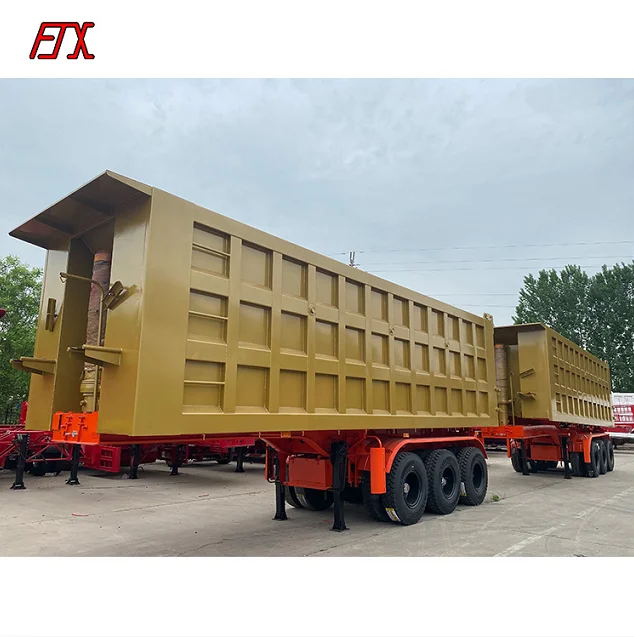

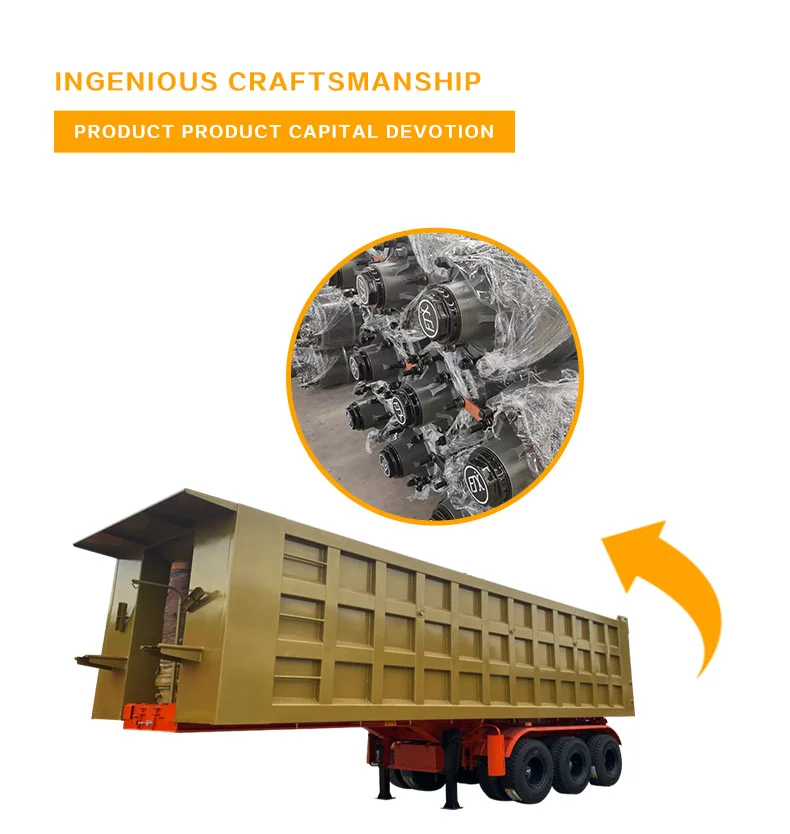

Dump semi trailer 40t 50t truck 3 axle U shaped dump semi trailer tractor hydraulic mining trailer
- Category: >>>
- Supplier: Liangshan Juxin Machinery Co. Ltd.
Share on (11000007964841):
Product Overview
Description
Product Paramenters
High Qualiy 3/4 Axle 80ton Tipper Semi Trailer For Sale | ||||||||
Product Name | Juxin Rear Tipper Semi Trailer | |||||||
Bottom plate thickness | 3mm -6mm diamond plate /Q235 steel | |||||||
Side Wall thickness | 2.3mm Q235 steel (three or five door opening door ) | |||||||
Lifting System | Full set of Hydraulic Lifting system (Four diameter125mm lifting cylinder, and one diameter140mm lifting cylinder.) | |||||||

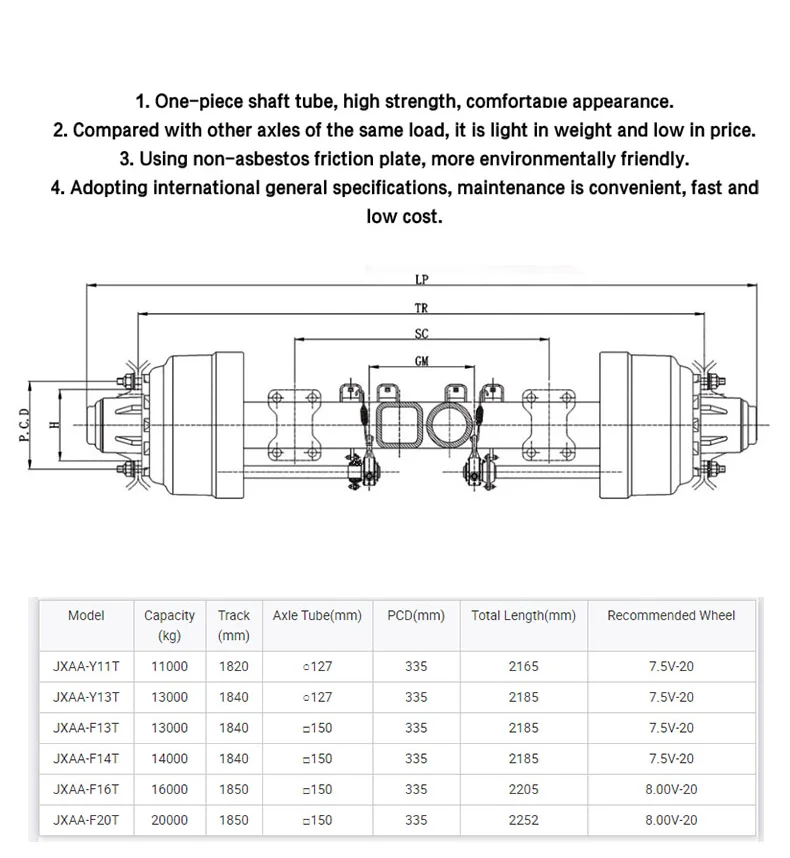

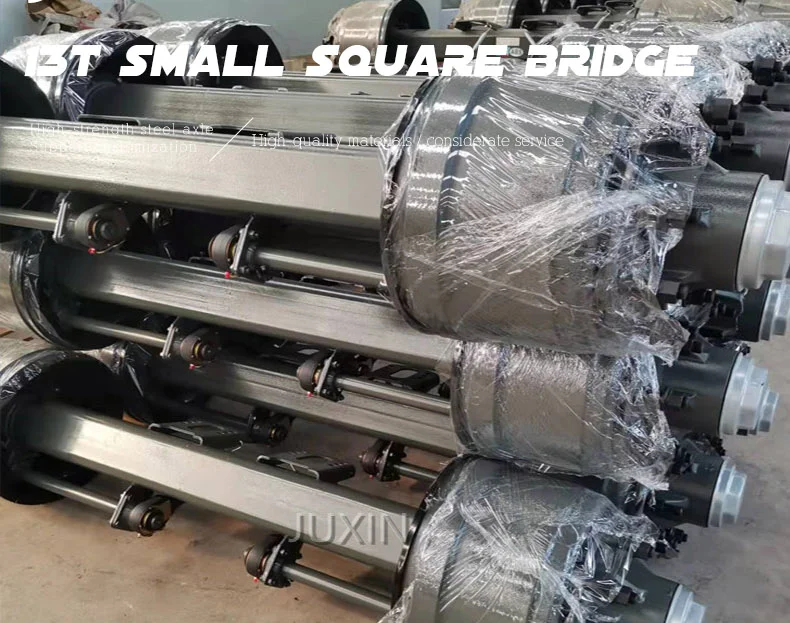

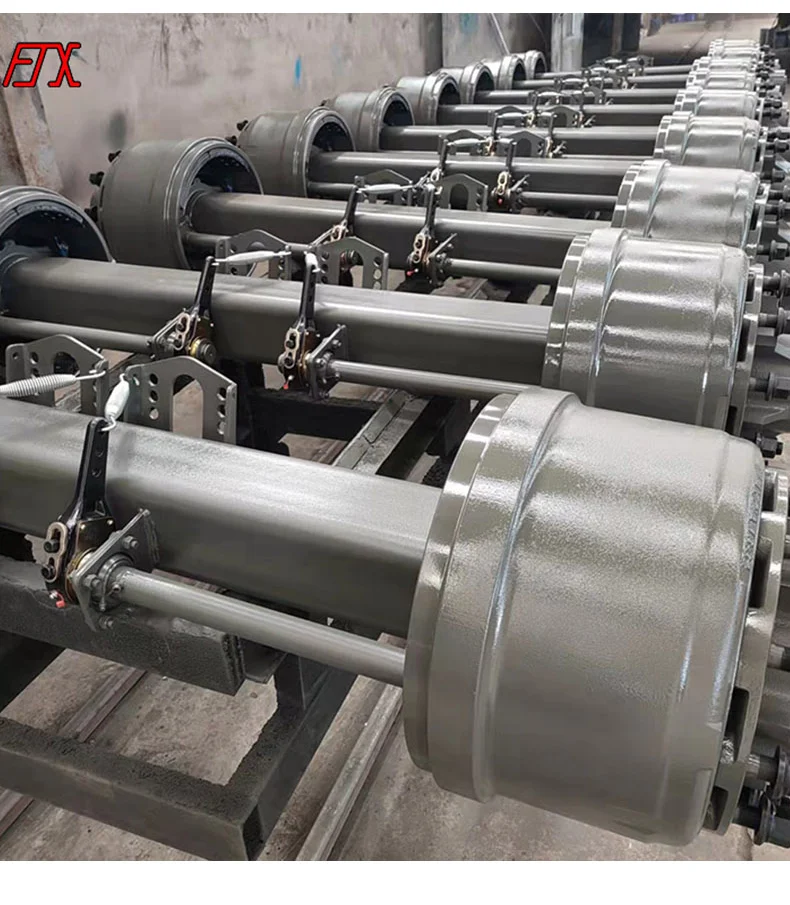

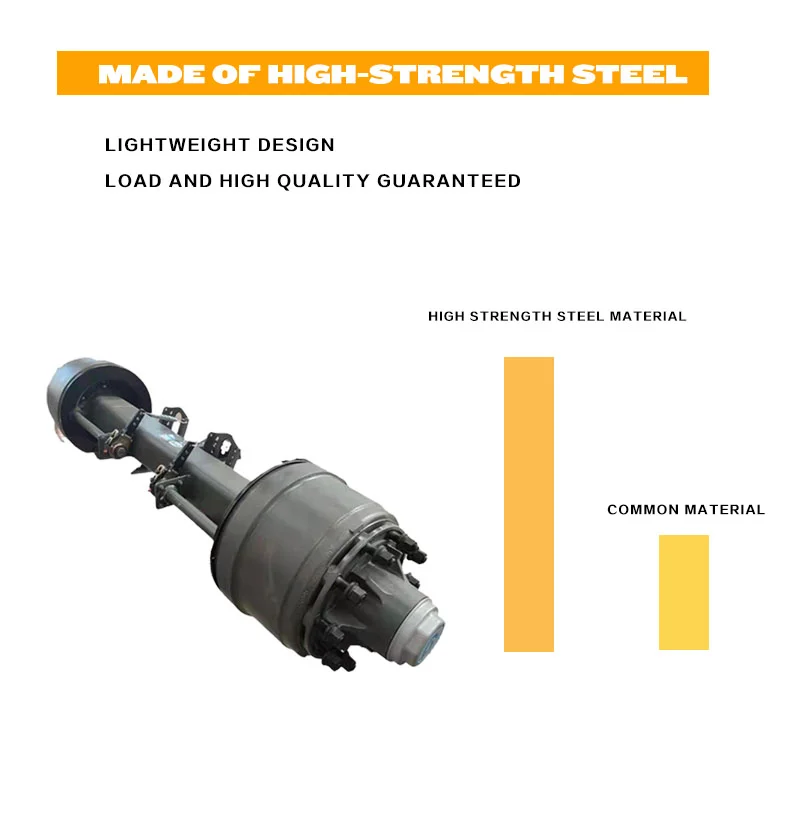

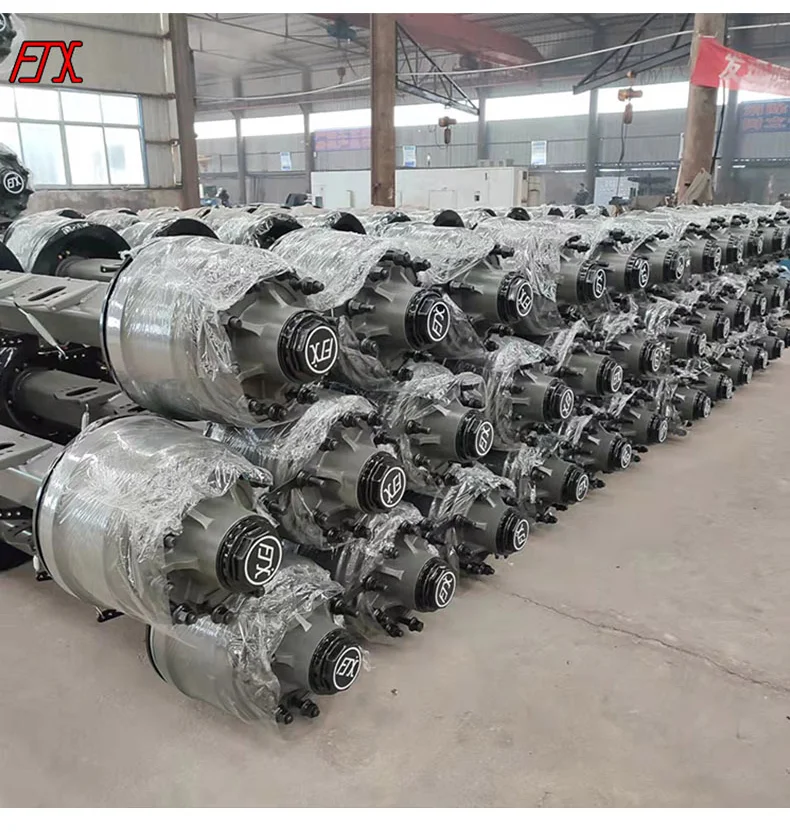

Axle | 13T/16T, FUWA /BPW /Huajing Brand/GV Brand | |||||||
Tire | 12.00R22.5 315/ 80R22.5 11.00R20 12.00R20 (special for export market ) | |||||||
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (special for export market ) | |||||||
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (special for export market ) | |||||||
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type | |||||||
Support Leg | JOST brand D200T or China brand 28Tons (Double speed) | |||||||
Main Beam | Height: 500mm,.upper plate is 16mm, middle plate is 8mm, down plate is18mm(thickness),material is Q345B steel. | |||||||
Side Beam | 16mm or 18mm channel steel (Material is Q235steel). | |||||||

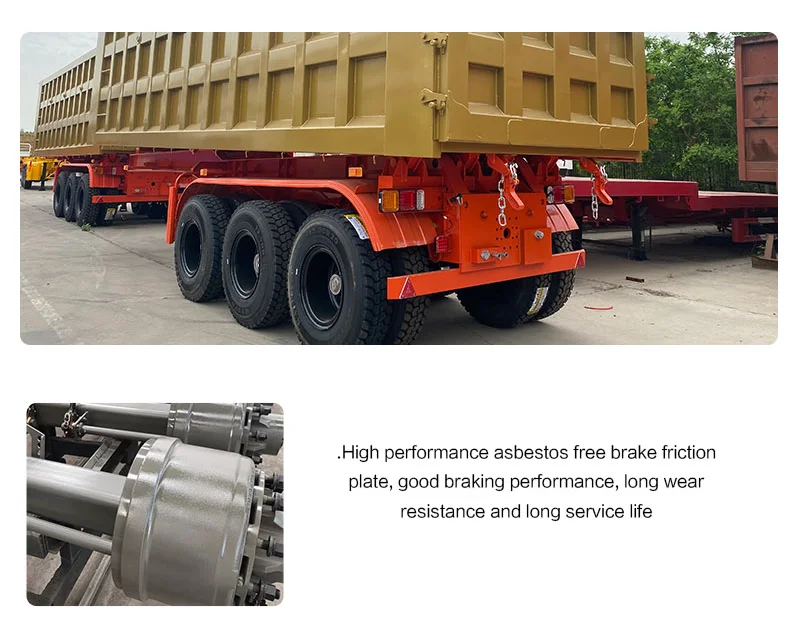

Brake Chamber | T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks | |||||||
ABS | optional | |||||||
Twist Locks | Optional;Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) | |||||||
Valve | WABCO valve | |||||||
Electric system | LED light,24V,7ways(7 wire harness) | |||||||
Tool box | One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner, and 1 unit cranking bar) | |||||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive paint, 2 coats of final paint. | |||||||
Shipping Terms | By bulk cargo carrier, RORO or 40HQ container. | |||||||
