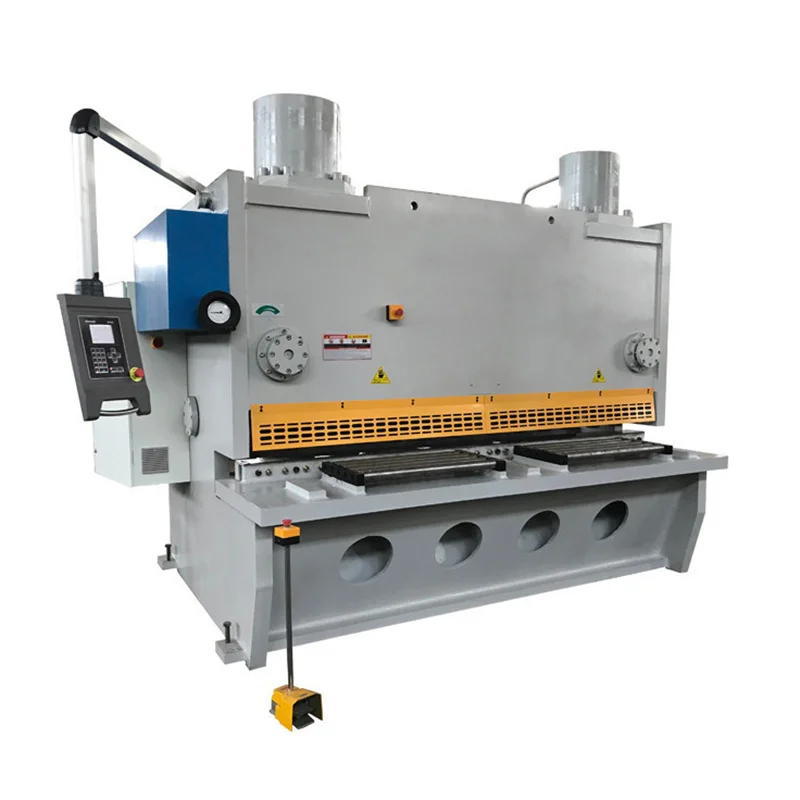

CNC 10mm Thickness Hydraulic Metal Stainless Steel Aluminum Shearing Guillotine Cutting Shearing Machine
- Category: >>>
- Supplier: Anhui Zhongrui Machine Manufacturing Co. Ltd.
Share on (11000007968873):
Product Overview
Description
Feature
1.Totally EU streamlined design, Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,
3. The RAYMAX Hydraulic Guillotine is a Variable Rake Action machine which is produced in a variety of cutting lengths and capacity options.
2. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,
3. The RAYMAX Hydraulic Guillotine is a Variable Rake Action machine which is produced in a variety of cutting lengths and capacity options.

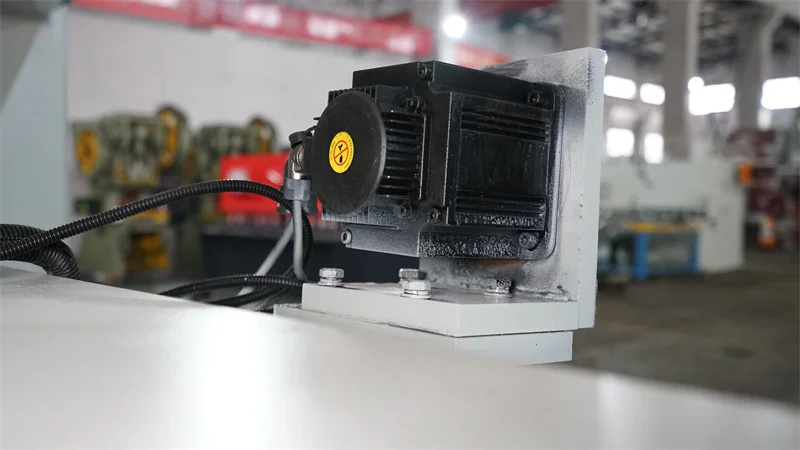

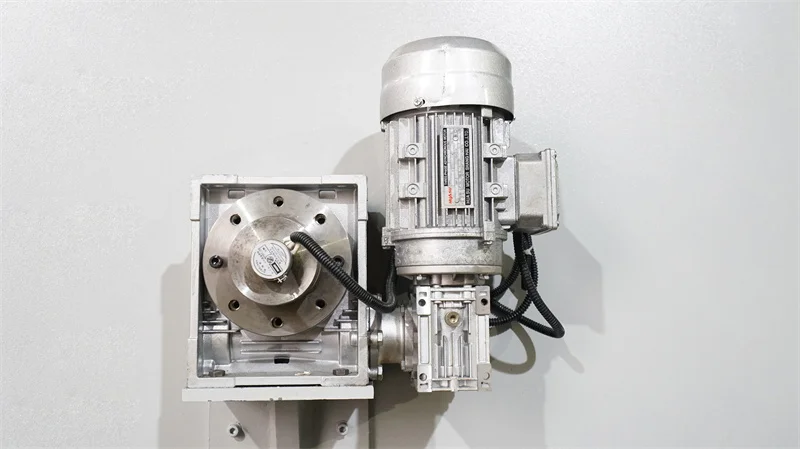

4. The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by ELGO P40T with Servo motor.
5. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety to CE regulation
Model | Cutting thickness (mm) | Cutting length (mm) | Cutting Angel (°) | Stopper Adjust Range (mm) | Stroke time (min-1) | Motor (KW) | Dimension(mm) | Weight(t) |
QC11Y-6X2500 | 6 | 2500 | 0.5~1.5 | 500 | 20 | 7.5 | 2850X1800X1950 | 4 |
QC11Y-6X3200 | 6 | 3200 | 0.5~1.5 | 500 | 16 | 7.5 | 3450X1850X2000 | 5.2 |
QC11Y-6X4000 | 6 | 4000 | 0.5~1.5 | 500 | 12 | 7.5 | 4550X1850X2000 | 7 |
QC11Y-6X6000 | 6 | 6000 | 0.5~1.5 | 500 | 10 | 15 | 6940X2200X2450 | 11.5 |
QC11Y-8X2500 | 8 | 2500 | 0.5~1.5 | 500 | 18 | 11 | 2860X1850X2150 | 5 |
QC11Y-8X3200 | 8 | 3200 | 0.5~1.5 | 500 | 14 | 11 | 3460X1850X2150 | 6.2 |
QC11Y-8X4000 | 8 | 4000 | 0.5~2 | 500 | 12 | 11 | 4550X1750X1950 | 8 |
QC11Y-8X6000 | 8 | 6000 | 0.5~2 | 500 | 10 | 15 | 6940X2250X2550 | 14 |
QC11Y-10X2500 | 10 | 2500 | 0.5~2 | 500 | 15 | 15 | 2950X1850X2050 | 7 |
QC11Y-10X3200 | 10 | 3200 | 0.5~2 | 500 | 13 | 15 | 3650X1850X2050 | 8.3 |
QC11Y-10X4000 | 10 | 4000 | 0.5~2 | 500 | 12 | 18.5 | 4550X2050X2150 | 9 |
QC11Y-10X6000 | 10 | 6000 | 0.5~2 | 600 | 10 | 18.5 | 6850X2550X2650 | 17 |
QC11Y-13X2500 | 13 | 2500 | 0.5~2 | 600 | 14 | 15 | 3050X2050X2150 | 8 |
QC11Y-13X3200 | 13 | 3200 | 0.5~2 | 600 | 13 | 15 | 3650X2050X2150 | 9 |
QC11Y-13X4000 | 13 | 4000 | 0.5~2 | 600 | 10 | 18.5 | 4550X2050X2150 | 10 |
QC11Y-13X6000 | 13 | 6000 | 0.5~2 | 600 | 8 | 22 | 6850X2550X2650 | 16 |
QC11Y-16X2500 | 16 | 2500 | 0.5~2 | 600 | 12 | 18.5 | 2850X2150X2350 | 9 |
QC11Y-16X3200 | 16 | 3200 | 0.5~2 | 600 | 10 | 18.5 | 3650X2150X2350 | 10.6 |
QC11Y-16X4000 | 16 | 4000 | 0.5~2 | 600 | 9 | 18.5 | 4350X2250X2450 | 14 |
QC11Y-16X6000 | 16 | 6000 | 0.5~2 | 600 | 8 | 30 | 6850X2550X2750 | 25 |
QC11Y-20X3200 | 20 | 3200 | 0.5~3 | 600 | 10 | 30 | 3550X2350X2550 | 18 |
QC11Y-20X4000 | 20 | 4000 | 0.5~3 | 600 | 8 | 30 | 4540X2500X2950 | 22 |
QC11Y-20X6000 | 20 | 6000 | 0.5~3 | 600 | 8 | 30 | 6850X2650X2950 | 28 |
