40W Self contained Pre wired Trunking for Retail Shop Malls LED Linear Trunking System
- Category: >>>
- Supplier: Shenzhen Litehome Optoelectronic Technology Co. Ltd.
Share on (11000007974255):
Product Overview
Description
Products Description
LED Trunking Light
This led light is a relatively novel product:
It is the same as Trunking Grille Light and can be used as cable raceway. There is no need to worry about the danger of the wires of the lamps being exposed to the outside, and it also ensures the beauty and neat of the ceiling.

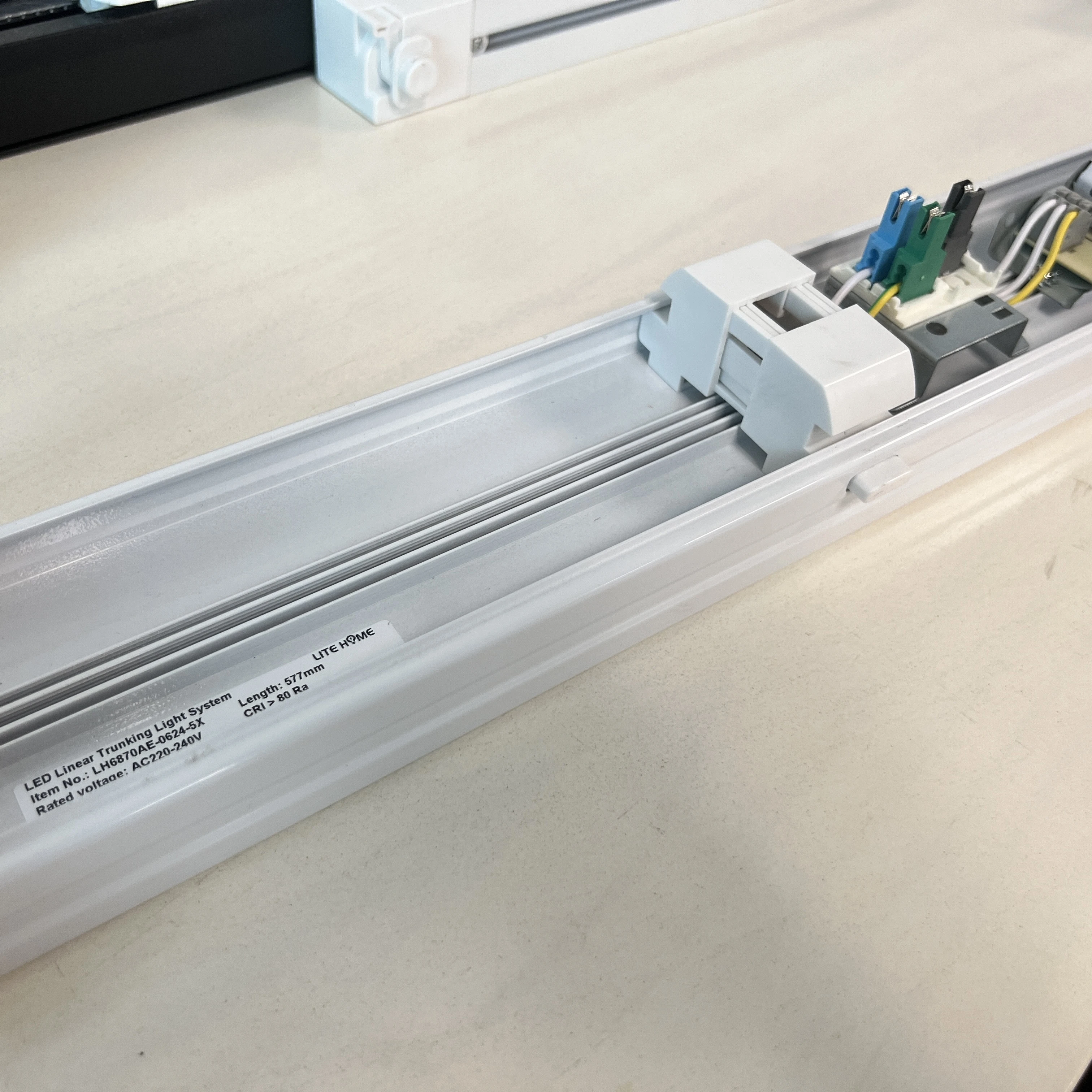

Easy to install: It is self-contained pre-wired trunking and have click system. It's easy to install. The trunking will be put into the wires according to the customer's requirements, and no additional wiring is required during installation. Just connect the terminals inside the trunking.
Different numbers of wires in the cable raceway represent different functions:
5 wires: Basic Lighting
6 wires: Basic Lighting OR Built-in Battery Emergency
7 wires: Basic Lighting + Dimming
8 wires: Basic Lighting + Dimming + Built-in Battery Emergency
11 wires: Basic Lighting + Dimming + 2xUPS Emergency
It is the same as Trunking Grille Light and can be used as cable raceway. There is no need to worry about the danger of the wires of the lamps being exposed to the outside, and it also ensures the beauty and neat of the ceiling.
Easy to install: It is self-contained pre-wired trunking and have click system. It's easy to install. The trunking will be put into the wires according to the customer's requirements, and no additional wiring is required during installation. Just connect the terminals inside the trunking.
Different numbers of wires in the cable raceway represent different functions:
5 wires: Basic Lighting
6 wires: Basic Lighting OR Built-in Battery Emergency
7 wires: Basic Lighting + Dimming
8 wires: Basic Lighting + Dimming + Built-in Battery Emergency
11 wires: Basic Lighting + Dimming + 2xUPS Emergency
Pre-wired Trunking(Cable Raceway)
LED Trunking Light
Product FAQ
1. What is the advantages of the linear trunking system?
A) This LED trunking system allows easy integration with connected LED lighting , Emergency model and sensors.
B) It is a self-contained pre-wire backbone and LED lighting system. It can very quick and easy install because of the click system.
C) It is continuous-row lighting assemblies that utilize trunking rails to integrate individual lighting.
2. How do I choose a trunking system that fits my specifications?
It's easy. You can tell me what functions do you need , how to install, what watt do you need and I will match it well to you. If you are a more professional buyer, I will give you a detailed accessories list for you to choose.
3. Can I get the sample?
Yes, but if you only need one sample, an additional 20% sample fee is required.
Dimensions
Pre-wired Trunking(Cable Raceway):
Length | Wires | Function | |
LH-LT-S05F-05W | 5ft/10ft | 5-wire | Basic Lighting |
LH-LT-S05F-06W | 5ft/10ft | 6-wire | Basic Lighting / Built-in Battery Emergency |
LH-LT-S05F-07W | 5ft/10ft | 7-wire | Basic Lighting + Dimming |
LH-LT-S05F-08W | 5ft/10ft | 8-wire | Basic Lighting + Dimming + Built-in Battery Emergency |
LH-LT-S05F-11W | 5ft/10ft | 11-wire | Basic Lighting + Dimming + 2 X UPS Emergency |

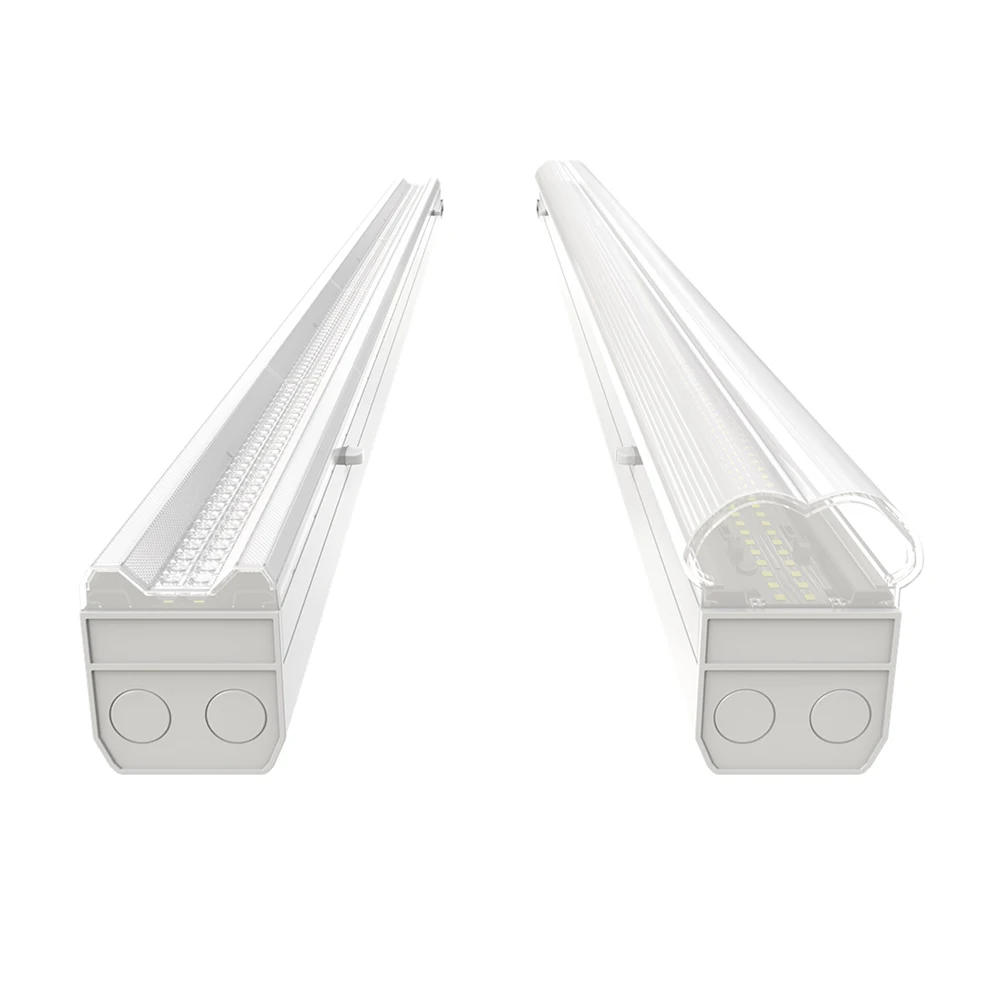

LED Trunking Light:
Size | Power | Dimming | Lumen | |
LH-SL-LS2L-5F40 | 1410*65*36mm | 40W | NO/DALI | 160lm/w |
LH-SL-LS2L-5F50 | 1410*65*36mm | 50W | NO/DALI | 160lm/w |
LH-SL-LS2L-5F65 | 1410*65*36mm | 65W | NO/DALI | 160lm/w |
LH-SL-LS2L-5F80 | 1410*65*36mm | 80W | NO/DALI | 160lm/w |
Manufacturer | LiteHome |
Product Name | LED Trunking Light |
Model | LH-SL-LS2L-5F40 |
Input Voltage | AC 200-220V |
Power | 40W |
Beam angle | 25°/30°/60°/90°/130° |
Color Temperature | 3000K, 4000K, 5000K, 5700K, 6500K |
Operating Temperature | -20℃-+45℃ |
IP Grade | IP50 |
Dimmable | NO |
CRI | ≥ 80Ra/ ≥ 90Ra |
UGR | <16, <19, <22 |
Power Factor | > 0.95 |
Warranty | 5 years |
Material | Steel |

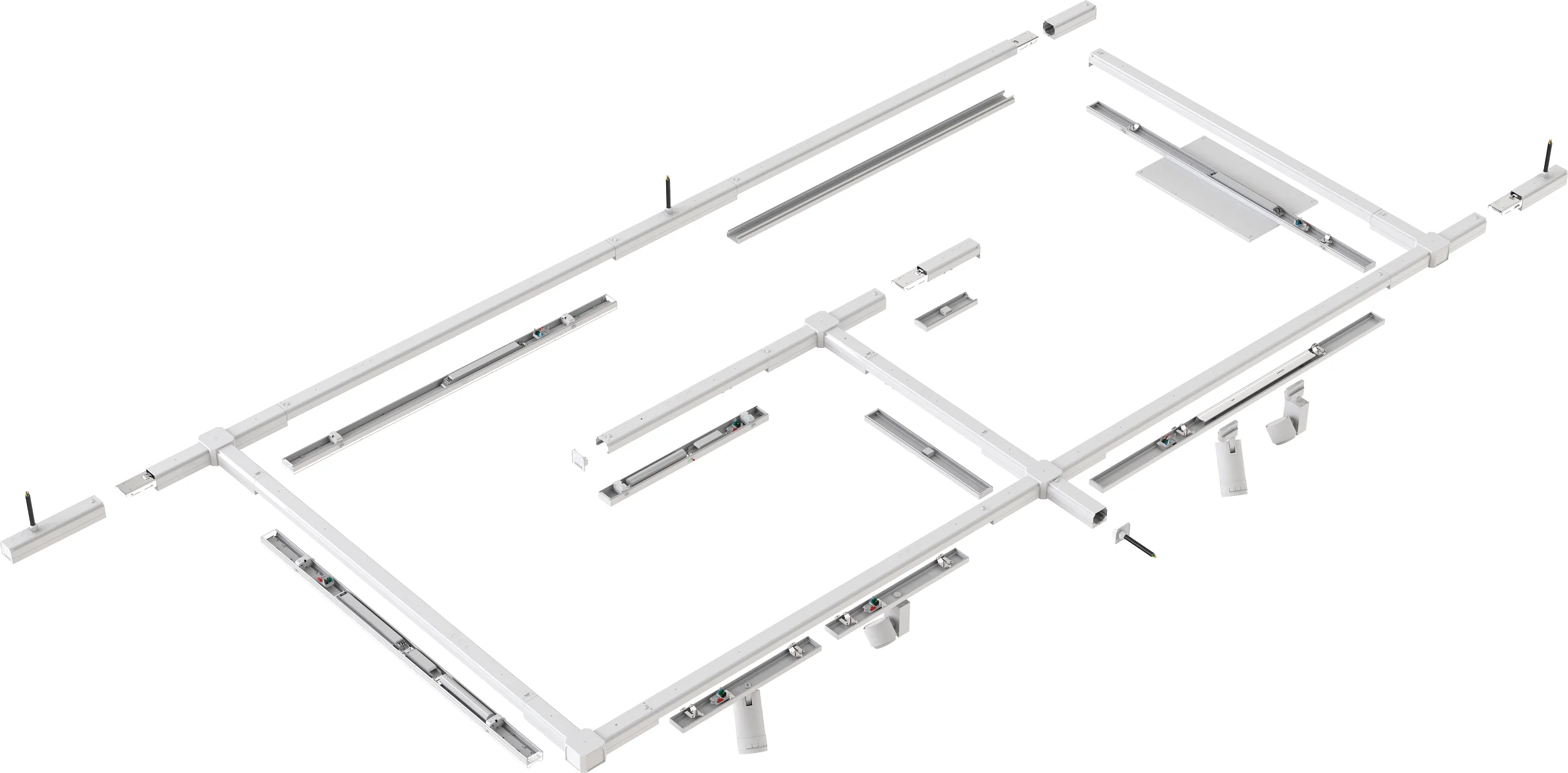

Installation

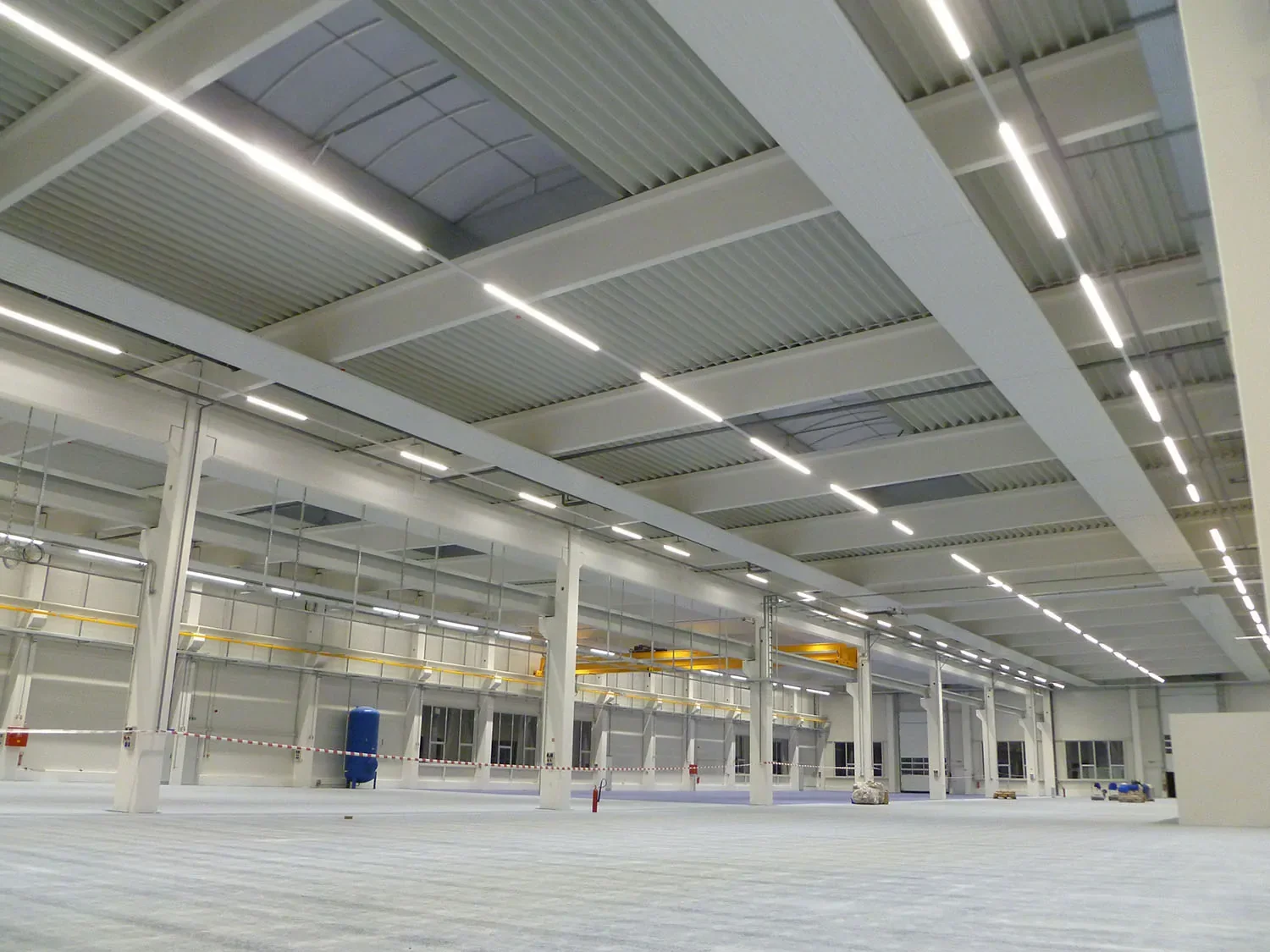

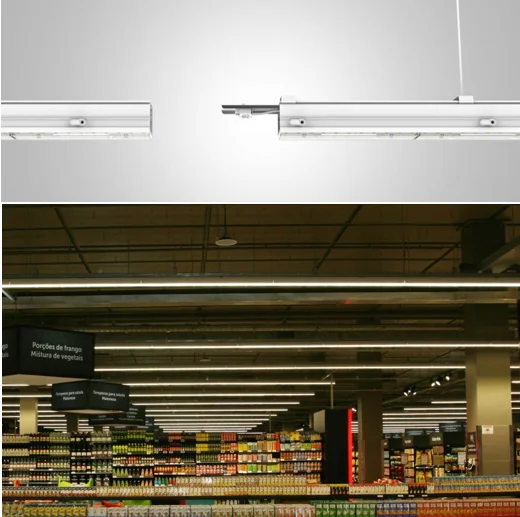

Application Showcase
Packing data
