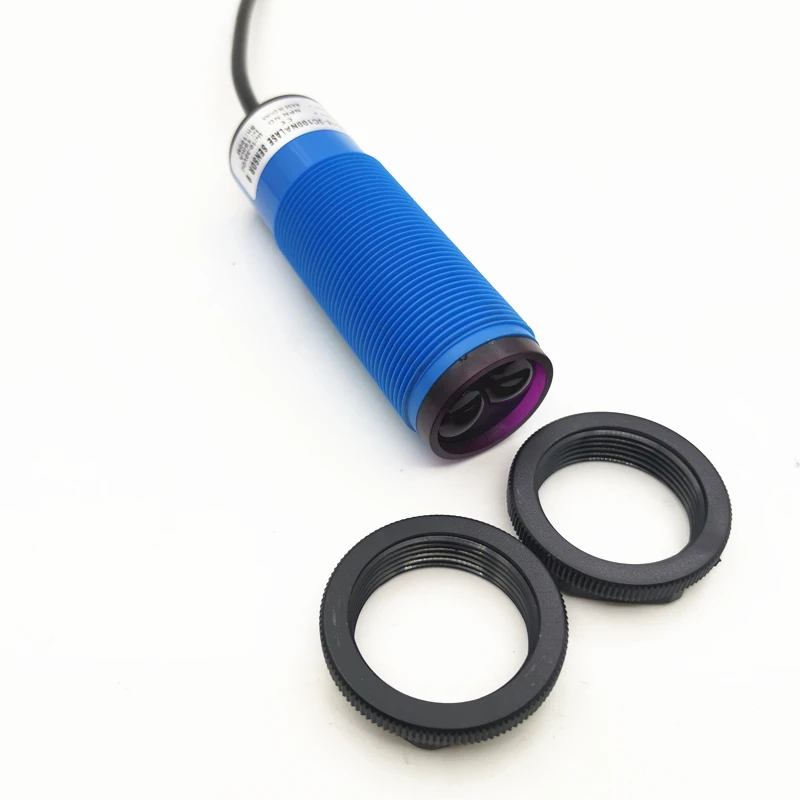

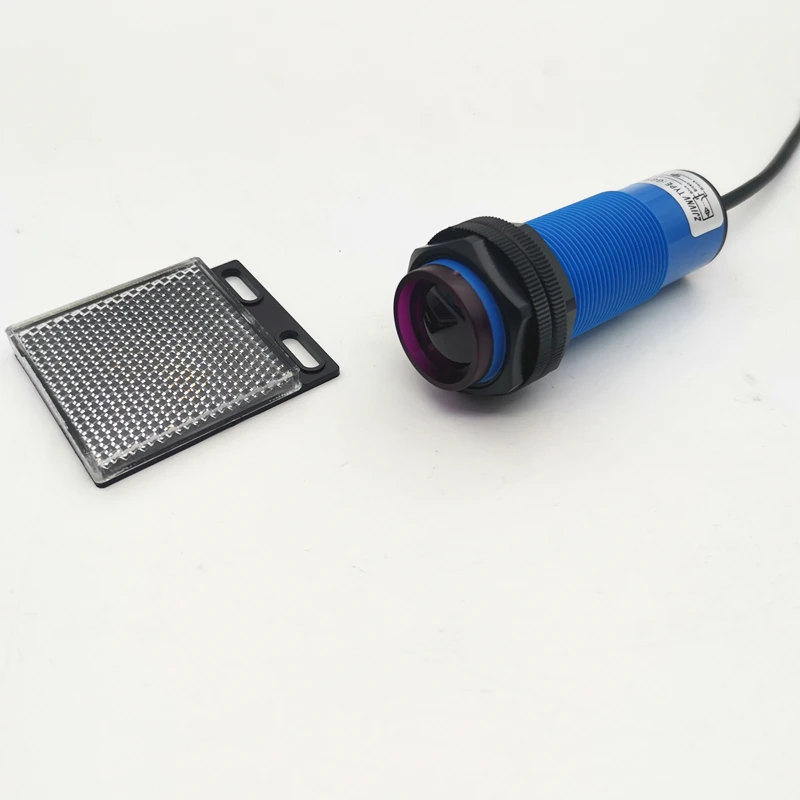

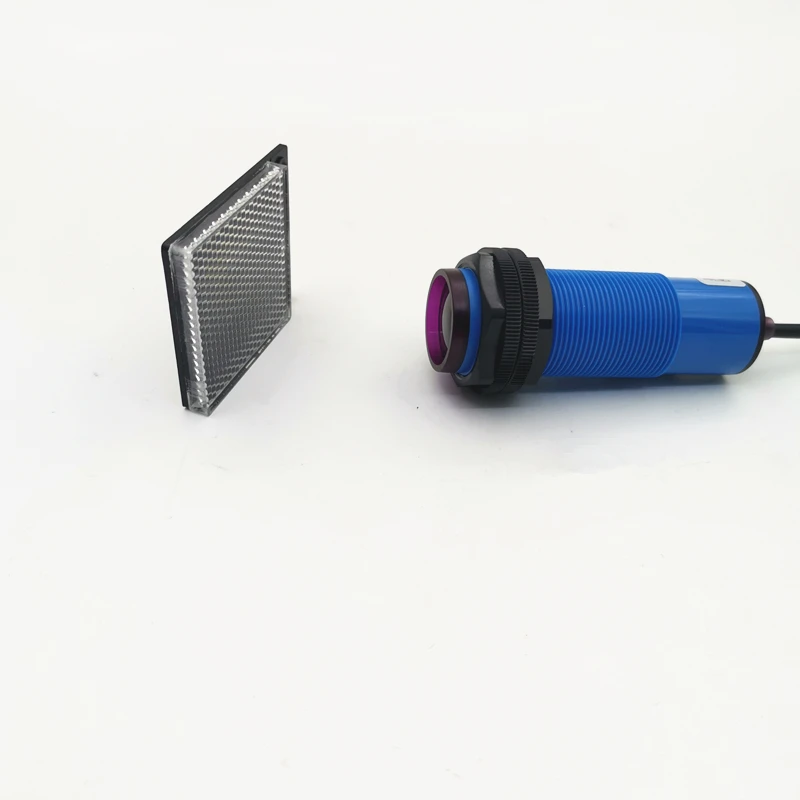

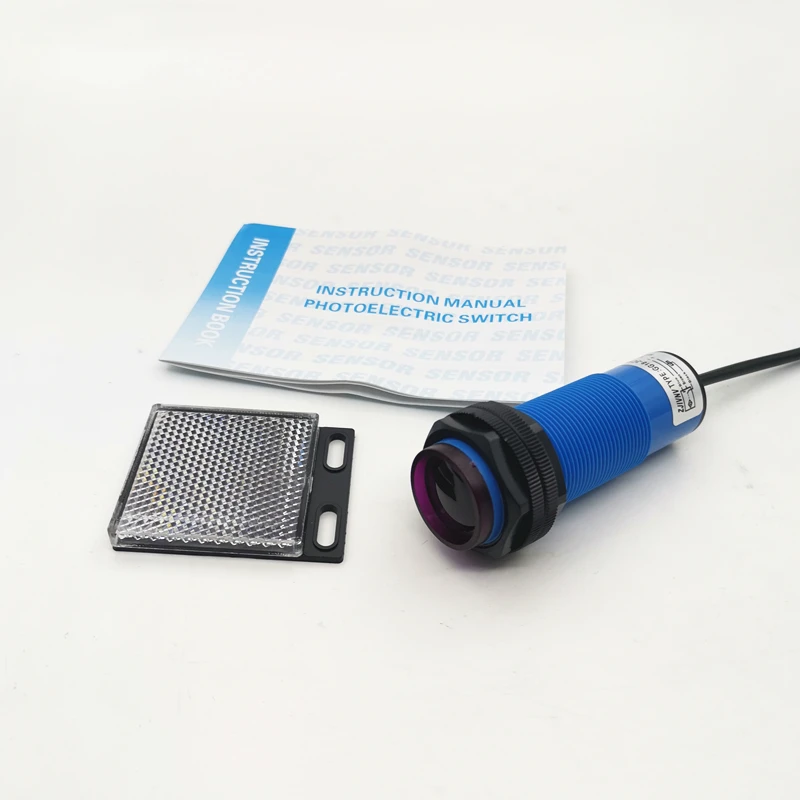

M30 retroreflective type photoelectric sensor AC 2 WIRES NO or NC thinner with mirror reflect switch distance 3m
- Category: >>>
- Supplier: Yueqing Zhijiu Electric Co. Ltd.
Share on (11000007977337):
Product Overview
Description
Advantage:
Product Name : Photoelectric sensor (Retroreflective type)
Switch Appearance Type : Cylinder Type,
Theory : Photoelectric sensor Retroreflective type
Diameter of Head : 30 mm;
Detecting Distance : 3m;
Detecting Object : Metal, non metal (body, hand, paper, food ...), Transparent or opaque boday
Supply Voltage : DC 10-30V;
Current Output : 200mA;
Response Frequency : 100Hz
External Material : Plastic shell+ PVC cable.
Portection grade: IP66
Switch Appearance Type : Cylinder Type,
Theory : Photoelectric sensor Retroreflective type
Diameter of Head : 30 mm;
Detecting Distance : 3m;
Detecting Object : Metal, non metal (body, hand, paper, food ...), Transparent or opaque boday
Supply Voltage : DC 10-30V;
Current Output : 200mA;
Response Frequency : 100Hz
External Material : Plastic shell+ PVC cable.
Portection grade: IP66
Cable length: 2m length
Other mould, if you need contact with us:
Item no. | Product name | Dia | input voltage | output form | detect distance | wire type | |
G30-3A70PA | M30 diffuse type photo sensor | 30mm(m30) | DC10-30V | PNP NO | 70CM | DC 3 wires | diffuse type, plastic shell, |
G30-3A70PB | DC10-30V | PNP NC | 70CM | DC 3 wires | |||
G30-3A70PC | DC10-30V | PNP NO+NC | 70CM | DC 4 wires | |||
G30-3A70NA | DC10-30V | NPN NO | 70CM | DC 3 wires | |||
G30-3A70NB | DC10-30V | NPN NC | 70CM | DC 3 wires | |||
G30-3A70NC | DC10-30V | NPN NO+NC | 70CM | DC 4 wires | |||
G30-2A70LA | AC90-250V | AC NO | 70CM | AC 2 wires | |||
G30-2A70LB | AC90-250V | AC NC | 70CM | AC 2 wires |
Item no. | Product name | Dia | input voltage | output form | detect distance | wire type | |
G30-3B3PA | M30 Retroreflective type photo sensor | 30mm(m30) | DC10-30V | PNP NO | 3M | DC 3 wires | plastic shell, |
G30-3B3PB | DC10-30V | PNP NC | 3M | DC 3 wires | |||
G30-3B3PC | DC10-30V | PNP NO+NC | 3M | DC 4 wires | |||
G30-3B3NA | DC10-30V | NPN NO | 3M | DC 3 wires | |||
G30-3B3NB | DC10-30V | NPN NC | 3M | DC 3 wires | |||
G30-3B3NC | DC10-30V | NPN NO+NC | 3M | DC 4 wires | |||
G30-2B3LA | AC90-250V | AC NO | 3M | AC 2 wires | |||
G30-2B3LB | AC90-250V | AC NC | 3M | AC 2 wires |
Applications
1. How we control the quality?
Aging test for 8 hours, after then we put them into the market.
2. Can we accept samples customized?
No problem for samples order, and welcome your testing before your big order.
3. What about the production capacity?
4 days for samples order under 100pcs, 7-15 days for general order under 10000pcs.
4. OEM and ODM are available?
Yes, we accept customized products
5. Will the delivery time be long for a big order?
No, we have two special parts in production line, one for samples orders, another for big orders, so we can control the delivery time as we promise in the contract.
6. What is our warranty service?
For all products we sell have 2 year warranty.
Aging test for 8 hours, after then we put them into the market.
2. Can we accept samples customized?
No problem for samples order, and welcome your testing before your big order.
3. What about the production capacity?
4 days for samples order under 100pcs, 7-15 days for general order under 10000pcs.
4. OEM and ODM are available?
Yes, we accept customized products
5. Will the delivery time be long for a big order?
No, we have two special parts in production line, one for samples orders, another for big orders, so we can control the delivery time as we promise in the contract.
6. What is our warranty service?
For all products we sell have 2 year warranty.
