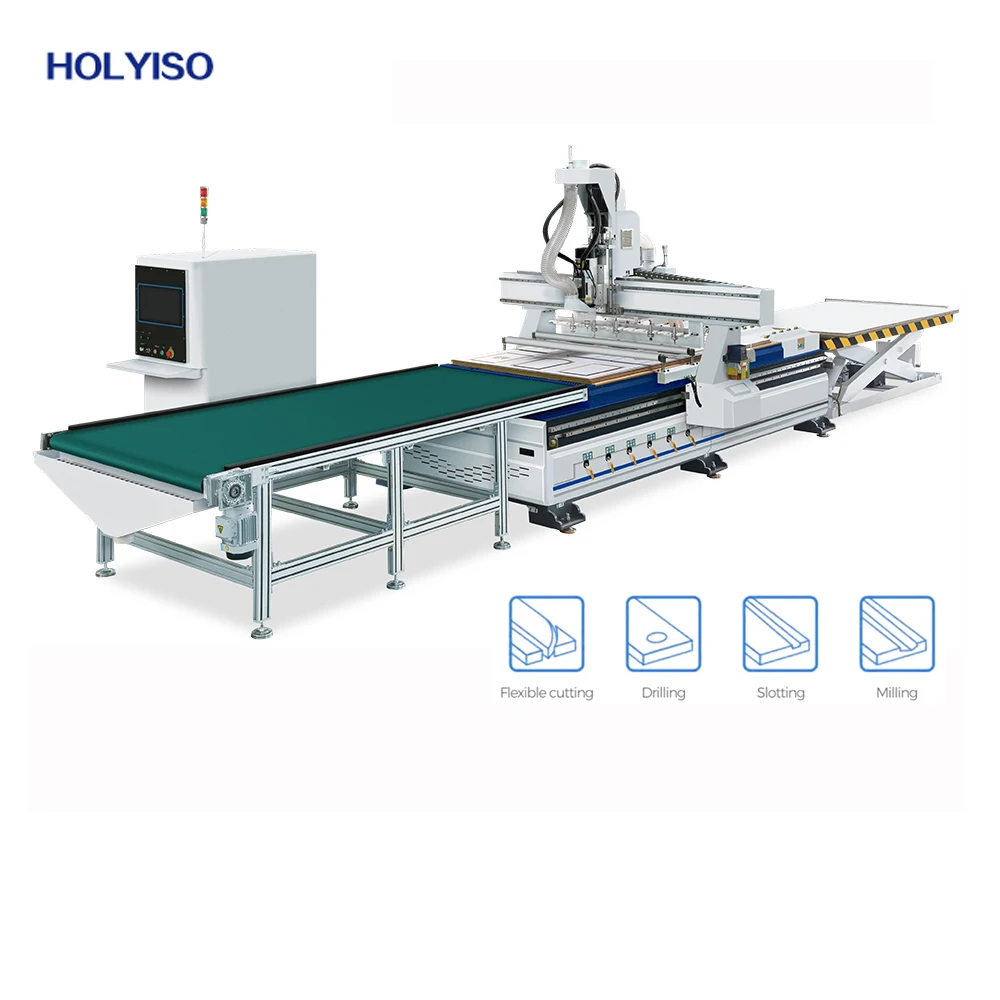

KIN-NC12L CNC Router Production Line
12 Straight-line tool changer
>> Smart connection to increase efficiency and production
Automatic loading and unloading according to the program, continuous processing without interruptionCompared with a stand-alone machine, it reduces the time of manual feeding and shutdown of the unloading machineConnect equipment into production lines to effectively increase production capacity.
Solution process:
vertical drilling, grooving, cutting special-shaped cutting, carving, milling, hollowing.
vertical drilling, grooving, cutting special-shaped cutting, carving, milling, hollowing.
Application:
Apply to processing all kinds of Particleboard, fiberboard, multilayer board, ecological board, oak board, finger joint board, wheat straw board, solid wood board, PVC board, aluminum honeycomb board, etc.Features:
KIN-NC12 CNC in-line tool changer is an in-line tool change system, integrated machining equipment for cutting, drilling and milling. The 9kw air-cooled spindle motor is equipped with a tool post. The tool post can be equipped with 12 tool heads. The tool can be changed automatically according to production needs. The production process is completed at one go, saving the time and labor of changing tools in the production process. Vacuum pumps, automatic loading and unloading platforms, pressure rollers, automatic grabbing and other accessories can also be selected according to their own needs.
KIN-NC12 CNC in-line tool changer is an in-line tool change system, integrated machining equipment for cutting, drilling and milling. The 9kw air-cooled spindle motor is equipped with a tool post. The tool post can be equipped with 12 tool heads. The tool can be changed automatically according to production needs. The production process is completed at one go, saving the time and labor of changing tools in the production process. Vacuum pumps, automatic loading and unloading platforms, pressure rollers, automatic grabbing and other accessories can also be selected according to their own needs.
Parameters | KIN-NC4 | KIN-NC6 | KIN-NC12 | KIN-NC16 | ||||
Features | Four-spindle linkage, integrated cutting, drilling and milling | Double-spindle with drill package, integrated cutting, drilling and milling | 12 Straight-line tool change, integrated cutting, drilling and milling | 16 disc type tool change, cutting, drilling and milling in one | ||||
Workable Size | 2800*1220*50mm | 2800*1220*50mm | 2800*1220*50mm | 2800*1220*50mm | ||||
Spindle power | 6KW*4 | 6kwX2+1.5kw | 9KW | 9KW | ||||
Spindle speed | 18000r/min | 18000r/min | 24000r/min | 24000r/min | ||||
Traveling speed | 80m/min | 80m/min | 80m/min | 80m/min | ||||
Working speed | 18m/min | 18m/min | 18m/min | 18m/min | ||||
Vacuum port | φ150mm*1+φ100mm*1 | φ150mm*1+φ100mm*1 | φ150mm*1+φ100mm*1 | φ150mm*1+φ100mm*1 | ||||
Dimensions | 3900*2300*2300mm | 3900*2300*2300mm | 3900*2300*2300mm | 3900*2300*2300mm | ||||
* Machine can be customized according to your needs * | ||||||||
Detail 1
9KW Spindle+12 straight tool magazine
Detail 2
12 Straight-line tool change, integrated cutting, drilling and milling.
Detail 3

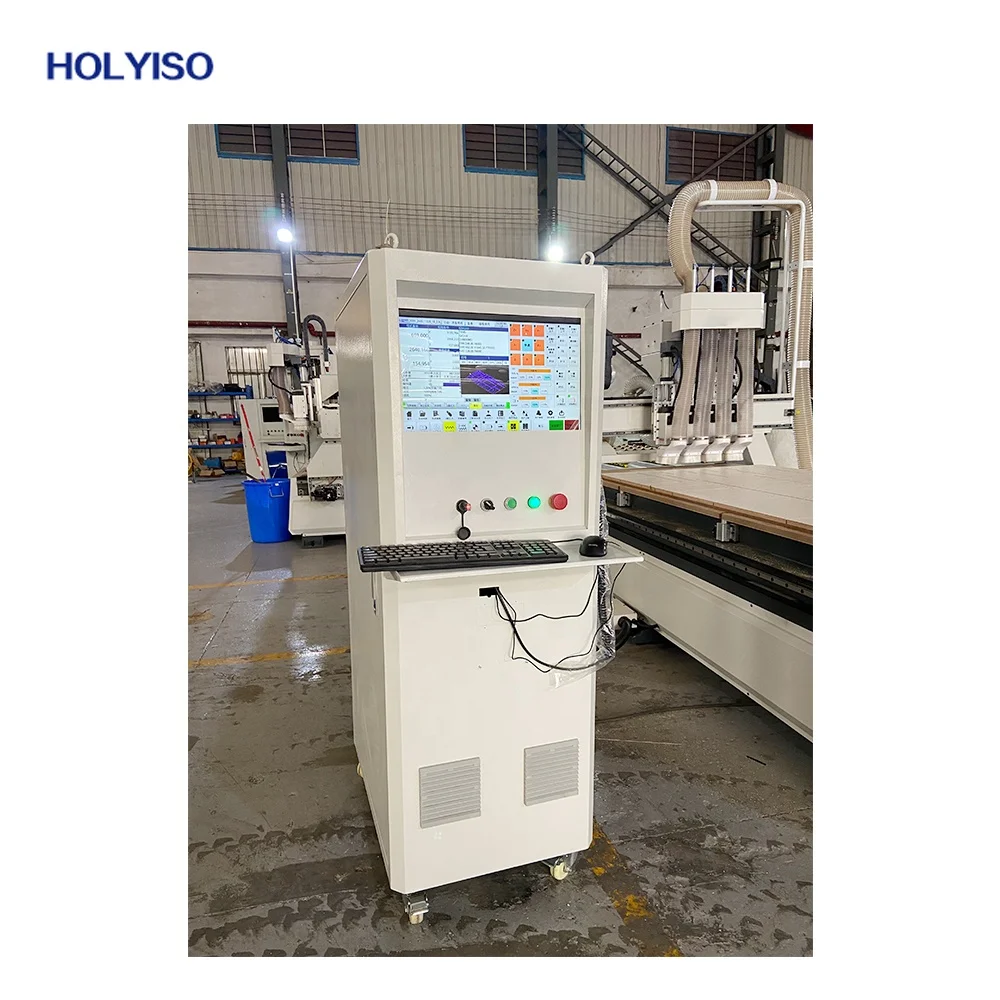

LNC System with high stability, and the operation screen is simple to use.
Detail 4
The processing speed is up to 25m/min (depending on the tool and plate, the speed is diffent)
Detail 5
Trinity feeding device
Detail 6
Pneumatic material pushing and positioning.
Detail 7
Pneumatic rubber-coated pressing roller (optional).
Detail 8
Automatic oil injection lubrication pump, and it can effectively maintain the equipment screw, guide rail, sliding block and other devices.

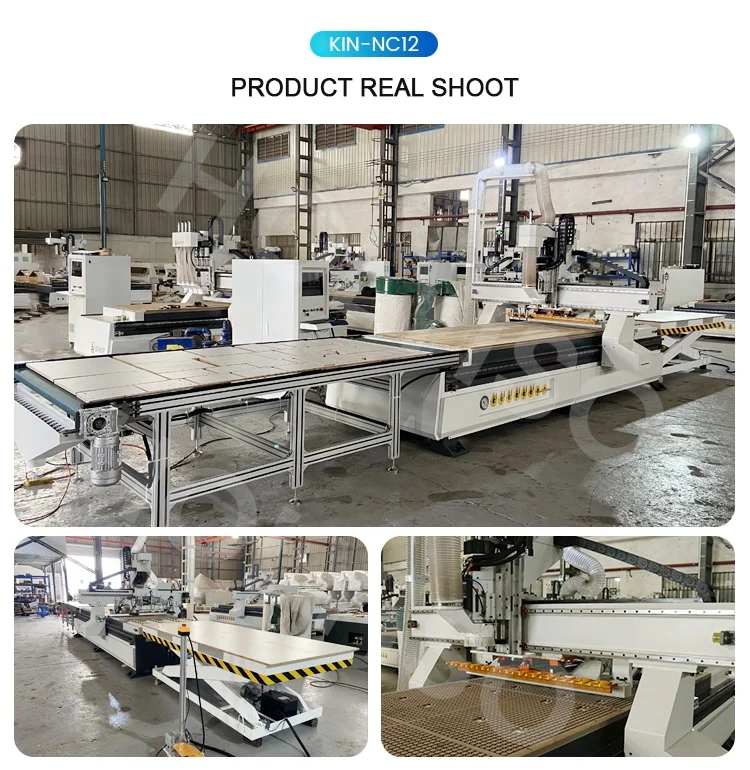

Product Real shoot
- Fitting Parameter -
Name | Automatic hydraulic elevator lift table |
Table size | 2400*1220mm |
Max. lifting height | 1500mm |
Min. lowering height | 400mm |
Hydraulic pump power | 2.2KW |
Name | Automatic Belt Feeding Conveyor |
Overall dimension | 3100*1830*830mm ( Customized size) |
Motor power | 220V/0.55kw |
Motor speed ratio | 1:30 |

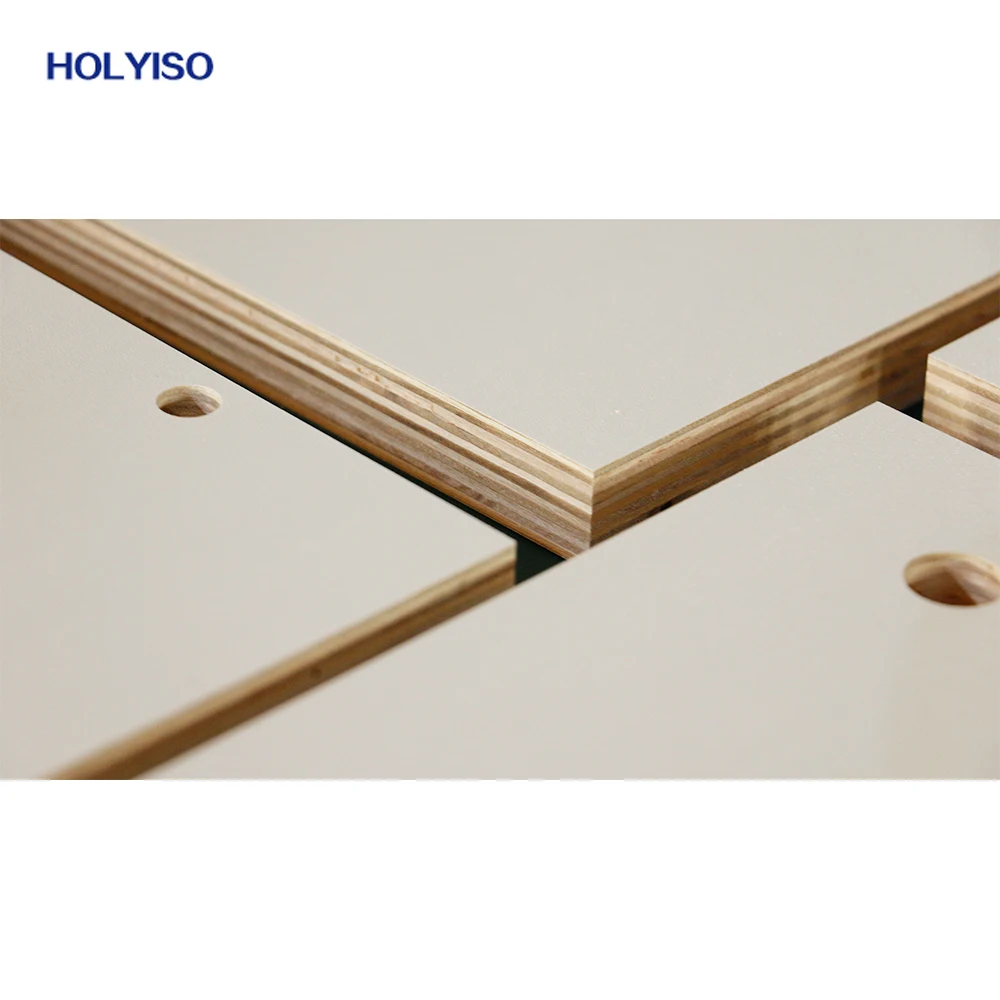

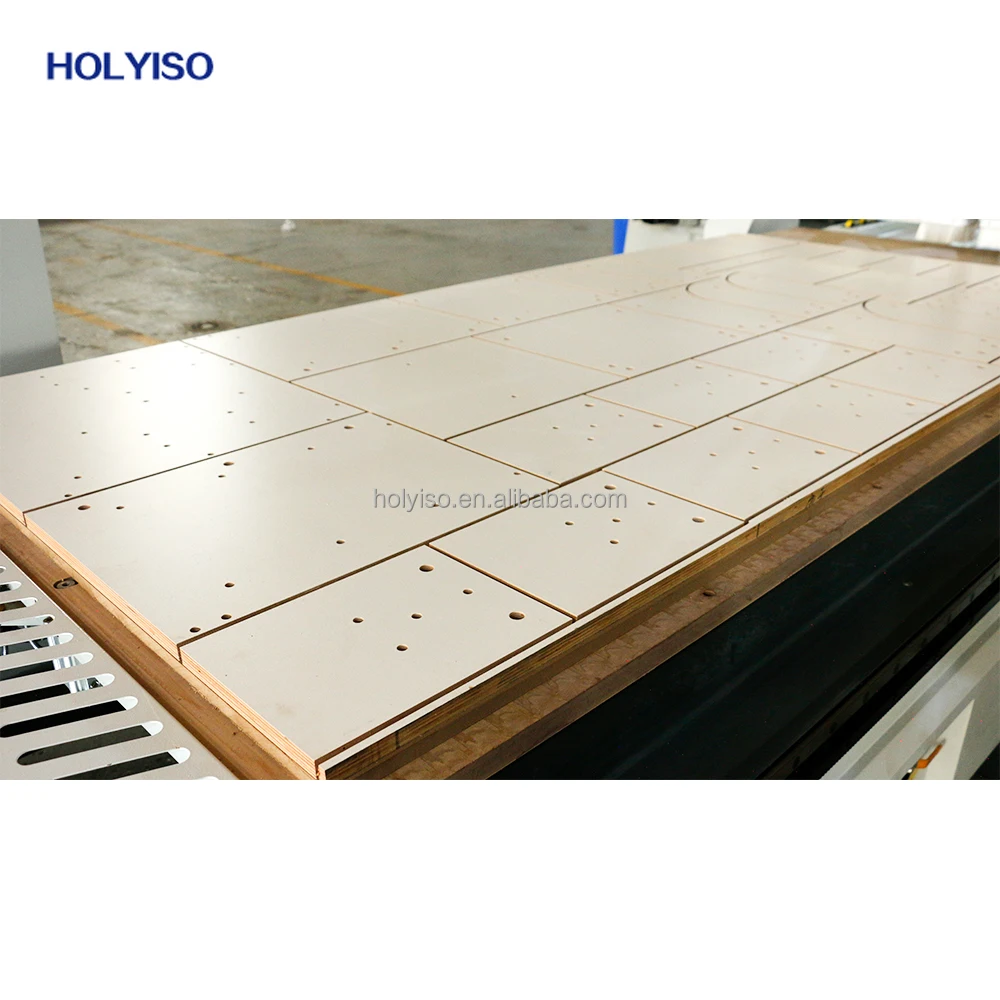

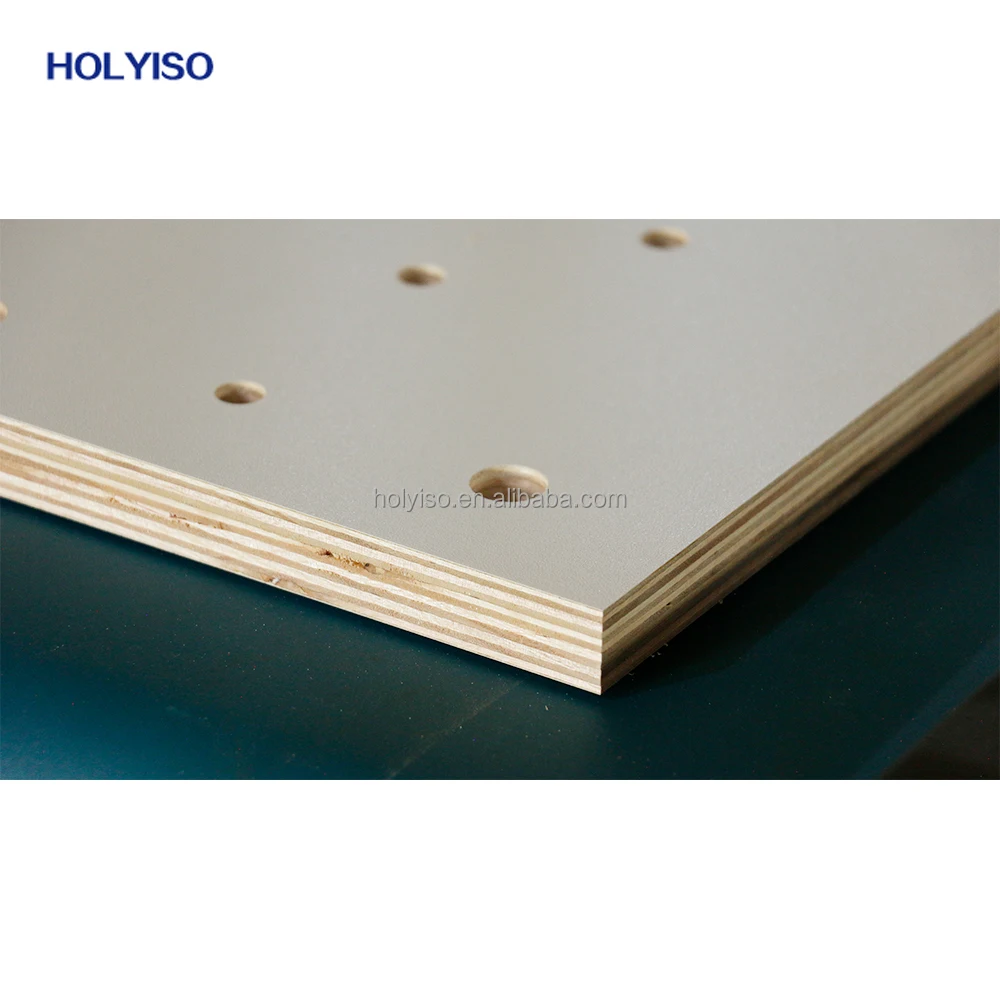

Finished Product
- Finished Product -
Recommend Products
Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
Packing&Shiping
Delivery:
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
Company Profile
FAQ
= FAQ =
1. Do you provide installation services?Our machine is almost assembled before it is loaded into the container. It is very easy for installation in your workshop. We provide free video guidance and English manuals. Engineers can be sent to service in site if the buyer request.
2. Where can we get replacement parts?
Most spare parts are in stock. The spare parts will be sent directly from our warehouse to the buyer at the original price.
3. How soon can we get replacement parts?
Common spare parts can be delivered by express delivery within one week. Some parts can be purchased locally.
4. What technical support do you provide?
(1). Provide 24/7 technical support via phone, email, WhatsApp/Skype or remote control.
(2). English version manual and operation video.
(3). Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 70 countries around the world, such as Russia, Uzbekistan, the United States, Canada, Argentina, Colombia, Mexico, Peru, Chile, Ecuador, Romania, Vietnam, the Philippines, Australia, Malaysia, Thailand, Singapore, South Korea, Indonesia etc.
6. Can you customized the machine?
Our machines can be customized according to the buyer's requirements.
7. What other machines do you provide?
We provide buyers with one-stop production line services for woodworking machinery. Other types of woodworking machinery can also be provided, such as double-side planer, four-side planer, finger jointer machine, sanding machine, horizontal band saw, etc.
8. Can you set the system to our language?
Our system supports common languages such as Chinese, English, Russian, Spanish, French, German, Vietnamese, etc.
