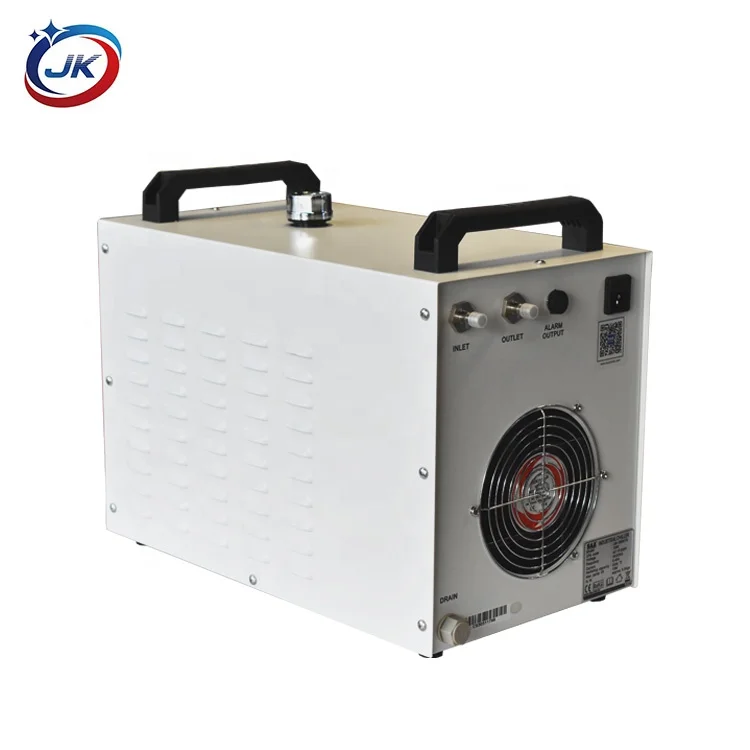

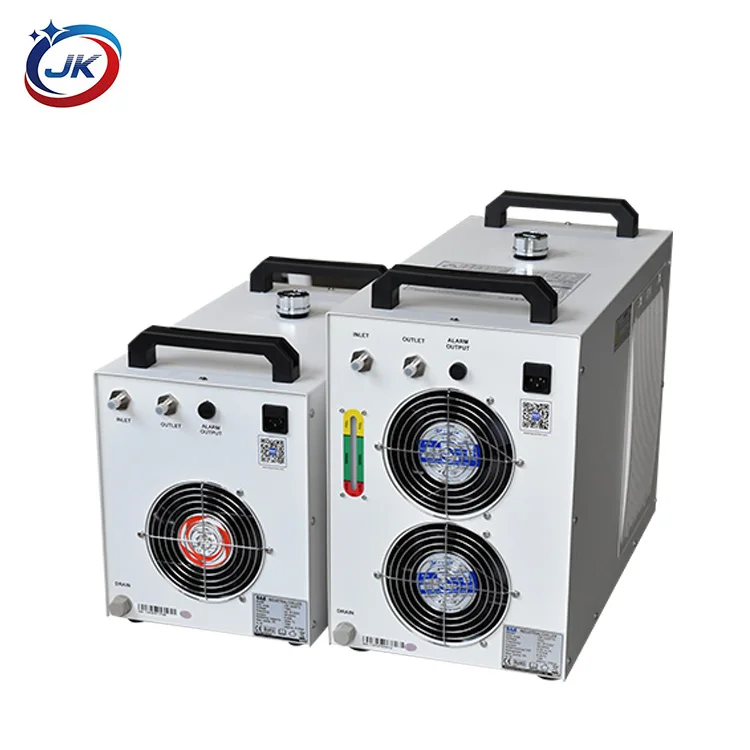

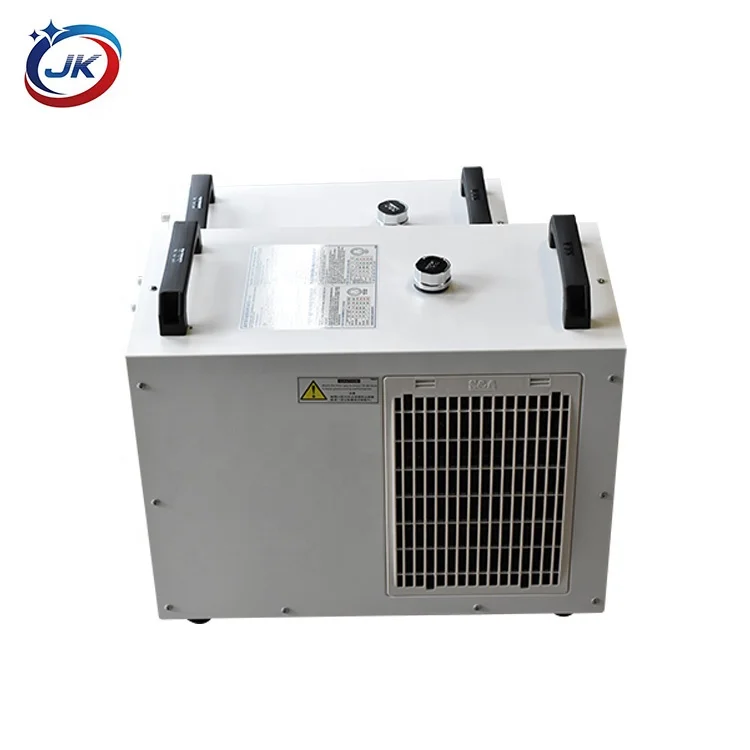

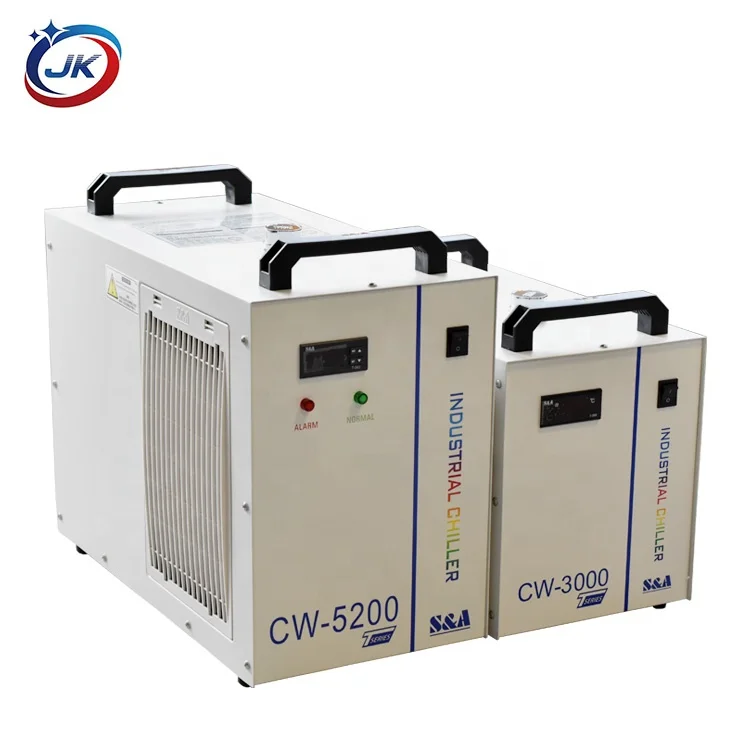

Industrial Water Chiller Model CW5200 for CO2 laser engraving machine water cooling water chiller
- Category: >>>
- Supplier: Guangdong Junke Cnc Equipment Co. Ltd.
Share on (11000007978406):
Product Overview
Description
Product Description
Product Paramenters
MODEL | CW-5200TH | CW-5200DH | CW-5200TI | CW-5200DI | |||
Voltage | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 110V | |||
Frequency | 50/60Hz | 60Hz | 50/60Hz | 60Hz | |||
Current | 0.5~4.6A | 0.5~8.9A | 0.8~5.8A | 0.8~9.2A | |||
Machine power | 0.74/0.82kW | 0.77kW | 0.7710.86kW | 0.82kW | |||
Compressor power | 0.6/0.62kW | 0.66kW | 0.8210.95kW | 0.66kW | |||
0.82/0.84HP | 0.9HP | 1.1/1.3HP | 0.9HP | ||||
Nominal cooling capacity | 6040/7303Btu/h | 5699Btu/h | 6040/7098Btu/h | 5699Btu/h | |||
1.7712.14kW | 1.67kW | 1.7712.08kW | 1.67kW | ||||
1521/1839Kcal/h | 1435Kcal/h | 1521/1788Kcal/h | 1435Kcal/h | ||||
Refrigerant charge | 370g | 330g | 420g | 330g | |||
Pump power | 0.05kW | 0.1kW | |||||
Max.lift | 12M | 25M | |||||
Max.flow | 13L/min | 16L/min | |||||
Refrigerant | R-407c | R-410a | R-407c | R-410a | |||
Precision | ±0.3℃ | ||||||
Reducer | Capillary | ||||||
Tank capacity | 6L | ||||||
Inlet and outlet | OD 10mm barbed connector 10mm fast connector | ||||||
N.W. | 26Kgs | 23Kgs | 27Kgs | 26Kgs | |||
G.W. | 29Kgs | 26Kgs | 30Kgs | 29Kgs | |||
Dimension | 58×29X47 cm(LXWXH) | ||||||
Package dimension | 65X39X56 cm(LXWXH) | ||||||

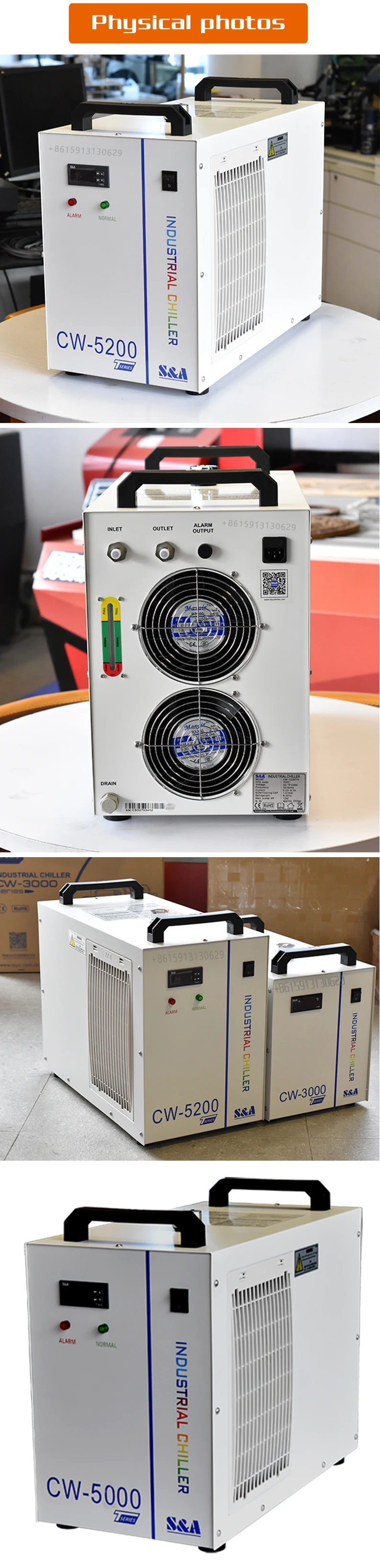

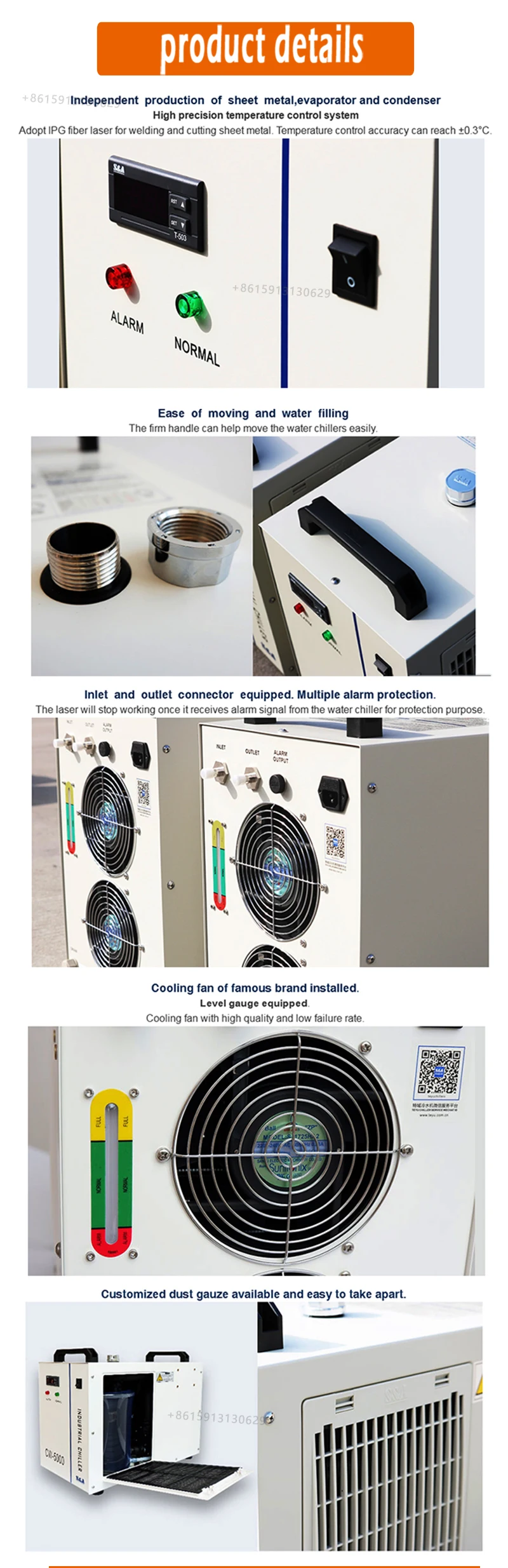

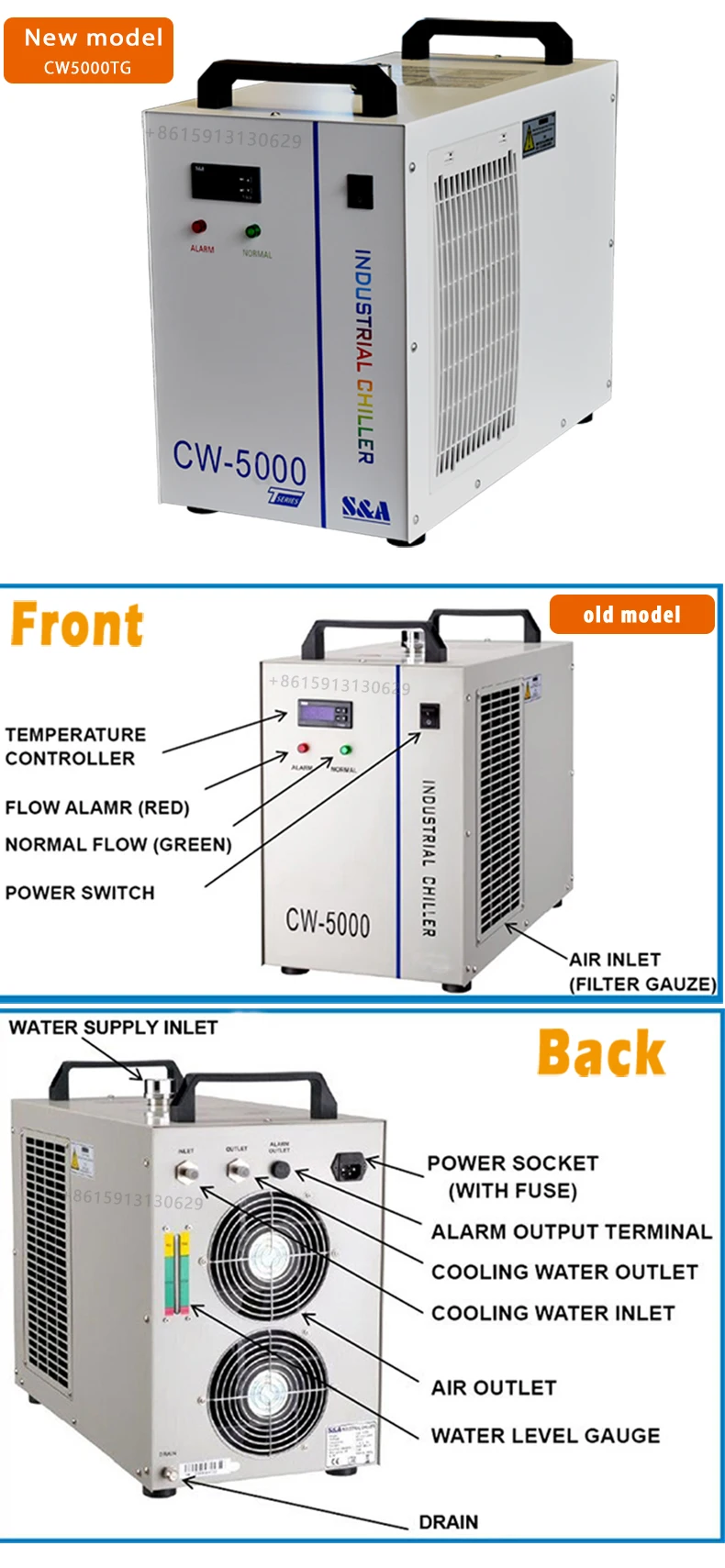

Details Images

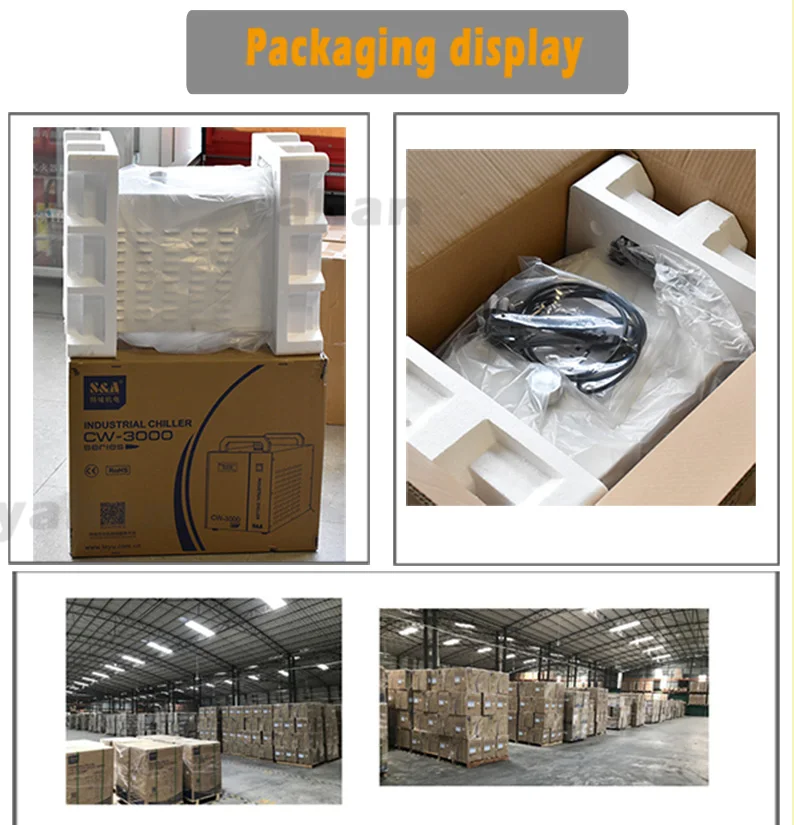

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customer Photos
FAQ
1.Q:OEM & ODM could be offered?
A:Yes, we support OEM & ODM. As a factory we can produce what you want per your special design.
2.Q:Logo printing could be offered?
A:Yes, the logo are available, it can be silk screen printing, laser engraving or sticker.
3.Q:What are your strengths?
A:We has been providing and manufacturing laser parts and solutions .Whether the quality or price, we have absolute advantage.Best
Quality & Best Service with Competitive price.Best After sale service and Technical support.
4. Q:How to choose the suitable parts? A:Please send us the photo about the parts you are using now or let us know your needs,will
recommend you suitable parts.
5.Q:Will you supply samples for test the quality? A:We are honored to offer you samples,the sample
charge and shipping cost will be pay by buyer.We can refund the money when you place the order.
6. What's your parts warranty?
A:No human factors,the parts warranty time is 1 year.If the parts arrived with defects or damage,please send back picture or video
immediately,we will replace you a new spare parts.
7.What's your parts delivery time? A:Usually within 1-3 working days if parts are in stock, if not,it need 4~15 days to customize.
2.Q:Logo printing could be offered?
A:Yes, the logo are available, it can be silk screen printing, laser engraving or sticker.
3.Q:What are your strengths?
A:We has been providing and manufacturing laser parts and solutions .Whether the quality or price, we have absolute advantage.Best
Quality & Best Service with Competitive price.Best After sale service and Technical support.
4. Q:How to choose the suitable parts? A:Please send us the photo about the parts you are using now or let us know your needs,will
recommend you suitable parts.
5.Q:Will you supply samples for test the quality? A:We are honored to offer you samples,the sample
charge and shipping cost will be pay by buyer.We can refund the money when you place the order.
6. What's your parts warranty?
A:No human factors,the parts warranty time is 1 year.If the parts arrived with defects or damage,please send back picture or video
immediately,we will replace you a new spare parts.
7.What's your parts delivery time? A:Usually within 1-3 working days if parts are in stock, if not,it need 4~15 days to customize.
