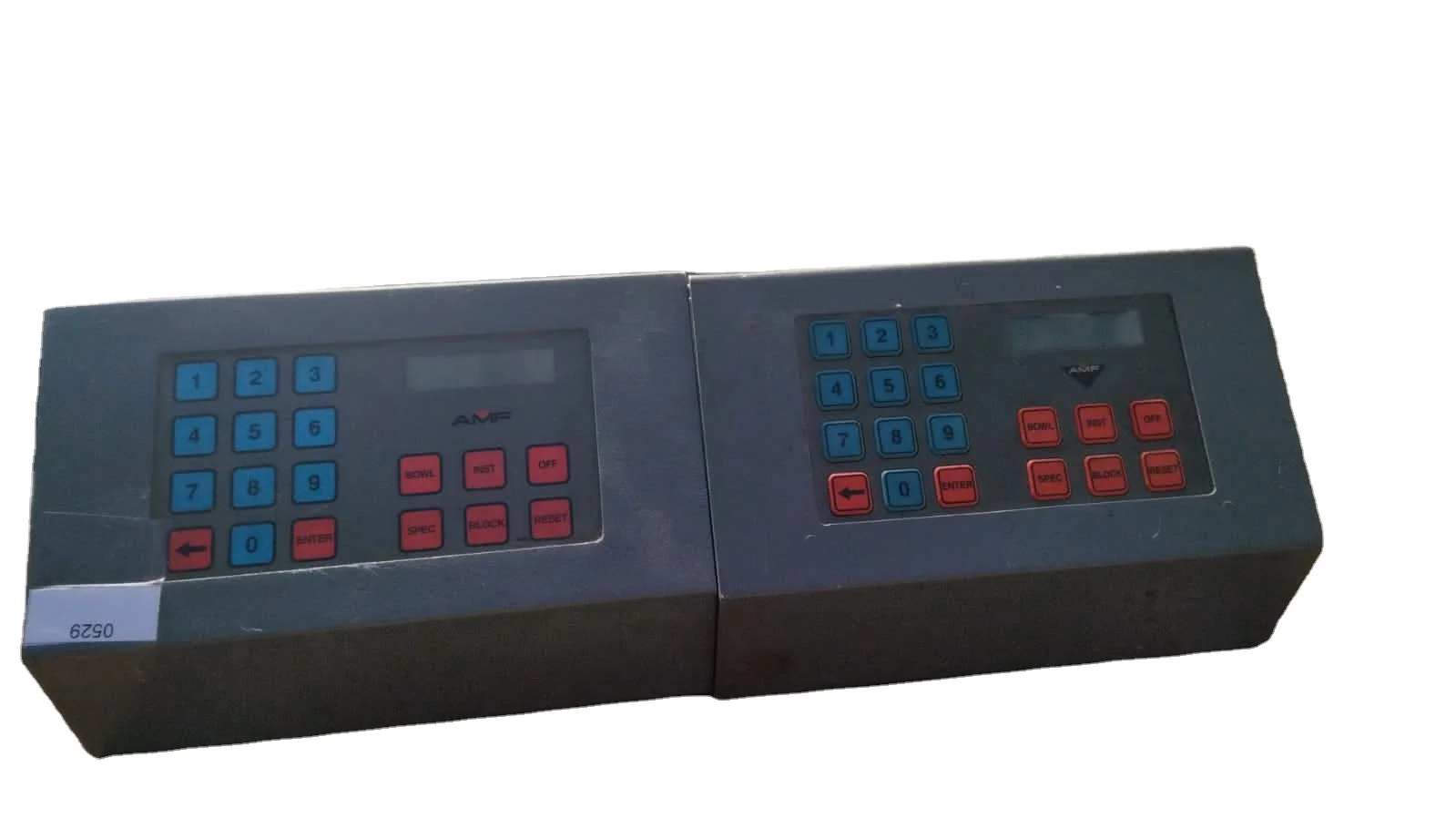

Hot Sale Used working condition Manager Control Unit for AMF Bowling 82 90XL 90XL pinspotters

Product Overview

Description

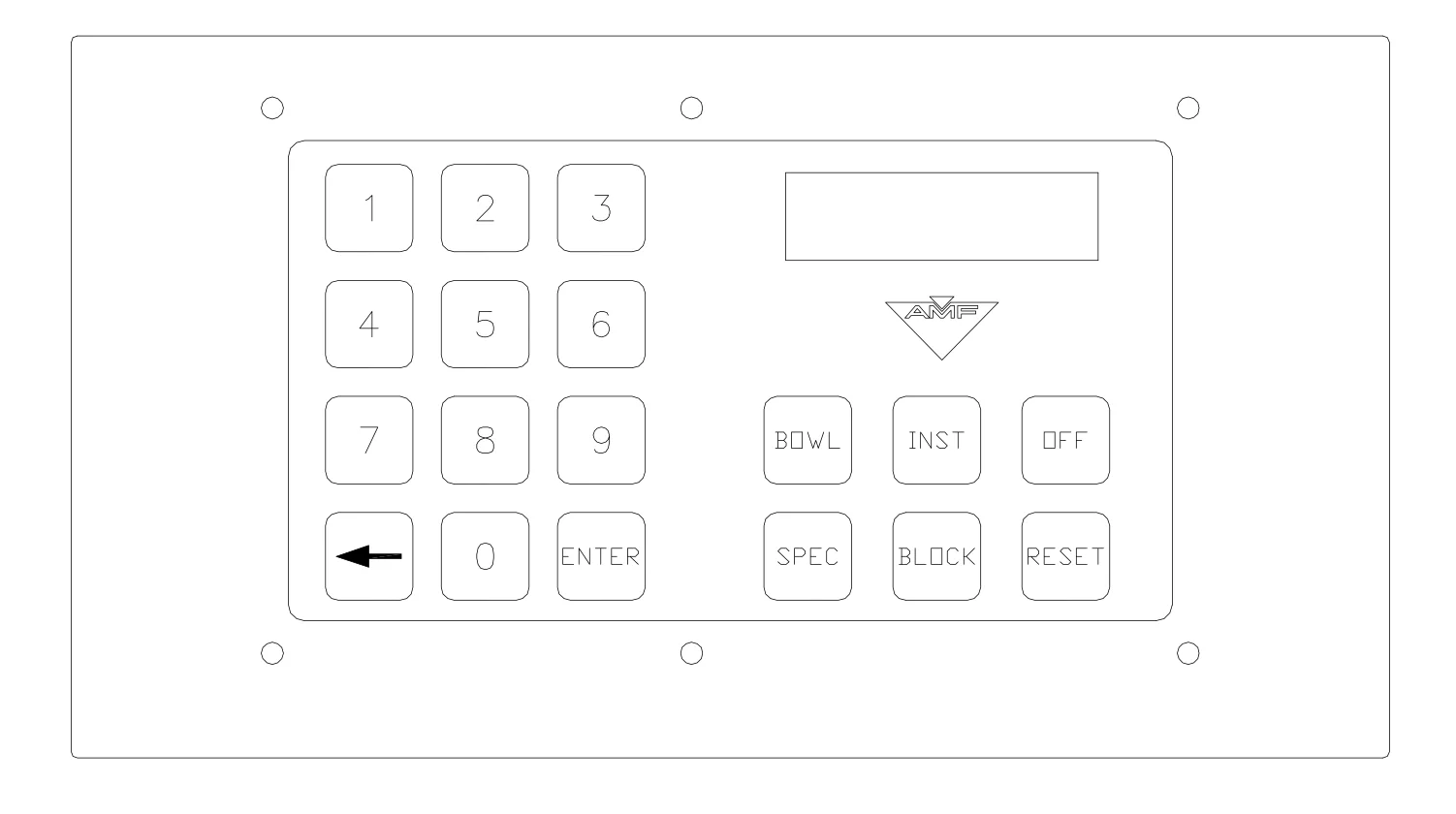

Manager’s Control Unit





The Manager’s Control Unit allows primary control of up to 256 lanes that are using the 8290 or newer pinspotter chassis. The front desk personnel originate commands to each lane by depressing the appropriate command keys on the MCU keyboard, with a display providing the prompts or responding with requested information. Lane commands from the MCU can be initiated on an individual lane basis, or commands can be directed to a block of contiguous lanes.

This unit provides the following basic functions:

Setting of the mode of each lane.

• Bowl (normal bowling)

• Instruction (no pins)

• Off (shuts off pinspotter)

Setting Chassis Parameters (Varies, depending on chassis model and software)

• Chassis Ball Delay

• Pin Data Interface

• Auto Off-Spot Release

• Pindata Delay

• Scoring Type

• Start Signal Delay

• Auto Back End Shutoff

• Radaray ® ON/OFF/Warning Mode

Monitoring of each lane

• Reporting current mode of lane

• Displaying the frame count since last reset at the MCU

Interface to most AMF Control Desk Systems

• Responds to Control Desk System commands
