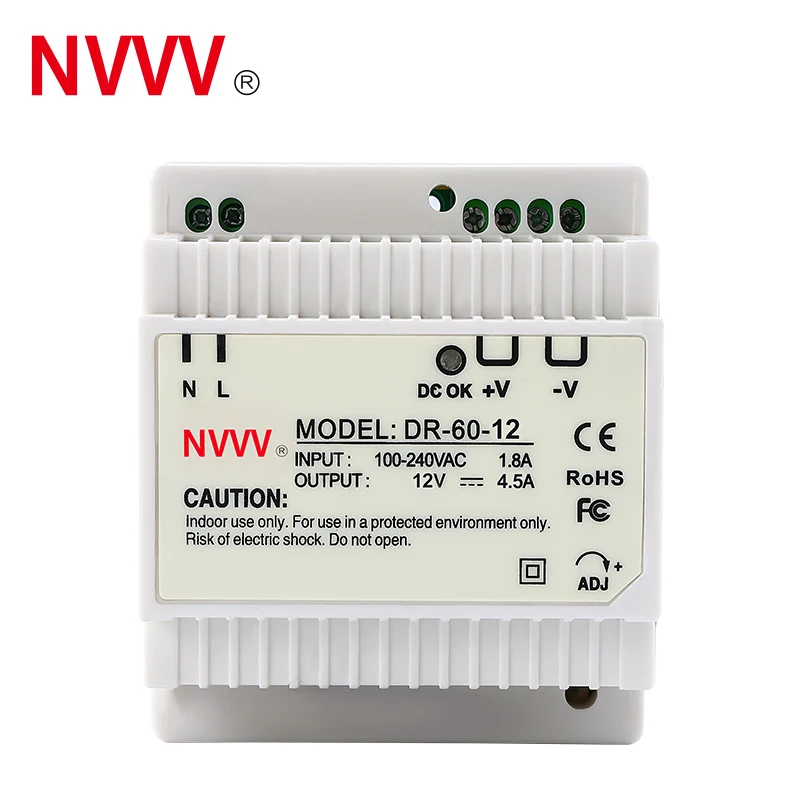

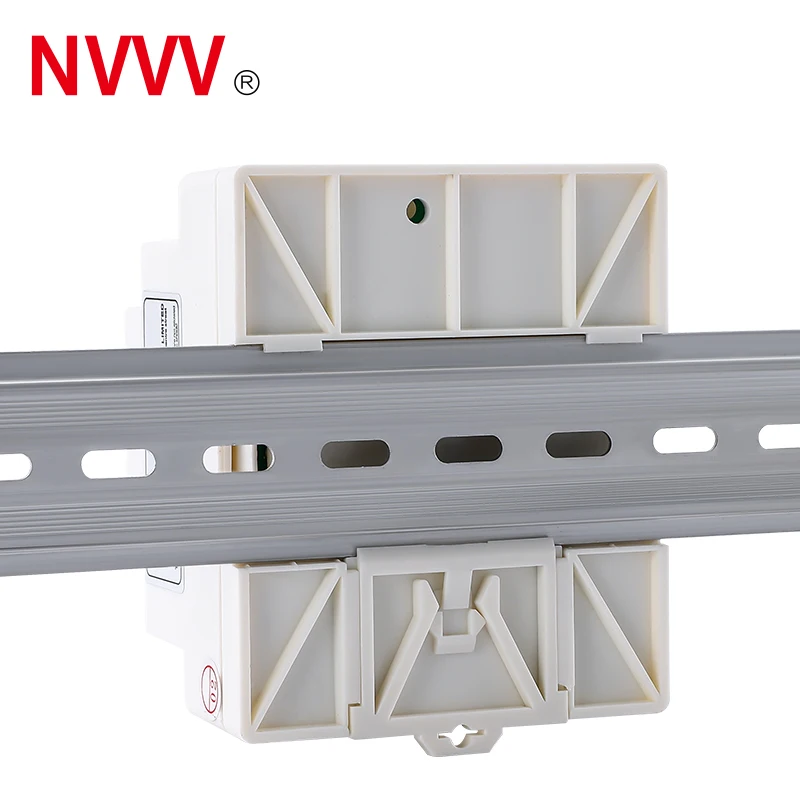

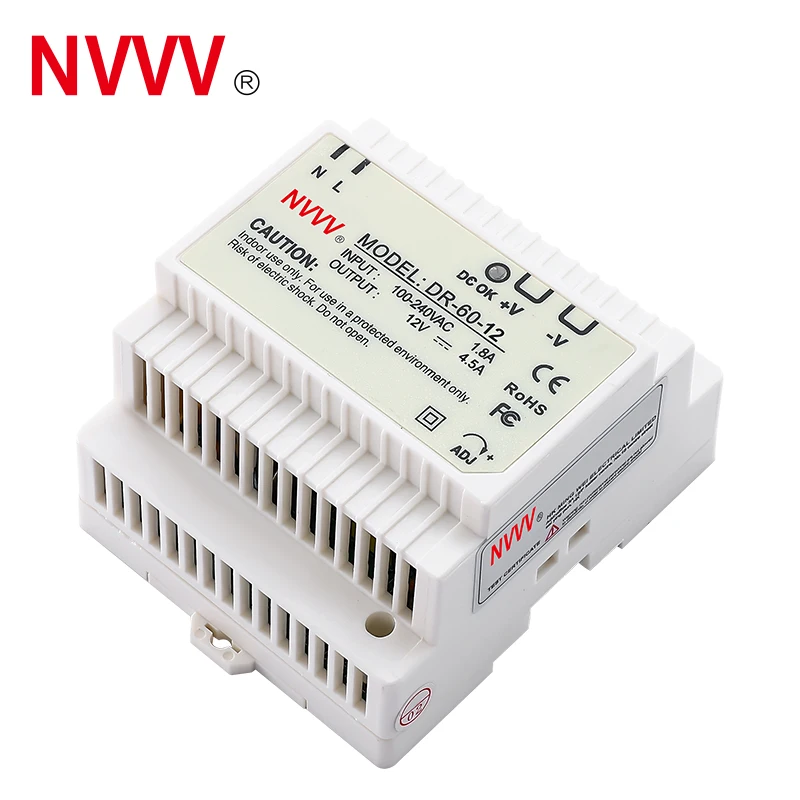

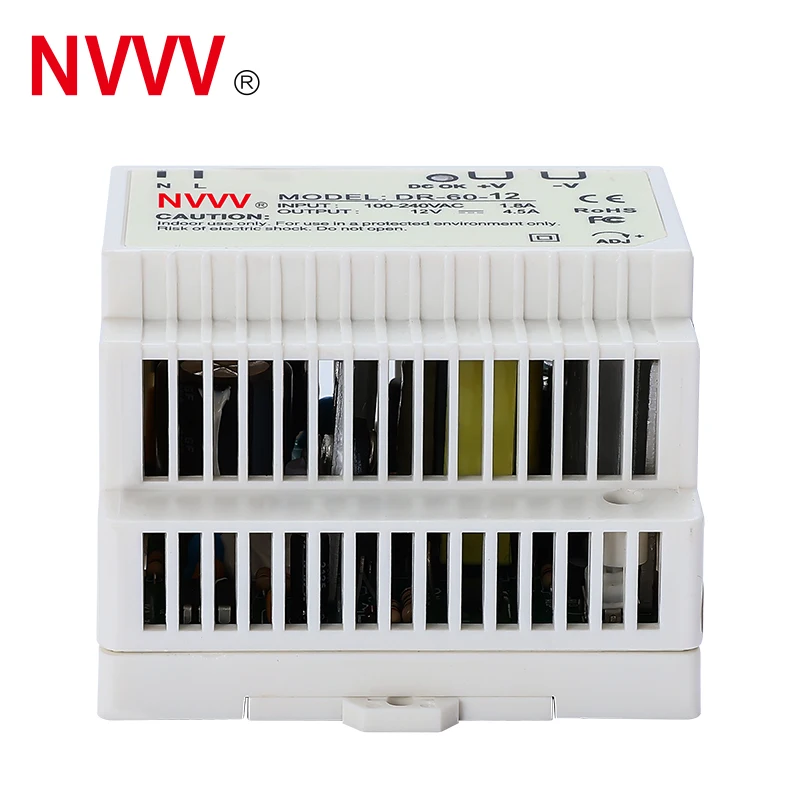

DR 60W Switching power supply DR series AC to DC Power 60W 12V SMPS DIN RAIL
- Category: >>>
- Supplier: Zhejiang Junlin Electric Technology Co. Ltd.
Share on (11000008003403):
Product Overview
Description
Product Description
Specification
DR-60 60W Din Rail Power Supply | ||||||||||
Project | Technical index | |||||||||
Output | DC voltage | 12V | 24V | |||||||
Rated current | 4.5A | 2.5A | ||||||||
Rated power | 54W | 60W | ||||||||
Ripple and noise ① | ＜120mV | ＜150mV | ||||||||
Voltage accuracy | ±1% | |||||||||
Ripple and noise | ±10% | |||||||||
Load adjustment rate | ±1% | |||||||||
Linear adjustment rate | ±1% | |||||||||
Input | Voltage range / frequency | 85-264VAC 47Hz～63Hz (120VDC～370VDC) | ||||||||
Efficiency (typical) ② | ＞82% | ＞84% | ||||||||
Working current | ＜1.2A 110VAC ＜0.8A 220VAC | |||||||||
Shock Current | 110VAC 15A， 220VAC 30A | |||||||||
Start,Rise,Hold time | 100ms、30ms、21ms ：110VAC/100ms、30ms、100ms ：220VAC | |||||||||
Protect | overload protection | 105%-150% Type:production mode:burp modde automatic recovery after the abnormal condition is lifted | ||||||||
Short circuit protection | VO The output abnormal condition will be restored automatically after it is removed after the power is restarted | |||||||||
Environmental Science | Working temperature and humidity | -10℃～+50℃；20%～90RH | ||||||||
Working temp.and humidity | -20℃～+85℃；10%～95RH | |||||||||
Safety regulations | Pressure Resistance | O/P-I/P,I/P-O/P:3KVAC | ||||||||
Isolation Resistance | I/P-O/P， O/P-Shell,O/P-Shell ：500VDC/100MΩ | |||||||||
Other | size | 78*93*56mm | ||||||||
Net weight / gross weight | 270/290g | |||||||||
Packing & Delivery
Company Profile
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(30.00%),North America(20.00%),South Asia(6.00%),Mid East(6.00%),Eastern Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Western Europe(4.00%),Northern Europe(4.00%),Africa(4.00%),South America(3.00%),Central America(3.00%),Southeast Asia(3.00%),Eastern Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Switching Power Supply
4. why should you buy from us not from other suppliers?
Junlin switching power supply is widely used in industrial automation LED lighting and display, medical, security, power control, metallurgy, water treatment, infrastructure, and other fields.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(30.00%),North America(20.00%),South Asia(6.00%),Mid East(6.00%),Eastern Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Western Europe(4.00%),Northern Europe(4.00%),Africa(4.00%),South America(3.00%),Central America(3.00%),Southeast Asia(3.00%),Eastern Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Switching Power Supply
4. why should you buy from us not from other suppliers?
Junlin switching power supply is widely used in industrial automation LED lighting and display, medical, security, power control, metallurgy, water treatment, infrastructure, and other fields.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
