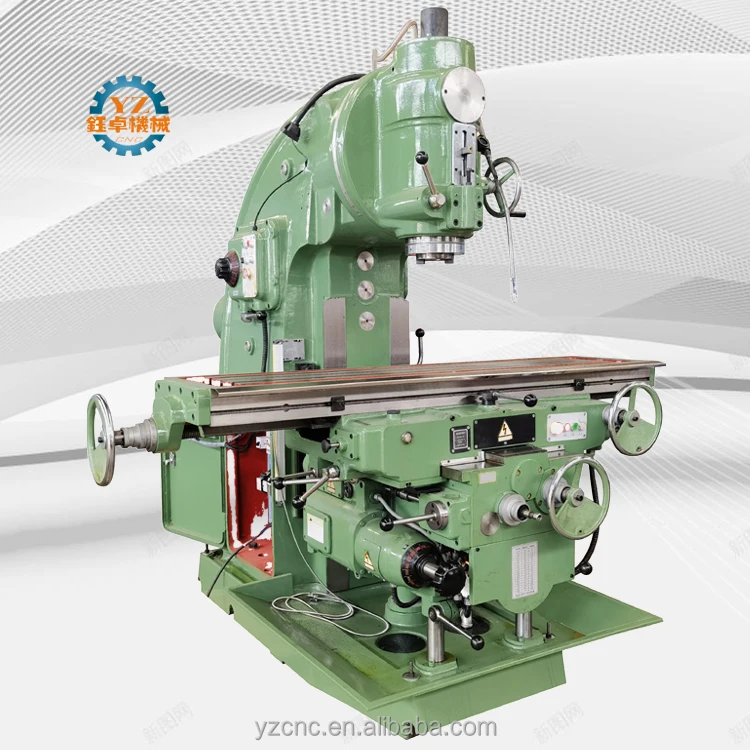

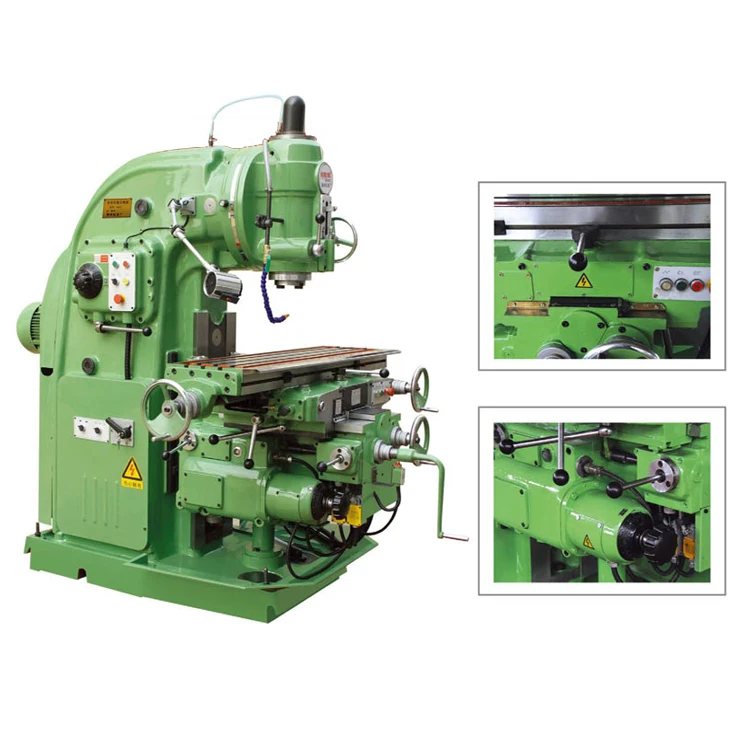

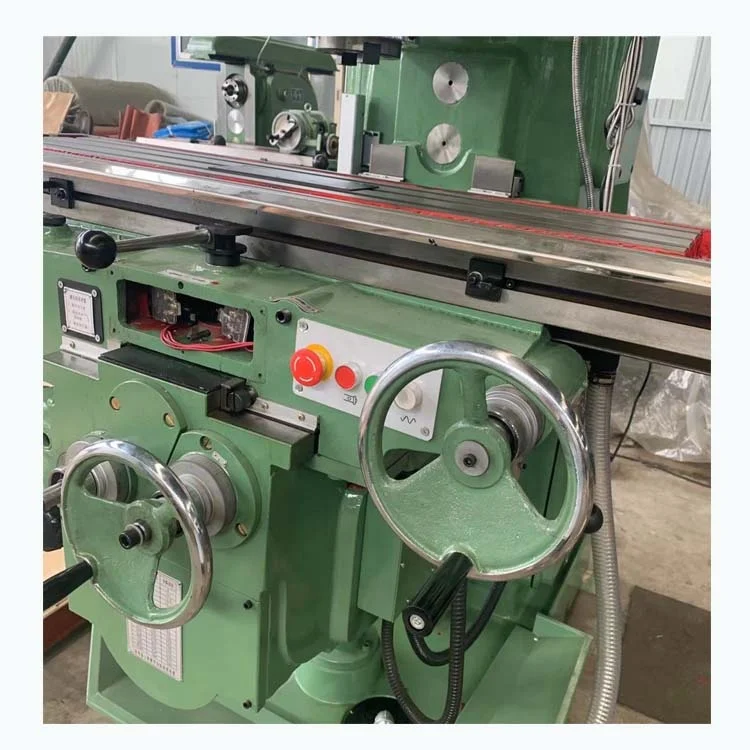

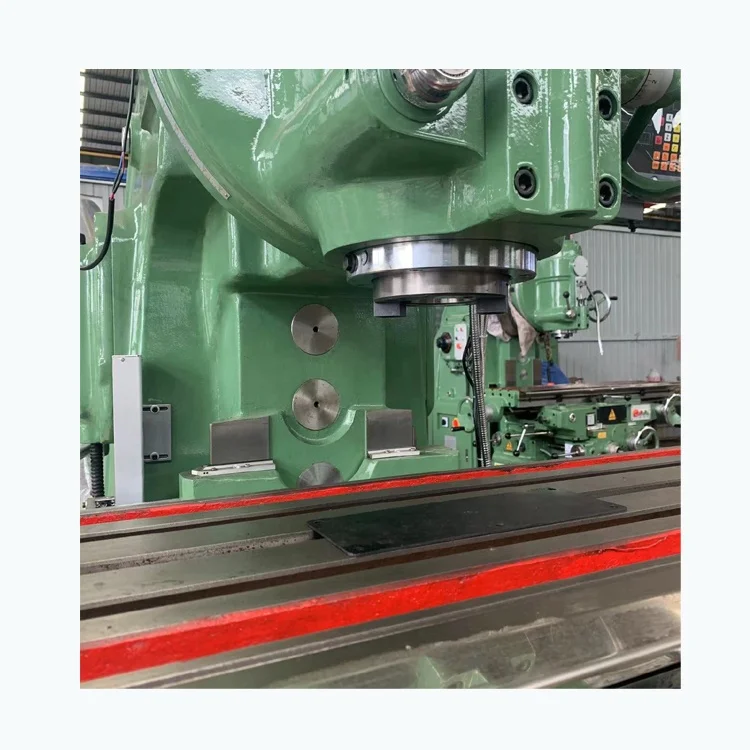

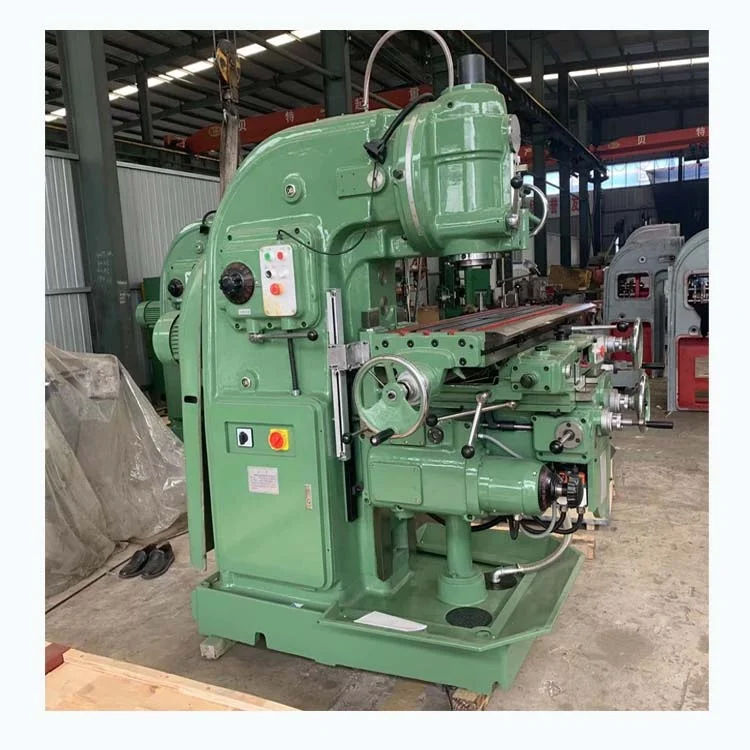

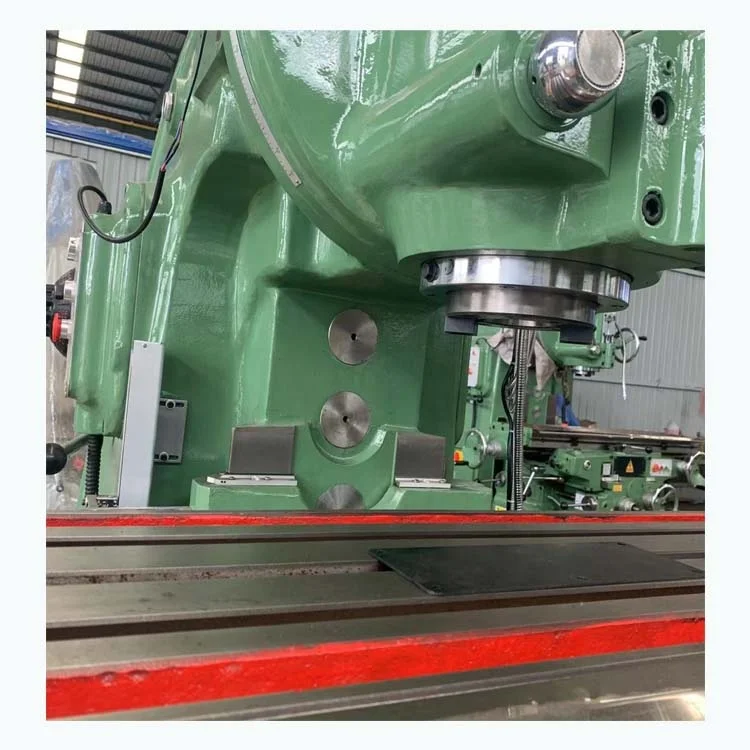

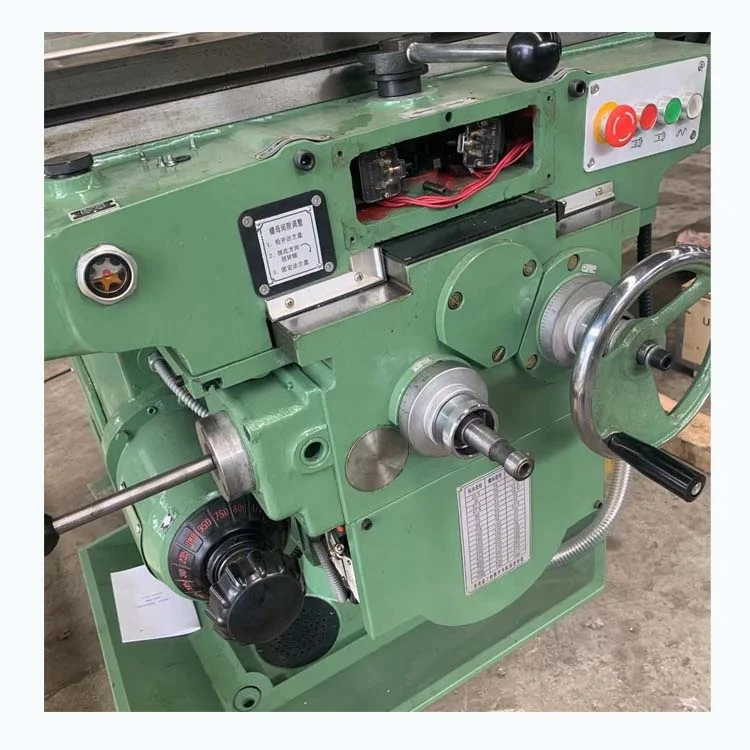

Wholesale X5040 universal milling machine manual mills vertical and horizontal milling machine
- Category: >>>
- Supplier: Taian Yuzhuo Machinery Co. Ltd.
Share on (11000008007896):
Product Overview
Description
Details Display
The main performance characteristics：
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
4. Milling head can be rotated 45 degrees,
Application：
1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, dis
cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,
grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other
industries of the ideal processing equipment.
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
4. Milling head can be rotated 45 degrees,
Application：
1. Vertical lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, dis
cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,
grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other
industries of the ideal processing equipment.
Product main technical parameters:
Specifications
Specifications | （Units） | X5040 |
Table size（length × width） | mm | 1700×400 |
Table max Longitudinal travel (manual/auto) | mm | 900/880 |
Transverse travel (manual/auto) | mm | 315/300 |
Vertical travel (manual/auto) | mm | 385/365 |
Max. rotary angle of work table | 。 | ±45° |
Number/Width/Distance of T-slot | mm | 3/18/90 |
Range of table feed （X/Y/Z） | mm/min | 23.5-1180/15-786/8-394 |
Rapid speed of table（X/Y/Z） | mm/min | 2300/1540/770 |
Spindle taper | ISO50 7:24 | |
Spindle bore | mm | Φ29 |
Distance between spindle nose and table | mm | 30-500 |
Spindle speed step | steps | 18steps |
Spindle speed range | rpm | 30-1500 |
Feed range of table travel | steps | 18steps |
Main motor power | kW | 11 |
Feed motor power | kW | 3 |
Feed motor speed | rmp | 1430 |
Overall dimension | mm | 2656×2159×2117 |
Machine weight | kg | 4250 |
