Электрический шкаф металлическая пластина электрическая коробка Полиуретановая Прокладка пенообразователь машина

Share on:

Price:18 888,00 $ - 48 888,00 $
Price in USD:Details


Product Overview


Product Description

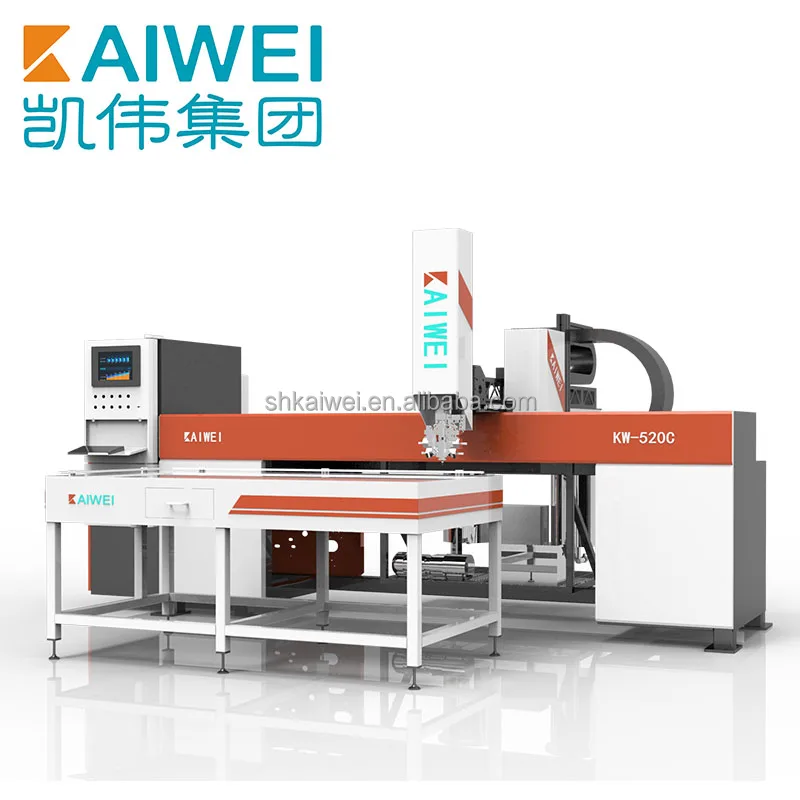

PU Sealing Gasket Foaming Machine

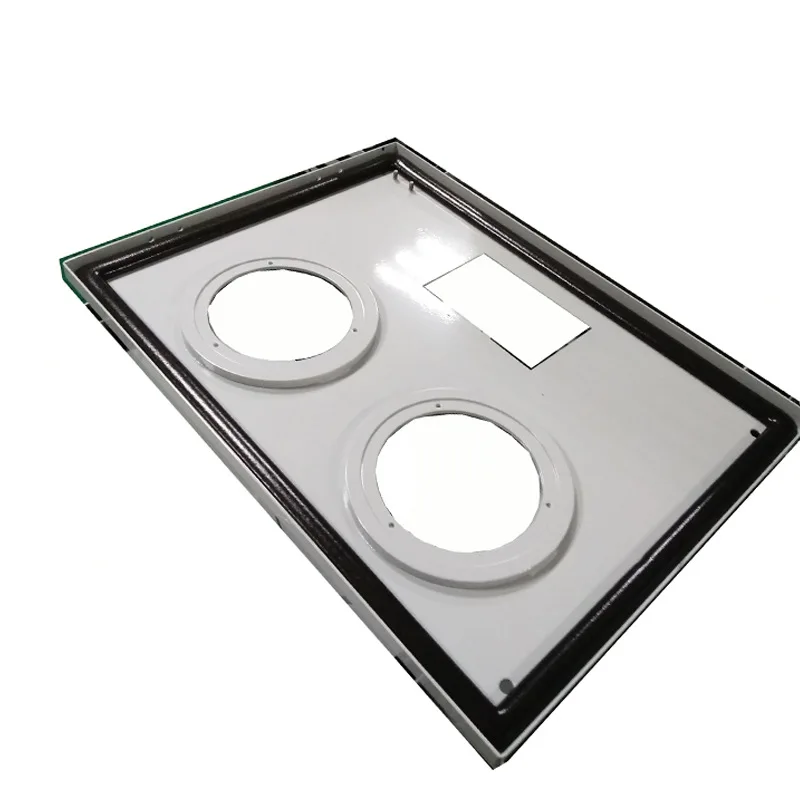

KAIWEI Automatic PU Foam Gasket Machine can be widely used in many industrial field, like Electric Panel Box, Electrical Control Panels, Electrical Distribution Boards, Electrical Enclosures, Filters, Purification room door, Anti-explosion box, Auto fittings mountings, Automobile Parts, Led lighting, Plastic Cabinet, Locks shell....

Our Advantages:
1. Integrated structure, machine frame stronger, longer life, and more convenient to move the machine;
2. Reasonable beautiful design, show engineers' wisdom and make your operater happier;
3. Easier to operate, a newer can operate machine in about 15 minutes after learning, save labor cost for you;
4. Special pump type mixing head (KW900), Kaiwei R&D by ourselves, no need metering, no need weighing, no need pressure control, improve your product efficiency and save raw materials for you;
5. Glue dispensing is faster, more accurate, more stable, and also beauty, IP grade can reach IP66;
6. Professional after-sales service team, 7*24 h available for you;
7. We have lots of customers and agents all over the world, we can provide local service in many countries.

Barmag Metering Pump

KAIWEI Group adopt famous Germany brand Barmag metering pump, accurate glue control, even glue discharge.

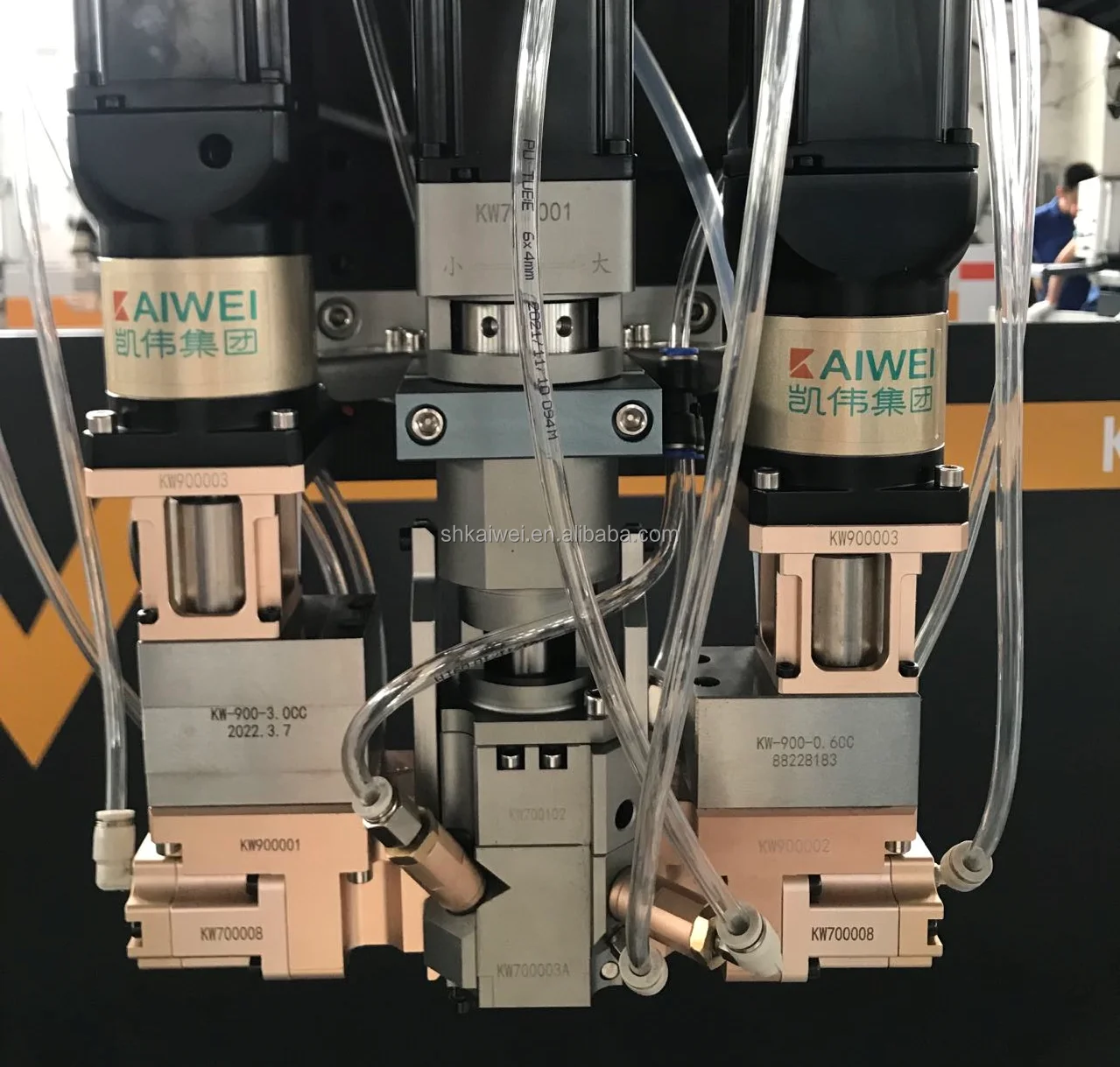

KW-900 pump mixing head: no need weighing, no need metering, no need pressure control....

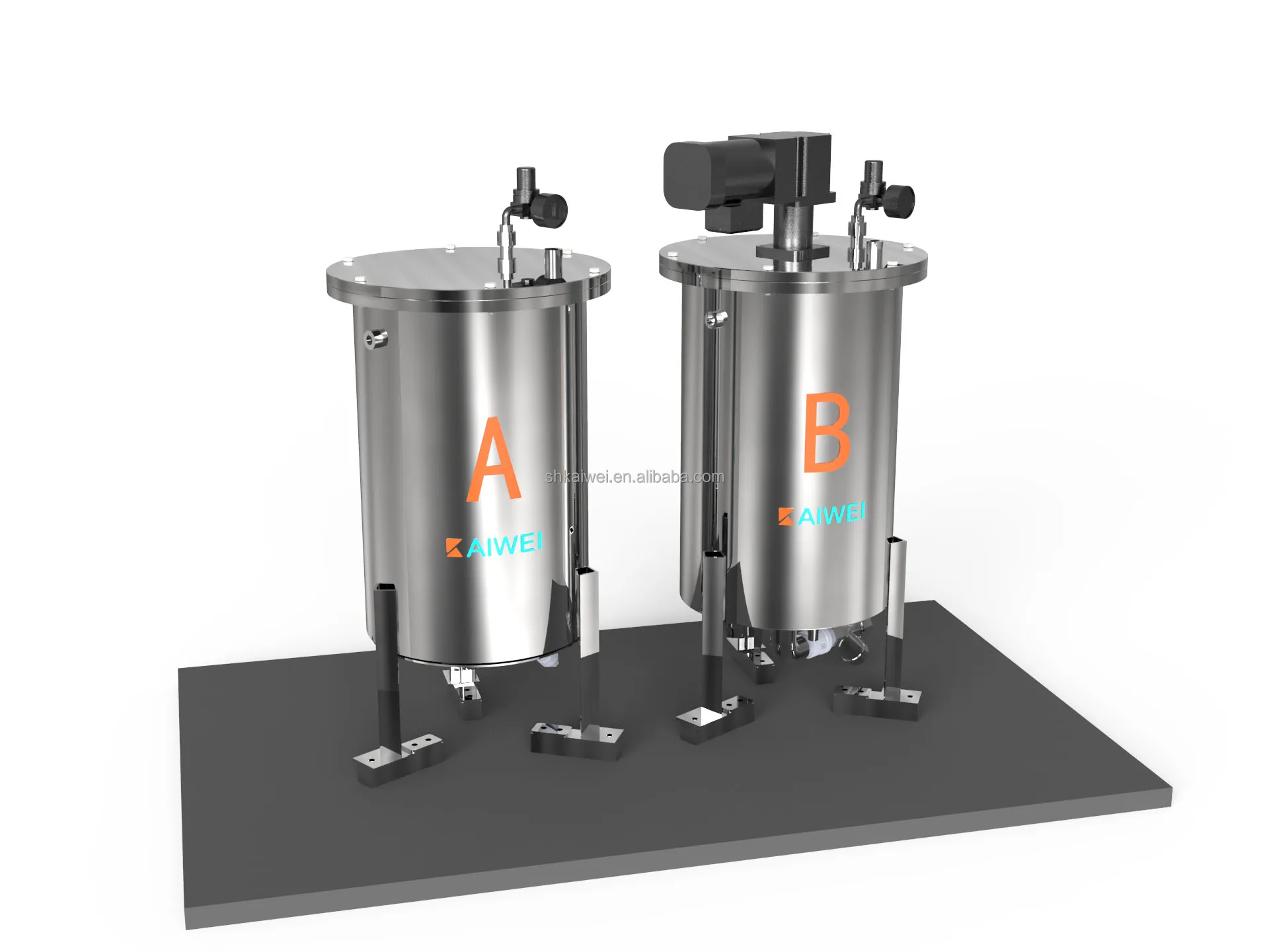

Raw Material Tank

A glue tank and B glue tank:
Volume: A 40 L and B 40 L
Optional: automatic feeding device

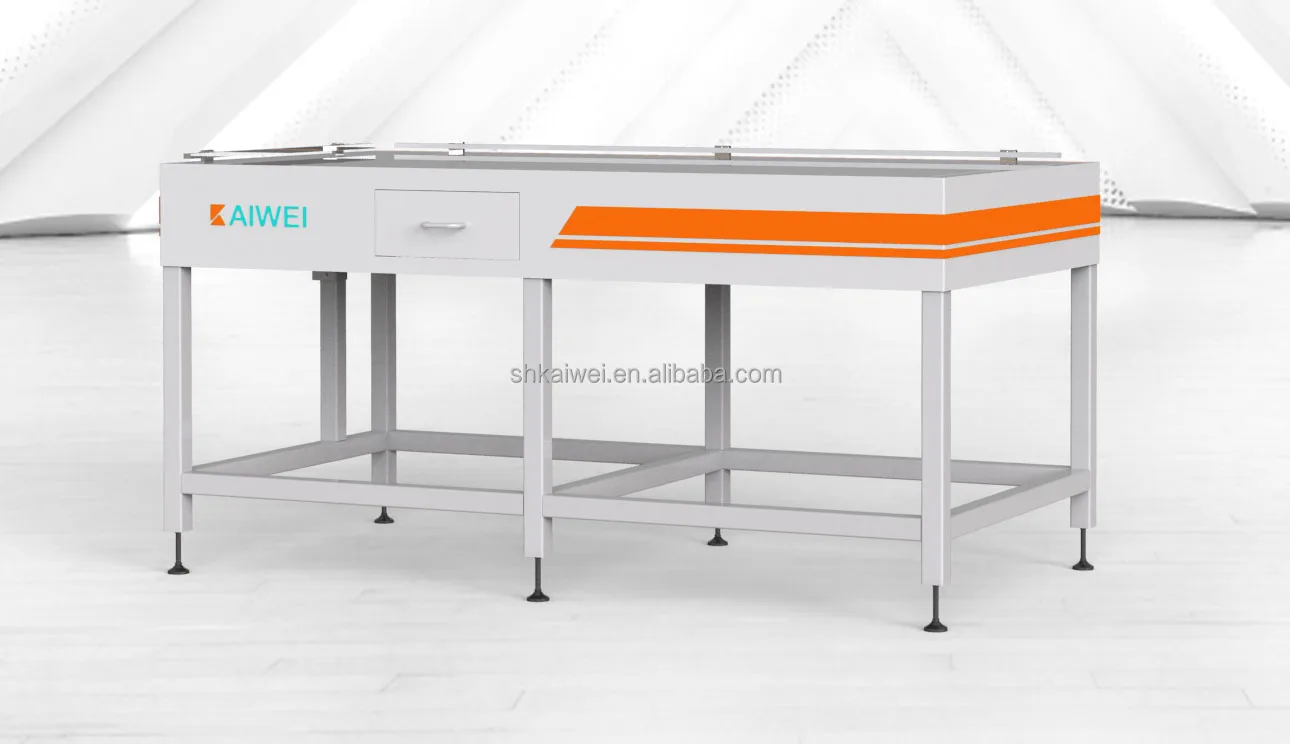

Working Table
Welded square pipes material, stronger
Size: L2000*W1000*H900 mm

Main Technology Parameters:


Suitable Material
Overall Space
4000X3300X2300 mm (L*W*H)
Mixing Head Type
Effective Working Stroke
2250X1250X200 mm (X*Y*Z)
Sealing Strip Width
1900 KGS

Chemical Material
Polyurethane / PU

2 components (A+B)

System / Operation
Operation System
Win 10

Operation Method
Keyboard / Buttons

Mixing Head
KW 900
Gasket Width
5 mm -30 mm
Clean Method
High pressure water clean+air-blow clean

Mixing Ratio (A:B)
1-4 g/s
Repeated Position Precision
+-0.05 mm
Air Pressure
6-8 bar

Mechanical Frame
3-aixs linear mechanical arm
0-30 m/s

Storage Tank
Air pressure tank
A tank-40 L ;  B tank-40L
Automatic Stirring
A tank yes; B tank no
Glue Refill
Manual or Automatic
Air Refill

Working Table
Welded square pipes
2000X1000X900 mm (L*W*H)

Electric Power
5.5 KW
Dry Compressed Air
>= 6 bar
Clean Tap Water

Main Application

Electrical Cabinet

Air Filter

Air Compressor or Air Conditioning Purification Device

Electronic Components

New Energy

Automobile Parts

Tri-proof light


Our Service:

Pre-sales service
1. Professional engineers help to recommend suitable machine according to your detailed requirements.
2. You are always welcome to visit our factory.
3. If not convenient to visit factory, VR video is available.
4. Providing sample photos, testing video of similar cases for your reference(except special industry).
1. Sending photos,video of your machine manufacturing progress every few days.
2. Sending your machine finished photos,video.
3. Sending test videos or remote live video with you to test your machine.
4. Synchronous teaching guidance while testing your machine.
5. Sending your machine package photos.
After-sales service
1. Reserve extra spare parts, wearing parts for you, shipped with your machine.
2. One year Warranty(except wearing parts and human caused)
3. Providing lifetime technical support for you.
4. 7*24 hours service, timely and politely solve any working problems of machines.
5. Our engineers are available to serve on abroad.

Our Company





Q1: Are you a factory or trading Company?
We are a professional machines manufacturer.
Our headquarter is in Qingpu district, Shanghai, CN.
Our factory located in Suzhou district, Jiangsu, CN.
It only takes 30 mins from Hongqiao airport/train station to our headquarter, you are always welcome to visit us.
Q2: Do you have any agents overseas?
Yes, our customers are around the world, such as Australia, New Zealand, Mexico, Russia, India, Malaysia, Vietnam, Thailand, UAE, KSA, etc.
At present, we have more than 5 agents oversea, like India, Australia, KSA, Egypt.. and we are still expanding our overseas market.
Q3: What is your warranty?
One year warranty, lifetime technical support.
Free spare parts provided within warranty(except wearing parts and human caused mistake)
(We usually reserve extra spare parts,wearing parts shipped with the machine.)
Q4: Does the machine power voltage meet my factory power source?
Voltage can be customized as per your requirement, for example, in India, 415V,50HZ,3P; in US,230V, 60HZ, 3P.
Q5: How do pack my machine?
Your machine will be packed with standard strong wooden case.
Fragile parts in your machine will be filled with cushion material like sponge, foam..
Q6: How to guarantee my machine received in a good condition?
Our QC department will control the quality from raw material to the finished product.
We will send you inspection video, photos or remote live video when your machine is finished and testing.
You are welcome to come to our factory to check your machine.
With standard good packaging.
Q7: How do I use my machine?
Our machine is very easy to operate, and ship as a whole set, so no need to install. We also provide :
Detailed Operation Manual.
Complete demonstration operation videos from our engineers.
Remote live video guidance by Whatsapp, Wechat, Skype...
Come to the factory and teach hand in hand.
Q8: What is your payment term?
30% TT in advance as your deposit, and 70% before shipping your machine.
Q9: What is your lead time?
Generally speaking, about 30 days, according to machine details.
Q10: What's your after sales service?
7*24 hours service, timely and politely solve any working problems of machines, you can show your problems on line by Whatsapp, Wechat, Skype...by video call.
Our engineers are also available to serve on abroad.

Contact to get more...
Email: [email protected]
Whatsapp/Wechat/Skype: +86 199 2160 3541
Web: www.sh-kaiwei.com
Alibaba web: https://shkaiwei.en.alibaba.com
