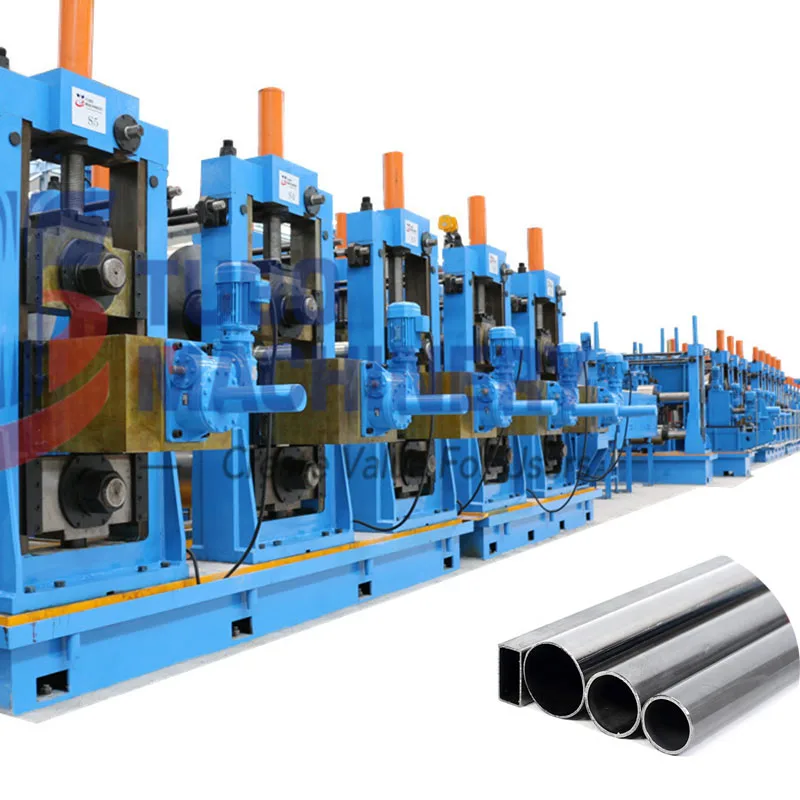

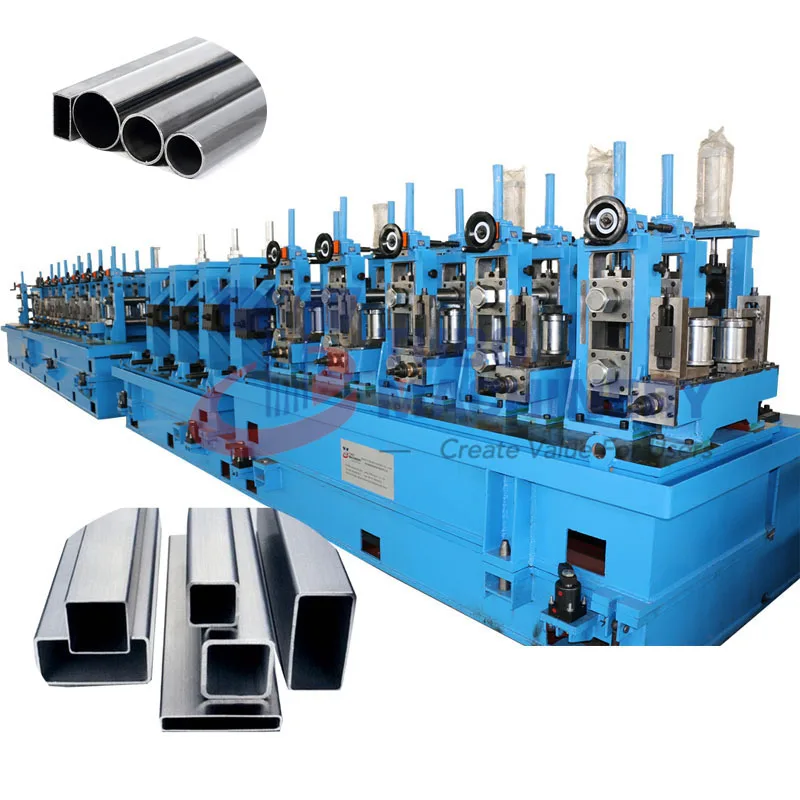

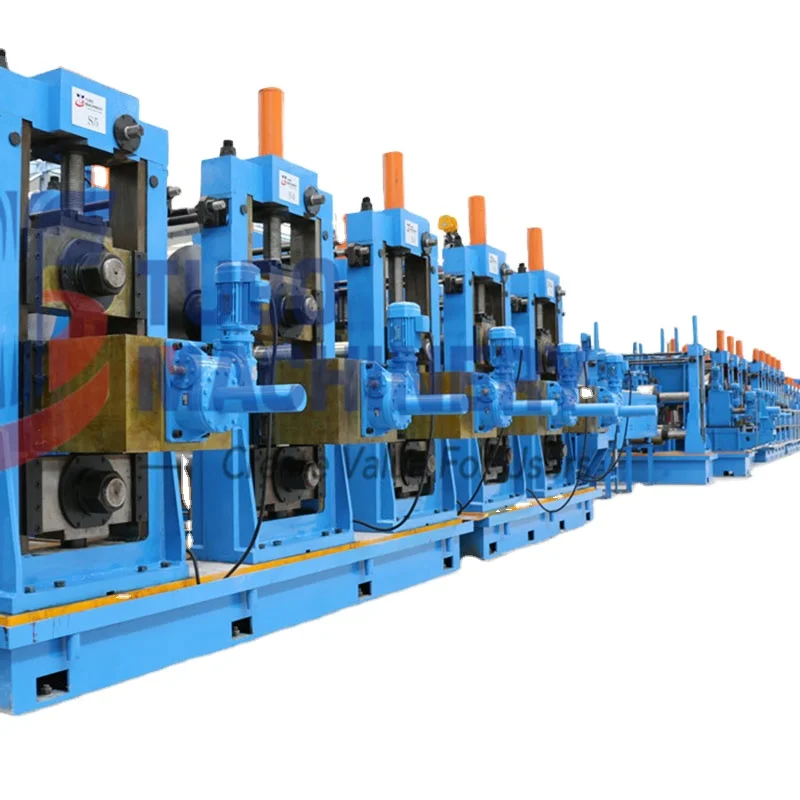

Tube Making machine used to produce Round Pipe/Square Pipe/ Rectangular Pipe
Tube Making machine used to produce Round Pipe/Square Pipe/ Rectangular Pipe
Tube Making machine used to produce Round Pipe/Square Pipe/ Rectangular Pipe
Tube Making machine used to produce Round Pipe/Square Pipe/ Rectangular Pipe
Tube Making machine used to produce Round Pipe/Square Pipe/ Rectangular Pipe
Tube Making machine used to produce Round Pipe/Square Pipe/ Rectangular Pipe
Tube Making machine used to produce Round Pipe/Square Pipe/ Rectangular Pipe

Tube Making machine used to produce Round Pipe/Square Pipe/ Rectangular Pipe

Share on (11000008032789):


Price:$180,000.00

Quantity:


Product Overview

Description



Tube Mill Machine






Company Introduction


Hebei Tubo Machinery Co.,Ltd




Hebei Tubo Machinery Co.,LTD is a high-tech enterprise registered in Shijiazhuang City. Hebei Province. It specialized in Developing and Manufacturing for the complete set of equipments and related technical service of High Frequency Welded Pipe Production Line and Large-size Square Tube Cold Forming Line .

With more than 130 sets all types of CNC machining equipment, Hebei Tubo Machinery Co.,Ltd., manufactures and exported to over 20 countries of welded tube/pipe mill, cold roll forming machine and slitting line, as well as auxiliary equipment for more than 15 years.

 TUBO Machinery, as a partner of users, provides not only high precision machine products, but also technical support everywhere & anytime.




Product Specifications


Model
Round Pipe
Square & Rectangular Pipe
 Speed    (m/min)
Dia.(mm)
Thickness(mm)
Dia.(mm)
Thickness(mm)
ERW32
10-38mm
0.5-2.0mm
10x10-30x30mm
0.5-1.6mm
Max.120m
ERW50
15-51mm
0.5-2.5mm
15x15-40x40mm
0.5-2.0mm
Max.120m
ERW60
16-60.3mm
0.5-3.0mm
15x15-50x50mm
0.5-2.5mm
Max.120m
ERW76
20-76mm
1.0-4.0mm
20x20-60x60mm
1.0-3.0mm
Max.120m
ERW89
25-89mm
1.0-4.5mm
20x20-70x70mm
1.0-3.5mm
Max.120m
ERW114
38-114mm
1.0-5.0mm
40x40-90x90mm
1.0-4.0mm
Max.80m
ERW165
60-165mm
2.0-6.0mm
50x50-150x150mm
2.0-5.0mm
Max.60m
ERW219
89-219mm
3.0-8.0mm
80x80-200x200mm
3.0-8.0mm
Max.50m
ERW273
114-273mm
4.0-10.0mm
100x100-250x250mm
4.0-10.0mm
Max.40m
ERW325
165-325mm
4.0-12.7mm
100x100-300x300mm
4.0-12.0mm
Max.30m
ERW426
219-426mm
5.0-14.0mm
150x150-350x350mm
5.0-14.0mm
Max.30m
ERW508
219-508mm
6.0-16.0mm
200x200-400x400mm
6.0-16.0mm
Max.25m
ERW610
325-610mm
6.0-18.0mm
250x250-500x500mm
6.0-18.0mm
Max.25m
ERW720
355-720mm
6.0-20.0mm
300x300-600x600mm
6.0-20.0mm
Max.25m


Products Description


1. Uncoiler


Un-Coiler is the important equipment of entrance section of pipe mill line, mainly used to hold steel strip to make coils unfold, supplying raw material for the production line.



2. Flattener


Flattener is used to flat the ends of steel strip after Uncoiler, includes the Pinching Roll and Flattening Roll. providing the convenience for the next processing Shear & Butt Welding Device.



3. Shear & Butt Welding Device


Shear & Butt Welding is used to shear the irregular ends of steel strip and weld steel strips of two coils together. Thus ensuring the continuous production.



4.Accumulator


The accumulator is used to store the steel strip material before it is delivered to pipe forming machines, thus ensuring the continuous production.

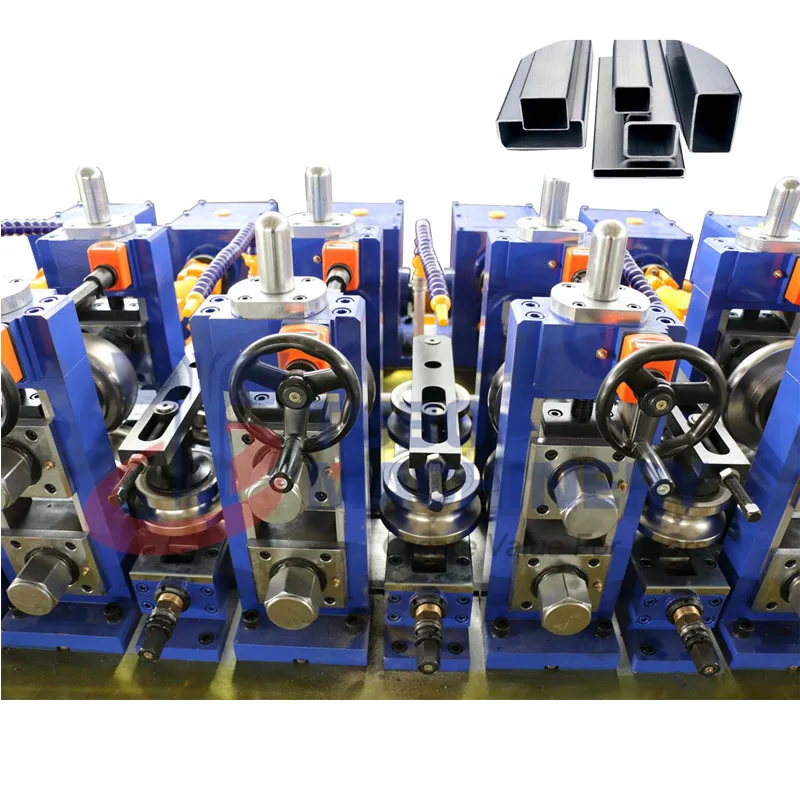

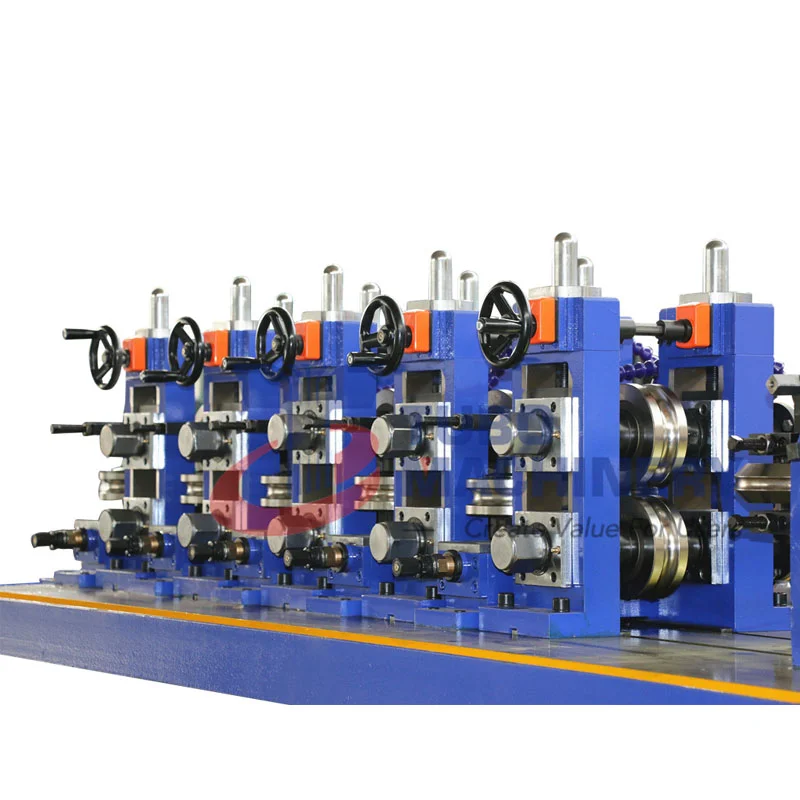

5. Forming section


This is one of the most important part for Pipe production line. Please kindly inform your following information, so that we will prepare the suitable Proposal offer for your checking.
1. Raw material.(Such as Carbon Steel/ Stainless Steel...etc)
2. Steel thickness range.
3.Pipe diameter specifications. It's better that you can send the pipe specification list.
4.Your required production speed.



6. Welding section


For welding of low carbon and high strength steel pipe welding(Round pipe, Square & Rectangular tube), stainless steel pipe welding, brass welding, Aluminum Pipe welding, H-beam welding, Finned tube welding. Welding methods: Induction welding and Contact welding.



7.Sizing section






8. Cutting saw


Cold cutting saw can reach high precious even within +/-1.0mm and the pipe end is smooth without burr.



9. Automatic Packing machine


Automatic packing machine is used to colloct, stack steel pipe into hexagon or Square Shape, and bundle automatically. It runs stably without mannual operation. Meanwhile, eliminate the noice and knocking of stock of steel pipes. Our packing line can improve your pipes quality and production efficiency, reduce cost, as well as eliminate potential safety hazard.

Feature:
Stacking and Bunding automatically
Perfect surface tube
Less labors, Lower working strength
Automatic operation, lower noisy







We have provided nearly 500 sets of equipments to domestic and foreign customers; exported to Russia, Turkey, Cyprus, Romania, Albania, Mexico, Colombia, Chile, Venezuela, Ecuador, Iran, Egypt, Syria, Ethiopia, Uganda, Angola, Vietnam, Cambodia, Sri Lanka, Kazakhstan, Tajikistan, Kyrghyzstan and other countries and regions. Due to reliable quality and attentive service, we got praises from our customers.

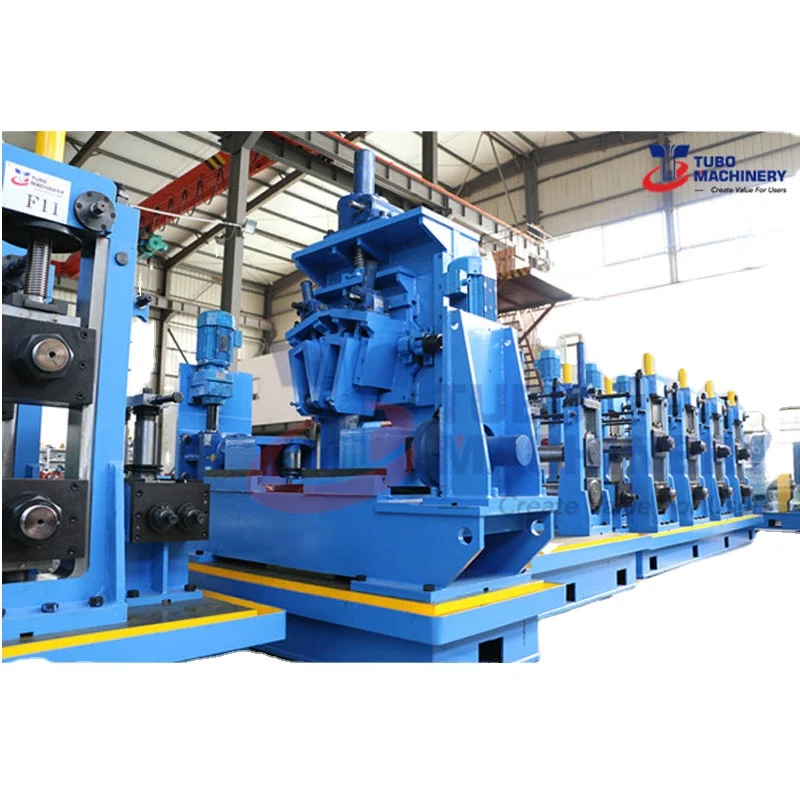

Our Workshop




Installation Instructions



All connections and fittings from the power source, air source, water source and hydraulic station to each of the machines, wire cable, pipe of the line.
Assistant equipment such as crane, air compressor, air container, water pump, water cooling device，the water pipe of the line, water and gas.
Raw material and consumable parts such as steel strip, welding wire, saw blade, engine oil and ferrite.
