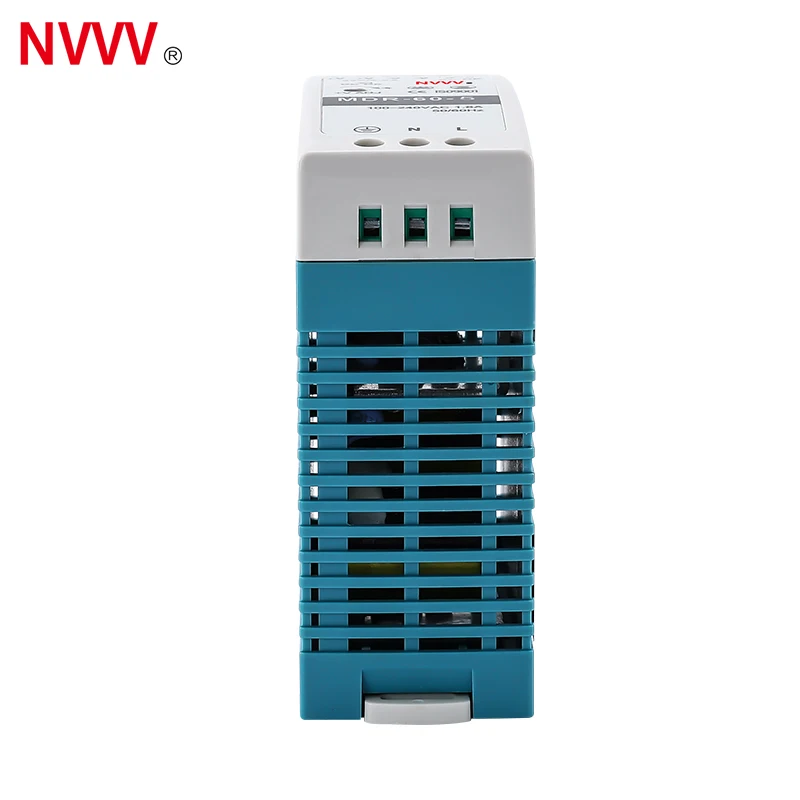

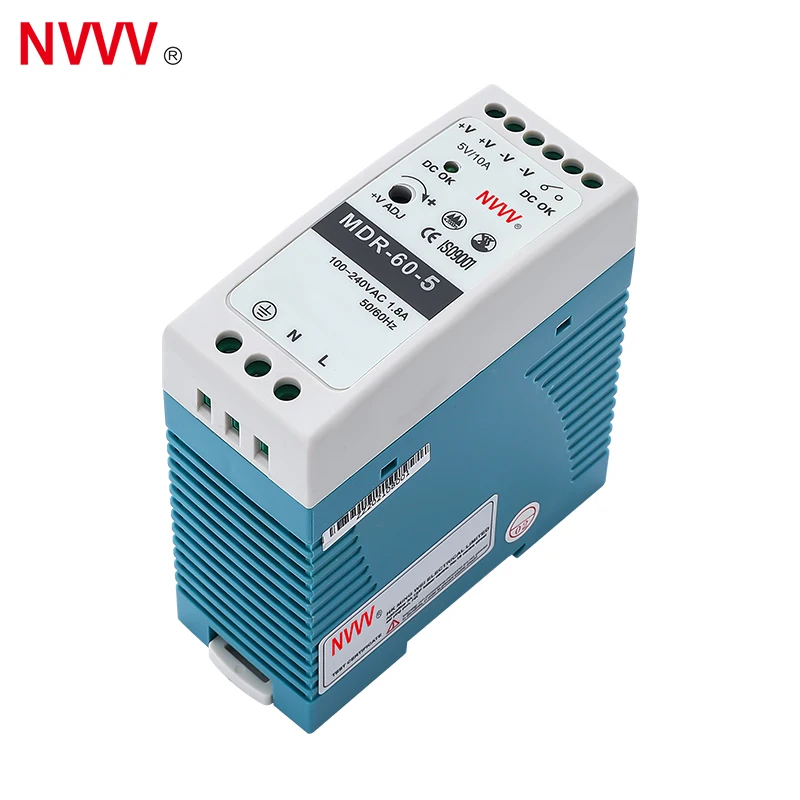

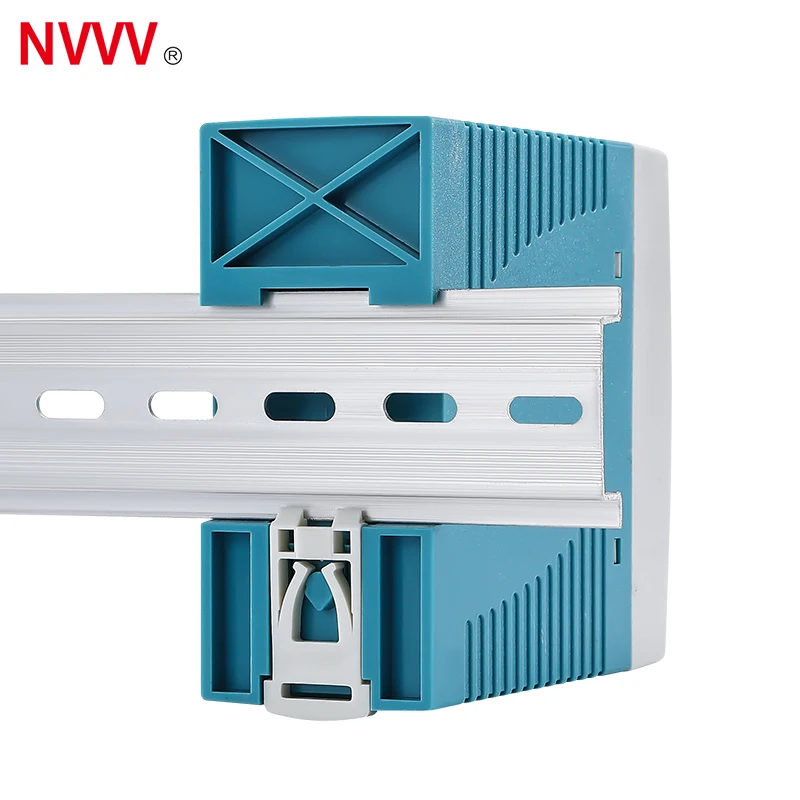

MDR 60W Switching power supply MDR series AC to DC Power 60W 5V SMPS din rail MDR 60 5
- Category: >>>
- Supplier: Zhejiang Junlin Electric Technology Co. Ltd.
Share on (11000008032889):
Product Overview
Description
Product Description
Specification
MDR-60 60W rail type switching power supply | ||||||||||
Project | Tehnical index | |||||||||
Output | DC voltage | 5V | 12V | 24V | 48V | |||||
Rated current | 10A | 5A | 2.5A | 1.25A | ||||||
Rated power | 50W | 60W | 60W | 60W | ||||||
Ripple and noise ① | ＜80mV | ＜120mV | ＜150mV | ＜200mV | ||||||
Voltage accuracy | ±2% | ±1% | ±1% | ±1% | ||||||
Output voltage regulation range | ±10% | |||||||||
Load adjustment rate | ±1.5% | ±1% | ±1% | ±1% | ||||||
Linear adjustment rate | ±1% | |||||||||
Input | Voltage range | 85-264VAC 47Hz～63Hz (120VDC～370VDC) | ||||||||
Efficiency(typical) ② | ＞78% | ＞86% | ＞88% | ＞87% | ||||||
Working current | ＜1.8A 110VAC ＜1A 220VAC | |||||||||
Impulse current | 110VAC 35A， 220VAC 70A | |||||||||
Start，rise hold time | 500ms、30ms、25ms ：110VAC 500ms、30ms、120ms ：220VAC | |||||||||
Protect | Overload protection | 105%-150% type：protection mode：automatic recovery after belching mode abnormal conditions are removed | ||||||||
Overload protection | When the output voltage is more than 135%，close the abnormanl output condition and restart it for recovery | |||||||||
Environ mental science | Working current | -20℃～+70℃；20%～90RH | ||||||||
Storage temperature and humidity | -40℃～+85℃；10%～95RH | |||||||||
Safety regulations | Withstand voltage | Input output:3KVAC input ground：1.5KVAC outpu ground ：0.5KVAC for 1 minute | ||||||||
Isolation resistance | Input output，input shell，output shell ：500VDC/100MΩ | |||||||||
Sther | Size | 40*90*100mm | ||||||||
Net weight/gross weight | 330/350g | |||||||||
Remark | ①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at a bandwidth of 20MHz. ②The efficiency is at an input voltage of 230VAC, rated load, and an ambient temperature of 25°C Under test. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear adjustment rate test method: from low voltage to high voltage under rated load test load adjustment rate test method: from 0%-100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters. | |||||||||
Company Profile
NVVV Zhejiang Junlin Electric New Technology Co., Ltd. is one of the world's switching power supply manufacturers, dedicated to providing customers with a stable switching power supply.
The products officially sold by King's Landing mainly include complete AC/DC power supply, substrate type AC/DC power supply, multi-channel isolated output power supply, DC/DC power supply, AC/DC module, DC/DC module, rail type power supply, voltage regulator Power supply, monitoring power supply, power supply 24V, power supply 12V, light box power supply, etc. Widely used in industrial automation (NC, laser, electronically controlled machinery, etc.), communications (switches, POE, base stations, etc.), LED lighting and display, medical, security, power control, metallurgy, water treatment, infrastructure, and other fields.
The company's products have passed CE certification, passed the national mandatory CCC certification, and the company has passed the ISO9001 quality management system certification. Sold all over the world, and also exported to Europe, the Middle East, Southeast Asia, and the Americas, and other places
In order to ensure timely delivery, the company has maintained 90% of the standard product inventory. If the company's existing models cannot meet your needs, our strong R&D team can also develop and customize them according to your needs. Based on our more than 20 years of professional switching power supply research and development experience, I believe we can provide you with a comprehensive set of solutions for switching power supply, become your long-term partner, join hands with King's Landing, and create brilliant.
The company takes the market as the guide, the quality as the life, the technological innovation as the driving force, and the production efficiency as the goal, adheres to the good quality and the market price, and wholeheartedly provides the domestic and foreign merchants with good products and advantageous services.
NVVV is a high-quality switching power supply brand under Hong Kong Mingwei Electric Co., Ltd. (hereinafter referred to as "Mingwei Electric"). The high-value switching power supply allows each user to enjoy a safe and worry-free experience. Innovatively developed more than 3,000 professional products such as LRS series, S series, and rail power supplies, bringing users one-stop product selection. And by upgrading the quality control system, continuously optimizing the layout of circuit boards, and continuously adopting high-tech chips and new technologies to make the power supply more durable, stable, and reliable, and to continuously improve and surpass the overall quality. And through the construction of its own factories and automated assembly lines, it promotes the rapid increase of production capacity, and responds to and meets order needs with sufficient supply in a timely manner.
The products officially sold by King's Landing mainly include complete AC/DC power supply, substrate type AC/DC power supply, multi-channel isolated output power supply, DC/DC power supply, AC/DC module, DC/DC module, rail type power supply, voltage regulator Power supply, monitoring power supply, power supply 24V, power supply 12V, light box power supply, etc. Widely used in industrial automation (NC, laser, electronically controlled machinery, etc.), communications (switches, POE, base stations, etc.), LED lighting and display, medical, security, power control, metallurgy, water treatment, infrastructure, and other fields.
The company's products have passed CE certification, passed the national mandatory CCC certification, and the company has passed the ISO9001 quality management system certification. Sold all over the world, and also exported to Europe, the Middle East, Southeast Asia, and the Americas, and other places
In order to ensure timely delivery, the company has maintained 90% of the standard product inventory. If the company's existing models cannot meet your needs, our strong R&D team can also develop and customize them according to your needs. Based on our more than 20 years of professional switching power supply research and development experience, I believe we can provide you with a comprehensive set of solutions for switching power supply, become your long-term partner, join hands with King's Landing, and create brilliant.
The company takes the market as the guide, the quality as the life, the technological innovation as the driving force, and the production efficiency as the goal, adheres to the good quality and the market price, and wholeheartedly provides the domestic and foreign merchants with good products and advantageous services.
NVVV is a high-quality switching power supply brand under Hong Kong Mingwei Electric Co., Ltd. (hereinafter referred to as "Mingwei Electric"). The high-value switching power supply allows each user to enjoy a safe and worry-free experience. Innovatively developed more than 3,000 professional products such as LRS series, S series, and rail power supplies, bringing users one-stop product selection. And by upgrading the quality control system, continuously optimizing the layout of circuit boards, and continuously adopting high-tech chips and new technologies to make the power supply more durable, stable, and reliable, and to continuously improve and surpass the overall quality. And through the construction of its own factories and automated assembly lines, it promotes the rapid increase of production capacity, and responds to and meets order needs with sufficient supply in a timely manner.
Packing & Delivery
Safety Packaging
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(30.00%),North America(20.00%),South Asia(6.00%),Mid East(6.00%),Eastern Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Western Europe(4.00%),Northern Europe(4.00%),Africa(4.00%),South America(3.00%),Central America(3.00%),Southeast Asia(3.00%),Eastern Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Switching Power Supply
4. why should you buy from us not from other suppliers?
Junlin switching power supply is widely used in industrial automation LED lighting and display, medical, security, power control, metallurgy, water treatment, infrastructure, and other fields.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(30.00%),North America(20.00%),South Asia(6.00%),Mid East(6.00%),Eastern Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Western Europe(4.00%),Northern Europe(4.00%),Africa(4.00%),South America(3.00%),Central America(3.00%),Southeast Asia(3.00%),Eastern Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Switching Power Supply
4. why should you buy from us not from other suppliers?
Junlin switching power supply is widely used in industrial automation LED lighting and display, medical, security, power control, metallurgy, water treatment, infrastructure, and other fields.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
