Steel Tube Mill Welding Plant manufacturers factory price Tube Mill
- Category: >>>
- Supplier: Hebei Tubo Machinery Co. Ltd.
Share on (11000008035161):
Product Overview
Description

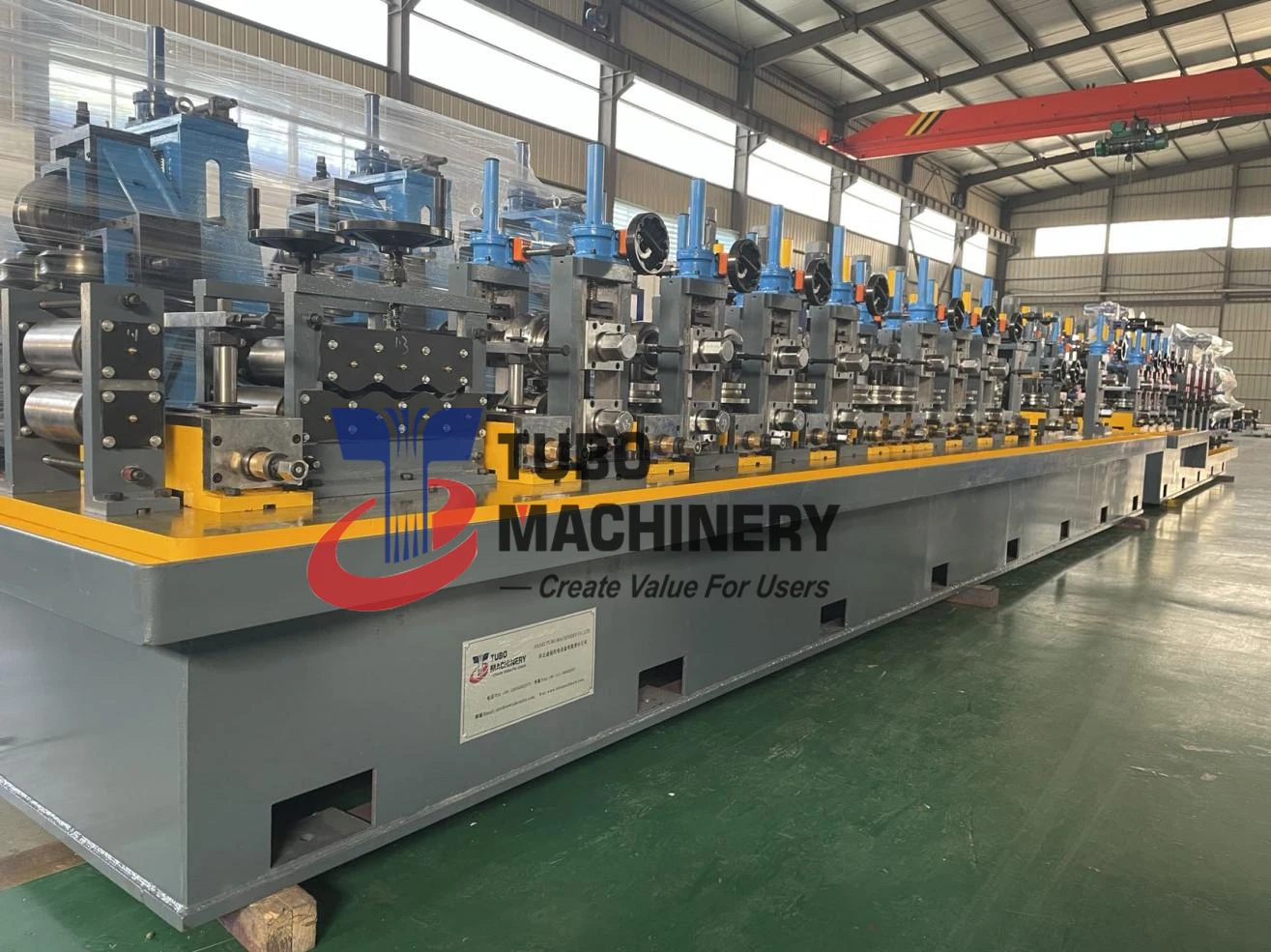

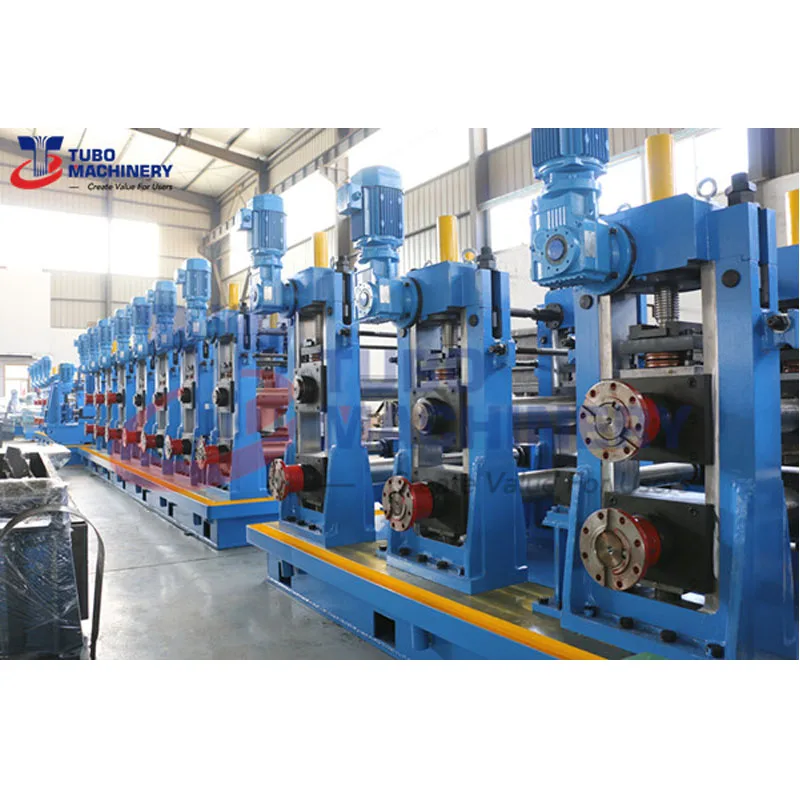

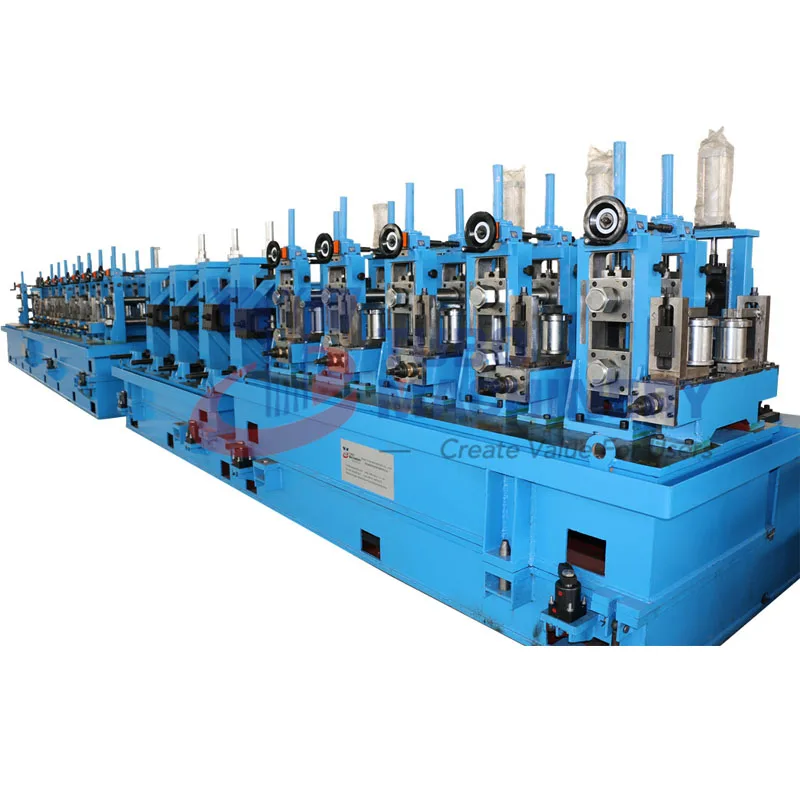

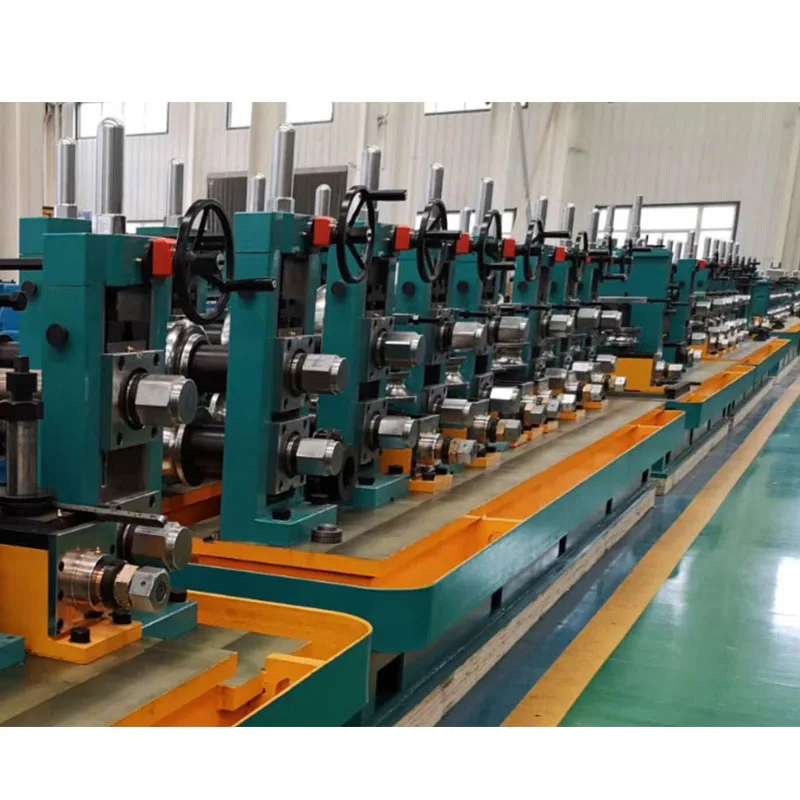

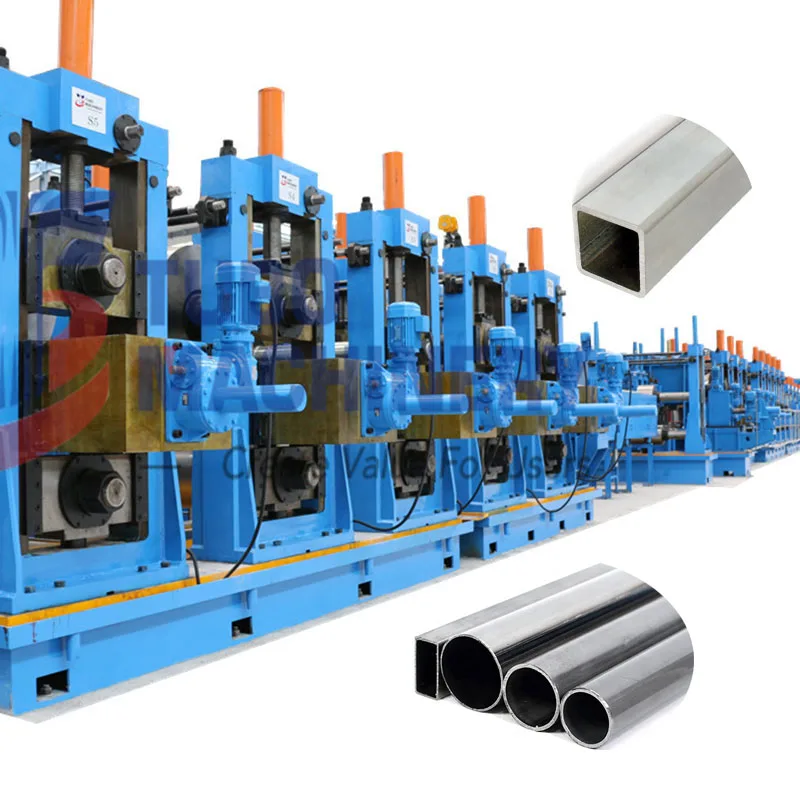

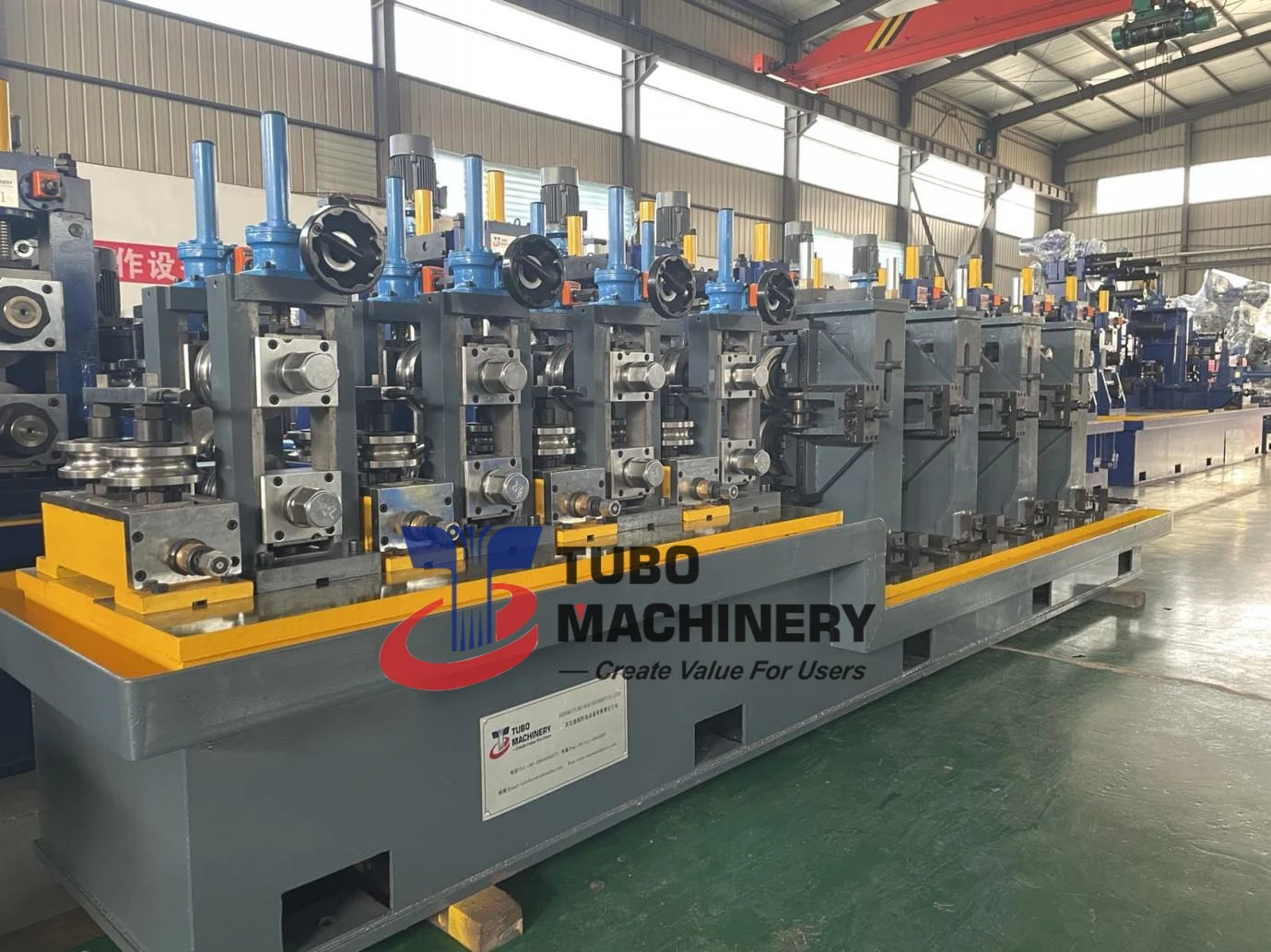

Tube Mill Production Line
Company Introduction
Hebei Tubo Machinery Co.,Ltd
Hebei Tubo Machinery Co.,LTD is a high-tech enterprise registered in Shijiazhuang City. Hebei Province. It specialized in Developing and Manufacturing for the complete set of equipments and related technical service of High Frequency Welded Pipe Production Line and Large-size Square Tube Cold Forming Line .
With more than 130 sets all types of CNC machining equipment, Hebei Tubo Machinery Co.,Ltd., manufactures and exported to over 20 countries of welded tube/pipe mill, cold roll forming machine and slitting line, as well as auxiliary equipment for more than 15 years.
TUBO Machinery, as a partner of users, provides not only high precision machine products, but also technical support everywhere & anytime.
Product Specifications
Model | Round Pipe | Square & Rectangular Pipe | Speed (m/min) | ||||
Dia.(mm) | Thickness(mm) | Dia.(mm) | Thickness(mm) | ||||
ERW32 | 10-38mm | 0.5-2.0mm | 10x10-30x30mm | 0.5-1.6mm | Max.120m | ||
ERW50 | 15-51mm | 0.5-2.5mm | 15x15-40x40mm | 0.5-2.0mm | Max.120m | ||
ERW60 | 16-60.3mm | 0.5-3.0mm | 15x15-50x50mm | 0.5-2.5mm | Max.120m | ||
ERW76 | 20-76mm | 1.0-4.0mm | 20x20-60x60mm | 1.0-3.0mm | Max.120m | ||
ERW89 | 25-89mm | 1.0-4.5mm | 20x20-70x70mm | 1.0-3.5mm | Max.120m | ||
ERW114 | 38-114mm | 1.0-5.0mm | 40x40-90x90mm | 1.0-4.0mm | Max.80m | ||
ERW165 | 60-165mm | 2.0-6.0mm | 50x50-150x150mm | 2.0-5.0mm | Max.60m | ||
ERW219 | 89-219mm | 3.0-8.0mm | 80x80-200x200mm | 3.0-8.0mm | Max.50m | ||
ERW273 | 114-273mm | 4.0-10.0mm | 100x100-250x250mm | 4.0-10.0mm | Max.40m | ||
ERW325 | 165-325mm | 4.0-12.7mm | 100x100-300x300mm | 4.0-12.0mm | Max.30m | ||
ERW426 | 219-426mm | 5.0-14.0mm | 150x150-350x350mm | 5.0-14.0mm | Max.30m | ||
ERW508 | 219-508mm | 6.0-16.0mm | 200x200-400x400mm | 6.0-16.0mm | Max.25m | ||
ERW610 | 325-610mm | 6.0-18.0mm | 250x250-500x500mm | 6.0-18.0mm | Max.25m | ||
ERW720 | 355-720mm | 6.0-20.0mm | 300x300-600x600mm | 6.0-20.0mm | Max.25m | ||
Products Description

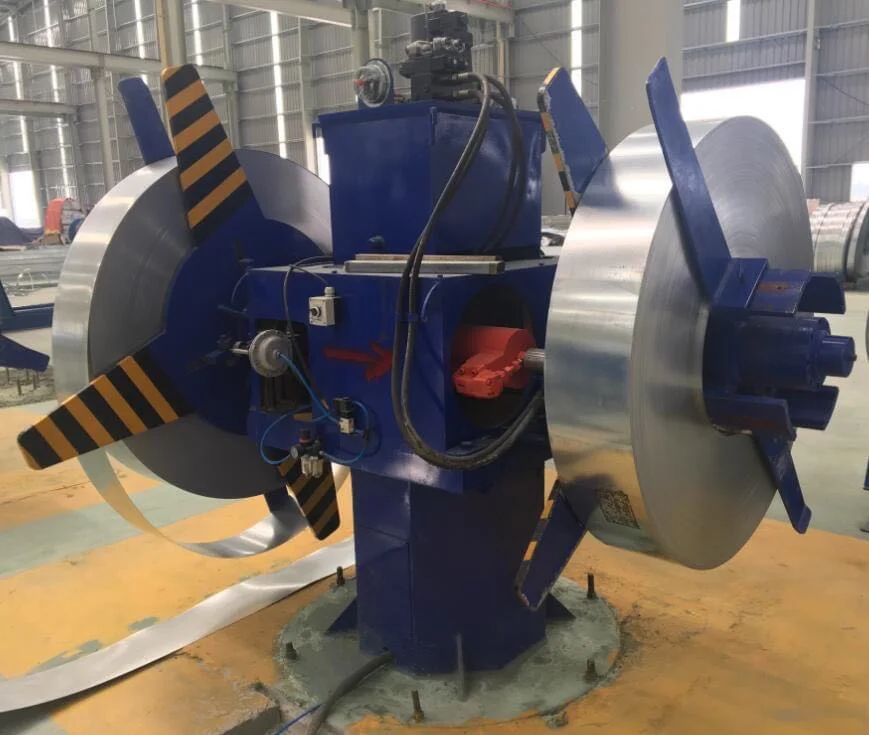

1. Uncoiler
Un-Coiler is the important equipment of entrance section of pipe mill line, mainly used to hold steel strip to make coils unfold, supplying raw material for the production line.

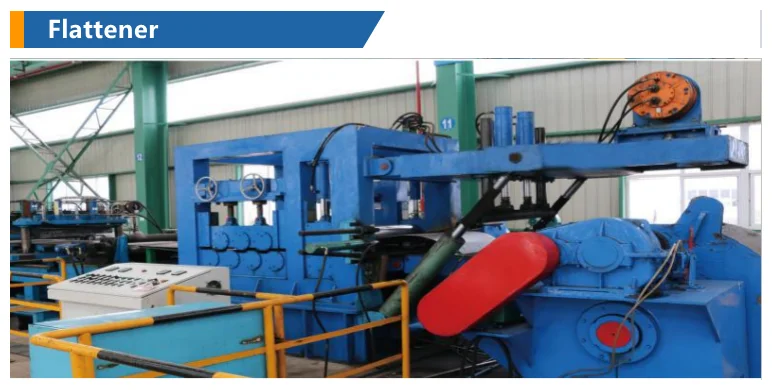

2. Flattener
Flattener is used to flat the ends of steel strip after Uncoiler, includes the Pinching Roll and Flattening Roll. providing the convenience for the next processing Shear & Butt Welding Device.

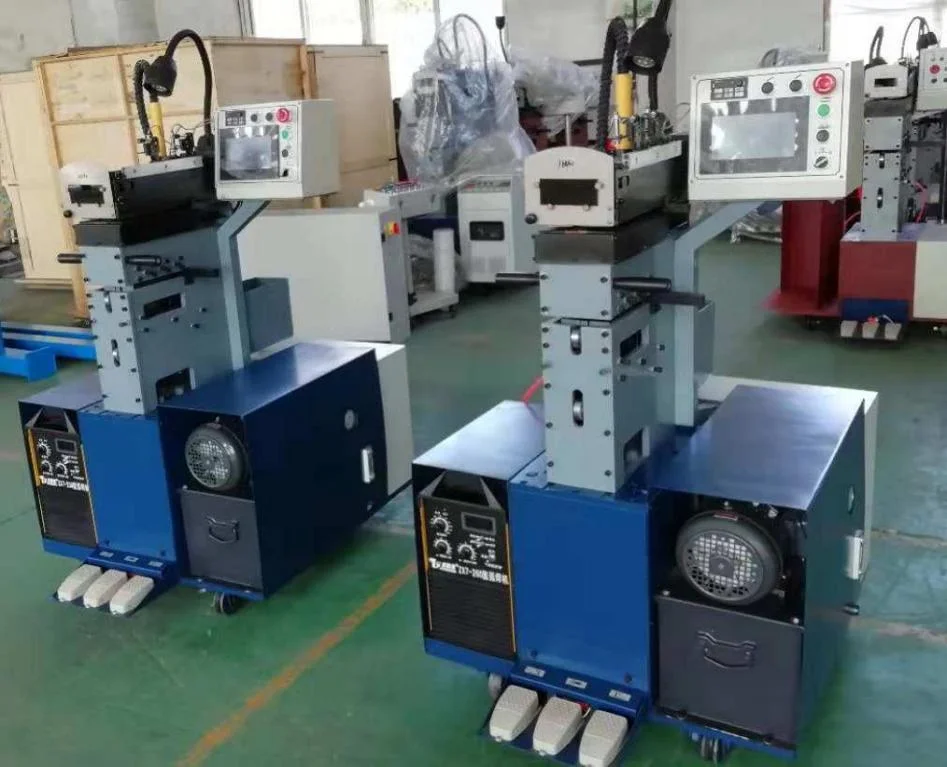

3. Shear & Butt Welding Device
Shear & Butt Welding is used to shear the irregular ends of steel strip and weld steel strips of two coils together. Thus ensuring the continuous production.
4.Accumulator
The accumulator is used to store the steel strip material before it is delivered to pipe forming machines, thus ensuring the continuous production.

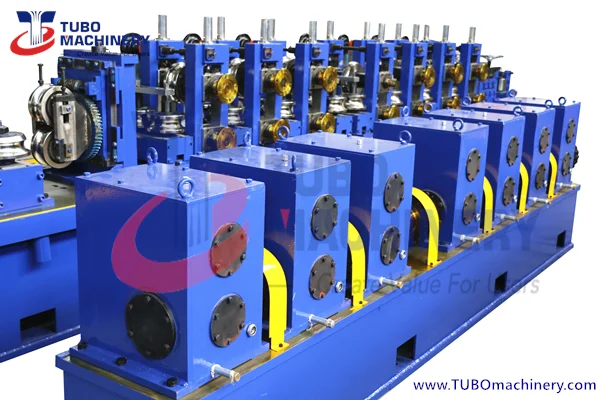

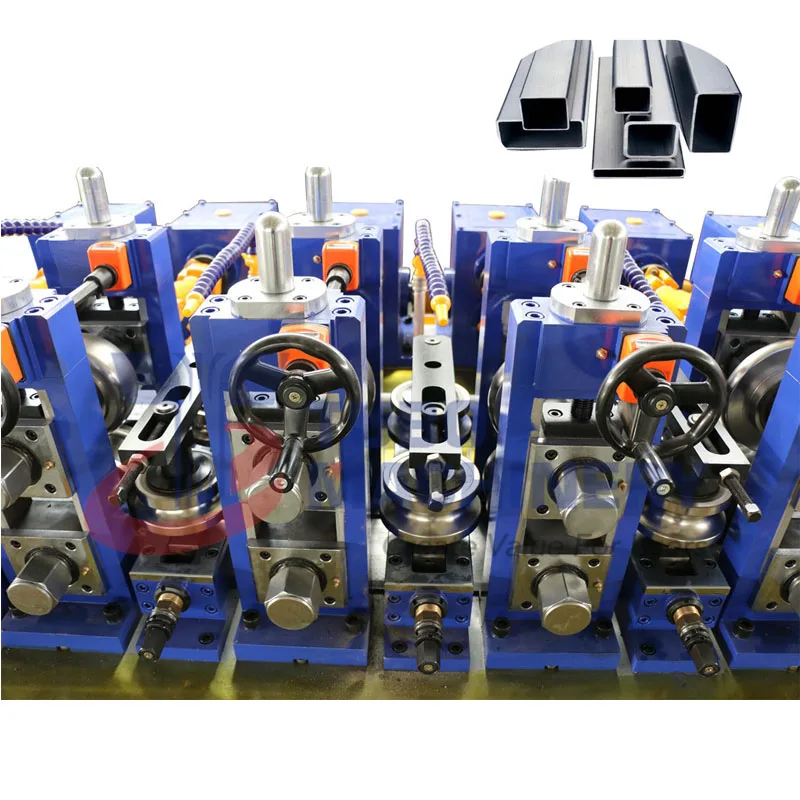

5. Forming section
This is one of the most important part for Pipe production line. Please kindly inform your following information, so that we will prepare the suitable Proposal offer for your checking.
1. Raw material.(Such as Carbon Steel/ Stainless Steel...etc)
2. Steel thickness range.
3.Pipe diameter specifications. It's better that you can send the pipe specification list.
4.Your required production speed.
6. Welding section
For welding of low carbon and high strength steel pipe welding(Round pipe, Square & Rectangular tube), stainless steel pipe welding, brass welding, Aluminum Pipe welding, H-beam welding, Finned tube welding. Welding methods: Induction welding and Contact welding.
7.Sizing section

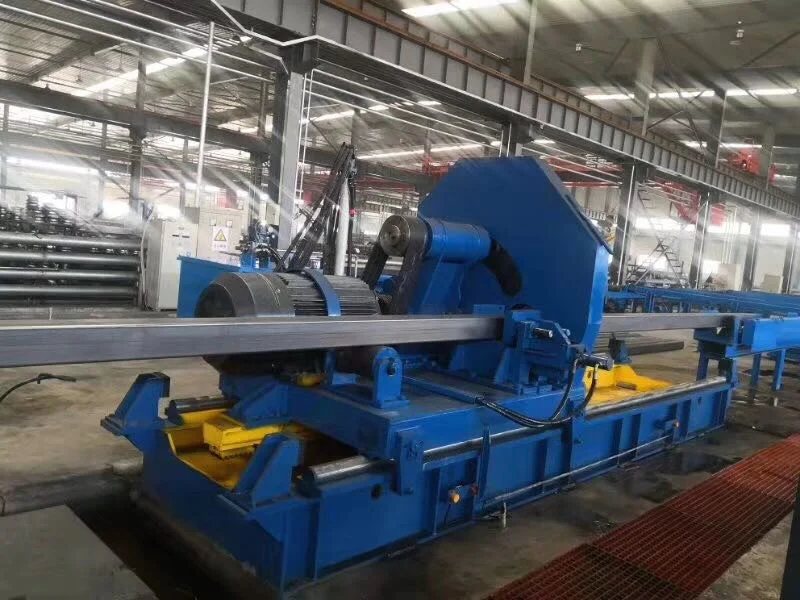

8. Cutting saw
Cold cutting saw can reach high precious even within +/-1.0mm and the pipe end is smooth without burr.
9. Automatic Packing machine
Automatic packing machine is used to colloct, stack steel pipe into hexagon or Square Shape, and bundle automatically. It runs stably without mannual operation. Meanwhile, eliminate the noice and knocking of stock of steel pipes. Our packing line can improve your pipes quality and production efficiency, reduce cost, as well as eliminate potential safety hazard.
Feature:
Stacking and Bunding automatically
Perfect surface tube
Less labors, Lower working strength
Automatic operation, lower noisy
We have provided nearly 500 sets of equipments to domestic and foreign customers; exported to Russia, Turkey, Cyprus, Romania, Albania, Mexico, Colombia, Chile, Venezuela, Ecuador, Iran, Egypt, Syria, Ethiopia, Uganda, Angola, Vietnam, Cambodia, Sri Lanka, Kazakhstan, Tajikistan, Kyrghyzstan and other countries and regions. Due to reliable quality and attentive service, we got praises from our customers.

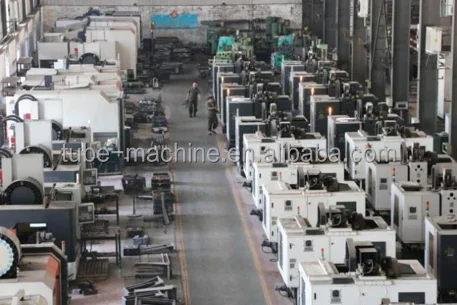

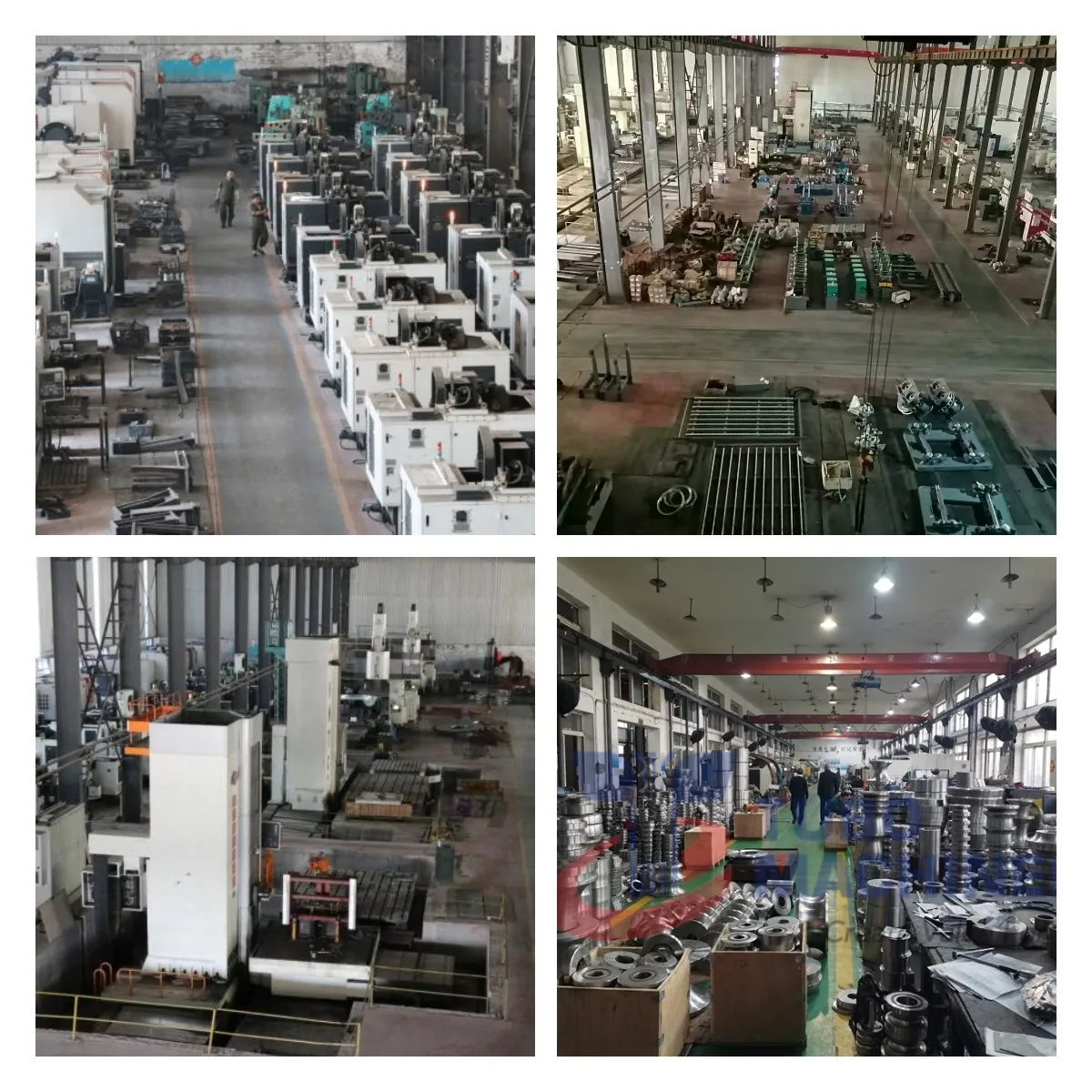

Our Workshop

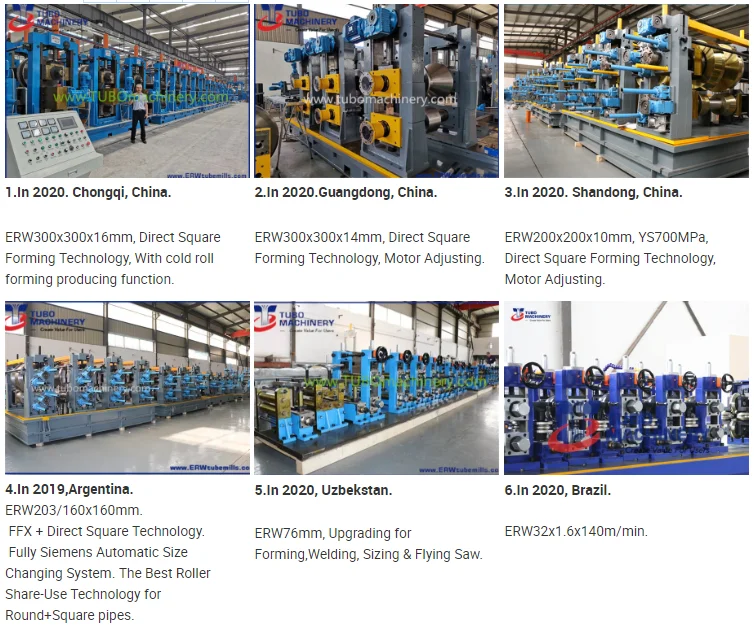

Successful Project
