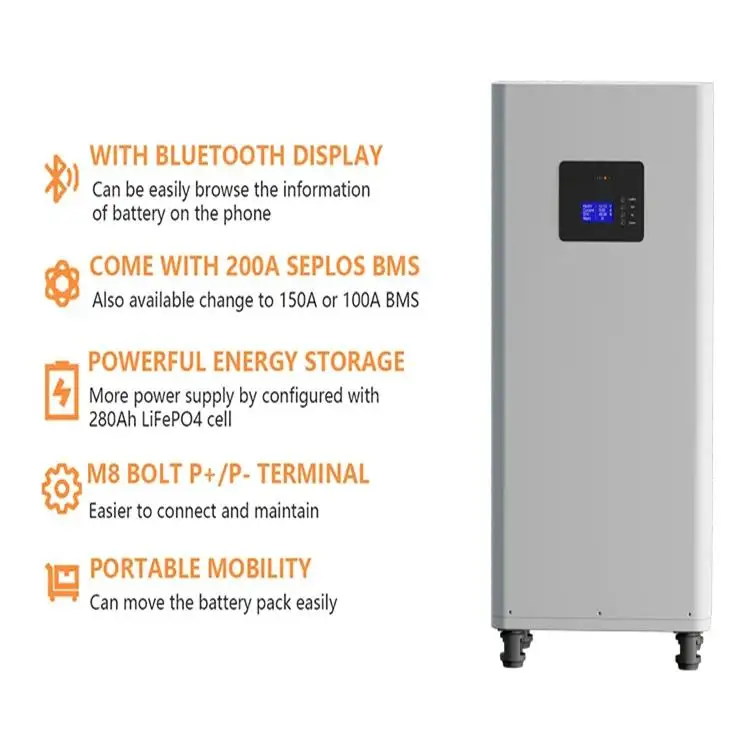

51.2V 280ah DIY kits energy storage battery system could be lifepo4 lithium ion batteries for household Withbms seplos mason 280
- Category: >>>
- Supplier: Shenzhen Xingzhijie Electronic Co. Ltd.
Share on (11000008061043):
Product Overview
Description
Specification
item | value |
Model Number | 51.2V 280AH BATTERY PACK |
Place of Origin | China |
Guangdong | |
Brand Name | xingzhjijie |
Battery Type | Lithium Ion, LiFePO4 |
Rated energy | 14.336KWh |
Configuration | 1P16S |
Nominal Voltage | 51.2Volts |
Nominal Capacity | 280Ah |
Weight | 280Ah |
Altitude Limited | 280Ah |
Cycle life | 0-3000m |
IP level | 6000 cycles @25℃ 50A charging/discharging current 80% DOD |
Weight (Kg) | 113Kg±3kg |
Package List:

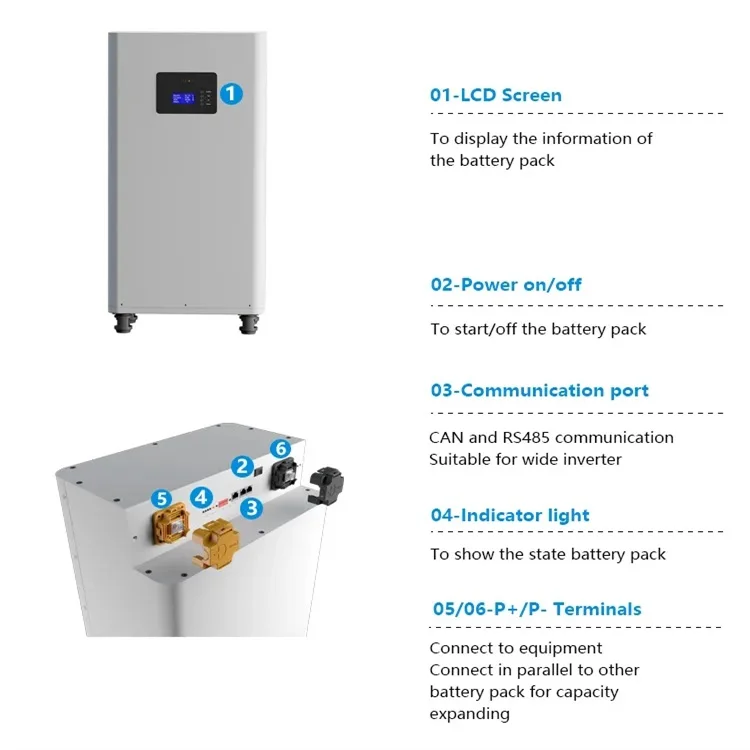

The battery pack DIY kits bundle including all the parts and materials to assemble a 51.2V 280Ah battery pack for home energy storage and solar battery storage.
The packing list is as follows, please check before formal assemble.
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S Seplos BMS
1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
The packing list is as follows, please check before formal assemble.
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S Seplos BMS
1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
Product Description
Company Profile
Shenzhen Xingzhijie Electronic Co.,Ltd.,was established in 2005 who is specialized in designing and producing solar panel,battery energy storage,portable power station,solar inverter and other solar related products.now we have 2 Production base total ,one is in Shenzhen Guangdong province and the other is in Jiangxi province,the area of both two factory are 50,000 square meters with more than 400 workers.
Our product quality conforms to CE,UL,Rohs certification and other standards.We strictly follows the ISO 9001 quality system standard to provide customers with competitive advantage products.
Xinzhijie could provide one-stop solutions,including grid-connected,off-grid,hybrid energy storage solar systems,solar outdoor portable energy storage and LifePo4 high-efficiency energy storage batteries.with competitive advantage products and good after-sales service,we have established good long-term cooperative relationship with many customers around the world,and our products are exported to more than 150 countries and regions all over the world.We have been deeply involved in the new energy industry for 17 years.
We have srong R&D team,could develop more than 40+ new product every year to satisfy the market's needs.our vision is become a world-class new energy company with superior quality and excellent service.we are recruiting brand distribution partners from all over the world to work together to help the development of new energy.welcome to vist our factory or have a video visit our factory.
Our product quality conforms to CE,UL,Rohs certification and other standards.We strictly follows the ISO 9001 quality system standard to provide customers with competitive advantage products.
Xinzhijie could provide one-stop solutions,including grid-connected,off-grid,hybrid energy storage solar systems,solar outdoor portable energy storage and LifePo4 high-efficiency energy storage batteries.with competitive advantage products and good after-sales service,we have established good long-term cooperative relationship with many customers around the world,and our products are exported to more than 150 countries and regions all over the world.We have been deeply involved in the new energy industry for 17 years.
We have srong R&D team,could develop more than 40+ new product every year to satisfy the market's needs.our vision is become a world-class new energy company with superior quality and excellent service.we are recruiting brand distribution partners from all over the world to work together to help the development of new energy.welcome to vist our factory or have a video visit our factory.
